Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
HOM12M100C

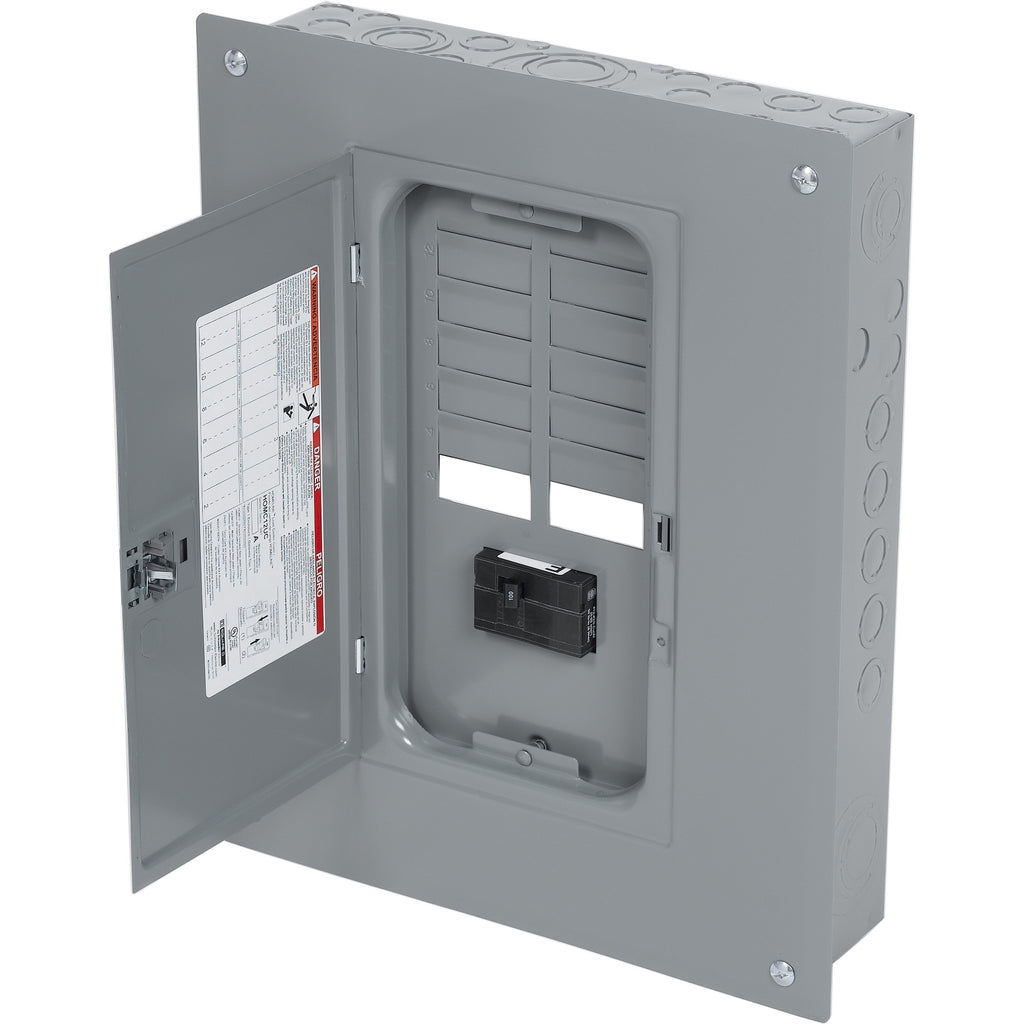

HOM12M100C is a Square D Homeline 100A 1-Phase 12-Space 12-Circuit Load Center with NEMA 1 rating, designed for indoor use and compatible with QOM frame circuit breakers. This load center features a convertible main breaker, tin and copper plated aluminum bus bars, and distributed neutral bars for tidy wiring. It provides reliable circuit protection for residential and light commercial applications, supporting both copper and aluminum conductors.
- Amperage: 100A
- Voltage: 120/240V AC
- Phases: 1-Phase 3-Wire
- Spaces: 12
- Circuits: 12
- Mounting Type: Indoor
- Interrupt Rating: 10kA
- Series/Frame: Homeline, QOM compatible
- Enclosure Rating: NEMA 1
- Bus Bar Material: Tin and copper plated aluminum
- Conductor Compatibility: AWG 6 to AWG 2/0 copper/aluminum
- Certifications: UL Listed
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: HOM12M100C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Voltage : 240
- Amperage : 100
- Nema Rating : 1
- Compatible Frames : QOM
Product Data
- UPC : 78590186354
- GTIN : 00785901061335
- Dimensions : 17.9 in (455 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
- Weight : 18.589
