HOM115CP - Square D Homeline 15A 1-Pole 120V Mini Circuit Breaker Plug Mounting 10kA Interrupt

HOM115CP

HOM115CP is a Square D Homeline 15 Amp 1-Pole Mini Circuit Breaker designed for reliable circuit protection and fast installation.This circuit breaker features a 15 amp current rating, 1-pole configuration, and 120 volt rating with plug-in mounting. It has a 10 kA interrupt rating and a fixed trip type with quick-make, quick-break actuator. The breaker supports wire sizes from 14 to 8 AWG and operates at 50/60 Hz frequency. It is compact with dimensions of 3.13 in H x 1 in W x 2.98 in D and includes clamp terminals for secure connections.

Key Specifications
• Amperage: 15 A
• Voltage: 120 V
• Poles: 1
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Trip Type: Fixed
• Actuator Type: Quick-Make, Quick-Break
• Wire Size: 14 to 8 AWG
• Frequency: 50/60 Hz

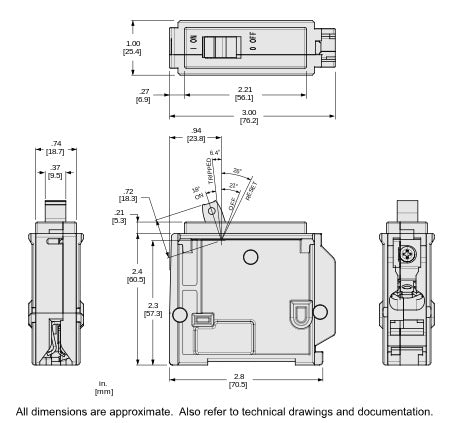

• Dimensions: 3.13 in H x 1 in W x 2.98 in D
• Color: Black

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HOM115CP
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : HOMELINE
• Type : HOM
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 047569062704
• GTIN : 047569062704
• Country of Origin : United States
• Dimensions : 3.13 in (79.50 mm) x 1 in (25.4 mm) x 2.98 in (75.69 mm) (Height x Width x Depth)
• Weight : 0.35
