Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF367R

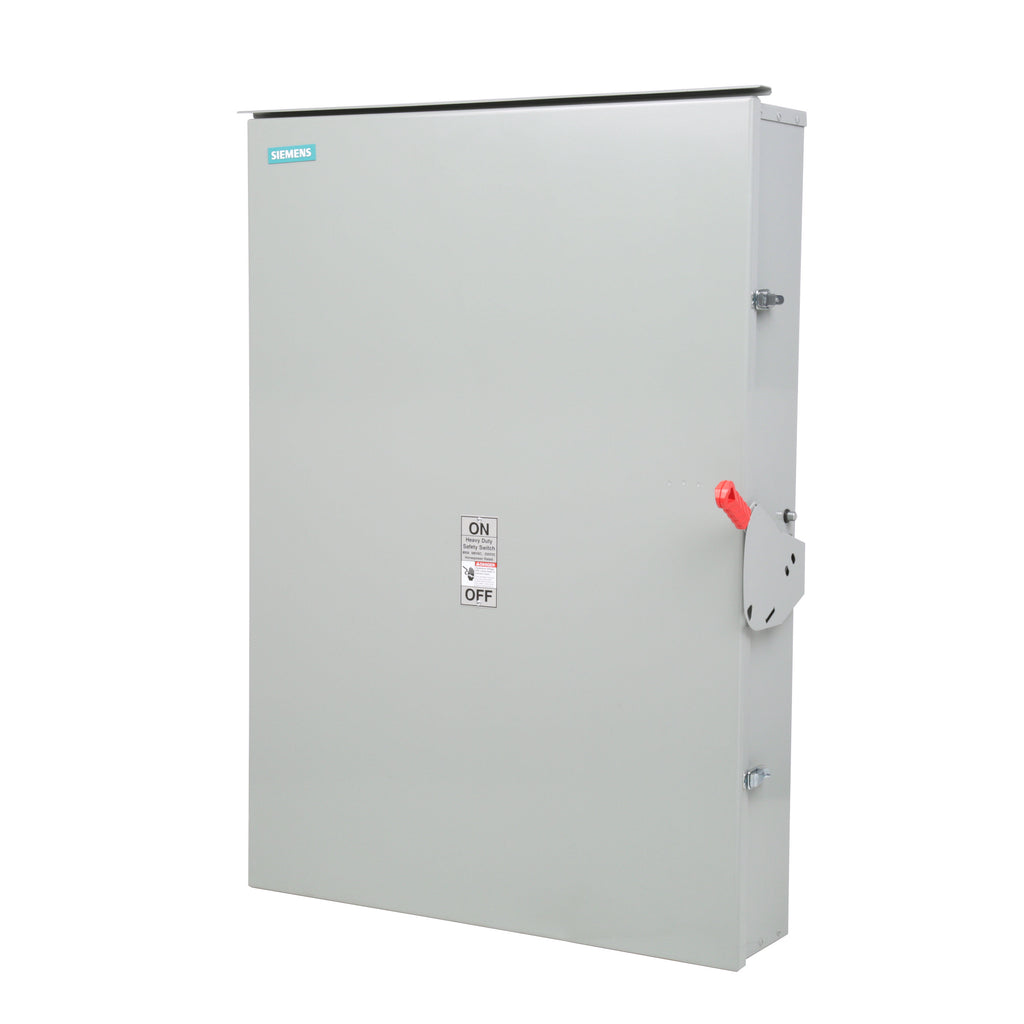

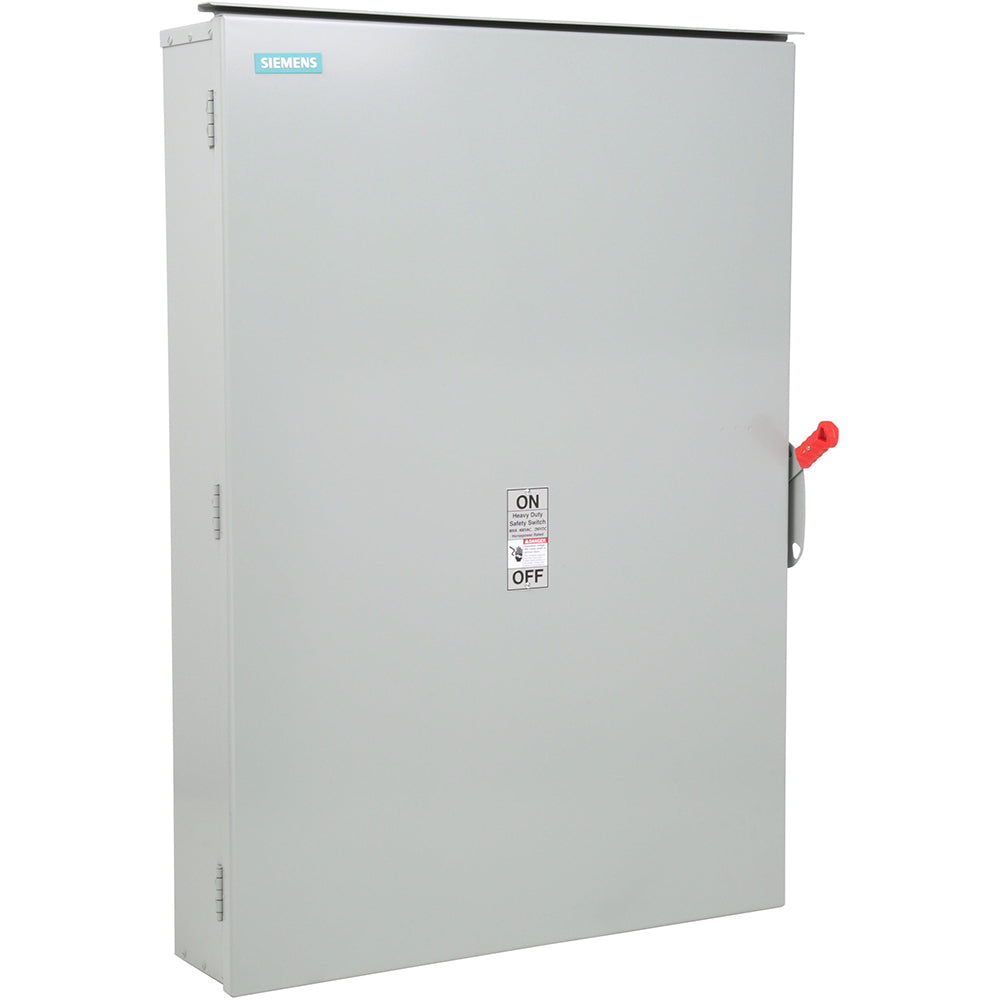

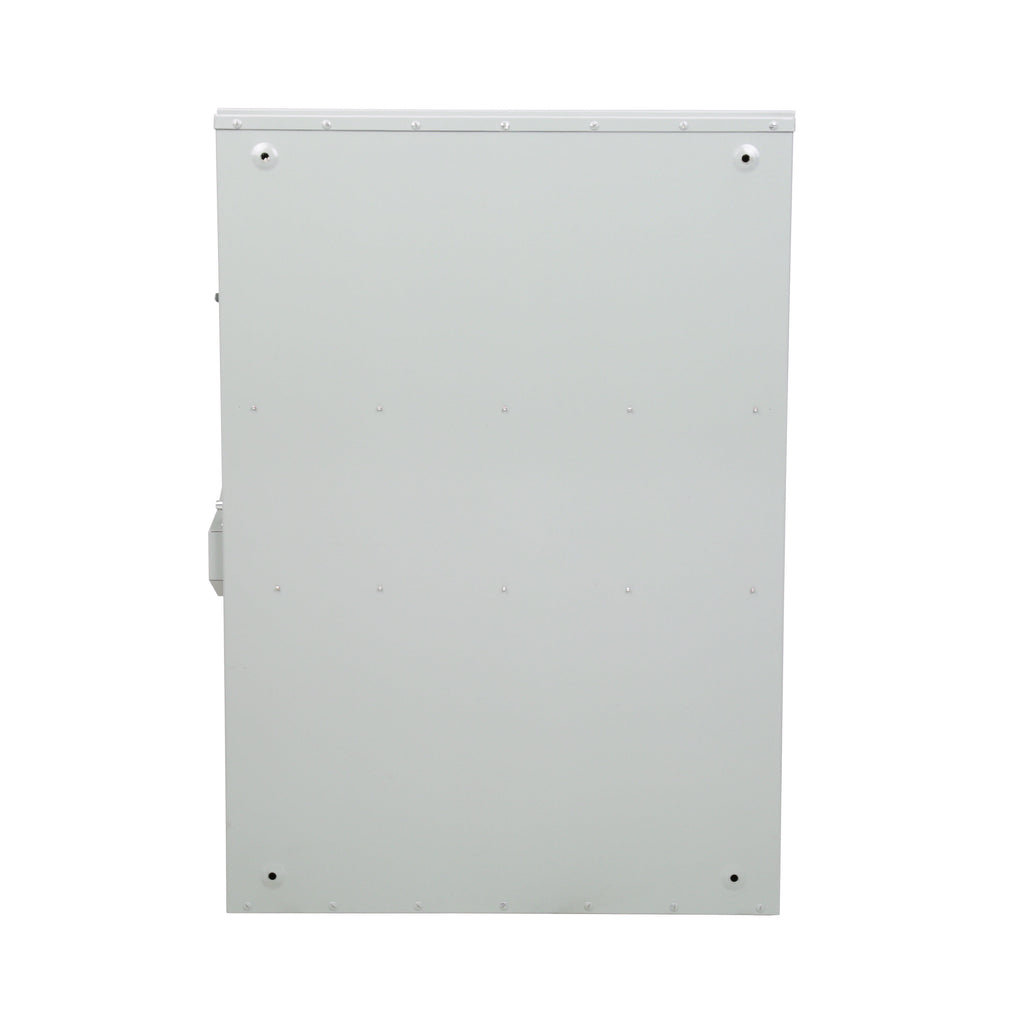

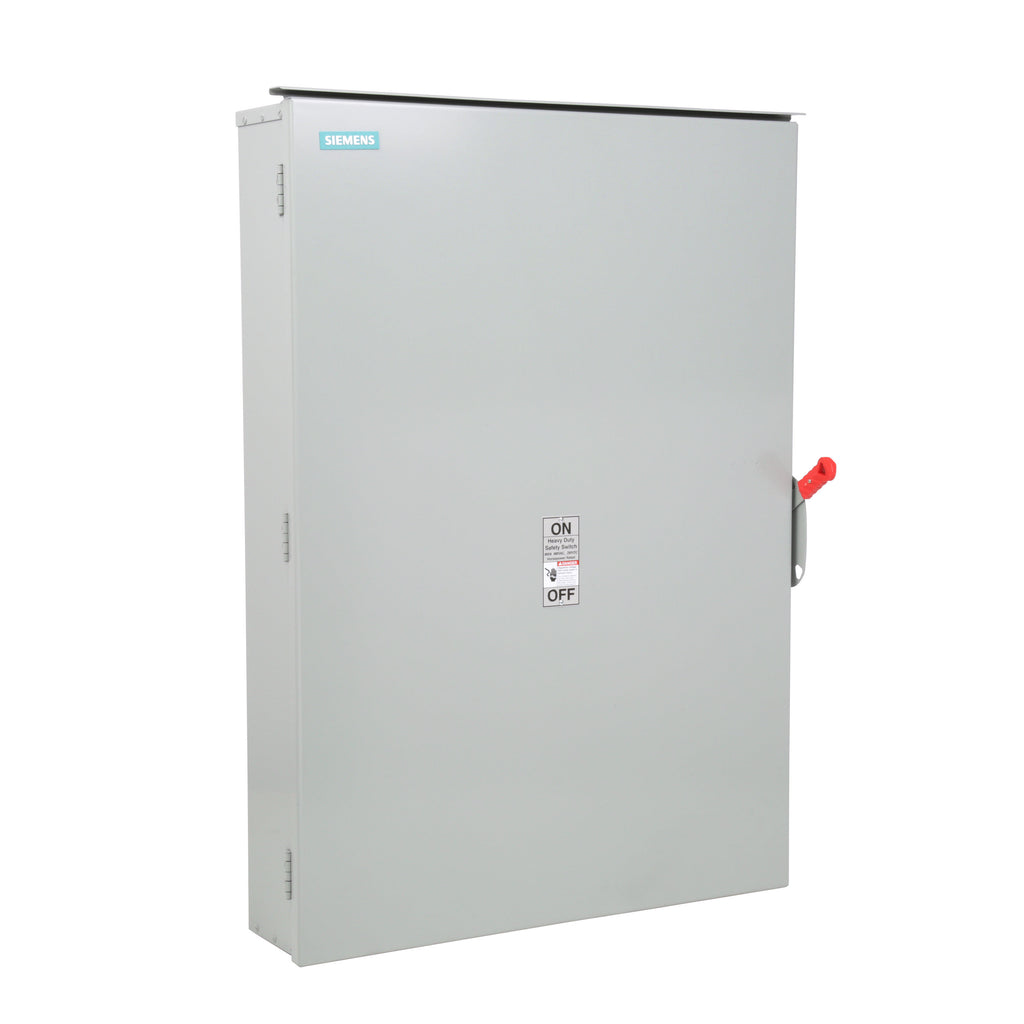

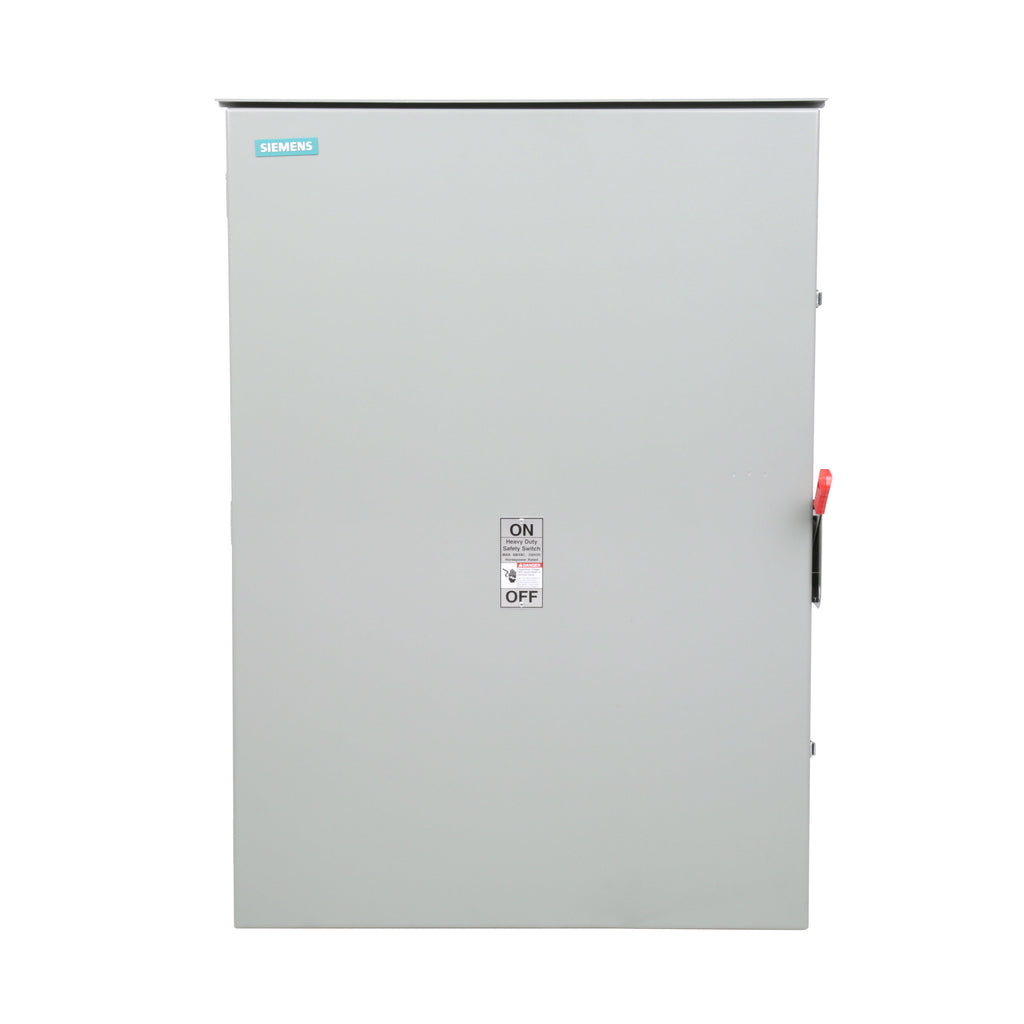

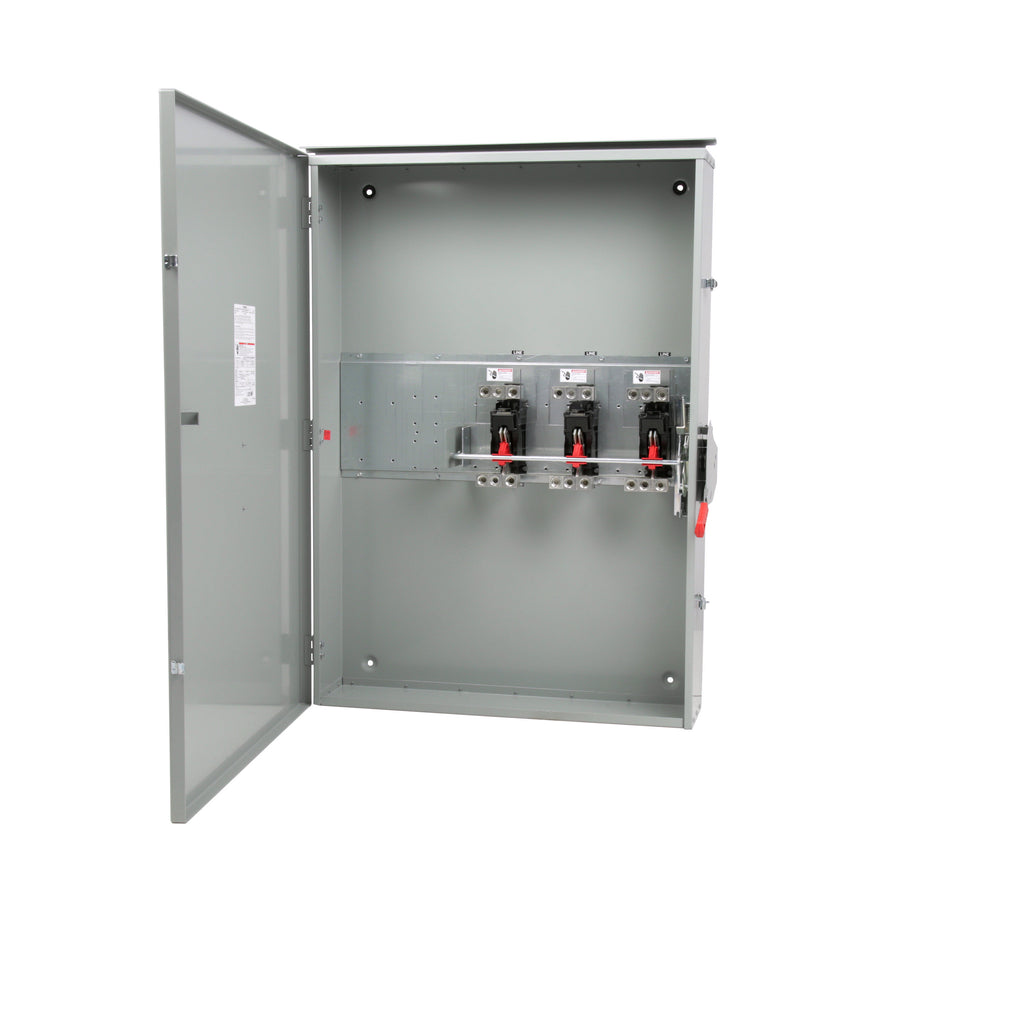

HNF367R is a Siemens heavy duty non-fusible safety switch rated for 800 amps and 600 volts AC with 3 poles in a Type 3R enclosure.This switch is designed for low voltage circuit protection with a 3-pole, 3-wire configuration. It features a non-fusible, single throw design suitable for outdoor use with a NEMA 3R enclosure. The switch supports up to 800 amps continuous current and 600 VAC voltage rating, making it ideal for heavy duty industrial applications. It has a high interrupt rating and is capable of handling up to 500 horsepower motors. The enclosure is weather-resistant and built for durability.
- Key Specifications
- Amperage: 800 A
- Voltage: 600 VAC
- Poles: 3
- Wire: 3
- Mounting Type: Enclosed, Type 3R (Outdoor)
- Interrupt Rating: 200 kA
- Series/Frame: Type VBII
- Trip Unit: Non-Fusible
- Horsepower Rating: 500 hp
- Certifications: UL Listed
- Duty: Heavy Duty
Specifications
- Part Number: HNF367R
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Wire : 3
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 3R
- Compatible Frames : PGP
Product Data
- UPC : 783643151796
- GTIN : 0783643151796
- Country of Origin : Mexico
- Dimensions : 72.835 x 42.913 x 11.811 inch
- Weight : 270.573
- Certification : UL listed
