Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF366JA

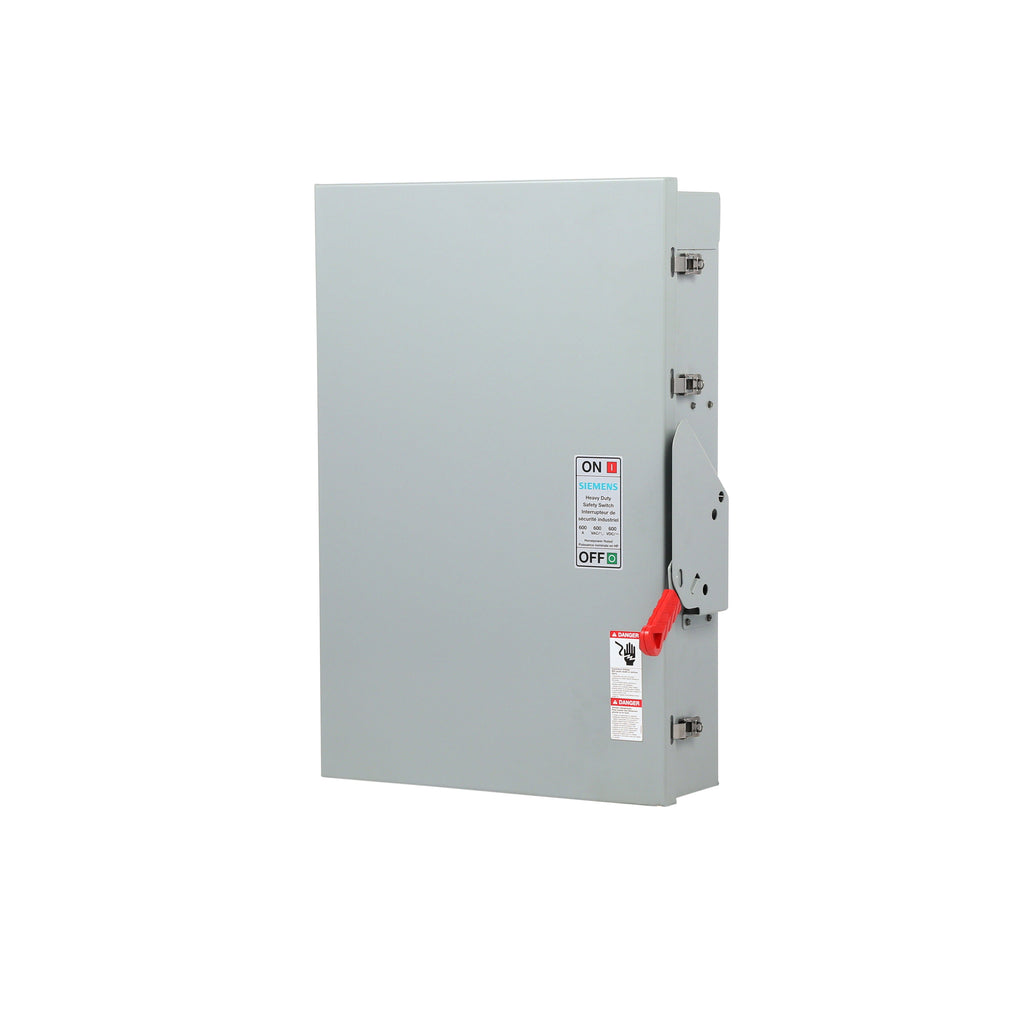

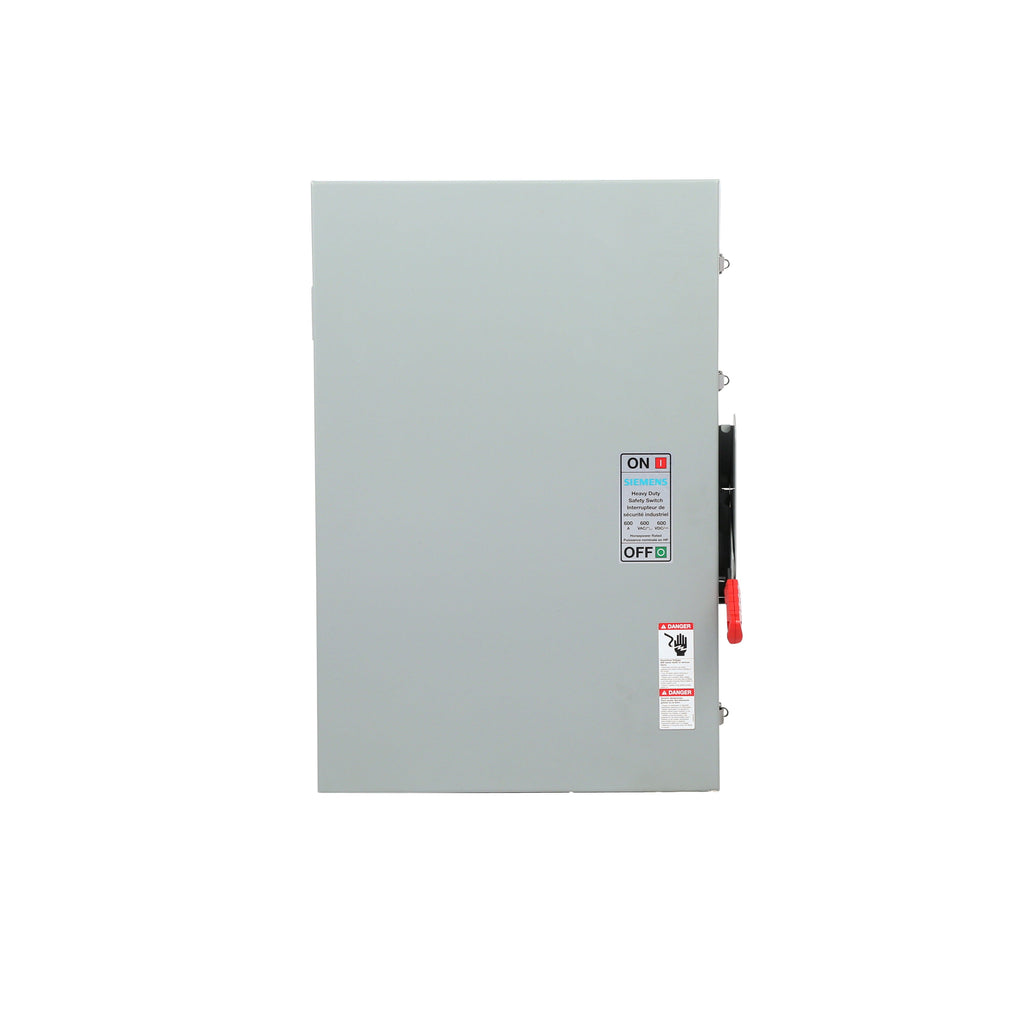

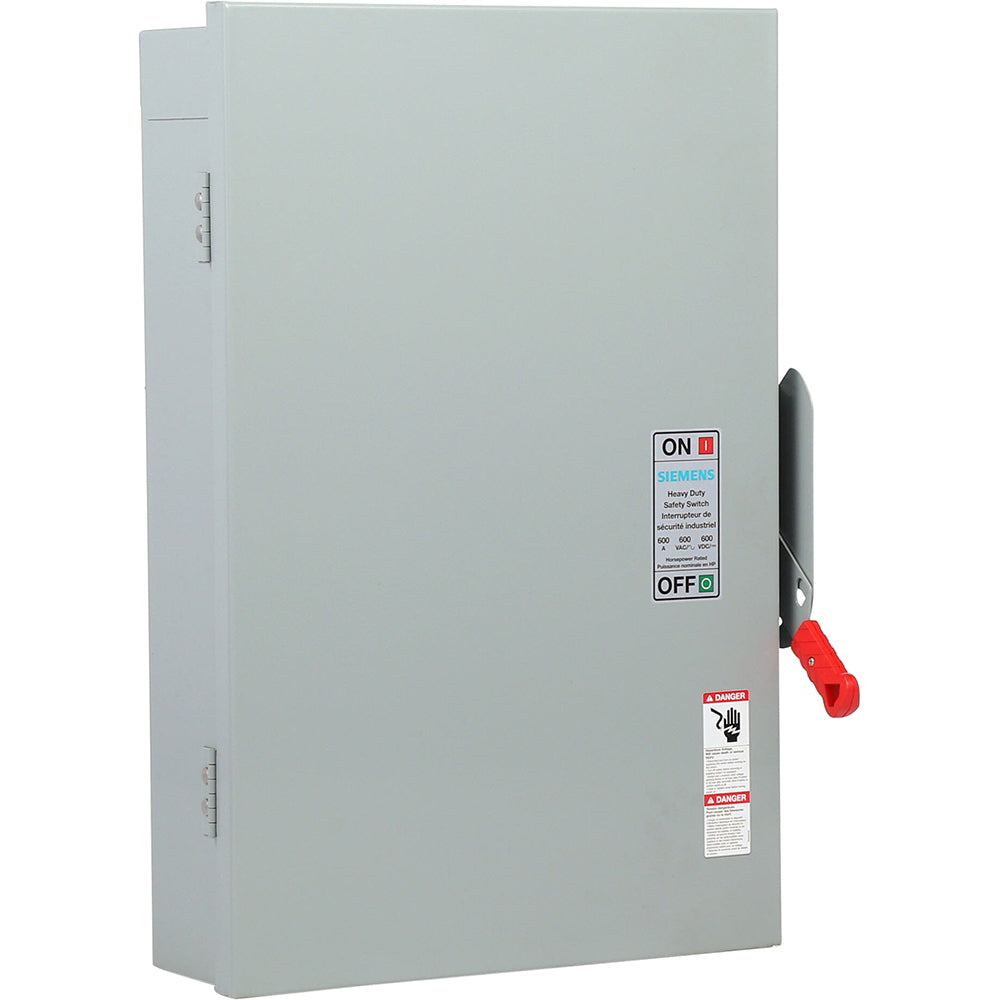

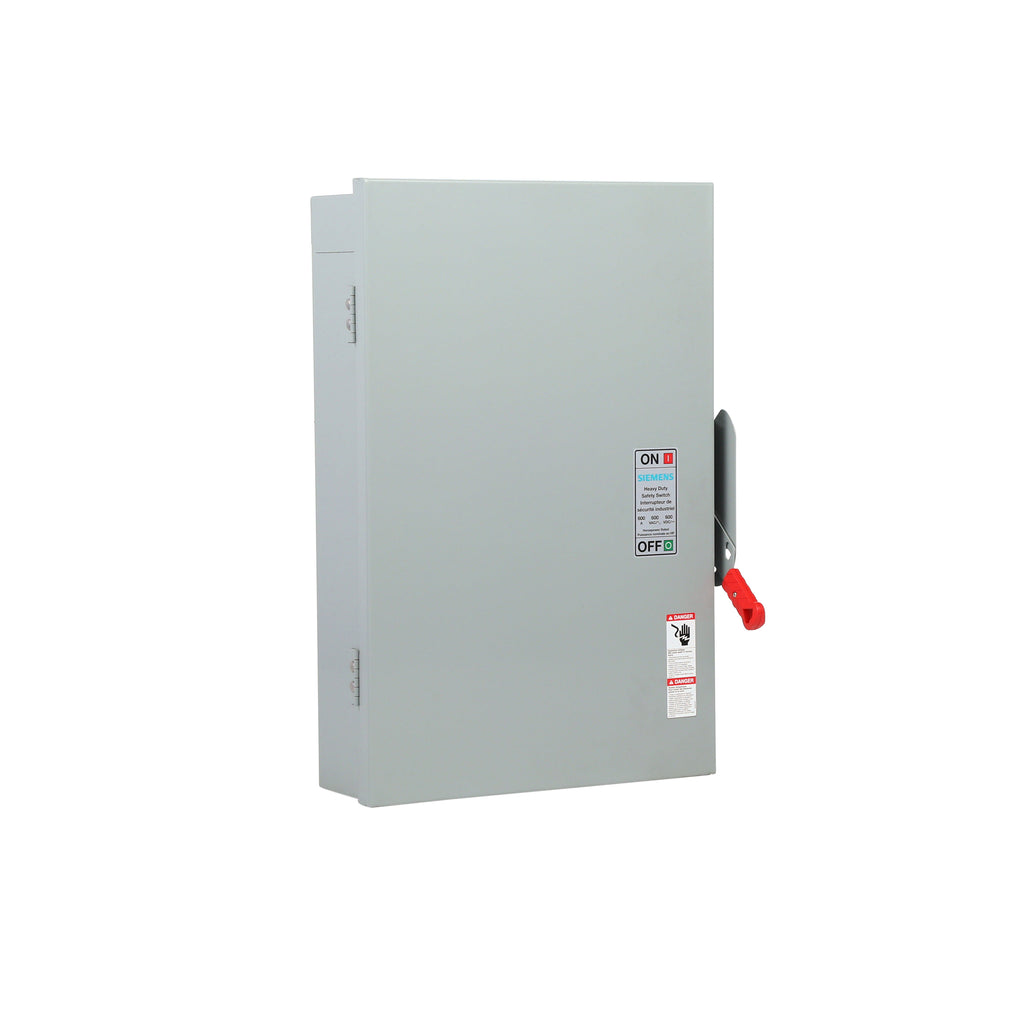

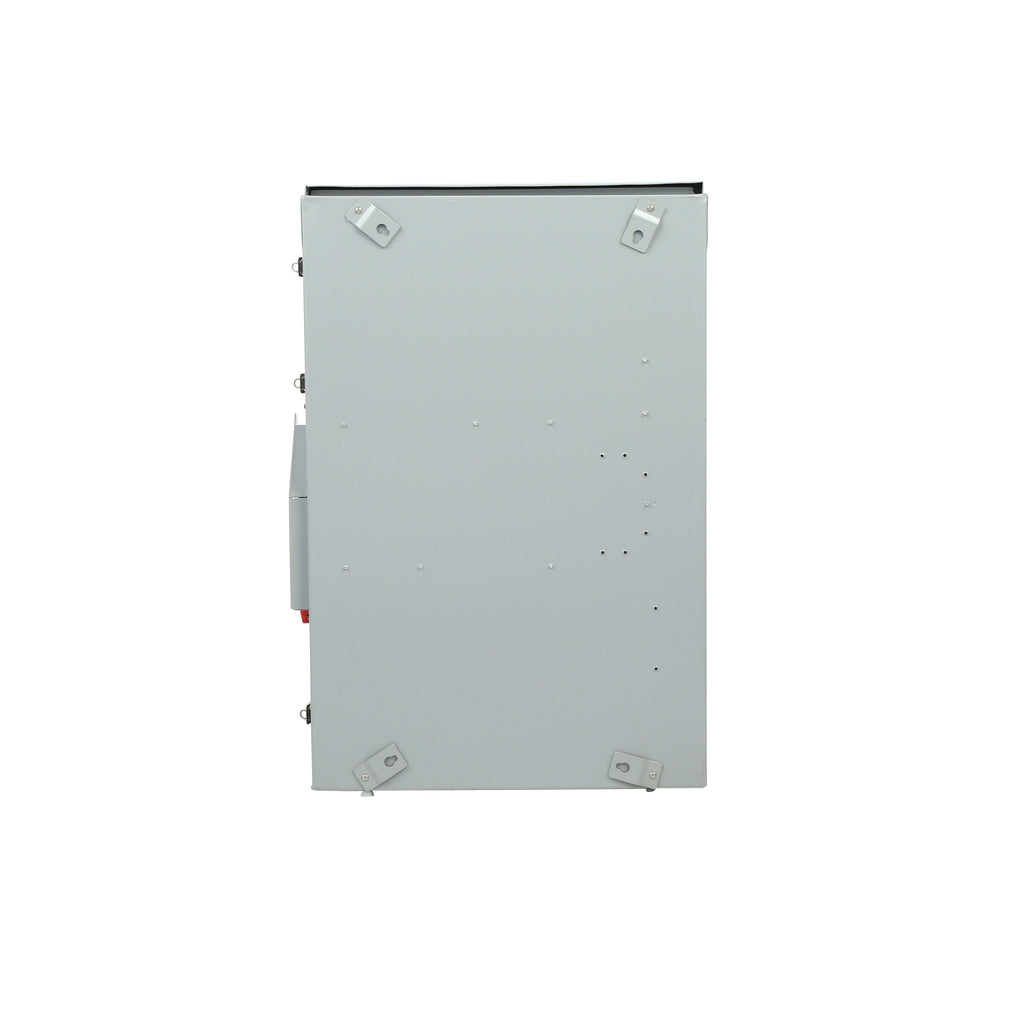

HNF366JA - Siemens Heavy Duty Non-Fusible Safety Switch, 600A rated for circuit protection in industrial applications.This Siemens HNF366JA is a Type VBII heavy duty non-fusible single throw safety switch with 3 poles, 600A amperage, and 600VAC voltage rating in a NEMA 12 steel enclosure. It features quick-make quick-break mechanism, visible blade double break switching, arc chutes, defeatable dual cover interlock, and mechanical lugs suitable for copper/aluminum conductors.
- Part Number: HNF366JA
- Manufacturer: Siemens
- Amperage: 600A
- Voltage: 600VAC
- Poles: 3
- Wires: 3
- Enclosure: NEMA 12
- Type: Non-Fusible Heavy Duty Safety Switch
- Mounting: Surface
- Connection: Mechanical Lugs
- UL98 Listed
- Temperature: -29 to 85 deg C
Specifications
- Part Number: HNF366JA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 887621872724
- GTIN : 0887621872724
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 99.803
- Certification : UL listed
