Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF366A

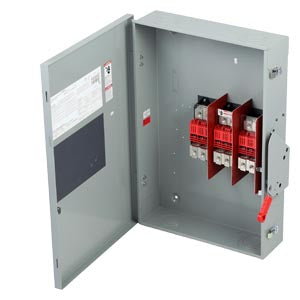

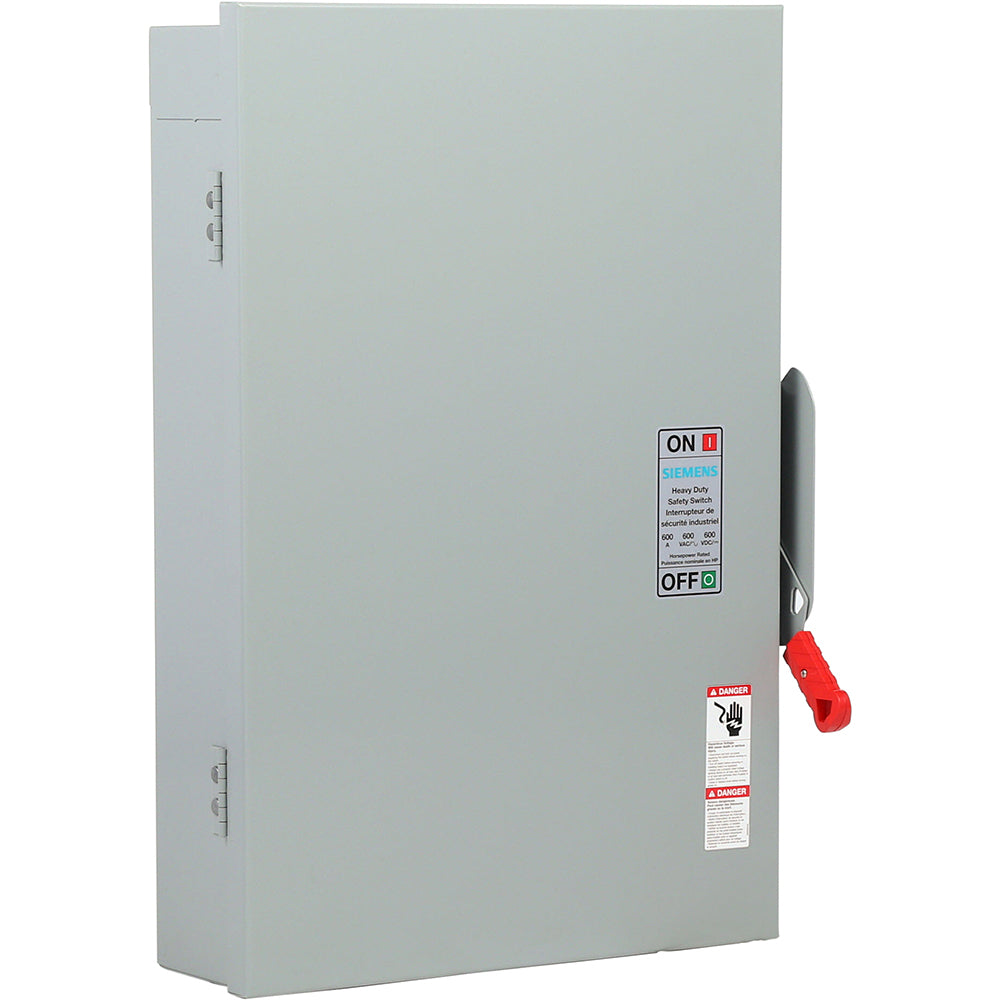

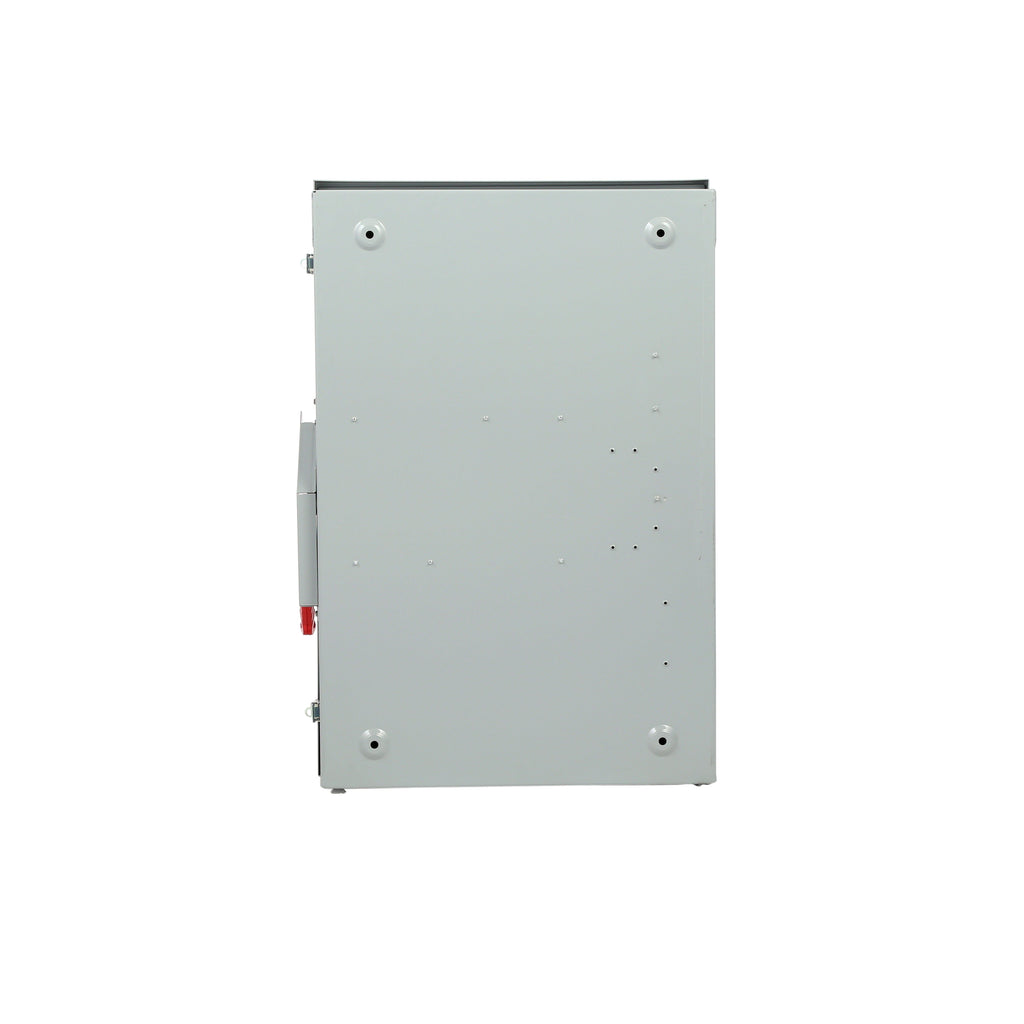

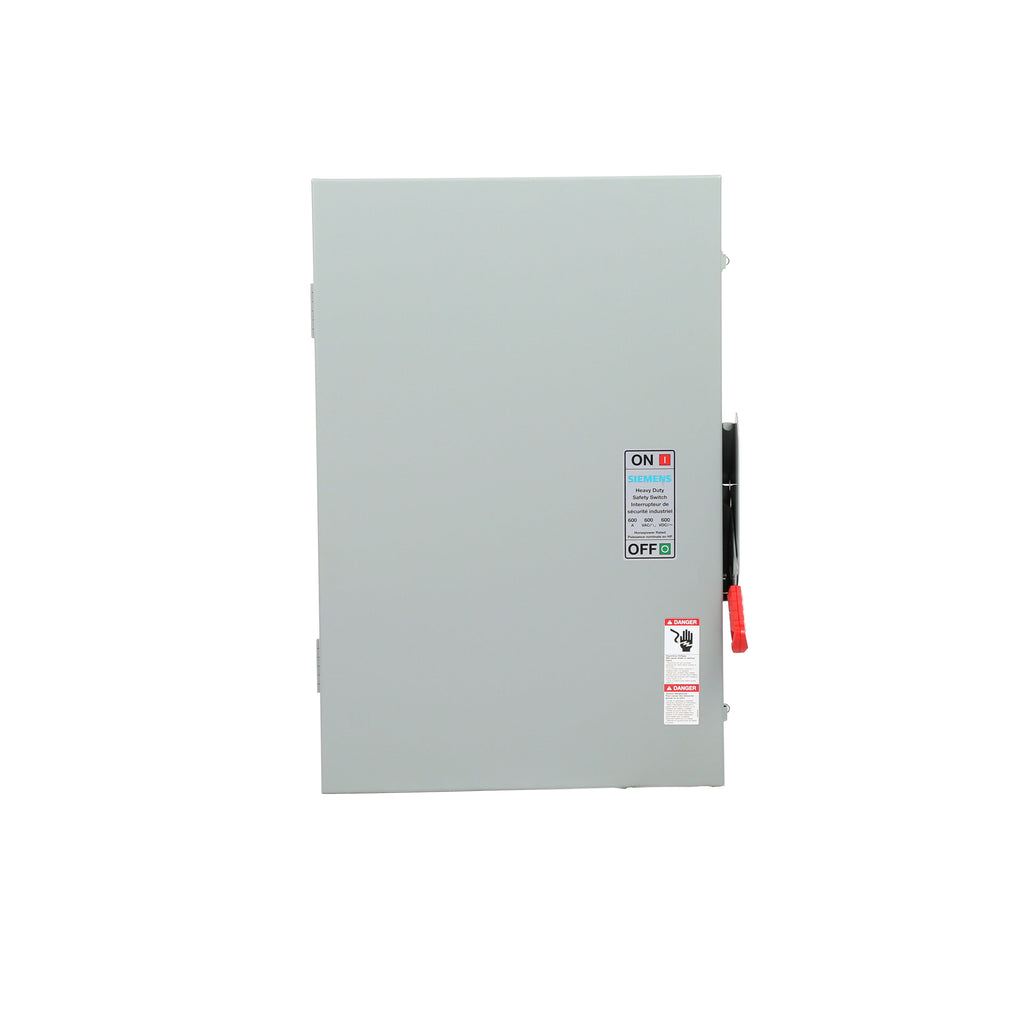

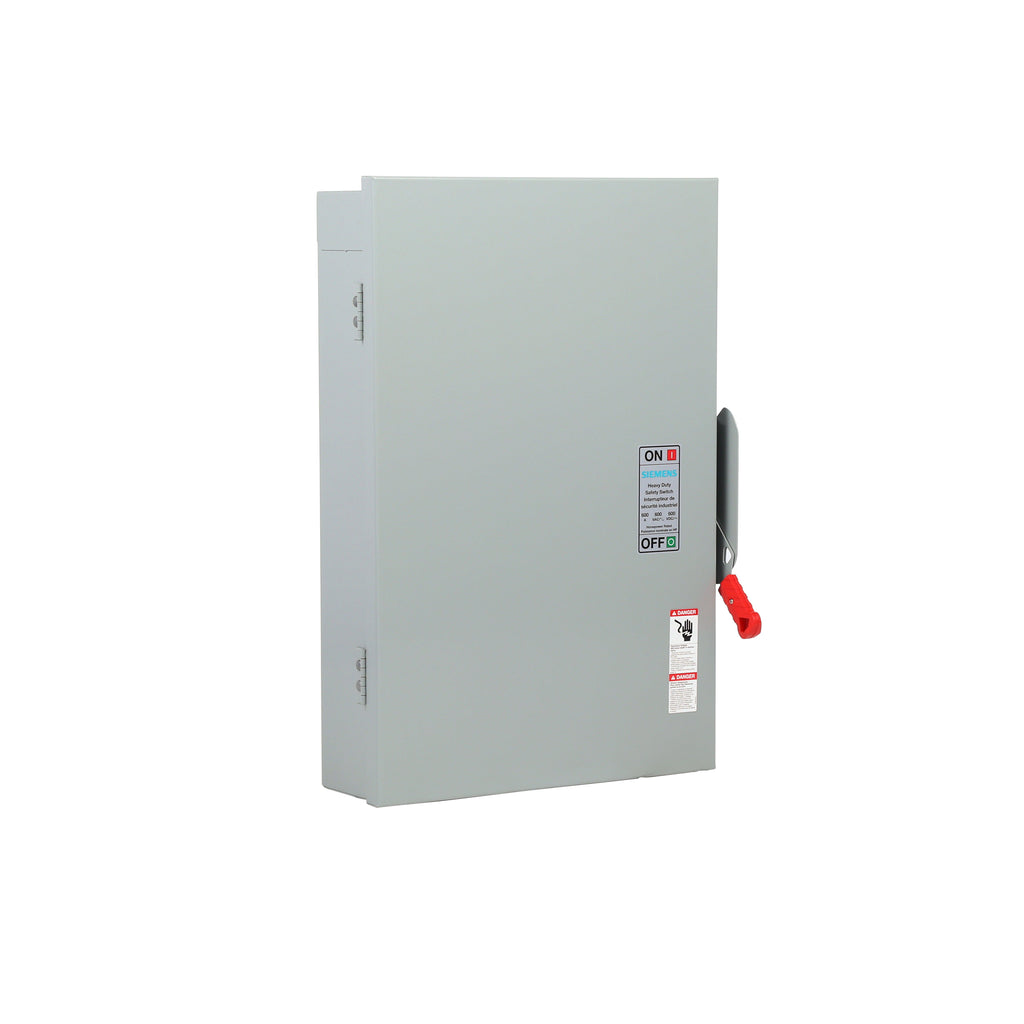

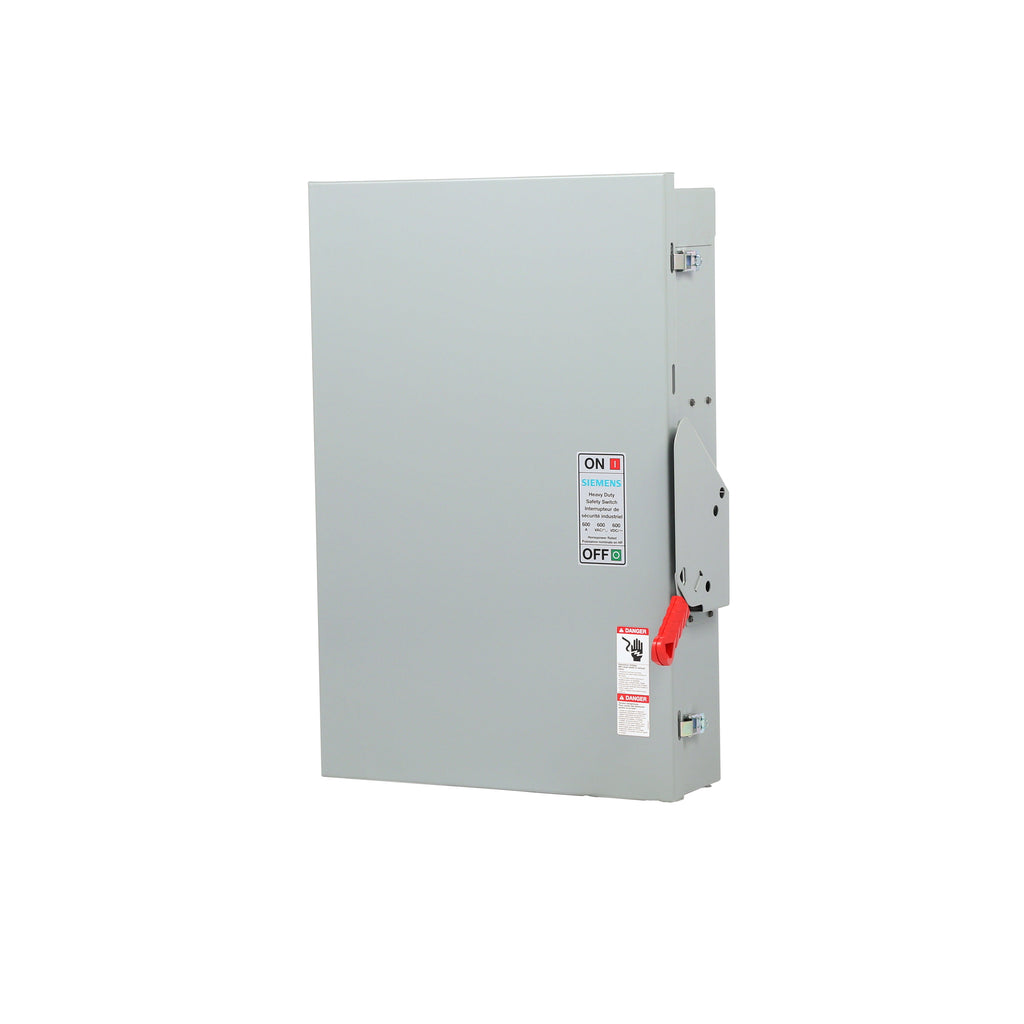

HNF366A is a Siemens heavy duty non-fusible safety switch rated for 600 amps and 600 volts AC in a NEMA 1 enclosure.This Siemens safety switch features a 3-pole, 3-wire configuration with surface mounting and lug terminals for secure connections.
- Key Specifications
- Amperage Rating: 600 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Number of Wires: 3
- Enclosure Type: NEMA 1 (Indoor)
- Mounting Type: Surface Mount
- Interrupt Rating: 200 kA @ 600 V
- Type: VBII Heavy Duty Non-Fusible Single Throw
- Terminal Type: Lug
- Horsepower Rating: 50 hp / 500 hp
- Temperature Rating: -29 to 85 ÁC
- Material: Steel
- Certifications: UL 98
Specifications
- Part Number: HNF366A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 1
- Compatible Frames : PGP
Product Data
- UPC : 887621872649
- GTIN : 0887621872649
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 33.465 inch
- Weight : 76.988
- Certification : UL listed
