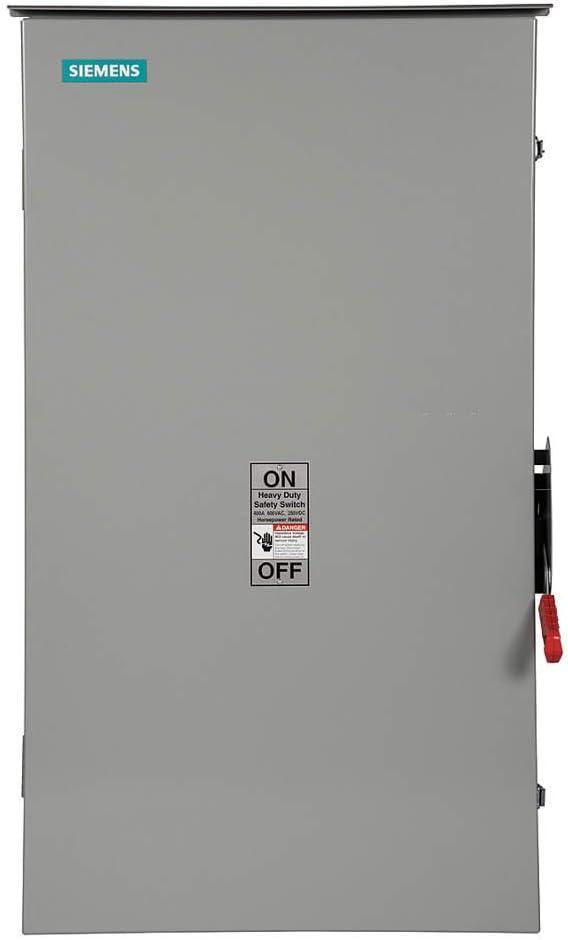

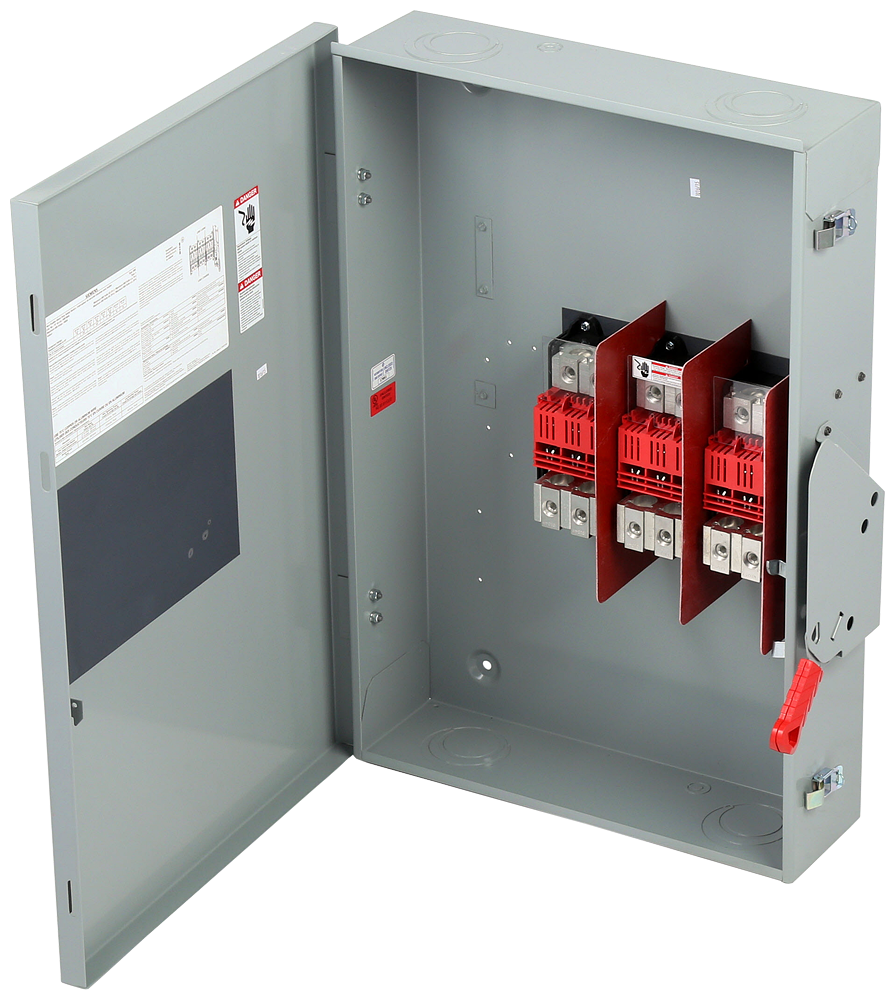

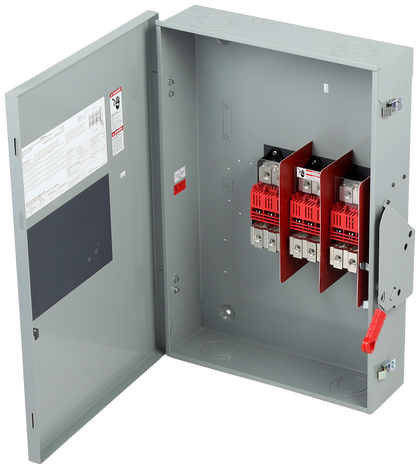

HNF365R - Siemens 400 Amp 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 3R Outdoor Disconnect

HNF365R

This 3-pole, 3-wire, 400 Amp, 600V AC (250V DC) outdoor safety switch features a NEMA 3R enclosure for protection against falling rain and external ice formation. It is designed for heavy-duty service, with a visible blade, quick-make/break action, and modular construction for easy maintenance. The switch is UL listed (file #E4776), meets UL 98 and UL 50 standards, and is suitable for use as service entrance equipment. Its 200,000 AIC interrupt rating (when protected by Class R, T, or J fuses) exceeds typical industry requirements.

Key Specifications

• Amperage: 400 Amp
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Outdoor (NEMA 3R)
• Interrupt Rating: 200,000 AIC @ 600V (with proper fuse protection)
• Series/Frame: VBII Heavy Duty
• Trip Unit: Non-fusible (visible blade, single throw)
• Certifications: UL Listed (E4776), UL 98, UL 50, NEMA KS-1
• Enclosure: Heavy duty, weather-resistant
• Action: Quick-m(more...)


  Specifications

  • Part Number: HNF365R
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Section : Non-Fusible Disconnect Switch
  • Family : VBII Series
  • Type : HNF
  • Voltage : 600 AC AC
  • Amperage : 400
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Configuration : Single
  • Switch Style : Non-Fusible
  • Nema Rating : NEMA 3R
  • Compatible Frames : PGP



  Product Data

  • GTIN : 0783164001495
  • Country of Origin : Mexico
  • Weight : 114.045
  • Certification : UL listed
