Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
HNF365JWA

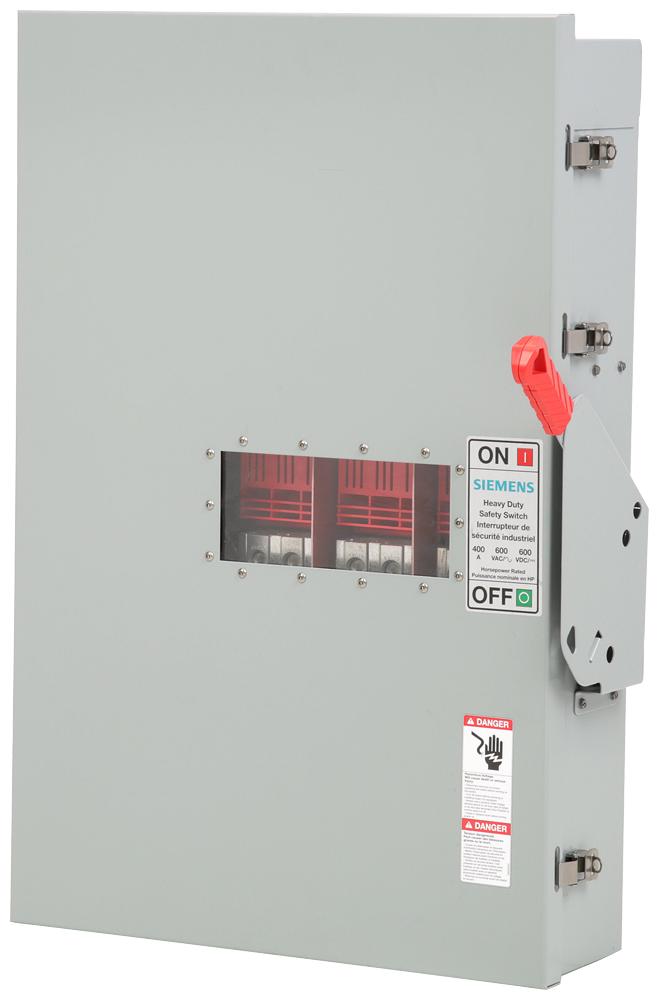

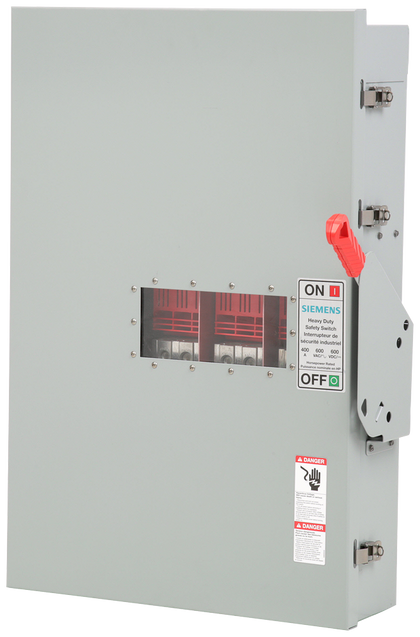

HNF365JWA is a Siemens 3-pole non-fusible heavy duty safety switch designed for industrial circuit protection applications. This switch features a rugged NEMA 12 enclosure and is rated for 400A at 600VAC, making it suitable for demanding environments.Engineered for reliability, the HNF365JWA offers a single throw design with a metal handle and large insulating grip for safe operation. The enclosure features a gasket flange with continuously welded seams, tool-free cover latches, and two or three point mounting options. Standard ground lugs are included, and the switch is equipped with a viewing window for easy status monitoring. The switch is constructed with steel and is suitable for surface mounting.
- Part Number: HNF365JWA
- Manufacturer: Siemens
- Amperage Rating: 400 A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Number of Wires: 3
- Enclosure Type: NEMA 12
- Mounting Type: Surface (2 or 3 point)
- Terminal Type: Lug
- Operating Temperature: -29 to 85 deg C
- Material: Steel
- Certification: UL98
Specifications
- Part Number: HNF365JWA
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Non-Fusible Disconnect Switch
- Family : VBII Series
- Type : HNF
- Voltage : 600 AC AC
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Configuration : Single
- Switch Style : Non-Fusible
- Nema Rating : NEMA 12
- Switch Type : Non-Fusible
Product Data
- UPC : 887621872854
- Country of Origin : Mexico
- Dimensions : 6.693 x 22.047 x 45.276 inch
- Weight : 99.803 lb
- Certification : UL listed
