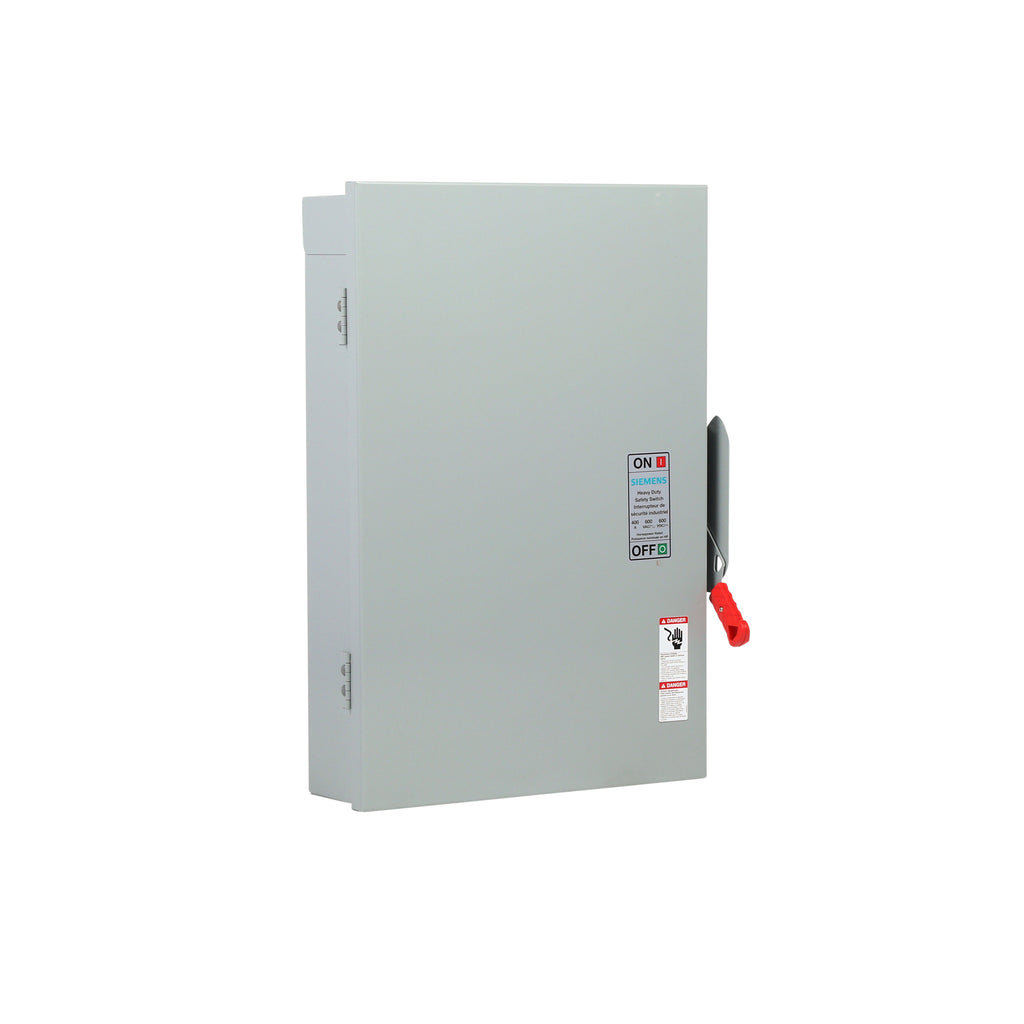

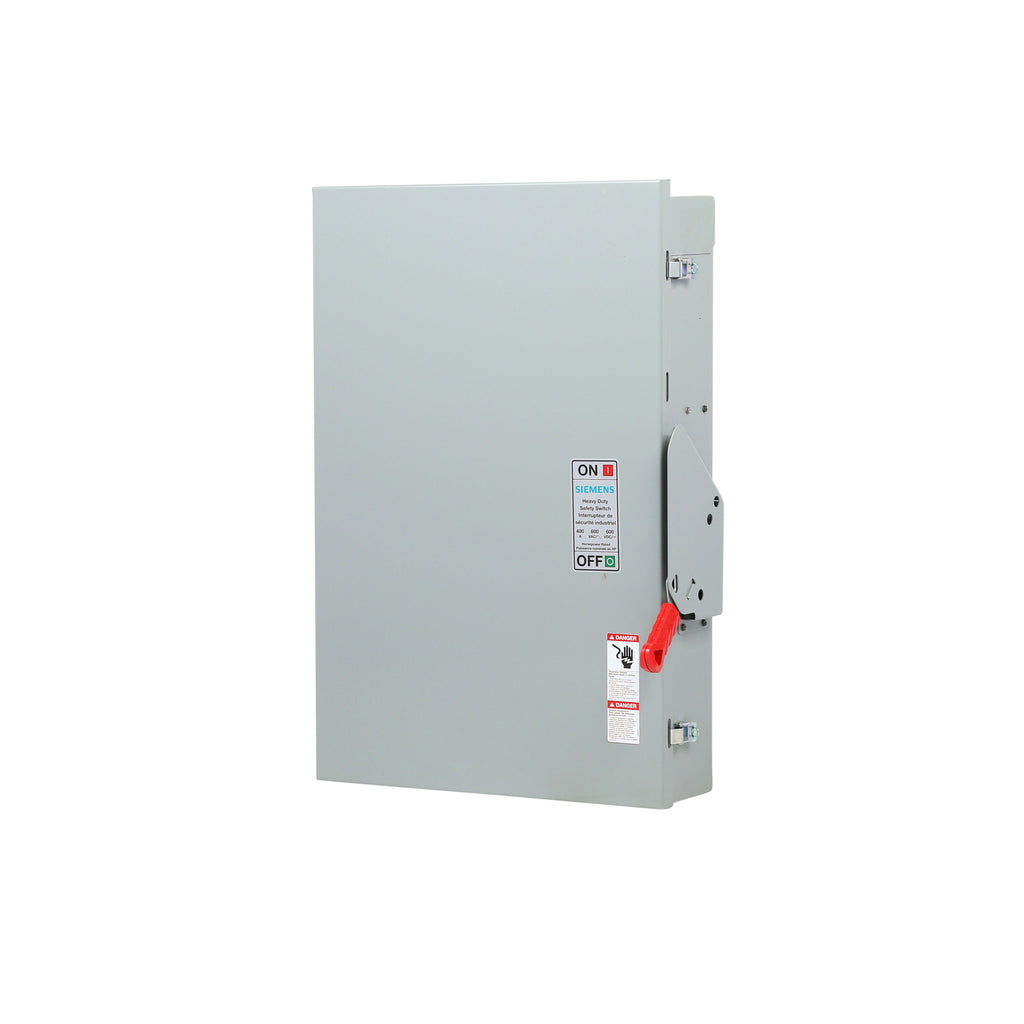

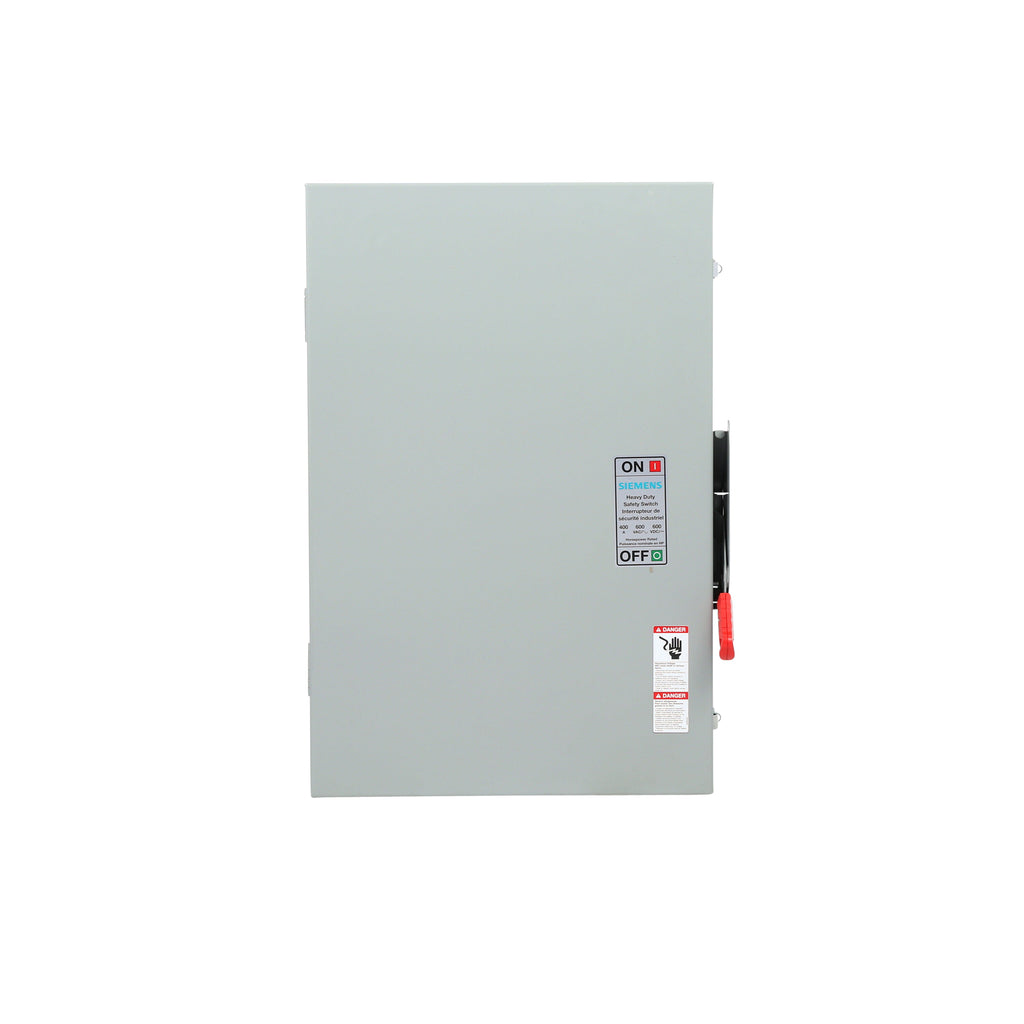

HNF365A Siemens VBII Series Disconnect 600V 400A Non-Fusible Switch

HNF365A

HNF365A is a heavy duty non-fusible safety disconnect switch designed for low voltage power distribution and circuit protection applications.

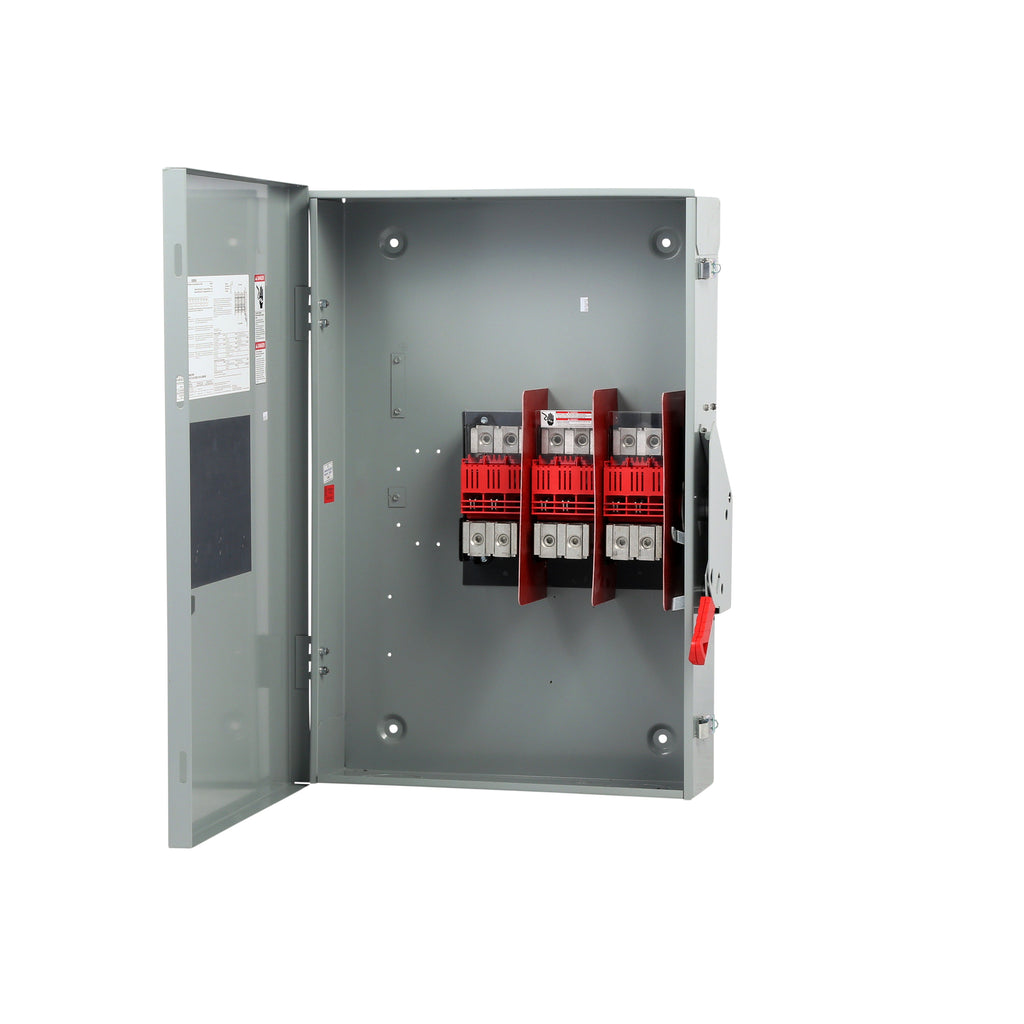

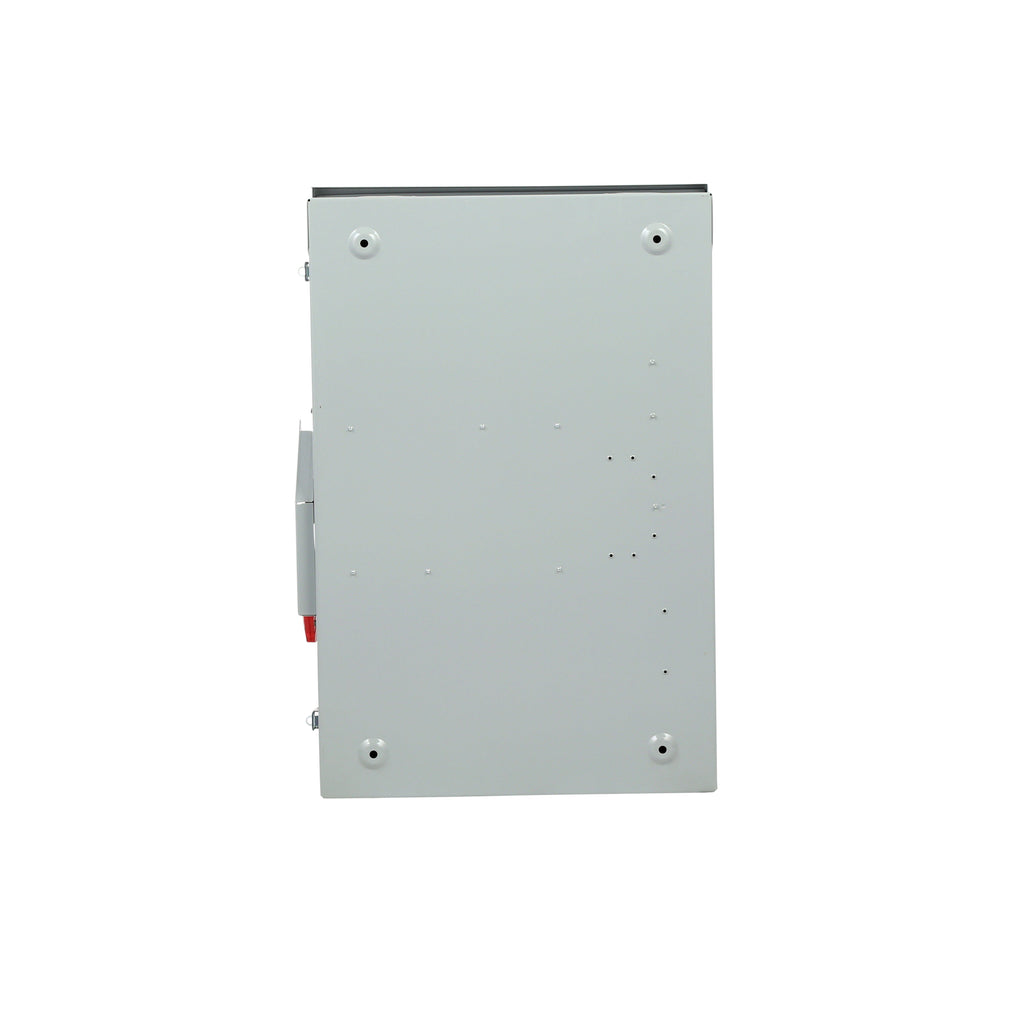

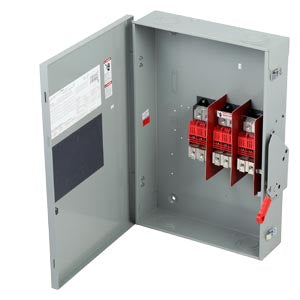

This Siemens safety switch features 400 ampere rating at 600 volts AC with 3-pole, 3-wire configuration and quick-make, quick-break operation. The unit includes visible blade construction for operational status indication, front removable mechanical lugs suitable for copper or aluminum conductors rated 60 or 75 degrees C, and field-convertible lugs to accommodate various compression connectors. A hinged clear line terminal shield with probe holes enables safe inspection and testing of line-side terminals. The heavy duty construction includes a drawn cover for increased rigidity and resistance to abuse, embossed aluminum nameplate for clear ON/OFF indication, and flexible mounting options with top keyhole and bottom mounting holes for 2 or 3-point installation.

• Amperage Rating: 400 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Number of Wires: 3
• Phase: 3
• Enclosure Type: NEMA 1
• Short Circuit Current Rating: 200 kA
• Horsepower: 350 hp
• Frequency: 60 Hz
• Contact Form: 3PST
• Dimensions: 44 in H x 24.65 in W x 14.68 in D
• Certifications: UL 98, CSA listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HNF365A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non-Fusible Disconnect Switch
• Family : VBII Series
• Type : HNF
• Voltage : 600 AC AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 1
• Compatible Frames : PGP

Product Data

• UPC : 887621872472
• GTIN : 0887621872472
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 33.465 inch
• Weight : 75.156 lb
• Certification : UL listed
