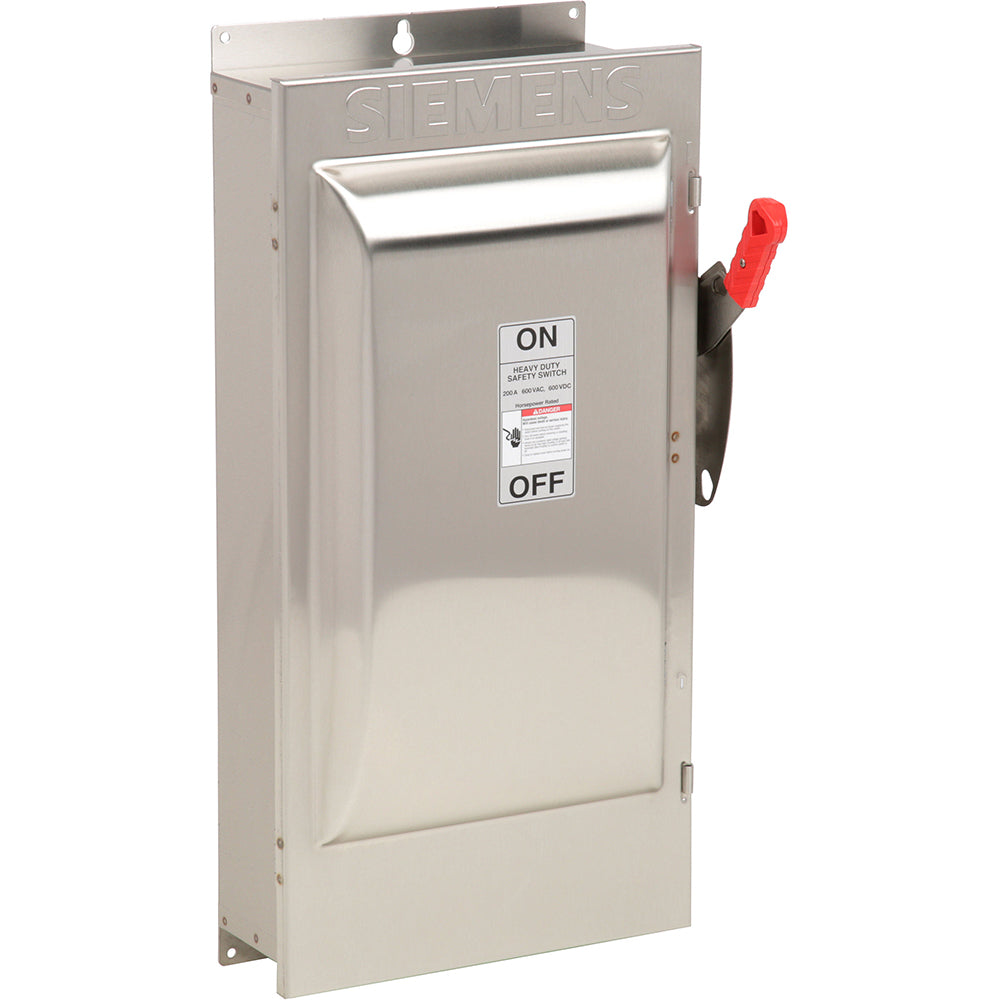

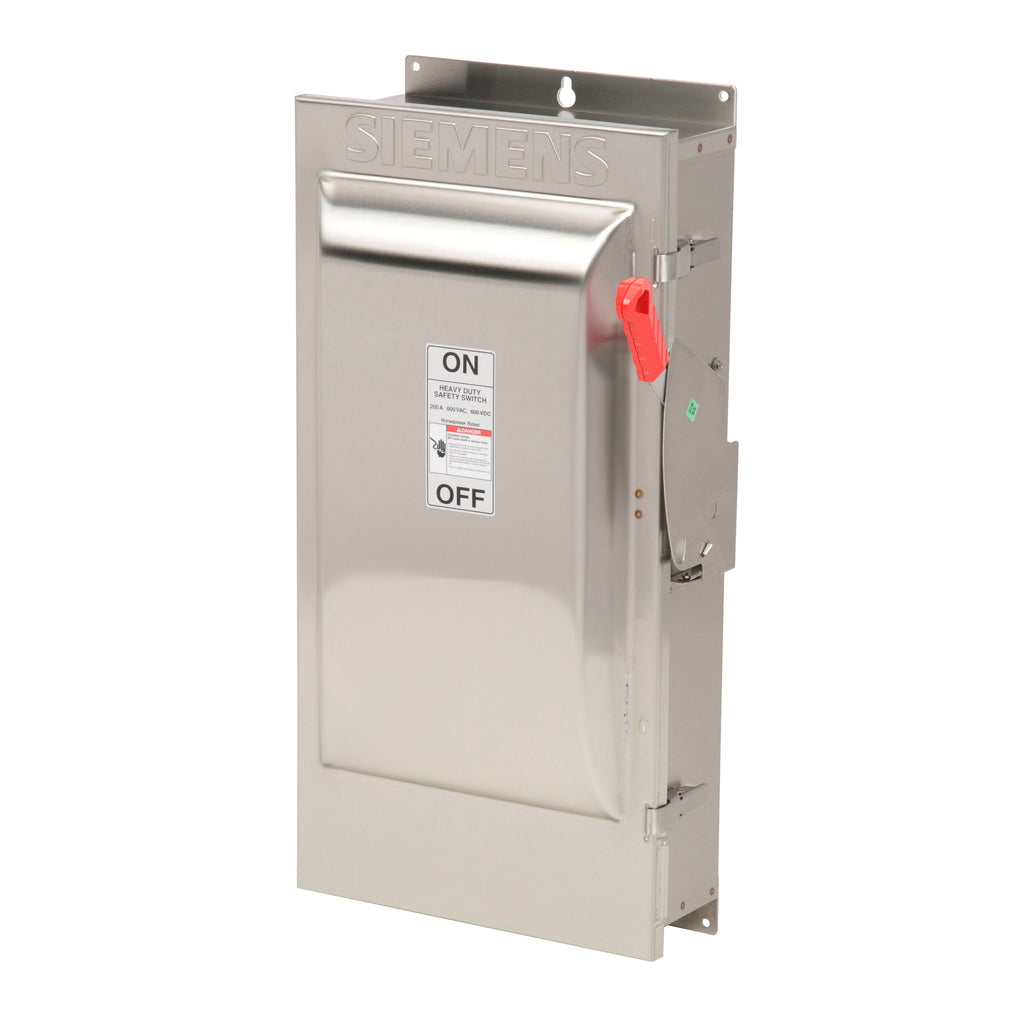

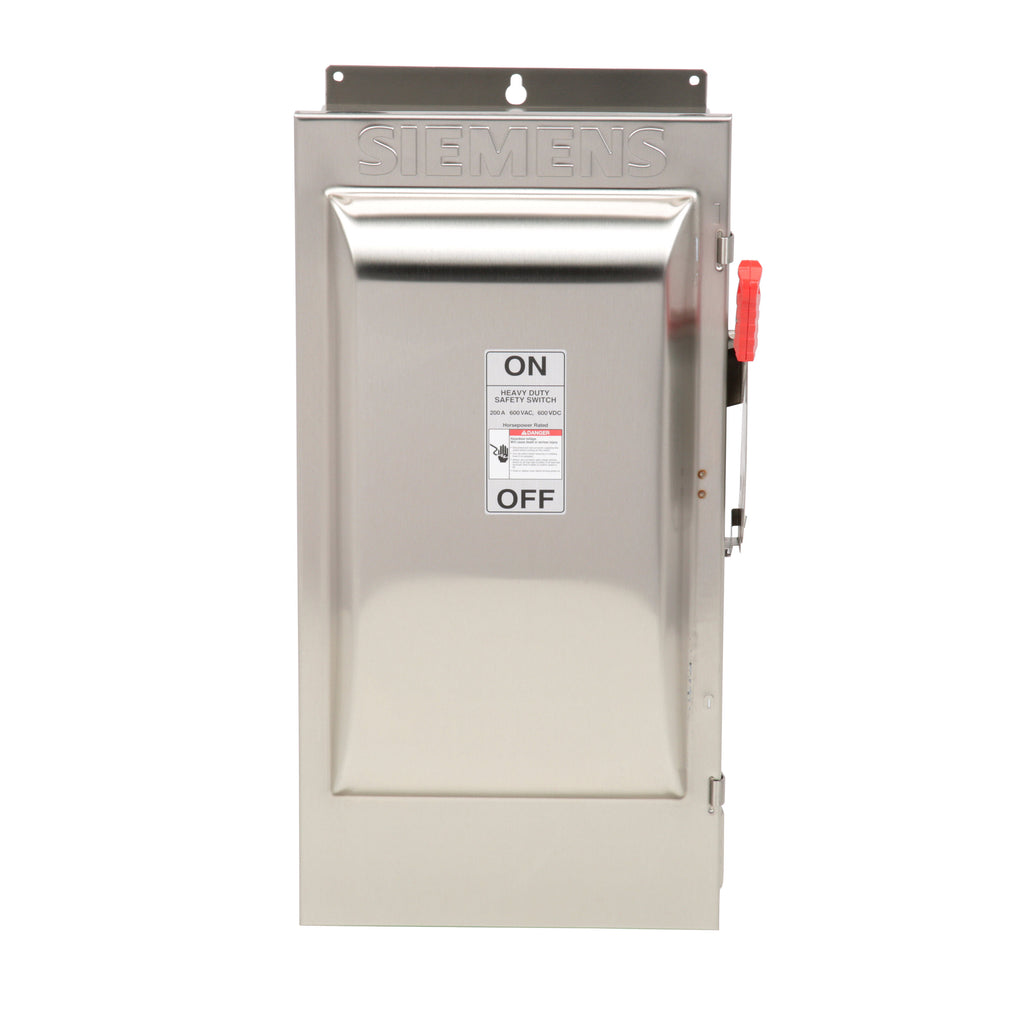

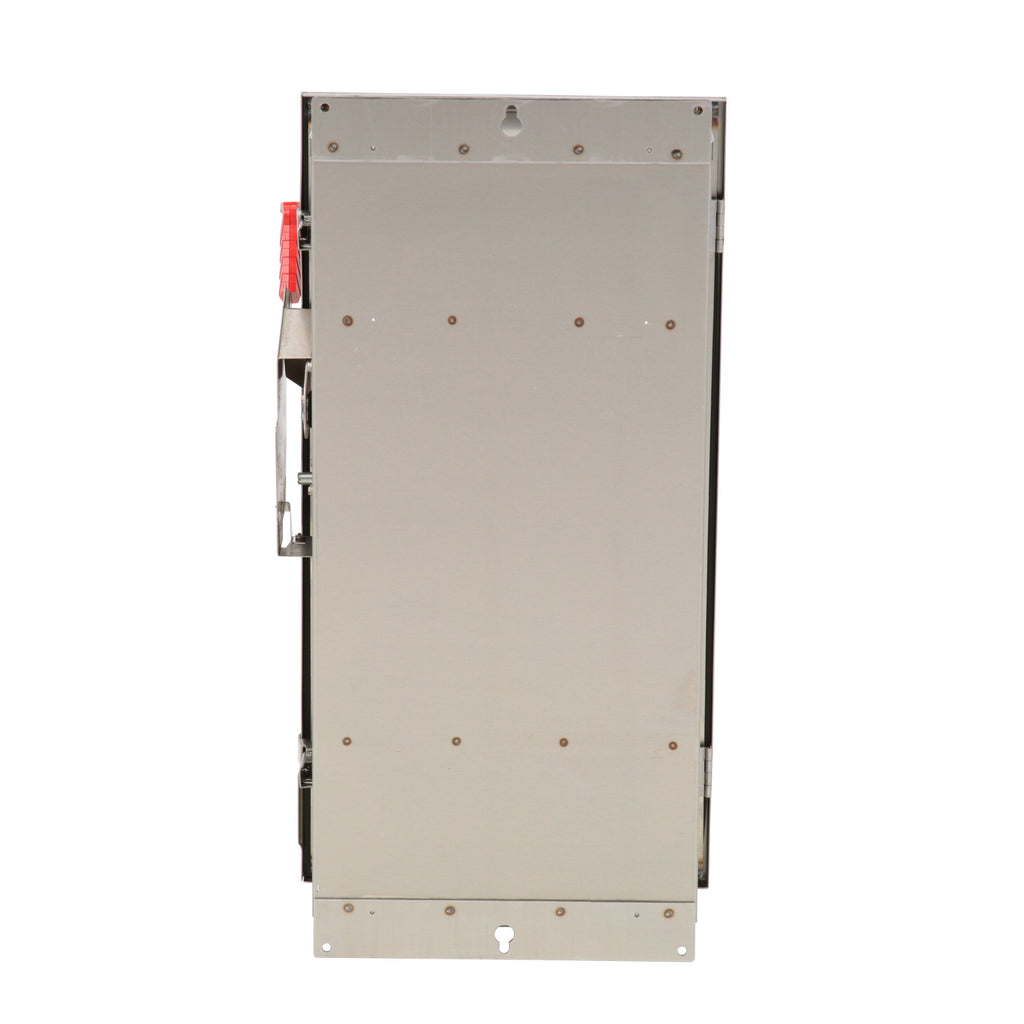

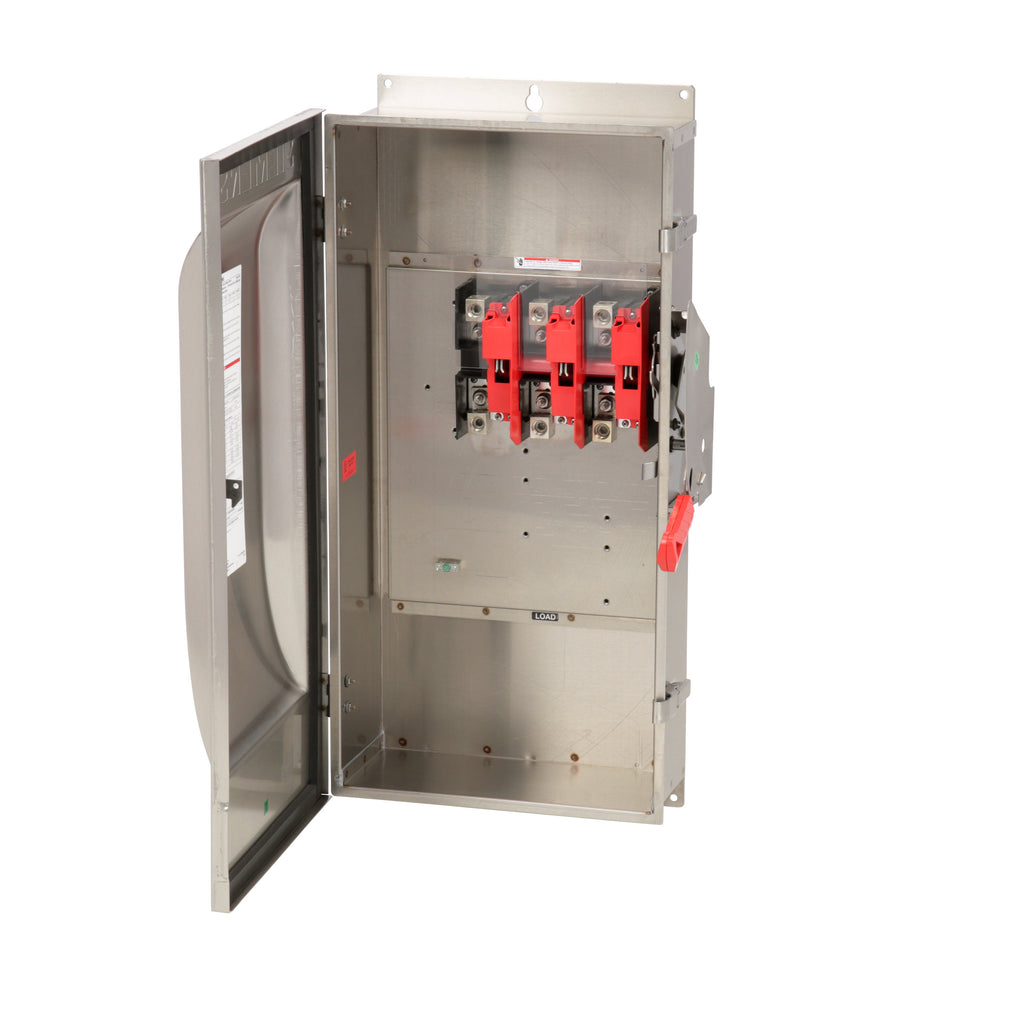

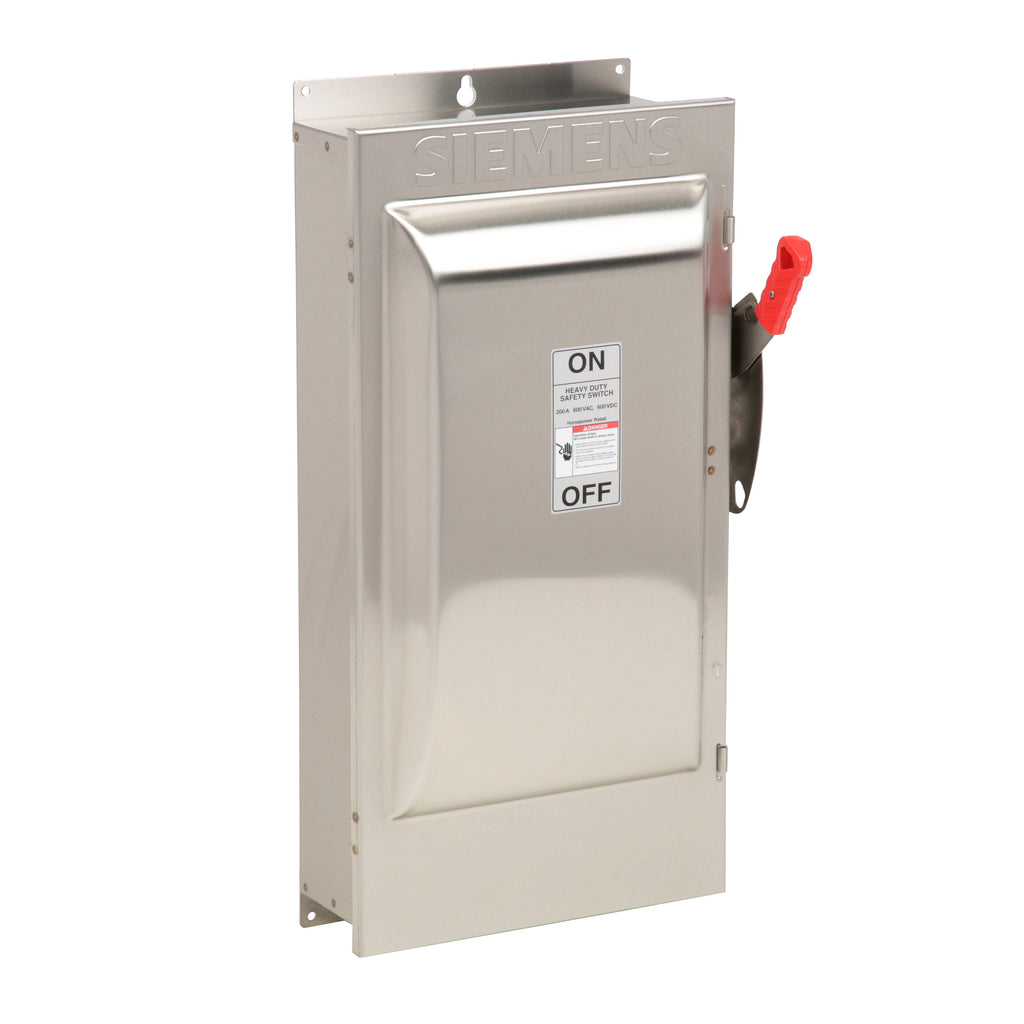

HNF364SS - Siemens 200A 600VAC 3-Pole Non-Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

HNF364SS

HNF364SS is a Siemens non-fusible heavy duty safety switch rated for 200 amperes at 600 volts AC with three poles in a NEMA 4X stainless steel enclosure.

This enclosed safety switch features a 316 stainless steel housing designed for demanding industrial and corrosive environments. The non-fusible disconnect switch is suitable for service entrance and load disconnection applications. It includes mechanical lugs for electrical connection and operates at 50/60 Hz with a mechanical service life of 8000 operating cycles.

• Amperage Rating: 200A
• Voltage Rating: 600VAC
• Number of Poles: 3-Pole
• Enclosure Type: NEMA 4X
• Housing Material: 316 Stainless Steel
• Switch Type: Non-Fusible
• Short Circuit Current Rating: 200kA
• Connection Type: Mechanical Lugs
• Frequency: 50/60 Hz
• Mechanical Service Life: 8000 cycles
• Certification: UL98 Listed
• Actuating Element: Single Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HNF364SS
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Non-Fusible Disconnect Switch
• Family : VBII Series
• Type : HNF
• Voltage : 600 AC AC
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Temp Rating : -13äóñ158 ŒÁF (-25äóñ70 ŒÁC)
• Configuration : Single
• Switch Style : Non-Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 040892169164
• GTIN : 0040892169164
• Country of Origin : Mexico
• Dimensions : 22.047 x 14.173 x 7.874 inch
• Weight : 23.656
• Temp Rating : -13äóñ158 ŒÁF (-25äóñ70 ŒÁC)
• Certification : UL listed
