HNF363 - Siemens 100 Amp 600 Volt 3-Pole Non-Fusible Safety Switch NEMA 1 Indoor

HNF363

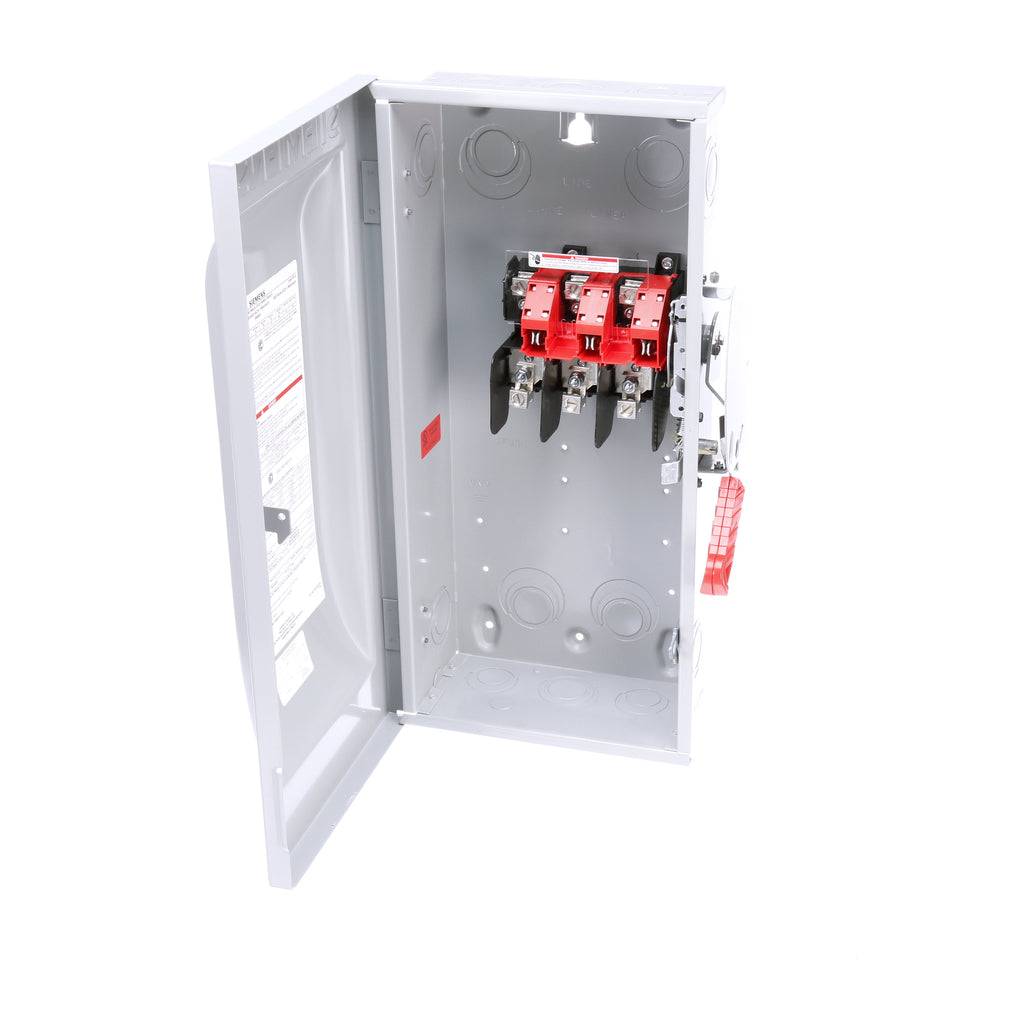

HNF363 is a Siemens 100 Amp, 600 Volt, 3-Pole non-fusible safety switch designed for indoor use with a NEMA 1 enclosure.This heavy duty safety switch features a quick-make, quick-break operating mechanism with visible blade double break switching action for reliable operation. It includes a highly visible red handle grip suitable for hook stick operation, defeatable dual cover interlock, and padlockable handle with up to three padlocks. The enclosure is designed with generous wire bending space, tangential knockouts for conduit alignment, and a side-hinged door that opens 180 degrees for easier wiring. Mechanical lugs are front removable and suitable for copper or aluminum conductors rated 60 or 75 degrees C. The switch meets NEC requirements and provides durable arc chutes to dissipate heat and extend switch life.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 3-Pole
• Type: Non-Fusible Safety Switch
• Enclosure: NEMA 1 Indoor
• Mounting Style: Panel Mount
• Operating Mechanism: Quick-make, Quick-break
• Handle: Red, Hook Stick Operable, Padlockable
• Wire(more...)


  Specifications

  • Part Number: HNF363
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Section : Non-Fusible Disconnect Switch
  • Family : VBII Series
  • Type : HNF
  • Voltage : 600 AC AC
  • Amperage : 100
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Configuration : Single
  • Switch Style : Non-Fusible
  • Nema Rating : NEMA 1
  • Compatible Frames : PGP



  Product Data

  • UPC : 783643151185
  • GTIN : 0783643151185
  • Country of Origin : Mexico
  • Dimensions : 25.591 x 13.78 x 7.48 inch
  • Weight : 16.297
  • Certification : UL listed
