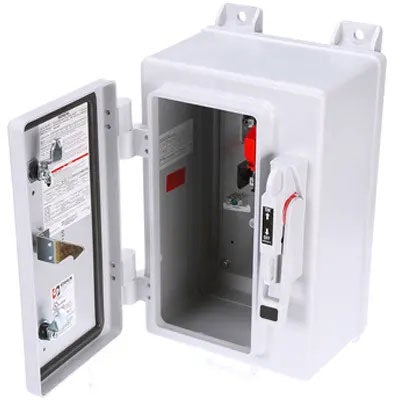

HNF361X - Siemens 30A 600VAC 3-Pole NEMA 4X Non-Fusible Heavy Duty Safety Switch, Non-Metallic Enclosure, Indoor/Outdoor

Save $11,009.86
SKU: HNF361X-New
Condition: New
Price:
$3,192.14 $14,202.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

SIemens HNF361X Disconnect Switch (Non-Fusible) - Essential Electric Supply
SIemens HNF361X Disconnect Switch (Non-Fusible) - Essential Electric Supply
HNF361X - Siemens 30A 600VAC 3-Pole NEMA 4X Non-Fusible Heavy Duty Safety Switch, Non-Metallic Enclosure, Indoor/Outdoor - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
SIemens HNF361X Disconnect Switch (Non-Fusible) - Essential Electric Supply
SIemens HNF361X Disconnect Switch (Non-Fusible) - Essential Electric Supply
HNF361X - Siemens 30A 600VAC 3-Pole NEMA 4X Non-Fusible Heavy Duty Safety Switch, Non-Metallic Enclosure, Indoor/Outdoor - Essential Electric Supply

Description

HNF361X


HNF361X is a Siemens heavy duty non-fusible safety switch designed for industrial and commercial power distribution applications requiring reliable disconnect and load control.Product Overview

The Siemens HNF361X is a Type VBII enclosed heavy duty low voltage non-fusible safety switch rated for 600 VAC, 30 amperes, and 30 horsepower at three phase. This switch features a NEMA 4X fiberglass reinforced polyester enclosure suitable for both indoor and outdoor use, with a 200 kA short circuit current rating for enhanced protection. The unit employs mechanical lug terminals for secure connections and operates at 60 Hz frequency with a temperature range of -29 to 85 degrees Celsius.

Constructed with non-metallic materials and a single throw contact form, the HNF361X provides dependable service in demanding environments. The switch supports 10,000 operating cycles and is surface mounted for straightforward installation in electrical systems requiring three-pole, three-wire configuration.

    Key Specifications
  • Part Number: HNF361X
  • Manufacturer: Siemens
  • Voltage Rating: 600 VAC
  • Amperage Rating: 30 A
  • Horsepower: 30 hp
  • Phase: 3-Phase
  • Poles: 3-Pole
  • Wires: 3-Wire
  • Enclosure Type: NEMA 4X
  • Short Circuit Current Rating: 200 kA
  • Terminal Type: Mechanical Lugs
  • Operating Cycles: 10,000
  • Temperature Range: -29 to 85 degrees Celsius

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: HNF361X
  • Manufacturer : Siemens
  • Brand : Siemens
  • Category : Switch
  • Item Subcategory : Disconnect
  • Section : Non-Fusible Disconnect Switch
  • Family : VBII Series
  • Type : HNF
  • Voltage : 600 AC AC
  • Amperage : 60
  • Phase : 3
  • Poles : 3
  • AIC rating : 200kA@600V
  • Configuration : Single
  • Switch Style : Non-Fusible
  • Nema Rating : NEMA 4X
  • Compatible Frames : PGP

Product Data

  • UPC : 783643451759
  • GTIN : 0783643451759
  • Country of Origin : Mexico
  • Dimensions : 11.8 in x 16.6 in
  • Weight : 17.24
  • Certification : UL listed

Accesories

Part Manufacture Sub Category
HN612
