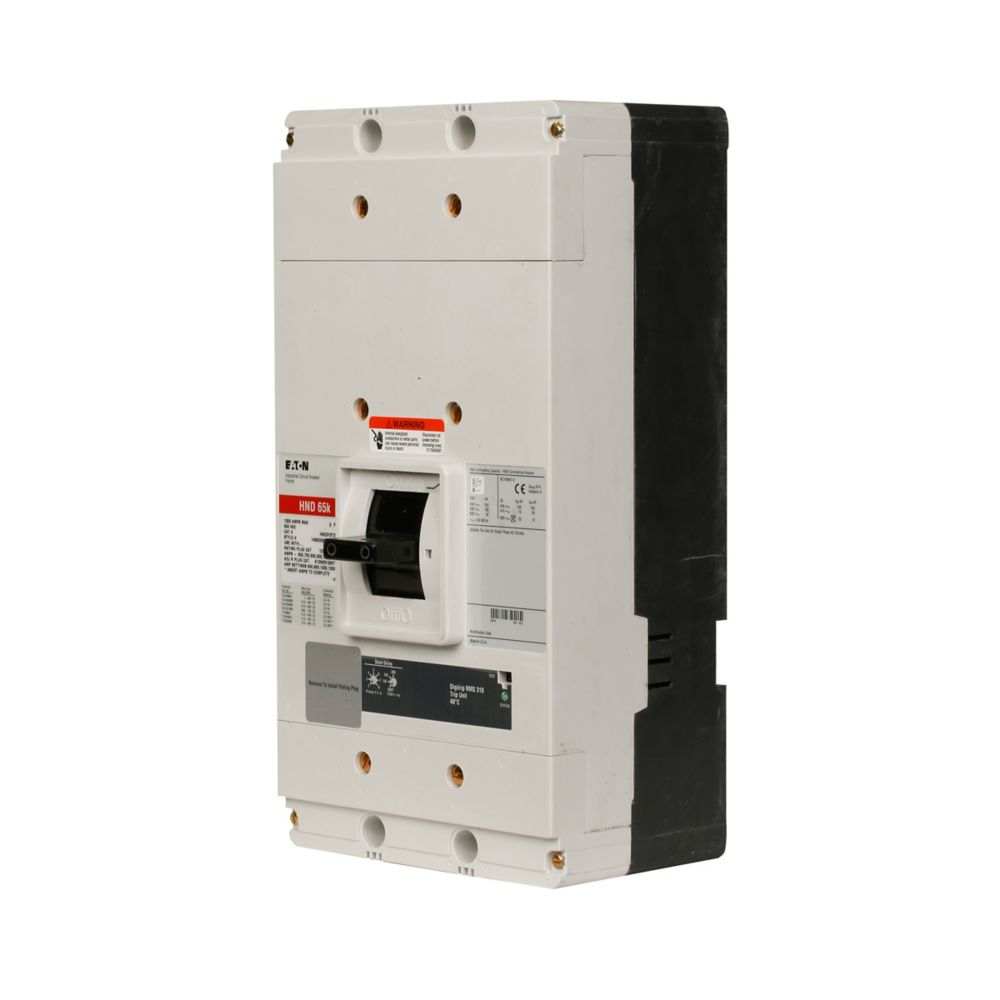

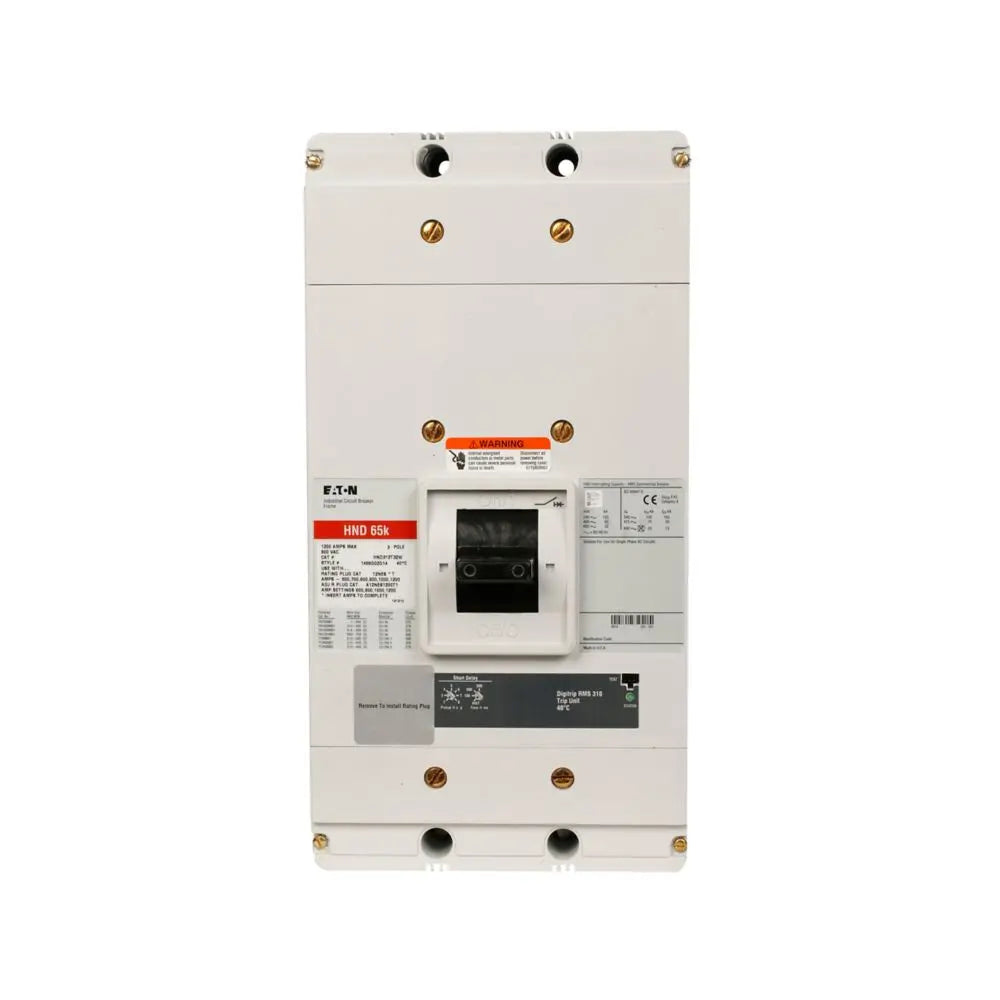

HND3800T57WPN - Eaton 800A 600V 3-Pole Series C NG-Frame Electronic LSIA Molded Case Circuit Breaker

HND3800T57WPN

HND3800T57WPN is an Eaton Series C NG-frame electronic molded case circuit breaker designed for reliable power distribution protection.This complete breaker features an OPTIM 550 electronic LSIA trip unit, rated for 800 amps and 600 volts AC. It is a three-pole device with a high interrupt rating of 100 kAIC at 240 VAC and 65 kAIC at 480 VAC, suitable for demanding industrial and commercial applications. The breaker comes without terminals and supports 50/60 Hz operation. It is HACR rated and built to Eaton's Series G standards.

• Amperage Rating: 800 A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Frame Type: NG-frame
• Series: Series C, Series G
• Trip Unit: Electronic LSIA (OPTIM 550 design)
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Frequency: 50/60 Hz
• HACR Rated
• Without Terminals
• Product Dimensions: 8.25" H x 8.25" W x 5.5" D
• Weight: 46 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HND3800T57WPN
• Manufacturer : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 078211353026
• Dimensions : 5.5 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 46
