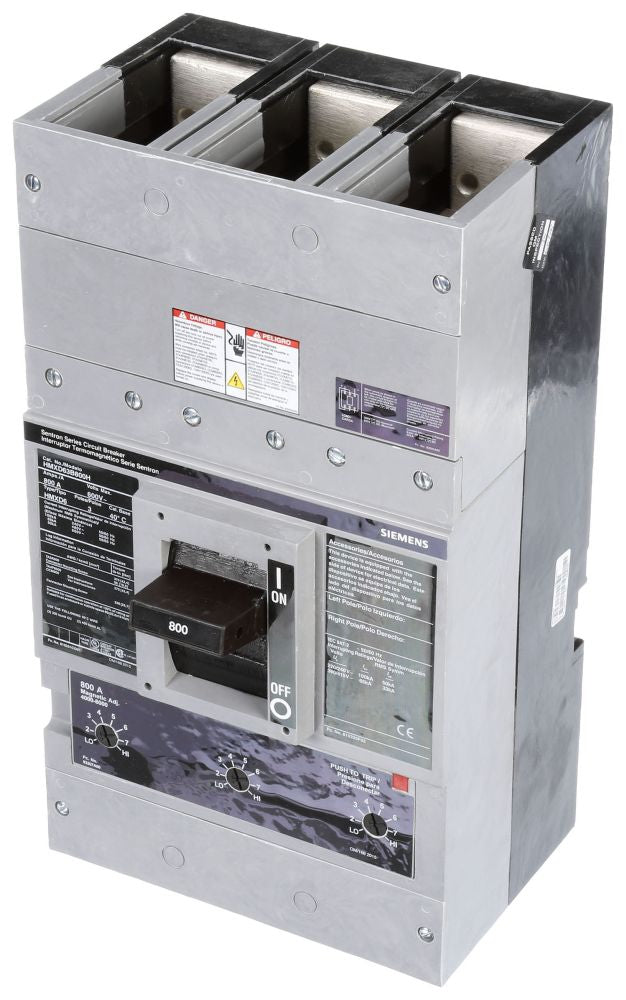

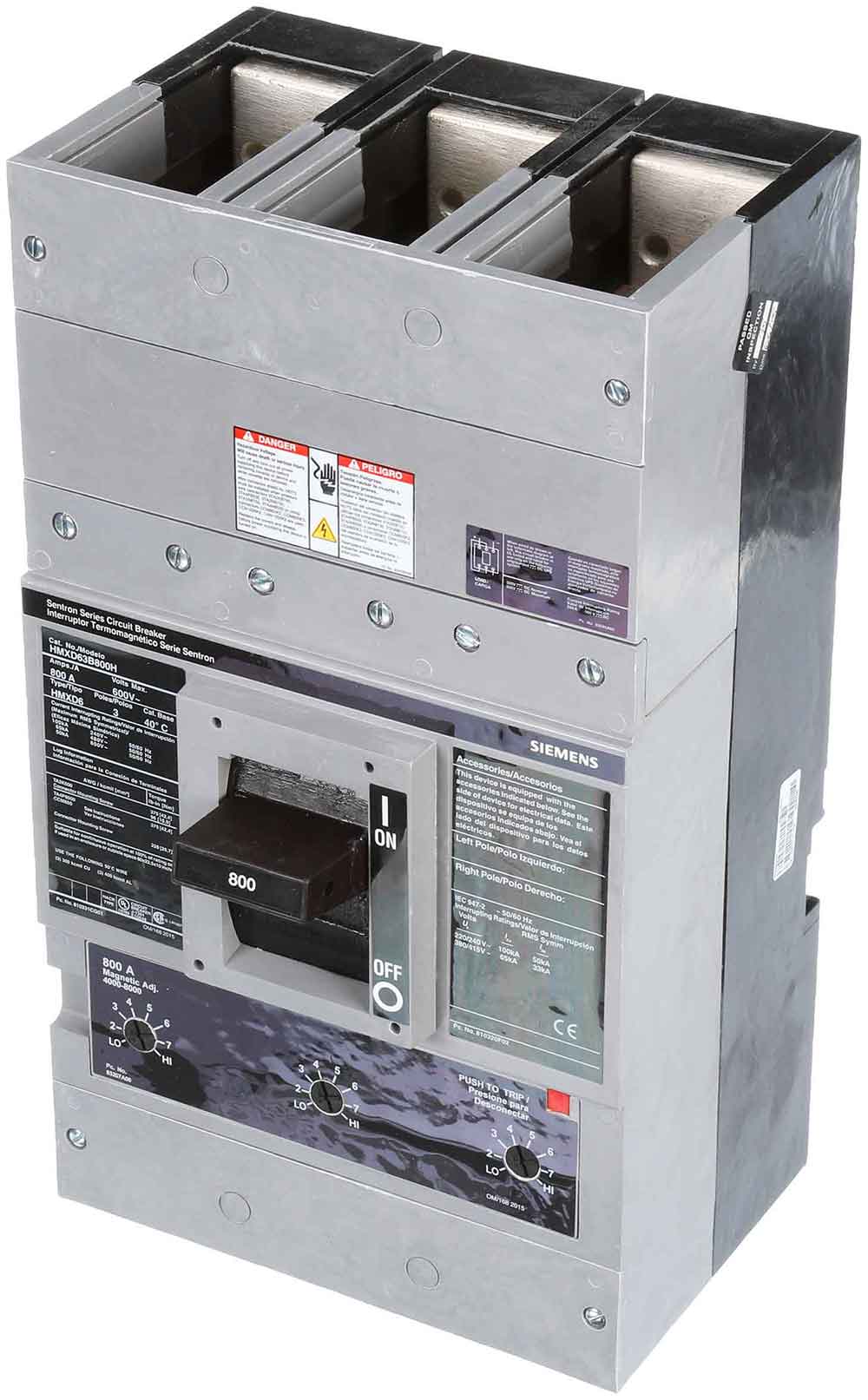

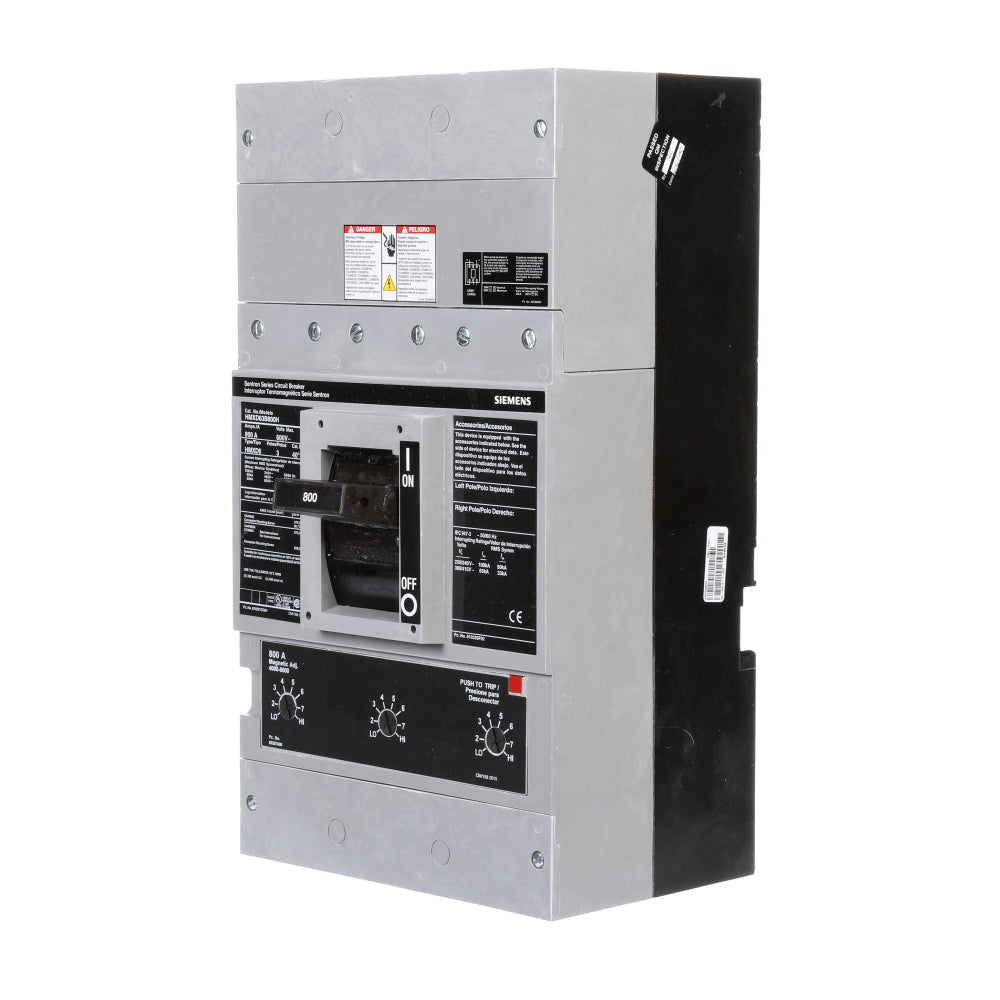

HMXD63B800H - Siemens 800A 600V 3 Pole Bolt-On Molded Case Circuit Breaker Thermal Magnetic

HMXD63B800H

HMXD63B800H is a Siemens 3 pole, 800 amp, 600 volt bolt-on molded case circuit breaker with thermal magnetic trip unit and high interrupting capacity.This Siemens HMXD63B800H circuit breaker features a 3 pole design rated for 800 amps at 600 VAC, with a 65kA interrupting rating at 480V and 50kA at 600V. It is a 100% rated, thermal magnetic breaker with long time and instantaneous trip functions, load side lug terminals, and a bolt-on mounting type. The breaker is part of the HMD frame series and is certified for industrial applications.

Key Specifications
• Amperage: 800A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA @ 480V, 50kA @ 600V
• Frame/Series: HMD
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Certifications: Industrial standards compliant
• 100% Rated
• Load Side Lug Terminals
• Weight: Approximately 65 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: HMXD63B800H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HMXD
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : MD Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 783643320277
• GTIN : 00783643320277
• Country of Origin : Mexico
• Weight : 54
