Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMDLB3800FT33W

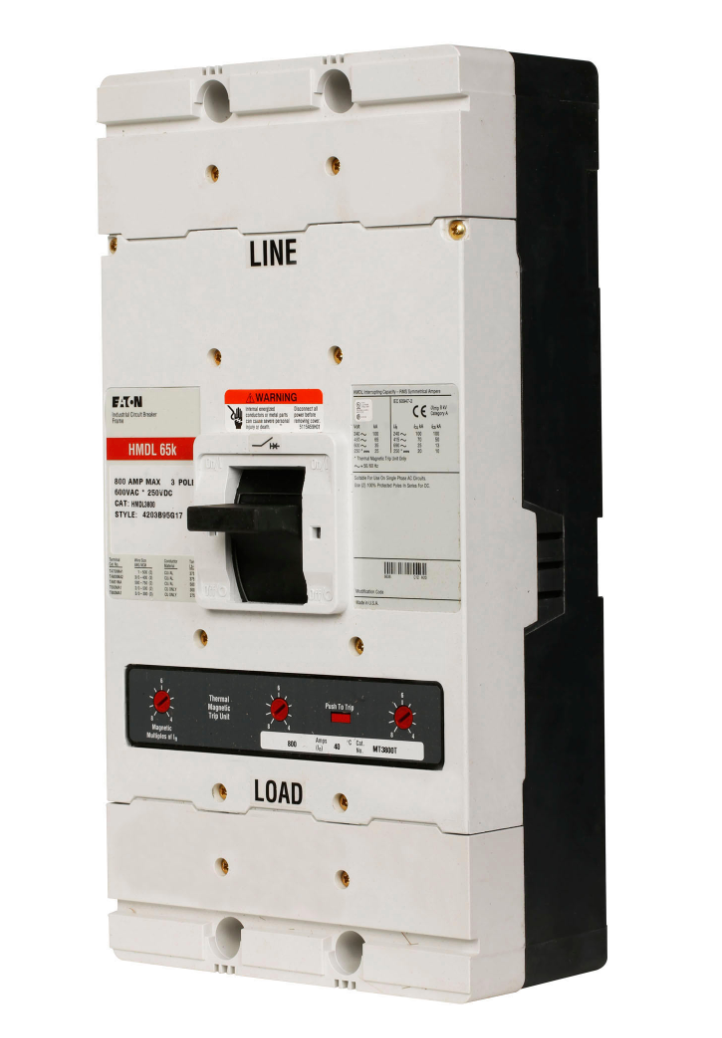

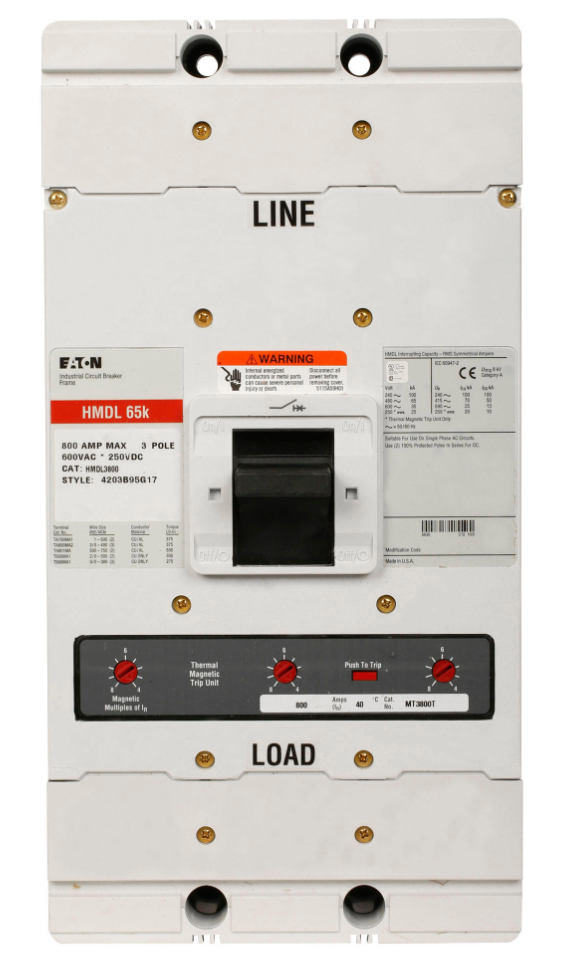

HMDLB3800FT33W is an Eaton Series C electronic molded case circuit breaker rated for 800 amps and 600 volts with 3 poles.This breaker features an MDL-frame with a Digitrip 310 RMS electronic LS trip unit, providing reliable protection with a 65kA interrupt rating at 480V and 100kA at 240V. It is designed for bolt-on mounting and suitable for industrial power distribution applications requiring high interrupt capacity and precise electronic trip functionality.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V, 100kA at 240V
- Series/Frame: Series C, MDL Frame
- Trip Unit: Digitrip 310 RMS Electronic LS
- Certifications: UL Listed, CSA Certified
- Dimensions: Approx. 18" x 11" x 8"
- Part Number: HMDLB3800FT33W
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMDLB
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Trip Type : Electronic
- UPC : 78667913960
- GTIN : 00786679139608
- Dimensions : 18 in x 8 in x 11 in (Length/Depth x Height x Width)
- Weight : 30 lb
- Certification : UL Listed
Additional Information
Lugs not included
