Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
HMDLB3800FT32W

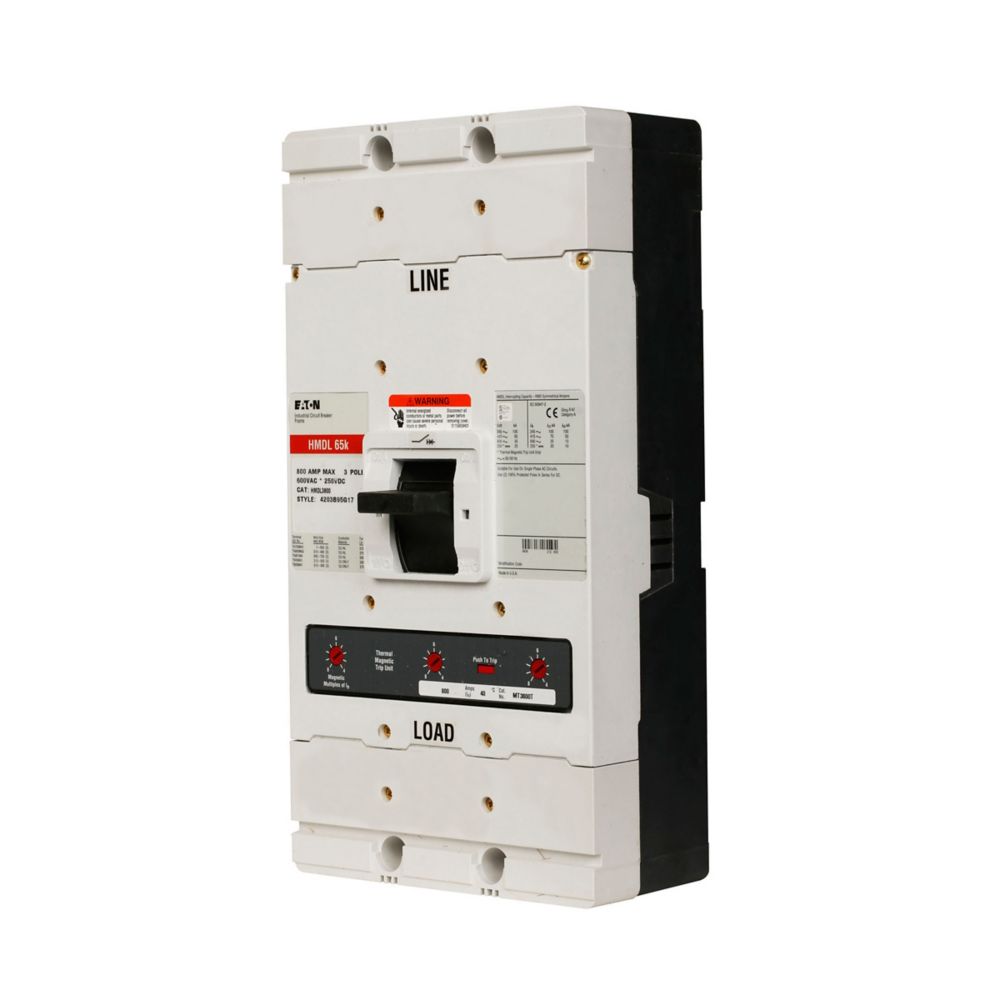

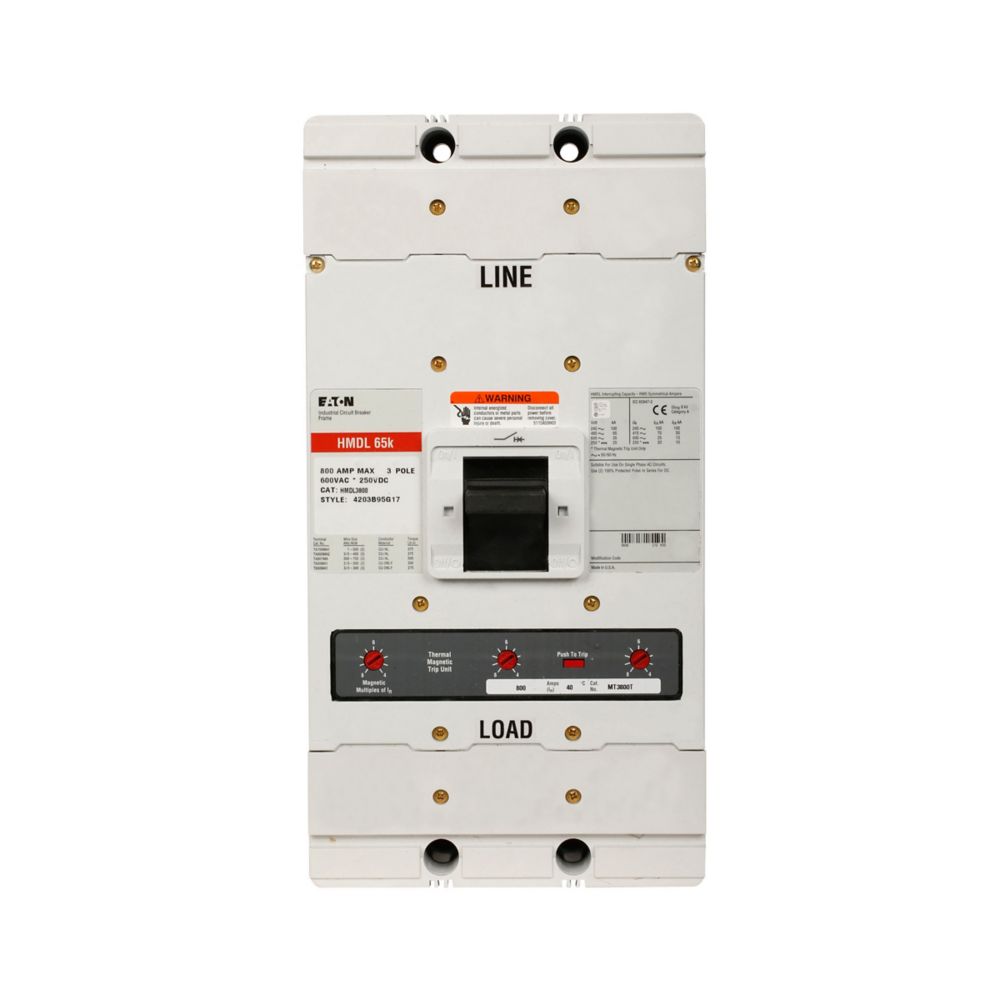

Eaton HMDLB3800FT32W is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. This 480V AC device features a 800A frame with a 800A fixed thermal-magnetic trip unit for robust circuit protection. The breaker is housed in a durable molded case construction with a 3-pole design and fixed mounting configuration. It complies with UL 489 standards for circuit breaker applications and is rated for use at 80°C. This unit is typically deployed in industrial facilities, manufacturing plants, and commercial buildings for main feeder and branch circuit protection. Key Features & Specifications
- Type: Molded Case Circuit Breaker
- Voltage: 480V AC
- Current: 800A Frame, 800A Fixed
- Poles: 3
- Mounting: Fixed
- Trip Unit: Thermal-Magnetic
- Standards: UL 489
- Temperature Rating: 80°C
Specifications
- Part Number: HMDLB3800FT32W
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Electronic molded case circuit breaker
- Type : C
- Voltage : 600VAC, 250VDC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kAIC at 240VAC, 65kAIC at 480VAC
- Connection : Feed-Thru
- Functions : LSI - Long Time, Short Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Compatible Frames : MDL
Product Data
- UPC : 786679139615
- Dimensions : 18 in x 8 in x 11 in (Length/Depth x Height x Width)
- Weight : 30
- Certification : UL
