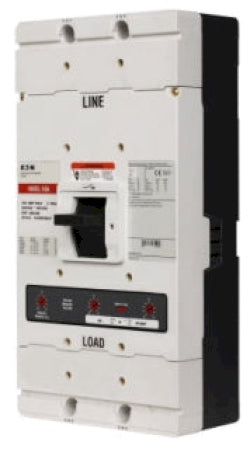

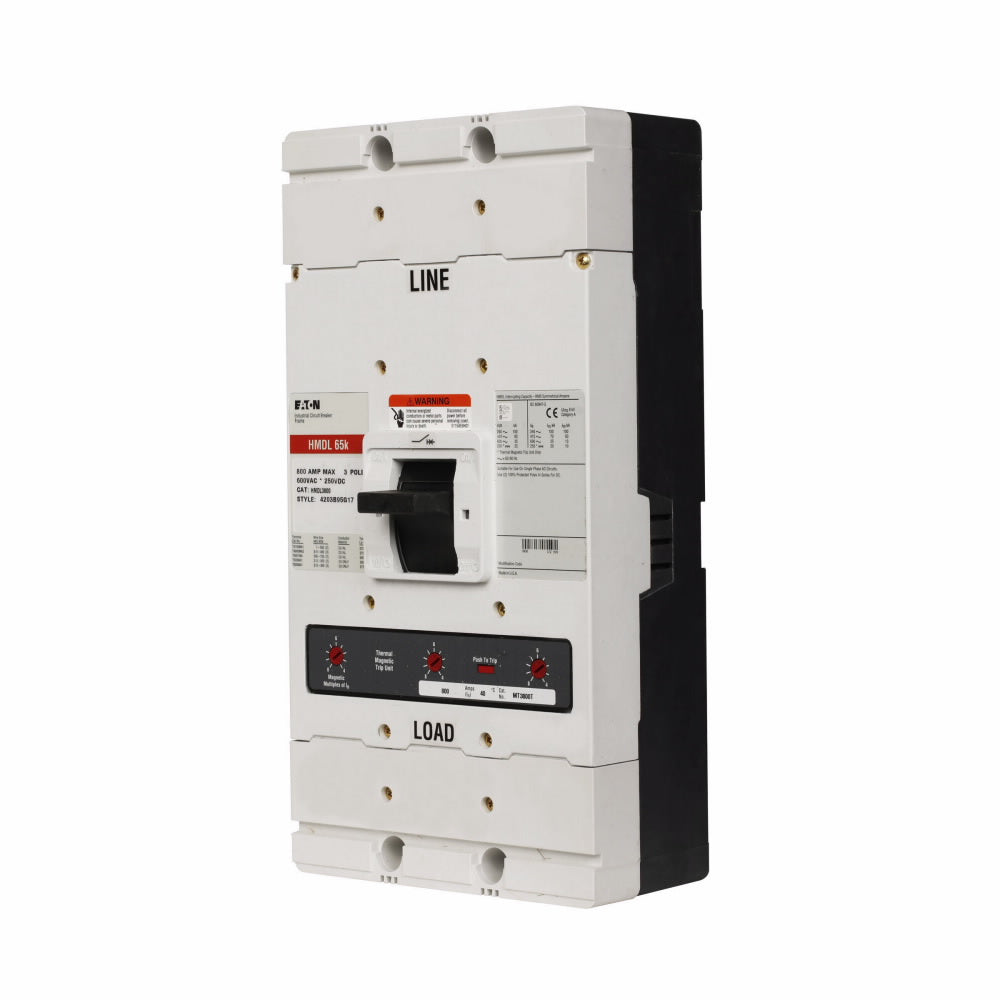

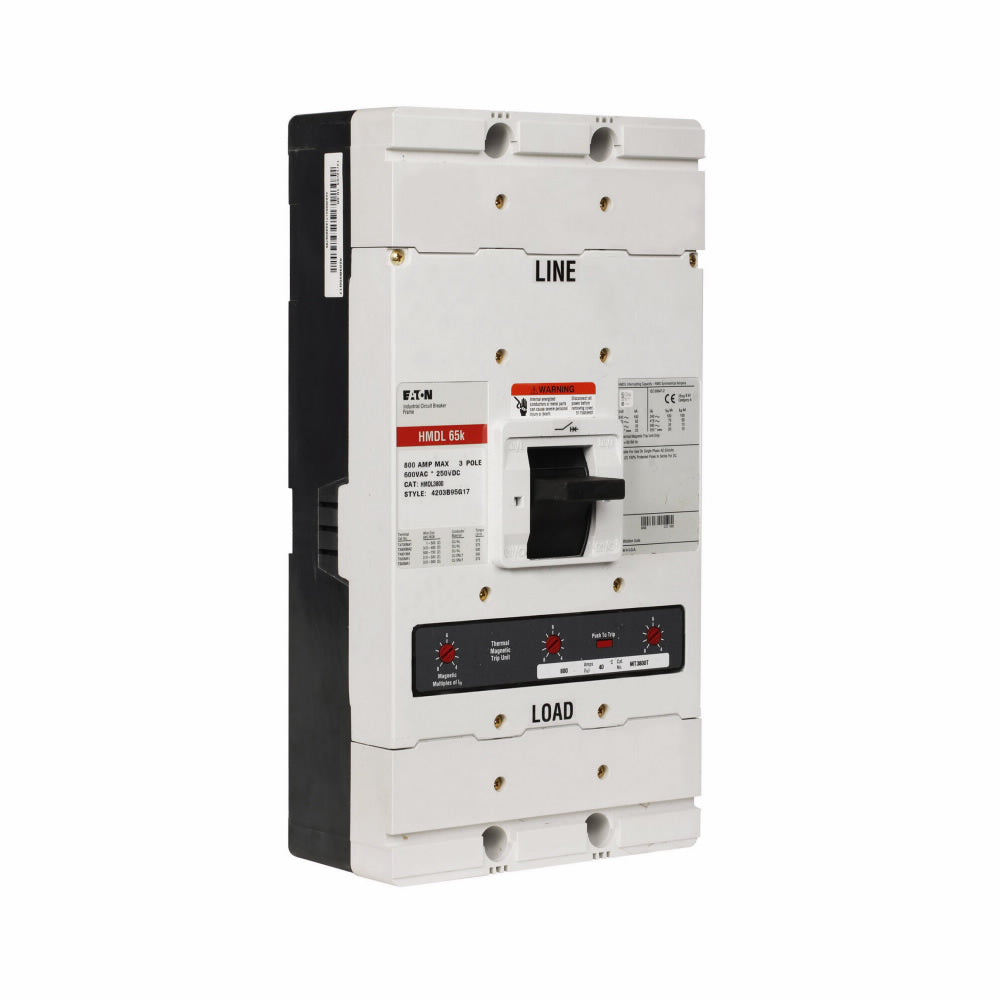

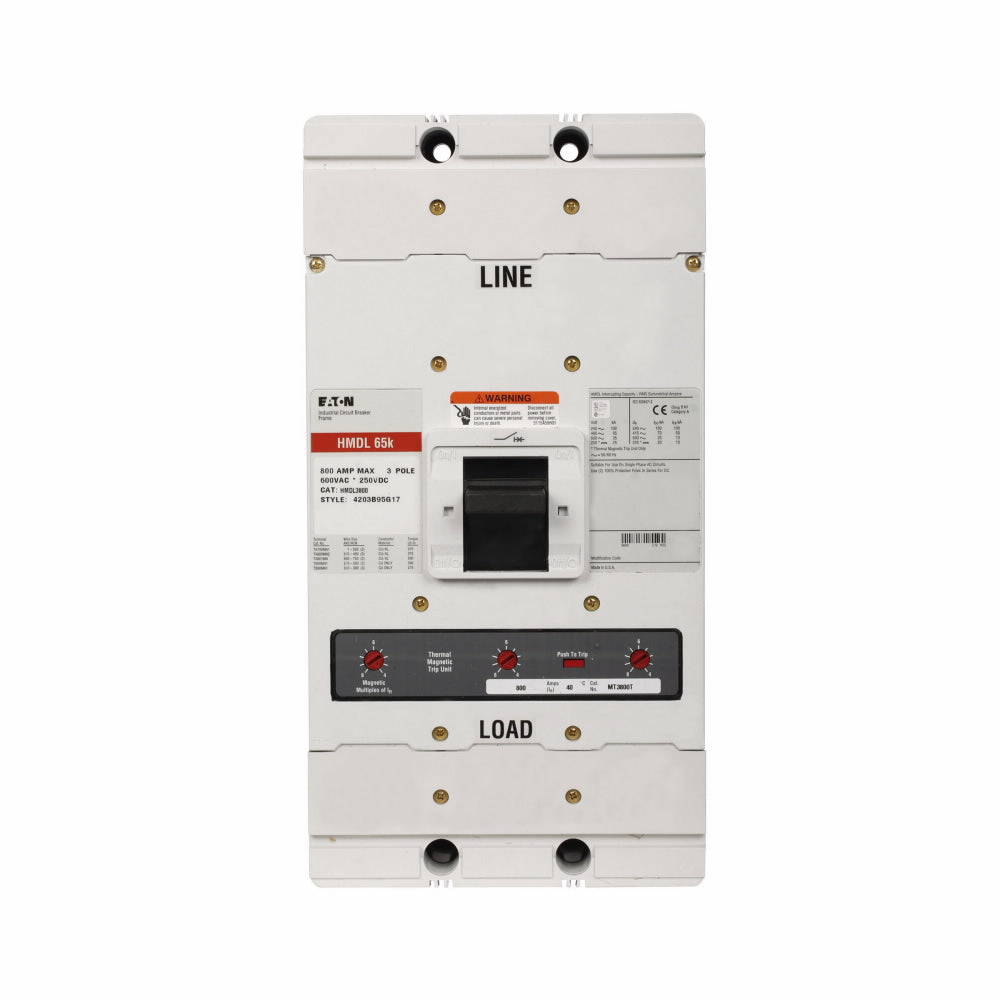

HMDL3800F - Cutler Hammer 800A 600V 3-Pole Molded Case Circuit Breaker Frame MDL Series C

HMDL3800F

HMDL3800F is a Cutler Hammer Series C molded case circuit breaker frame designed for 800 amp, 600 volt applications with three poles.This MDL-frame breaker frame is a frame-only type with a thermal magnetic trip unit, bolt-on mounting, and a high interrupt rating of 100 kAIC at 240 Vac and 65 kAIC at 480 Vac. It is UL listed and suitable for 50/60 Hz operation.

• Manufacturer: Cutler Hammer (Eaton)
• Series: C
• Frame Type: MDL
• Amperage Rating: 800 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Interrupt Rating: 100 kAIC at 240 VAC, 65 kAIC at 480 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Certifications: UL Listed
• Frame Only (no trip unit included)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: HMDL3800F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMDL
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : M Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782114350584
• GTIN : 00782114350584
• Country of Origin : United States
• Dimensions : 18.6 in x 8.3 in x 11 in (Length/Depth x Height x Width)
• Weight : 26.2 lb
• Certification : UL Listed
