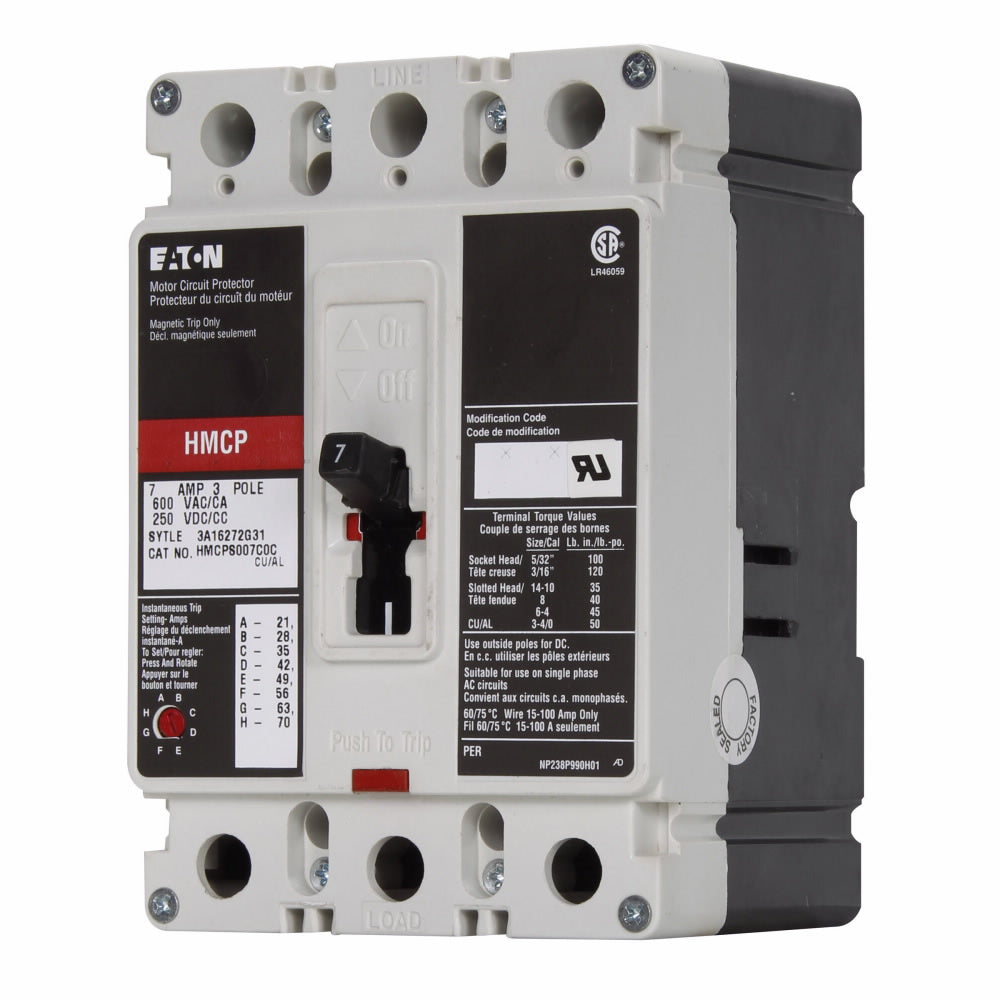

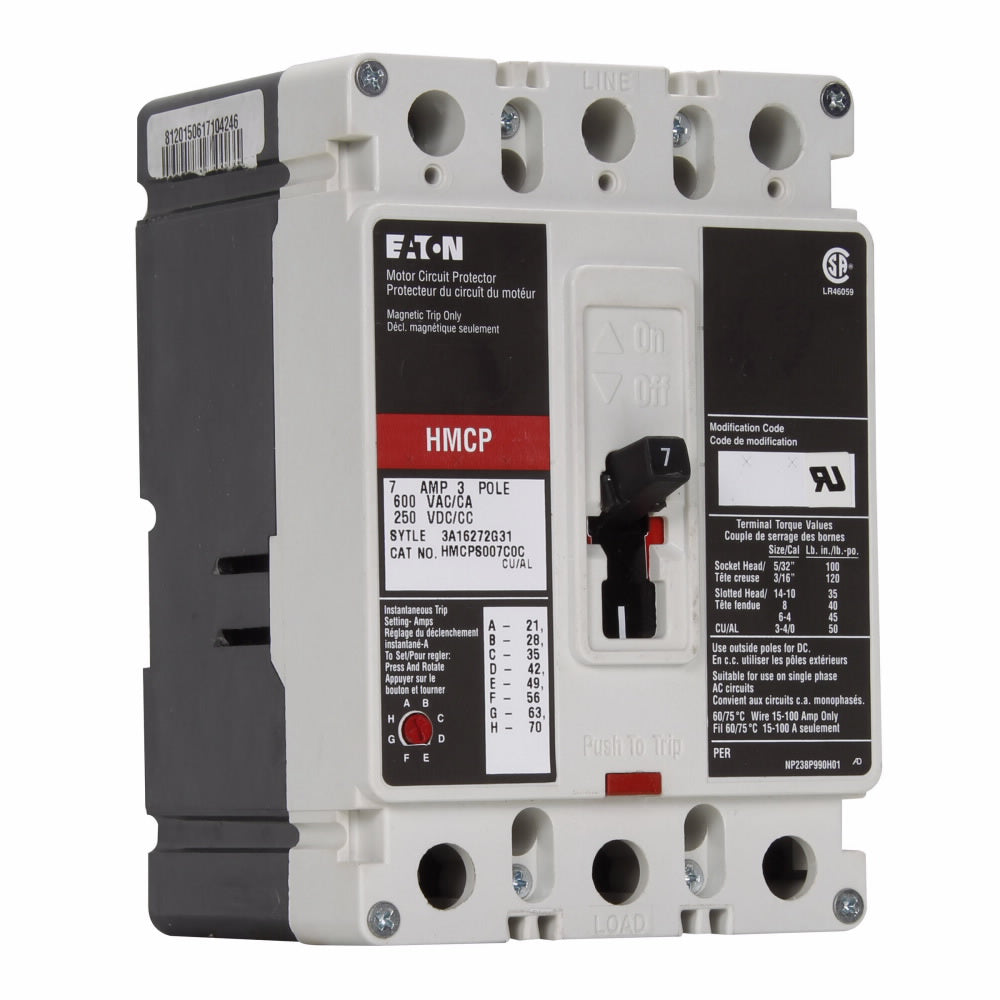

HMCPS007C0 - Cutler Hammer 7A 600V 3-Pole Motor Circuit Protector Series C Frame J-K

HMCPS007C0

HMCPS007C0 is a 7 amp, 600 volt, three-pole motor circuit protector from Cutler Hammer, Series C, Frame J-K designed for reliable motor protection.HMCPS007C0 features a magnetic trip range of 21-70 amps, UL Listed and CSA Certified, suitable for use in industrial motor control applications. It has a compact design with dimensions approximately 7.4 in long, 4.9 in high, and 5 in wide, weighing about 4.25 lbs.

Key Specifications
• Amperage: 7 A
• Voltage: 600 V AC, 250 V DC
• Poles: 3
• Frame: J-K (F Frame equivalent)
• Series: Series C
• Type: Motor Circuit Protector (HMCP)
• Magnetic Trip Range: 21-70 A
• Interrupt Rating: 65 kA at 480 V
• Certifications: UL Listed, CSA Certified
• Mounting: Line and load
• Dimensions: 7.4" x 4.9" x 5" (LxHxW)
• Weight: Approx. 4.25 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCPS007C0
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCPS
• Voltage : 2
• Amperage : 7
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 078667903273
• GTIN : 00786679032732
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
