HMCPE070M2C - Cutler Hammer 70A 480V 3-Pole Molded Case Circuit Breaker EG Frame Magnetic Trip

HMCPE070M2C

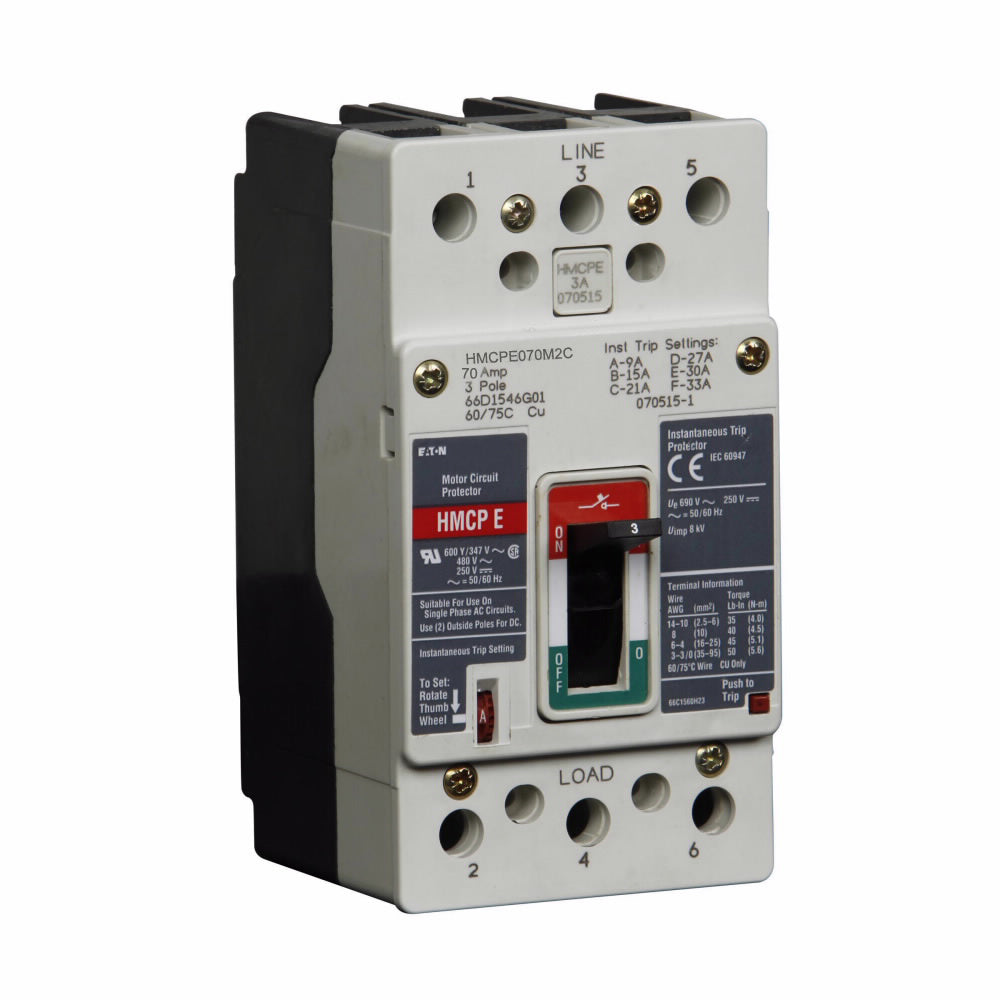

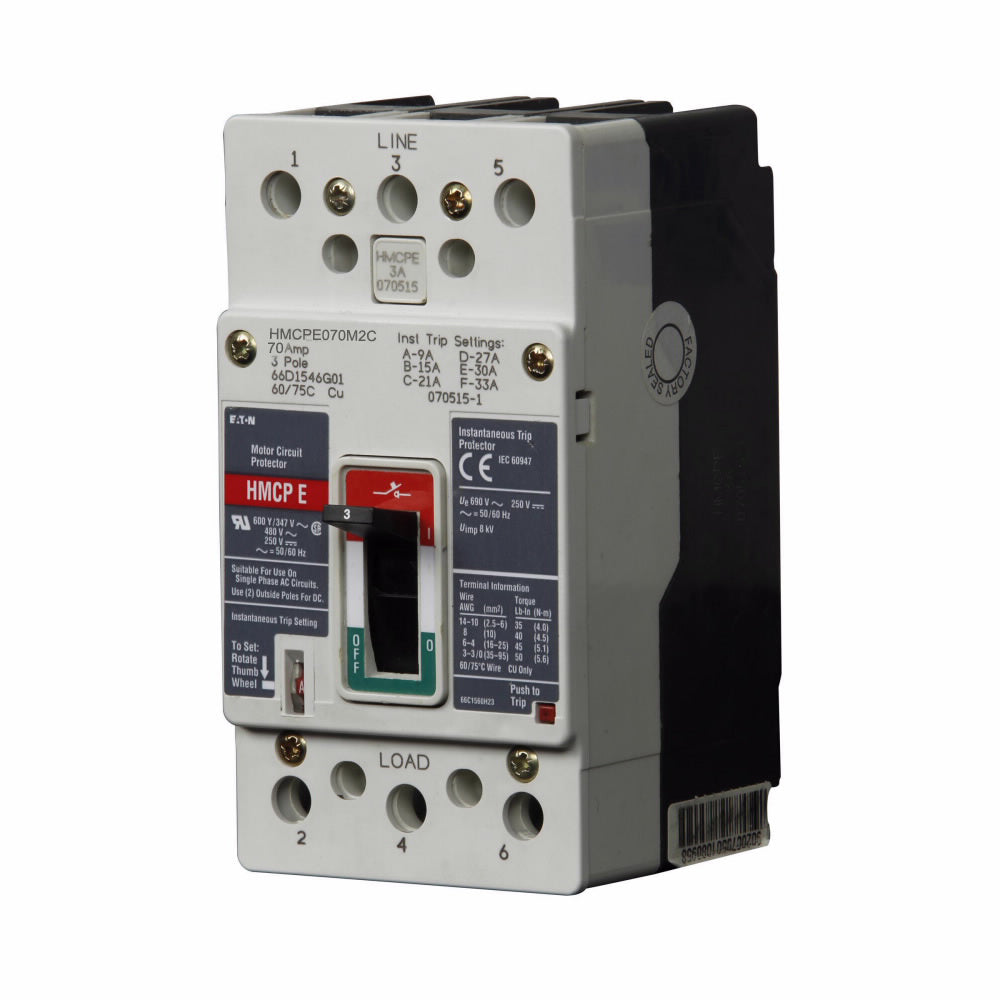

HMCPE070M2C is a Cutler Hammer molded case circuit breaker designed for motor protection with a 70 amp rating and 480 volt capacity.This 3-pole circuit breaker features an EG frame with magnetic-only instantaneous trip protection, suitable for 3-phase systems up to 480V (600Y/347V). It includes feed-thru connection type with non-aluminum line and load side lug terminals. The breaker has a trip range of 210-770 amps magnetic and a 15kA interrupt rating at 400V, making it ideal for motor circuit protection applications.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: HMCPE070M2C
• Amperage: 70A
• Voltage: 480V (600Y/347V)
• Poles: 3
• Frame/Series: EG Frame, Series C
• Trip Unit: Magnetic Only, Instantaneous
• Connection Type: Feed-Thru
• Interrupt Rating: 15kA @ 400V
• Trip Range: 210-770A Magnetic
• Terminal Type: Non-aluminum line & load side lug terminals
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCPE070M2C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : HMCPE
• Voltage : 480
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 15kA@400V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 786679113684
• GTIN : 00786679113684
• Country of Origin : Dominican Republic
• Dimensions : 2.99 in x 5.5 in x 3 in (Length/Depth x Height x Width)
• Weight : 3
• Certification : CSA Certified, IEC Rated, UL Listed
