Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HMCPE007C0C

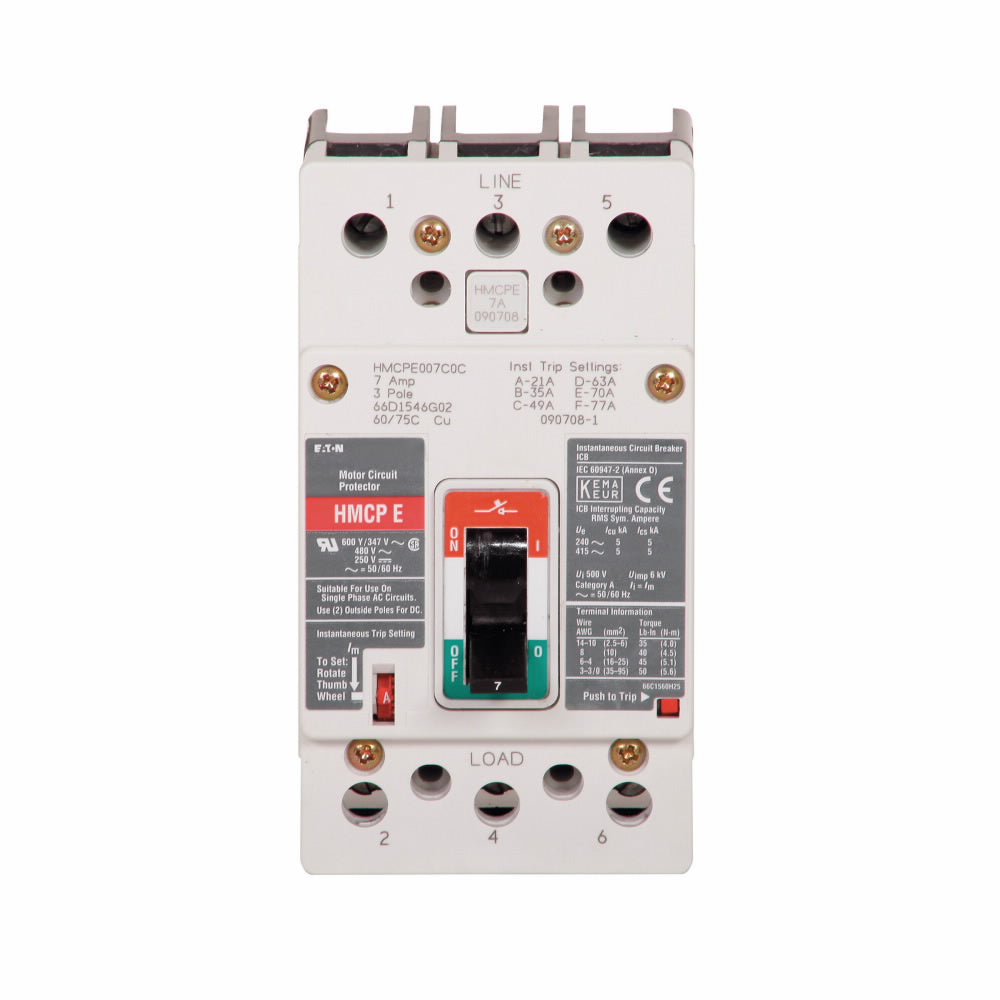

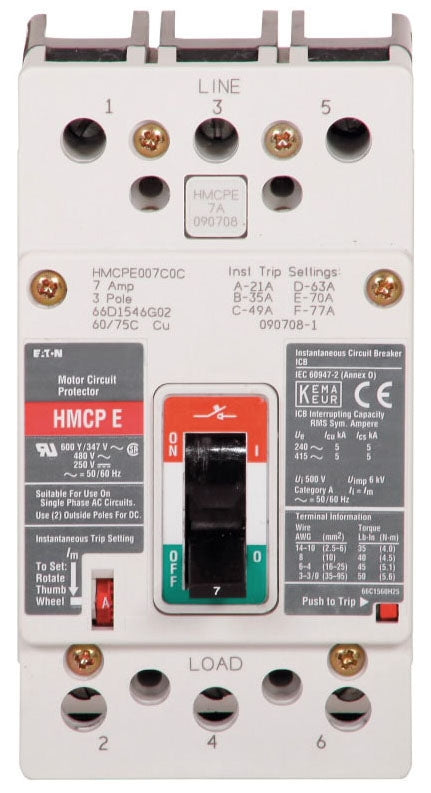

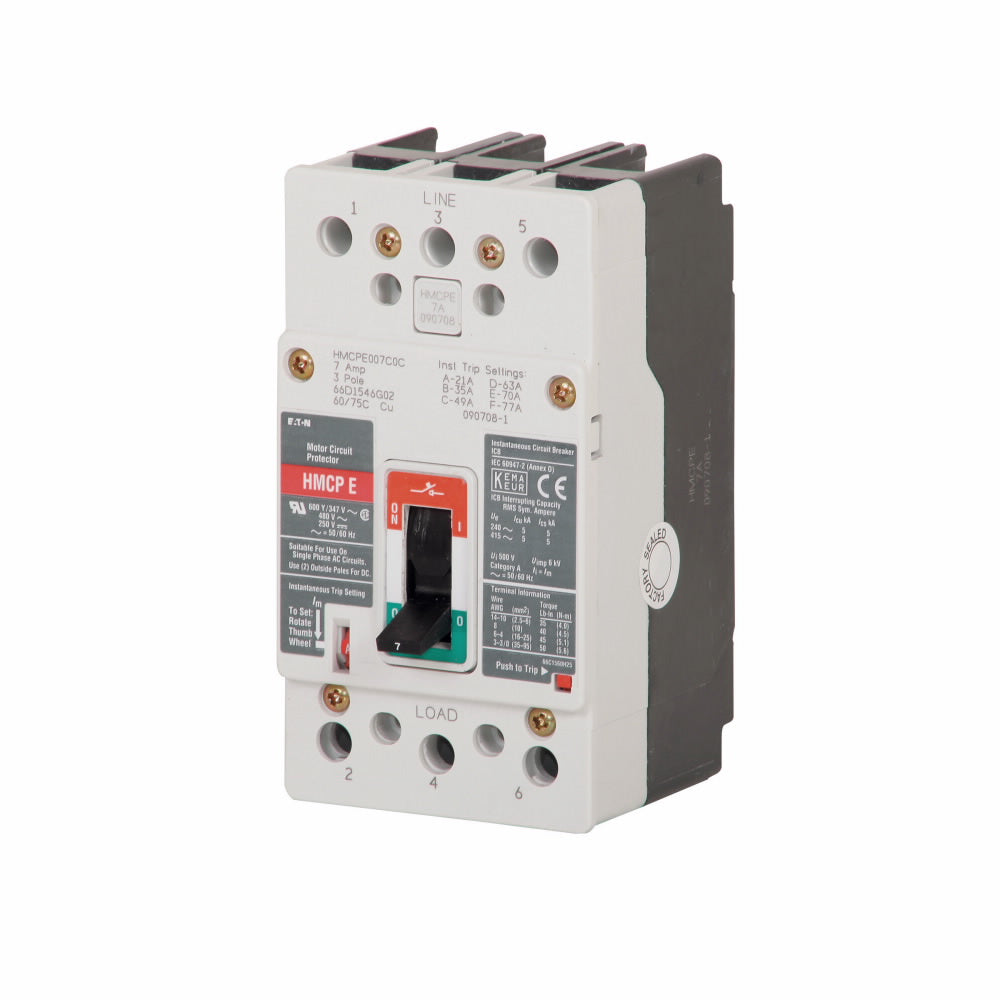

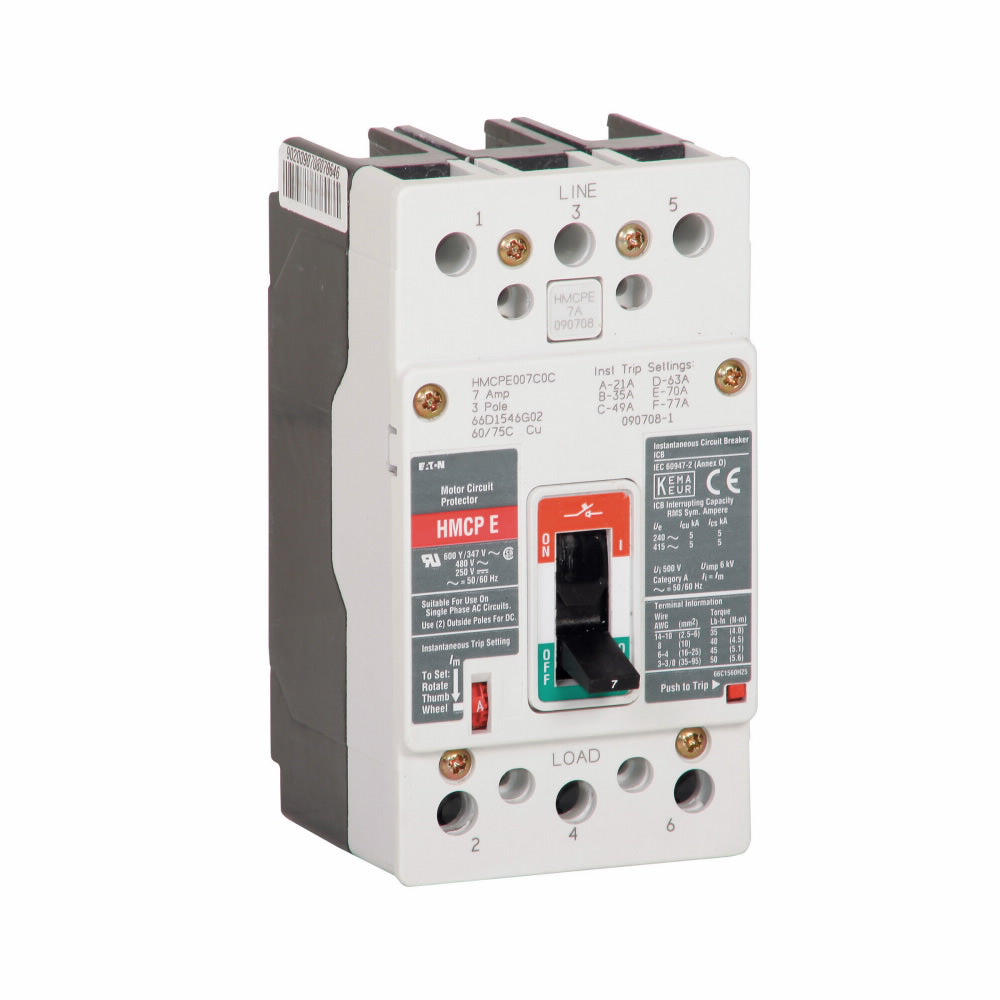

HMCPE007C0C is a Cutler Hammer motor circuit protector designed for reliable circuit protection in industrial applications.This molded case circuit breaker features a 7 Amp current rating, 600VAC and 250VDC voltage ratings, and a 3-pole configuration. It belongs to the HMCP Series C, Frame J-K, with a magnetic trip unit rated for 21-70 Amps. The breaker has a feed-thru connection type and an interrupting rating of 65kA at 480V. It is UL Listed and CSA Certified for safety and compliance.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: HMCPE007C0C
- Amperage: 7 Amps
- Voltage: 600VAC, 250VDC
- Poles: 3
- Frame: J-K
- Series: C
- Trip Unit: Magnetic (21-70 A range)
- Interrupt Rating: 65kA @ 480V
- Connection Type: Feed-Thru
- Certifications: UL Listed, CSA Certified
- Terminal Material: Non-aluminum
Specifications
- Part Number: HMCPE007C0C
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : HMCPE
- Voltage : 480
- Amperage : 7
- Phase : 3
- Poles : 3
- AIC rating : 15kA@400V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 786679113646
- GTIN : 00786679113646
- Country of Origin : Dominican Republic
- Dimensions : 6.5 in x 5.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 3
- Certification : CSA Certified,UL Listed
- Wire Size : 4 AWG to 1/0 AWG, Copper
