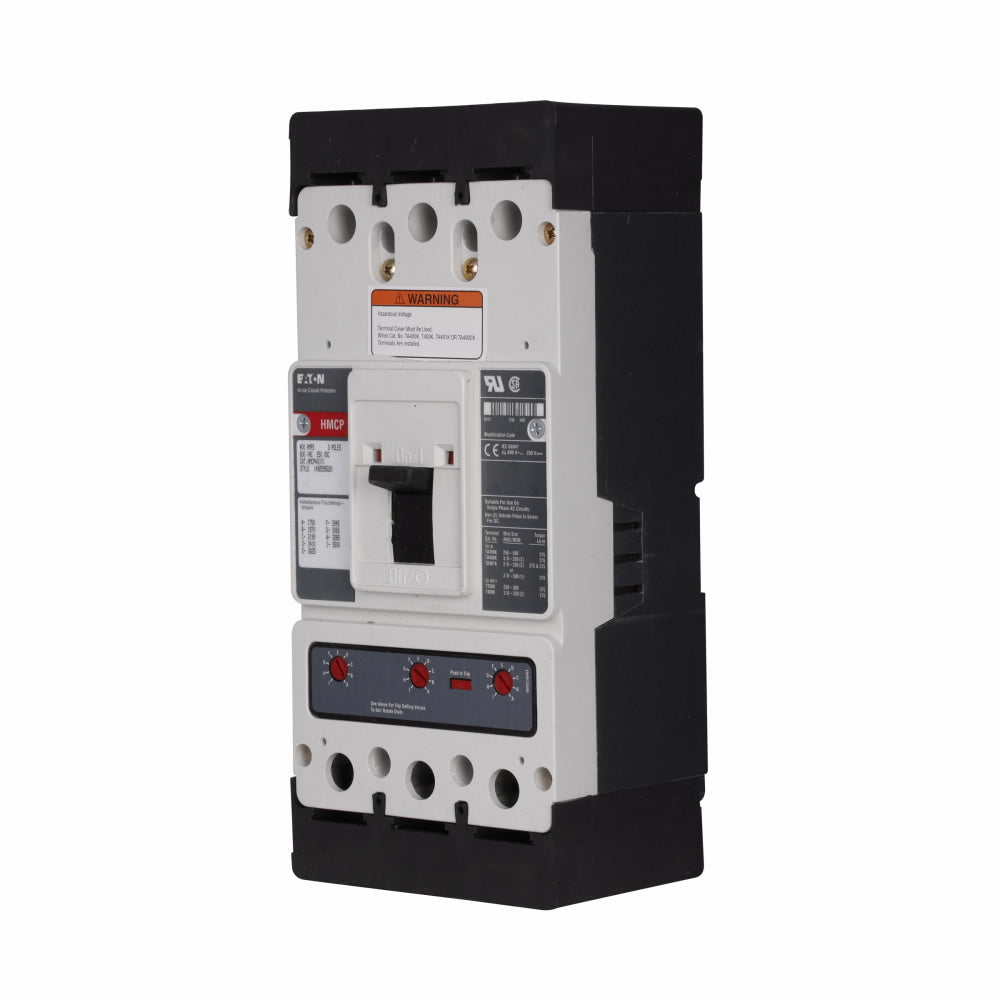

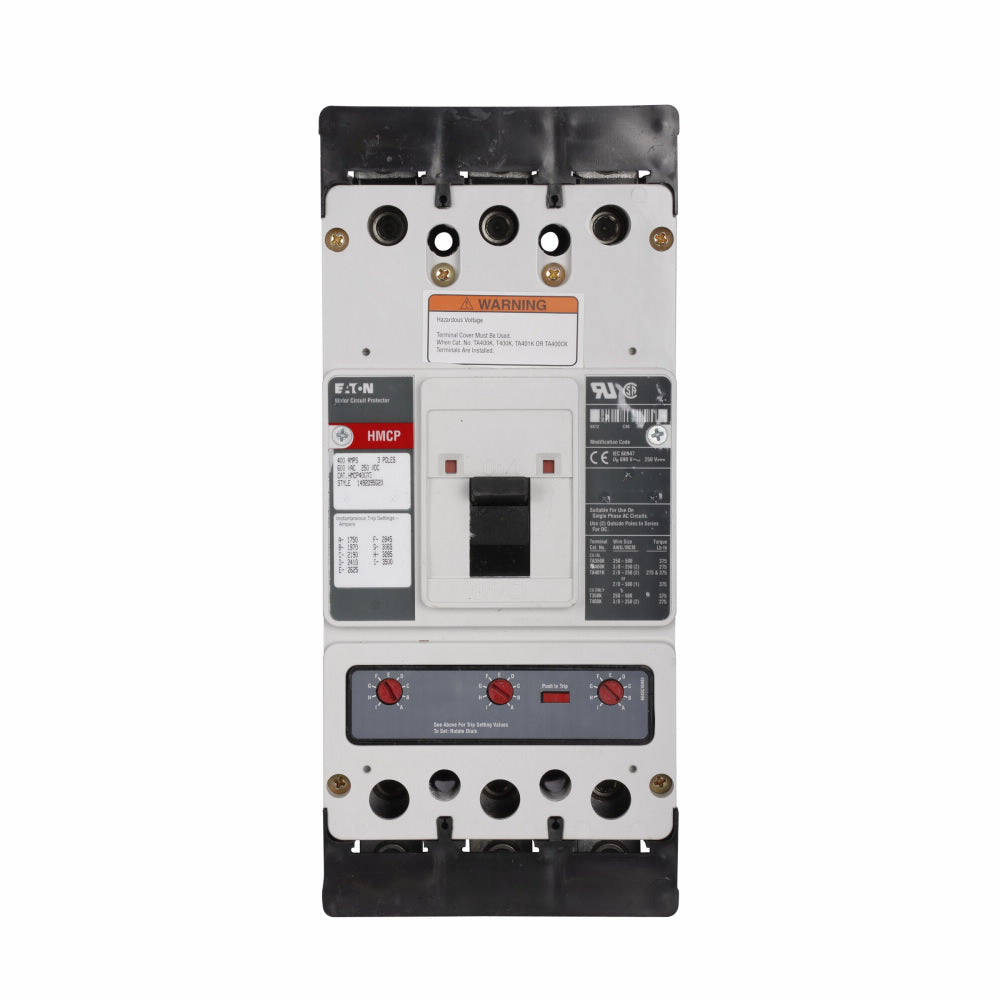

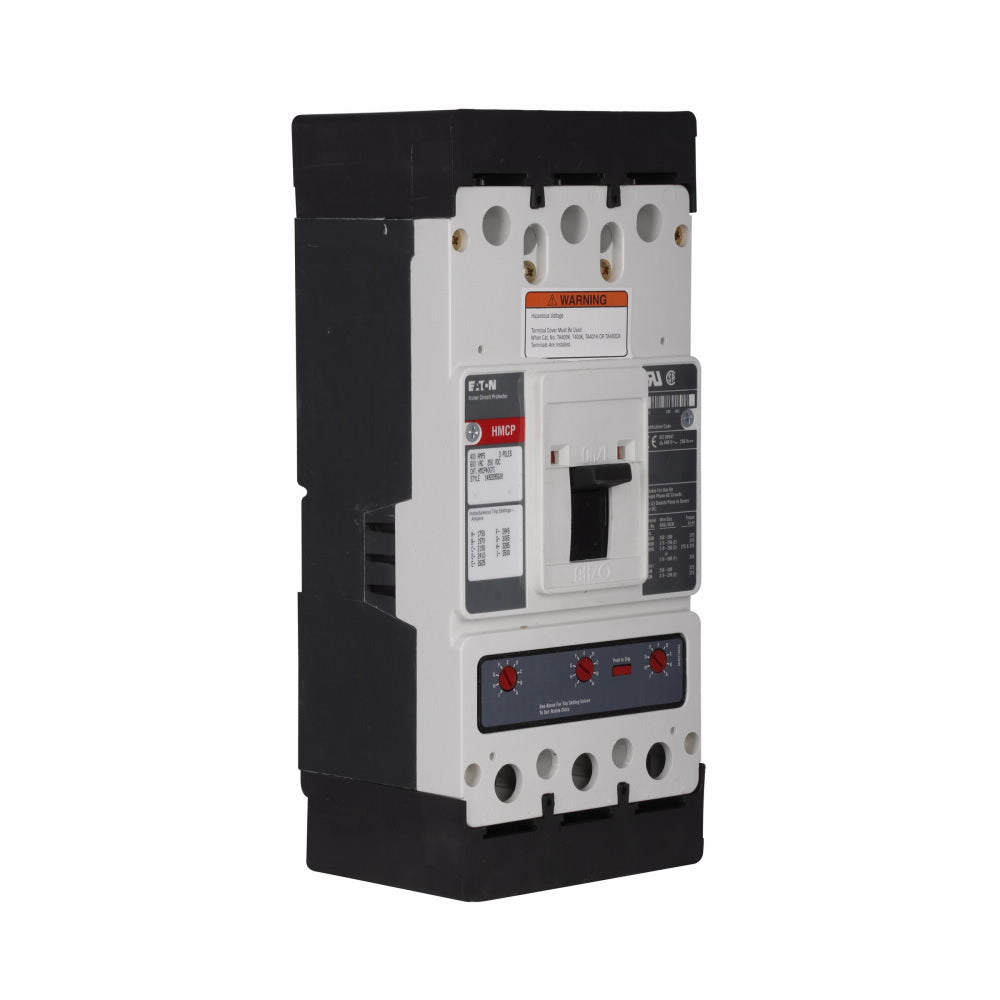

HMCP400Y5C - Cutler Hammer 400A 600V 3-Pole Motor Circuit Protector Molded Case Circuit Breaker

HMCP400Y5C

HMCP400Y5C is a Cutler Hammer molded case circuit breaker designed as a motor circuit protector with 400 ampere rating and 3 poles.HMCP400Y5C features a 600 VAC and 250 VDC voltage rating, magnetic instantaneous trip unit, and is part of the Series C K-Frame line. It supports feed-thru connection and is UL Listed and CSA Certified for reliable motor protection.

Key Specifications
• Amperage: 400 A
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Frame/Series: K-Frame, Series C
• Trip Unit: Magnetic instantaneous (non-interchangeable)
• Mounting Type: Feed-thru connection
• Interrupt Rating: 2250-4500 A (typical for K-Frame MCP)
• Certifications: UL Listed, CSA Certified
• Weight: Approximately 11.5 lb
• Dimensions: 4.1 in (depth) x 10.13 in (height) x 5.5 in (width)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP400Y5C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679108345
• GTIN : 00786679108345
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed,CSA Certified
