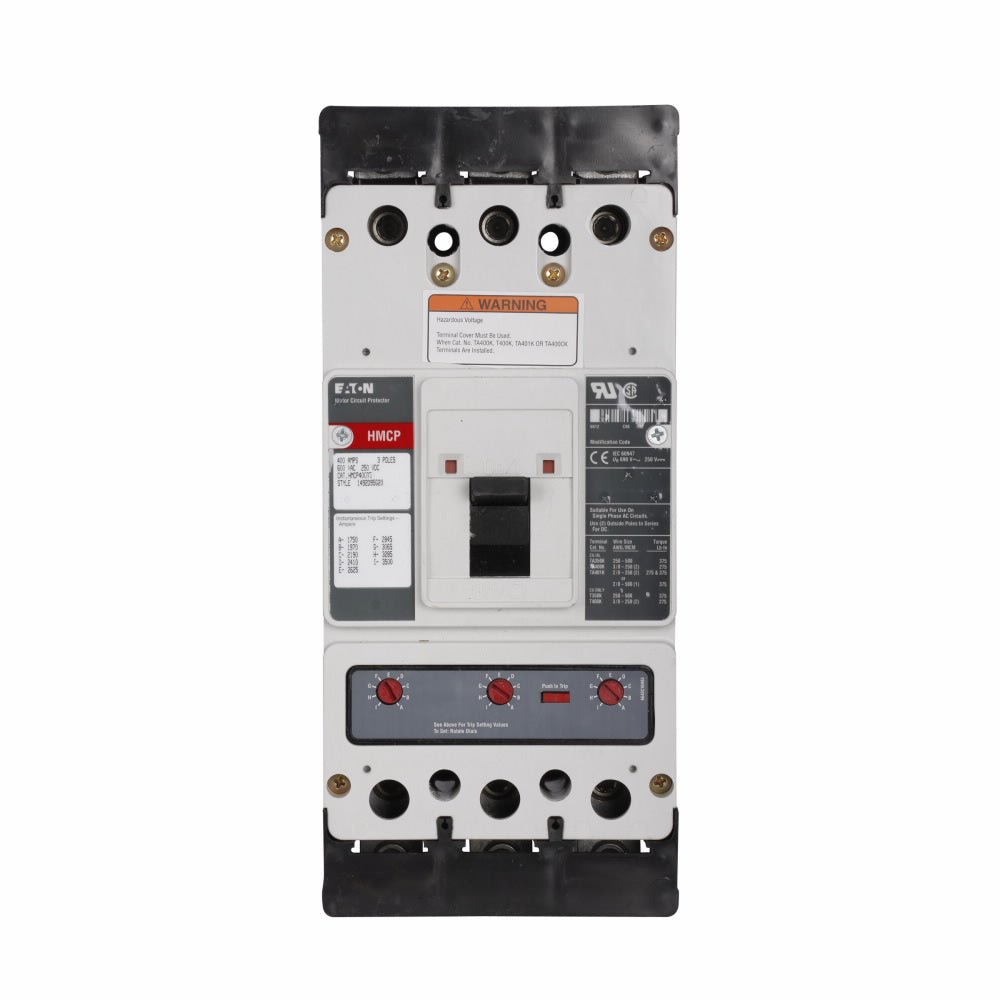

HMCP400X5WS10 - Eaton 400A 3-Pole 600V Motor Circuit Protector Shunt Trip

HMCP400X5WS10

HMCP400X5WS10 is an Eaton molded case motor circuit protector designed for three-phase motor protection with integrated shunt trip capability. This Series C device combines thermal-magnetic trip protection with a shunt trip mechanism, making it suitable for remote shutdown applications in industrial motor control systems. The unit features bolt-on connection to compatible panelboards and is rated for both AC and DC operation across multiple voltage ranges.Key Specifications

• Amperage Rating: 400 A
• Number of Poles: Three-pole
• Frame Size: Frame J-K
• Maximum Voltage: 600 V AC, 250 V DC
• Series: Series C
• Magnetic Trip Range: 2000-4000 A
• Trip Unit: Thermal-Magnetic with Shunt Trip
• Shunt Trip Voltage: 208-380 V AC or 110-127 V DC
• Connection Type: Bolt-On
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HMCP400X5WS10
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679014110
• GTIN : 00786679014110
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed,CSA Certified
