HMCP400X5C - Cutler Hammer 400 Amp 600V 3 Pole K Frame Magnetic Only Motor Circuit Protector, Series C, 35kA@480V, Feed-Thru, UL Listed, CSA Certified

HMCP400X5C

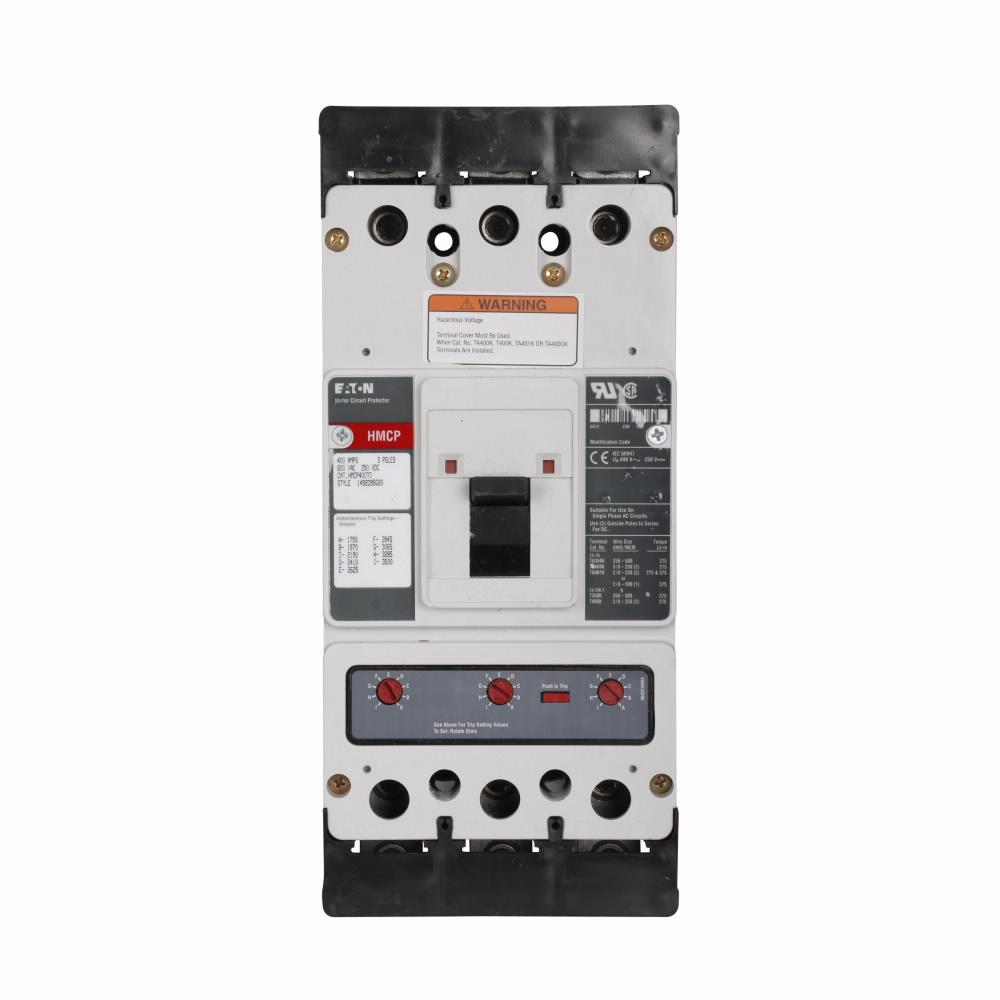

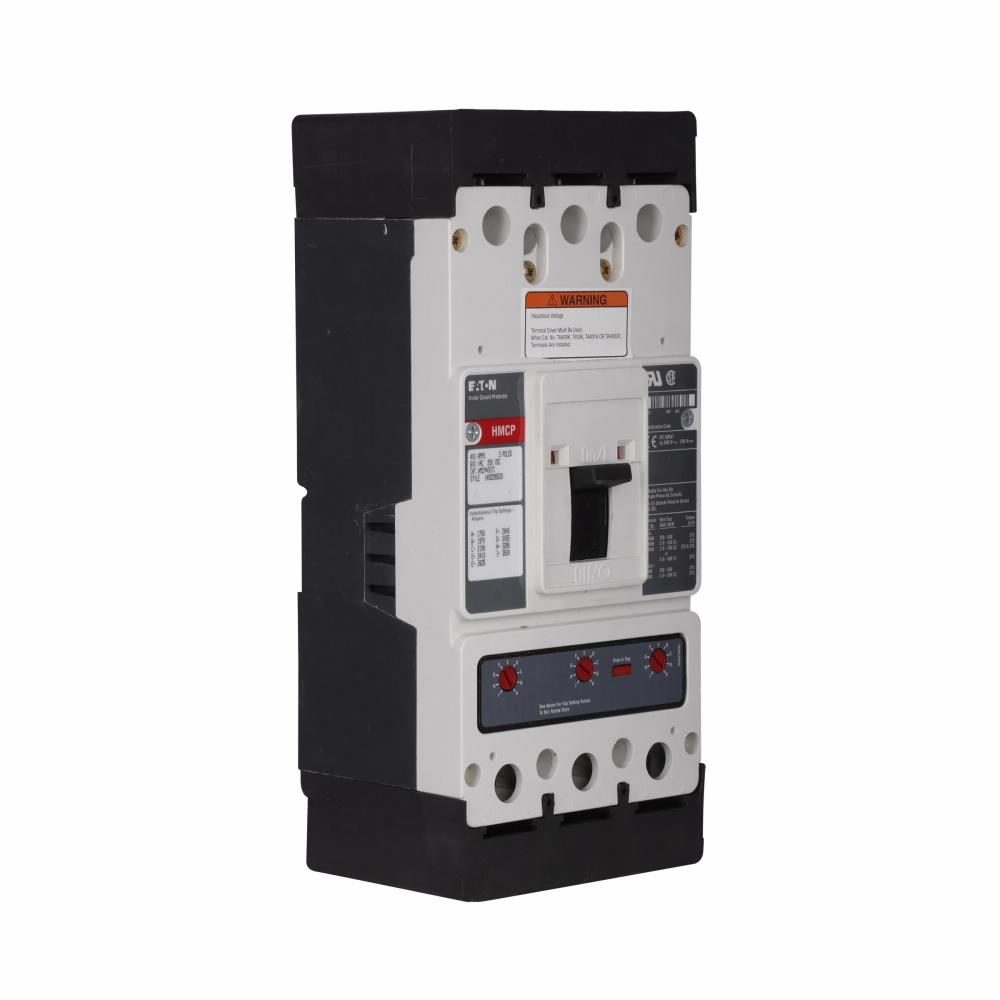

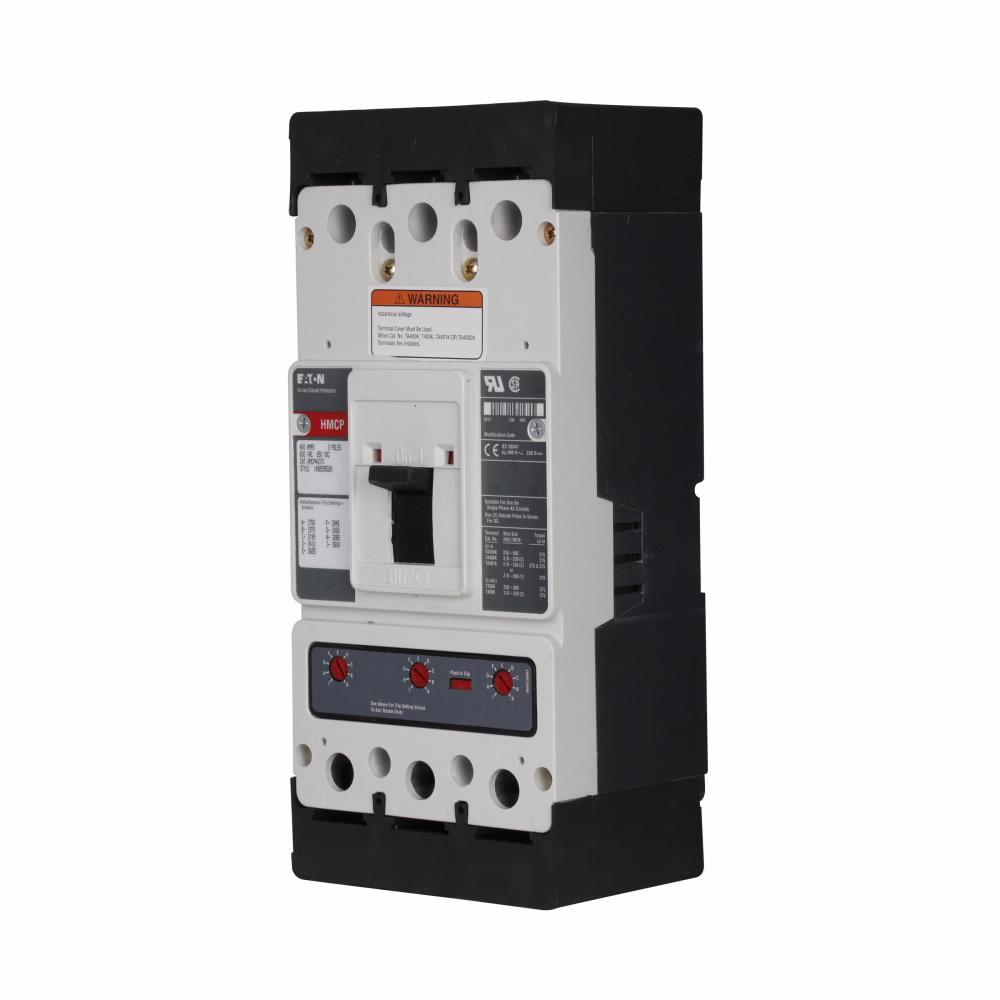

HMCP400X5C is a Cutler Hammer molded case motor circuit protector designed for reliable, instantaneous protection in demanding industrial applications.

This three-pole, magnetic-only circuit breaker features a 400 Amp rating, 600V AC/250V DC voltage, and a K frame design. It offers feed-thru connection, non-aluminum line & load terminals, and is part of the Series C family. The HMCP400X5C is engineered for motor circuit protection with a magnetic trip range of 2000–4000A and an interrupting rating of 35kA at 480V. It is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC, 250V DC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 35kA@480V
• Series/Frame: Series C, K Frame
• Trip Unit: Magnetic Only, Instantaneous (I)
• Certifications: UL Listed, CSA Certified
• Dimensions: 10.13" H x 5.5" W x 4.1" D
• Weight: 11.5 lbs
• Terminals: Non-aluminum line & load side
• Magnetic Trip Range: 2000–4000A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP400X5C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : 35kAIC at 480V
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679150382
• GTIN : 00786679150382
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : CSA Certified,UL Listed
