HMCP400W5 - Cutler Hammer 400A 600V 3-Pole Motor Circuit Protector Circuit Breaker

HMCP400W5

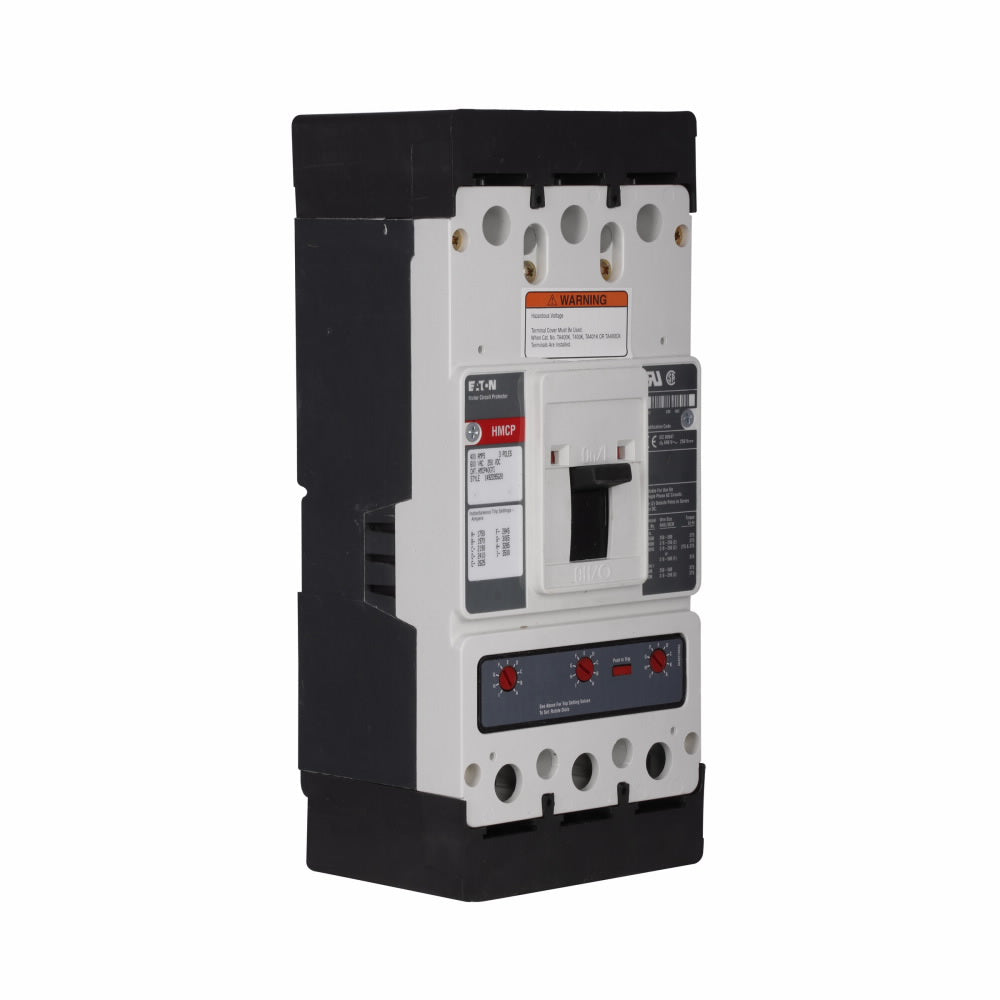

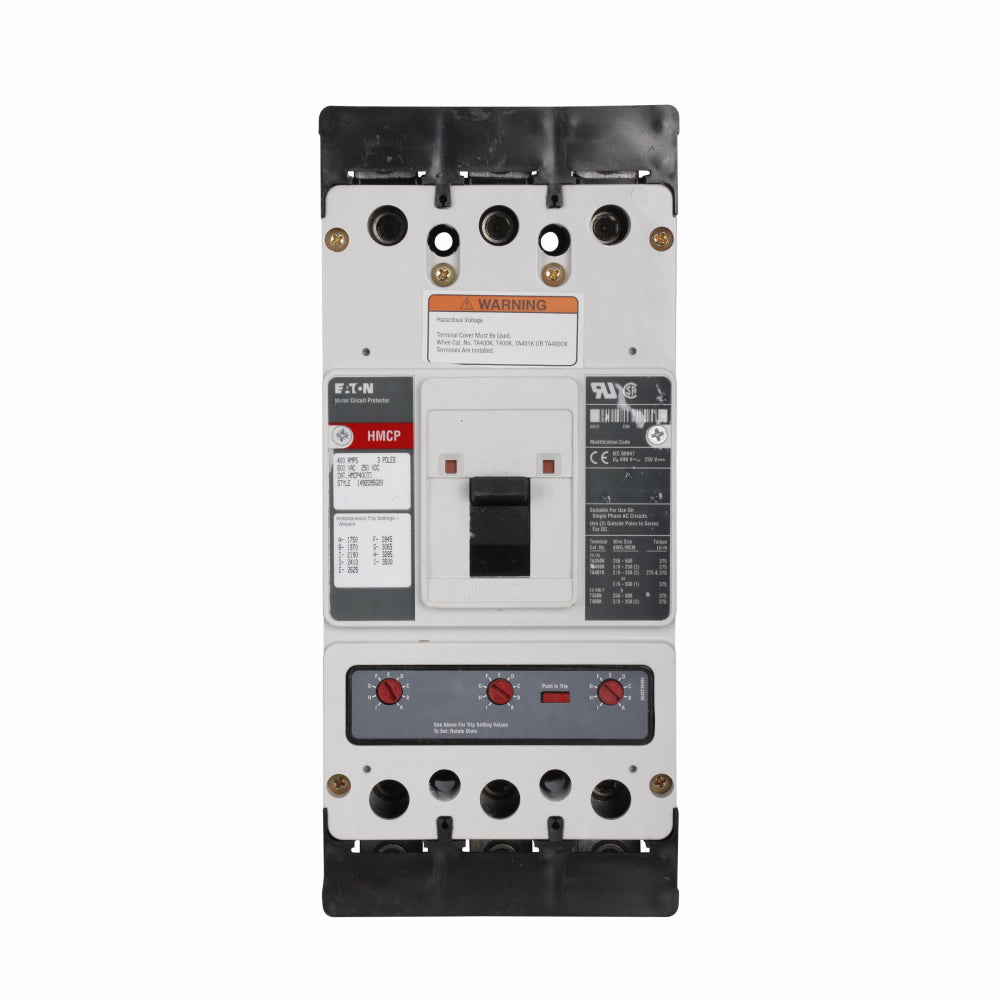

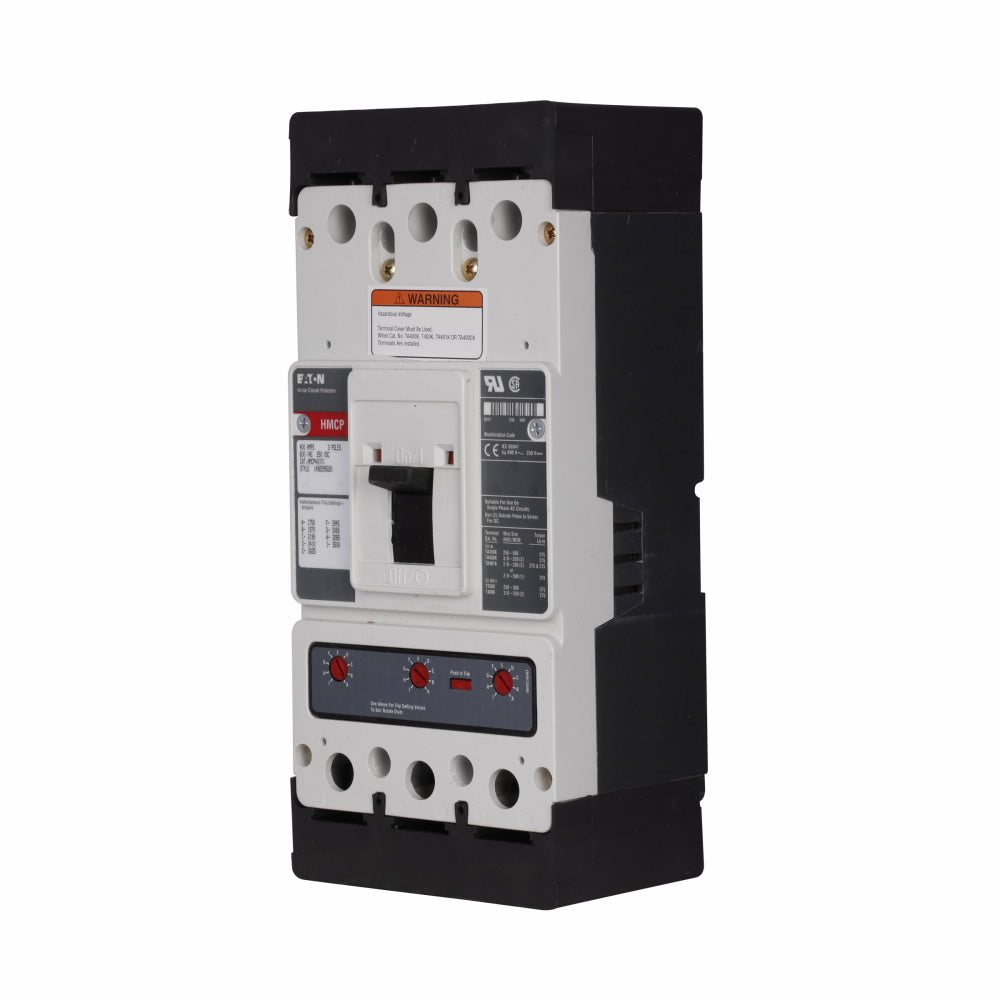

HMCP400W5 is a Cutler Hammer motor circuit protector circuit breaker designed for 400 ampere, 600 volt applications with 3 poles.This molded case circuit breaker features a K frame style with feed-thru mounting, magnetic instantaneous trip unit, and is suitable for motor protection. It supports line and load side lug terminals and has a magnetic trip range of 1250-2500 amperes. The breaker is UL listed and CSA certified, rated for 35kA interrupt capacity at 480V AC.

• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Frame Type: K Frame
• Mounting Type: Feed-Thru
• Interrupt Rating: 35kA @ 480V
• Trip Unit: Magnetic Instantaneous Only
• Magnetic Trip Range: 1250-2500A
• Line and Load Side Lug Terminals
• Certifications: UL Listed, CSA Certified
• Weight: 11.5 lbs
• Dimensions (HxWxD): 10.13" x 5.5" x 4.1"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP400W5
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679151167
• GTIN : 00786679151167
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : CSA Certified,UL Listed
