Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
HMCP400K5W

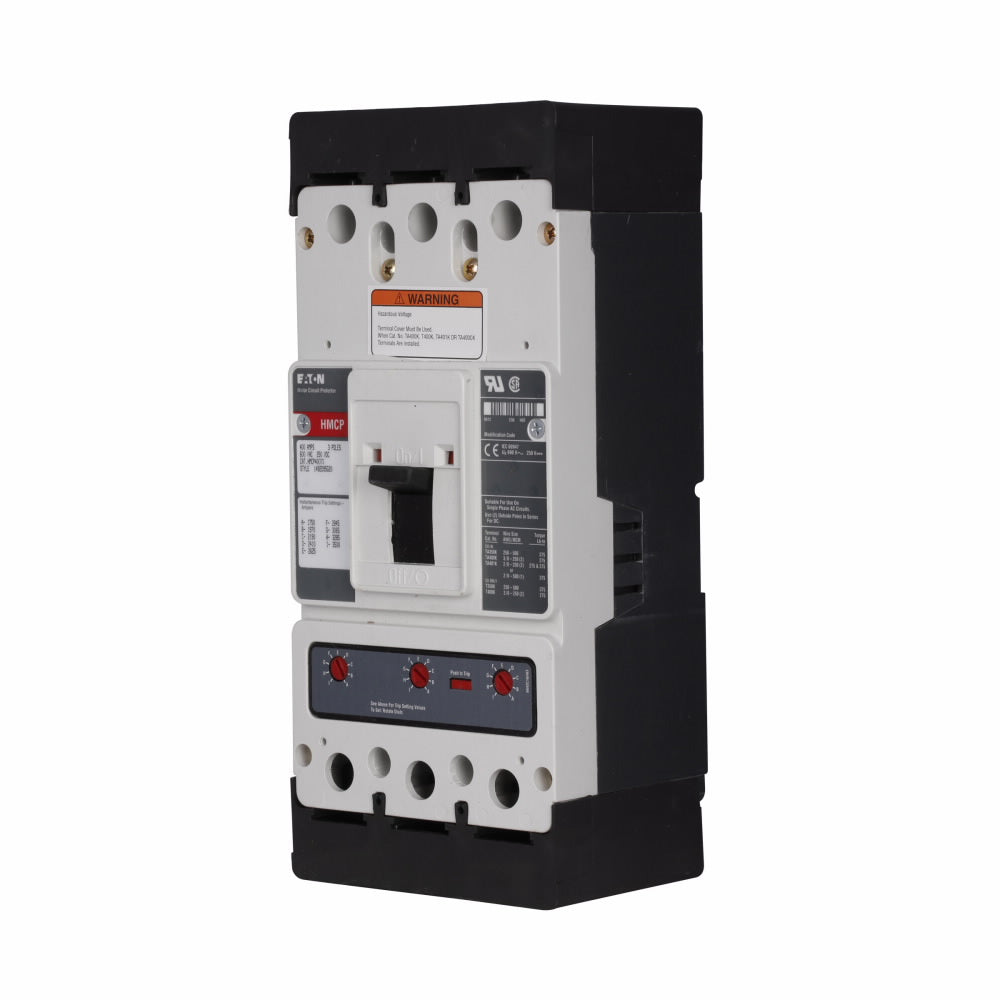

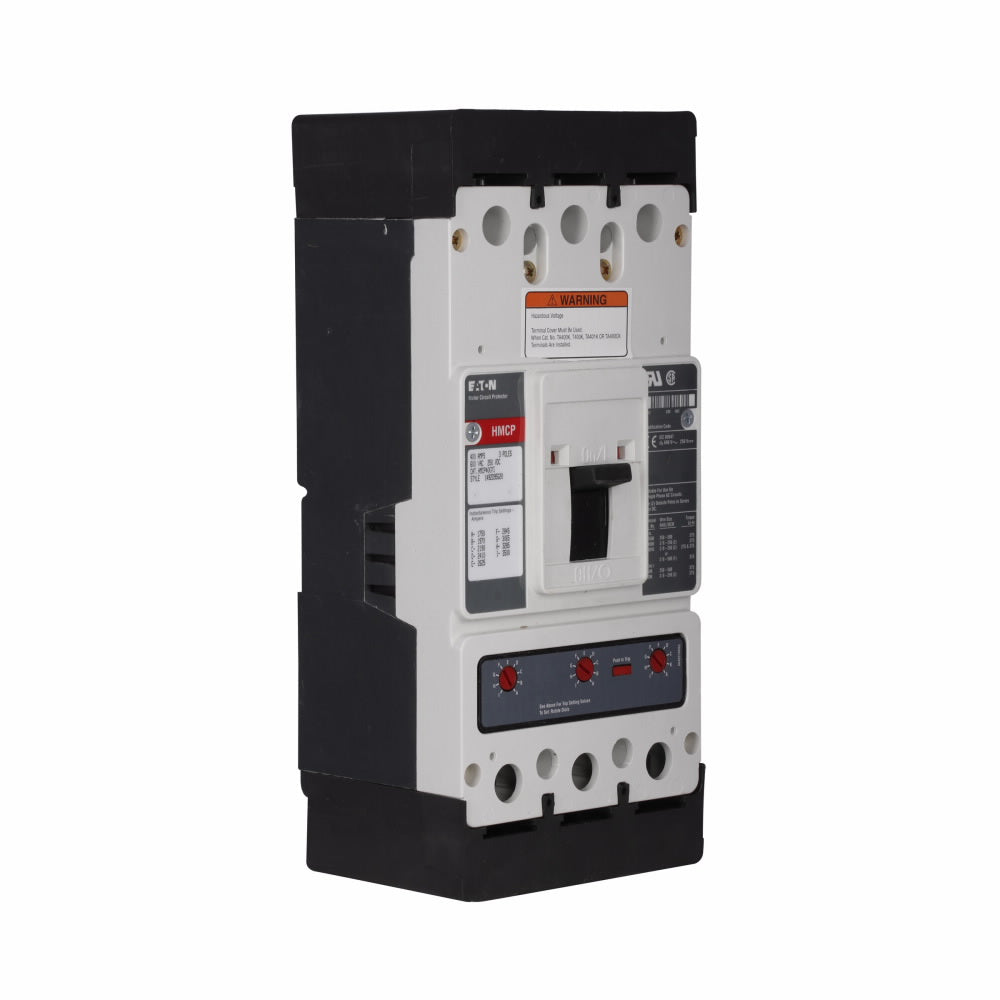

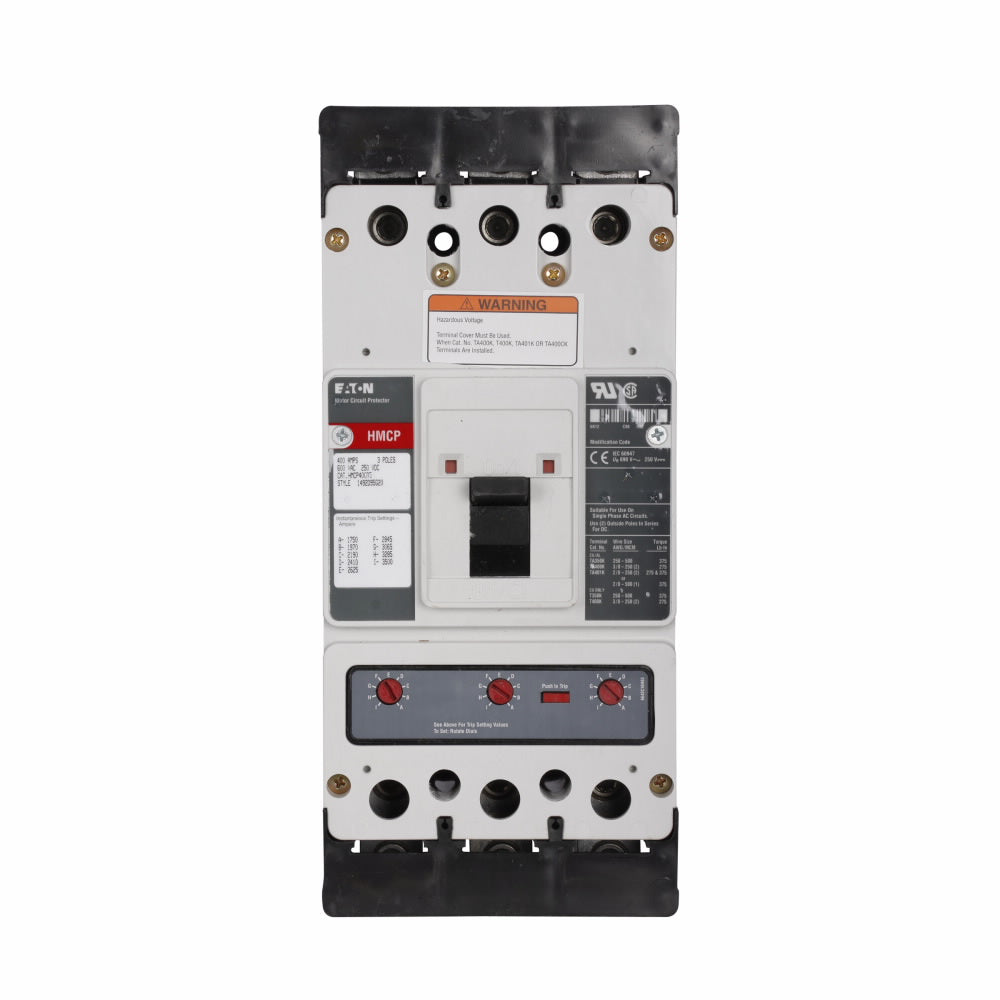

HMCP400K5W is a Westinghouse Series C motor circuit protector designed for reliable protection in industrial and commercial applications.This 400 amp, 3-pole molded case circuit breaker is rated for 600 volts AC and features instantaneous (magnetic) trip protection for motor circuits. The HMCP400K5W is suitable for use with NEMA motor starter size 5 and lower horsepower size 6 applications. It is designed for feed-thru connection and is part of the K-frame Series C product line.
- Part Number: HMCP400K5W
- Manufacturer: Westinghouse
- Amperage: 400 A
- Voltage: 600 VAC
- Poles: 3
- Mounting Type: Feed-Thru
- Series/Frame: Series C, K-Frame
- Interrupt Rating: 35 kA at 480 VAC
- Trip Unit: Instantaneous (Magnetic) Only
- Application: Motor Circuit Protection
- Standards: UL Listed
- Connection Type: Feed-Thru
Additional Information
Lugs are not included
Specifications
- Part Number: HMCP400K5W
- Manufacturer : Westinghouse
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMCP
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 786679342220
- GTIN : 00786679342220
- Country of Origin : Dominican Republic
- Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
- Certification : UL Listed,CSA Certified
