HMCP400F5C - Cutler Hammer 400A 600V 3 Pole Molded Case Circuit Breaker Series C K Frame

HMCP400F5C

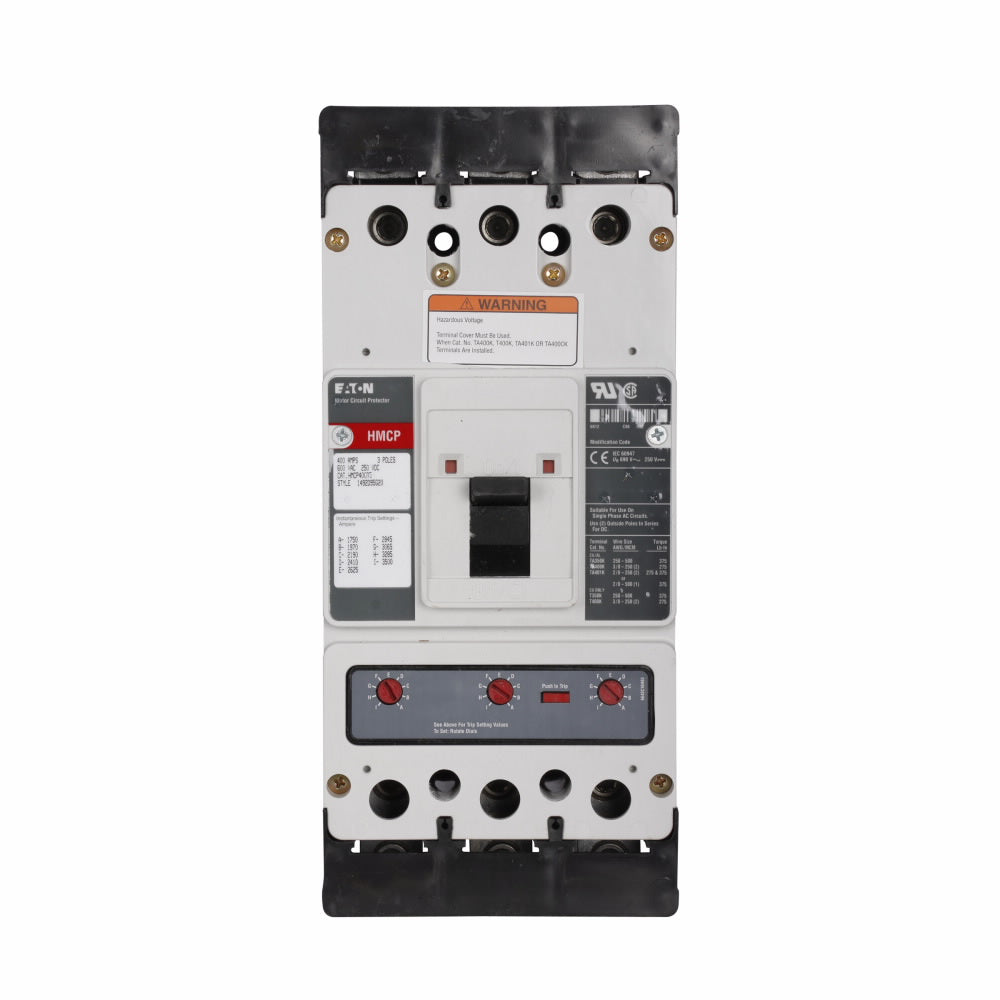

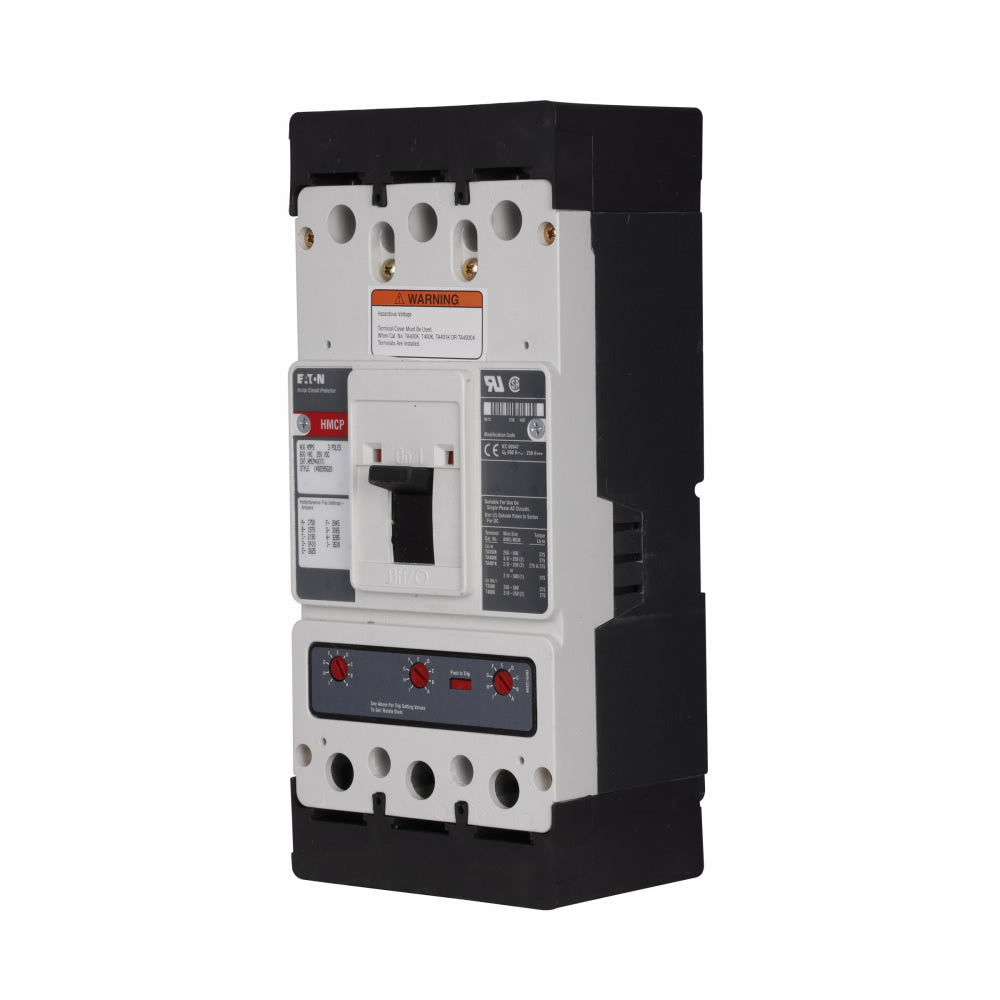

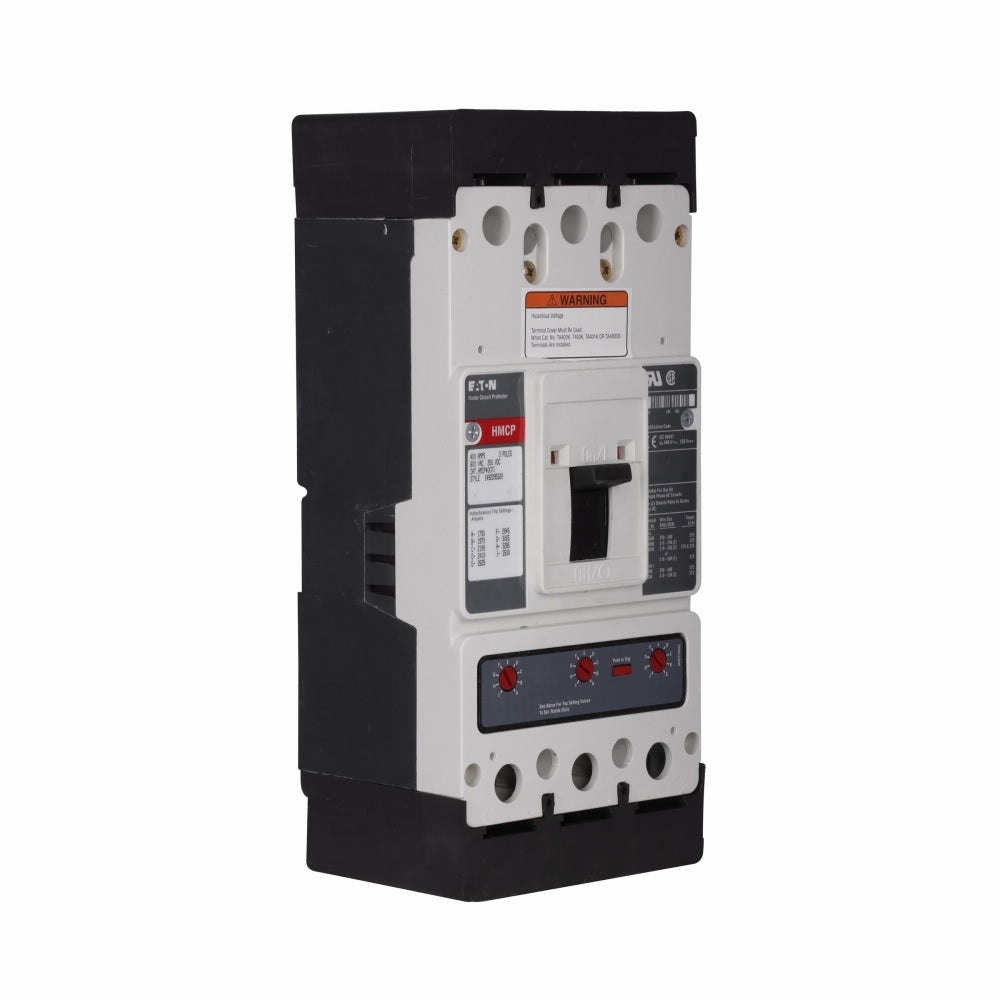

HMCP400F5C is a Cutler Hammer 3 pole molded case circuit breaker rated for 400 amps and 600 volts, designed for motor circuit protection with instantaneous trip only.HMCP400F5C features a Series C K Frame design with a 35kA interrupt rating at 480V, bolt-on connection type, and magnetic-only trip unit. It is suitable for industrial applications requiring reliable motor circuit protection.

Key Specifications
• Amperage: 400A
• Voltage: 600V AC max
• Poles: 3
• Series/Frame: Series C, K Frame
• Trip Unit: Instantaneous (magnetic only)
• Interrupt Rating: 35kA at 480V
• Mounting Type: Bolt-On
• Connection: Feed-Thru
• Phase: 3
• Weight: 11.5 lbs
• Dimensions: 10.13" x 5.5" x 4.1"
• Certifications: NEMA compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP400F5C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679342480
• GTIN : 00786679342480
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : CSA Certified,UL Listed
