HMCP400D5W - Cutler Hammer 400A 600V 3-Pole Molded Case Circuit Breaker

HMCP400D5W

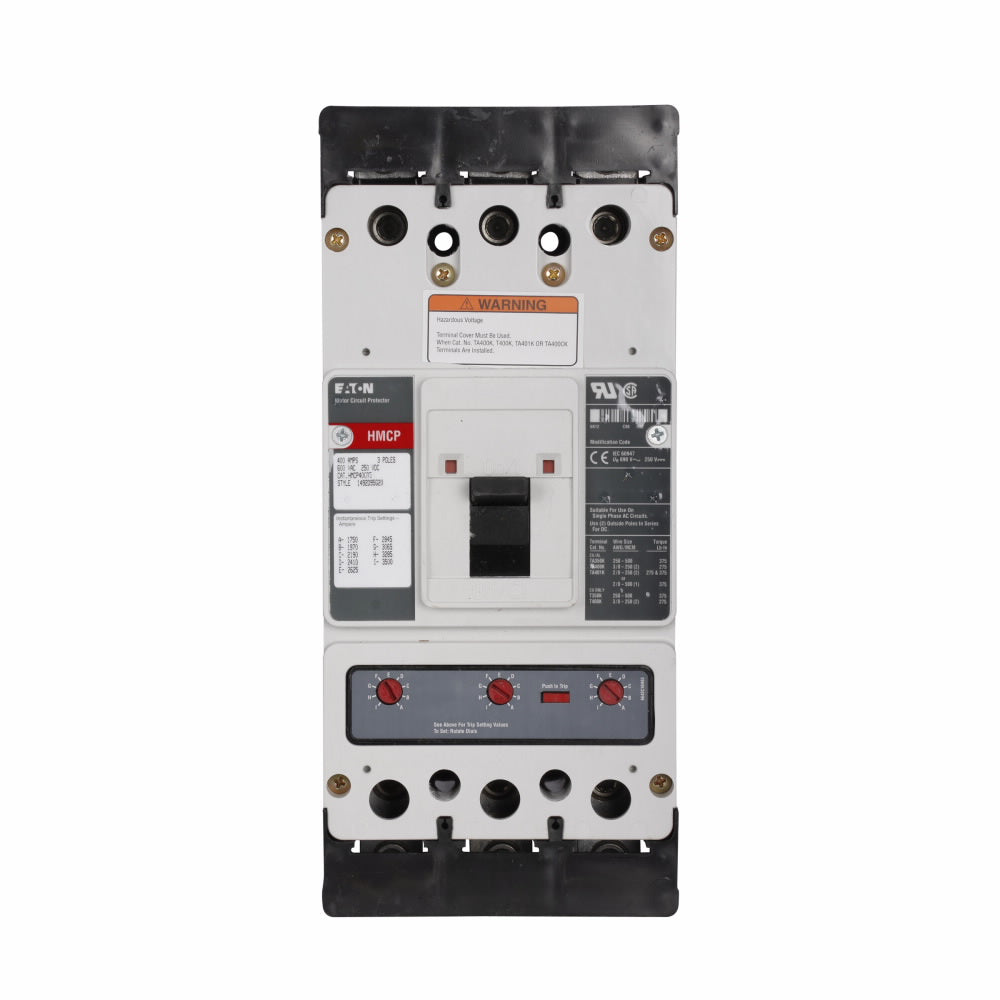

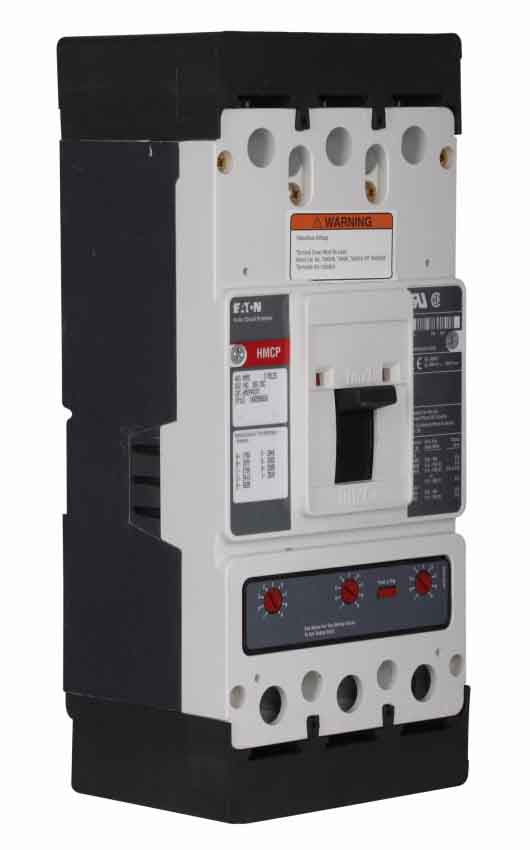

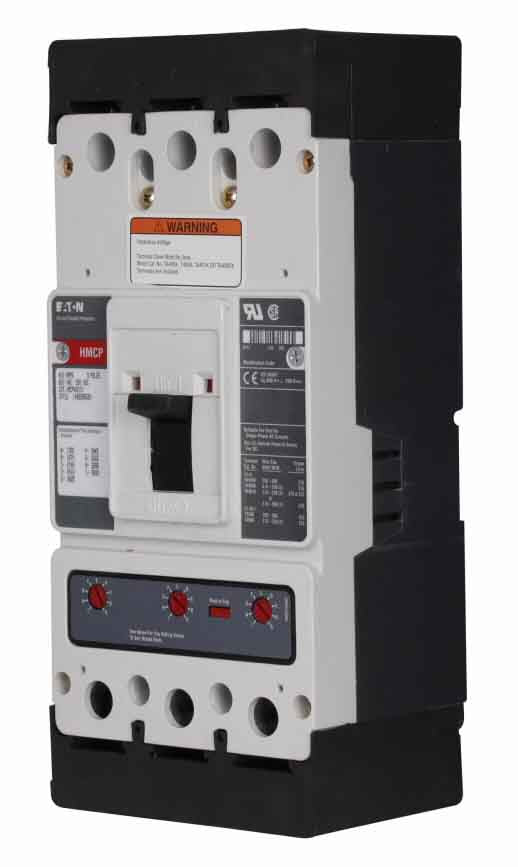

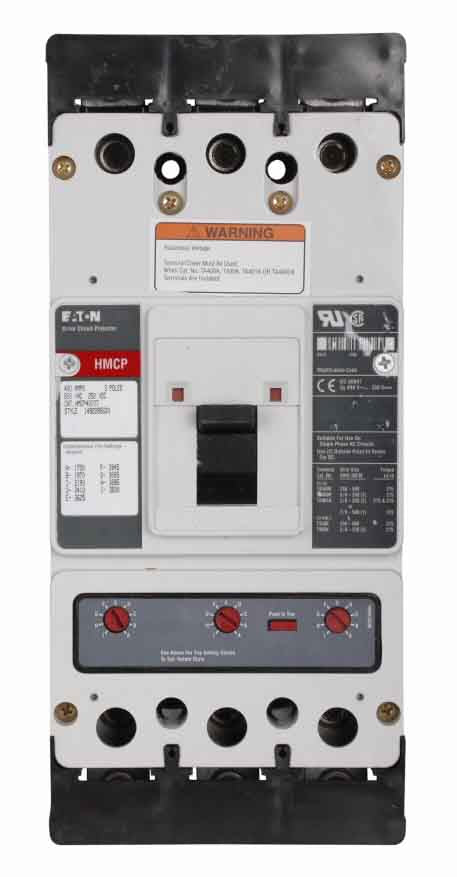

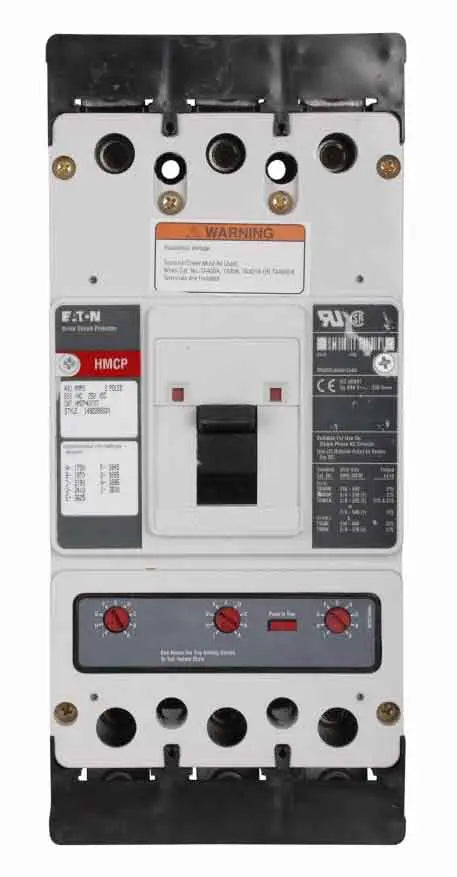

HMCP400D5W is a 400 amp, 600 volt, 3-pole molded case circuit breaker from Cutler Hammer designed for motor circuit protection.This Cutler Hammer HMCP400D5W circuit breaker features a magnetic non-interchangeable instantaneous trip unit and is part of the K frame series. It is a bolt-on type breaker suitable for panel mounting with a maximum voltage rating of 600 VAC and 250 VDC. The breaker is UL, CSA, and CE certified, ensuring compliance with industry safety standards.

• Amperage: 400 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Bolt-on (Panel mount)
• Frame Series: K Frame
• Trip Unit: Magnetic Non-interchangeable Instantaneous
• Interrupt Rating: 65 kAIC at 600 VAC (typical for K frame MCP breakers)
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: HMCP400D5W
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : I - Instantaneous
• Protection : Magnetic Only

Product Data

• UPC : 786679342145
• GTIN : 00786679342145
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : CSA Certified,UL Listed
