HMCP400D5 - Cutler Hammer 400A 600V 3 Pole Motor Circuit Protector Circuit Breaker

HMCP400D5

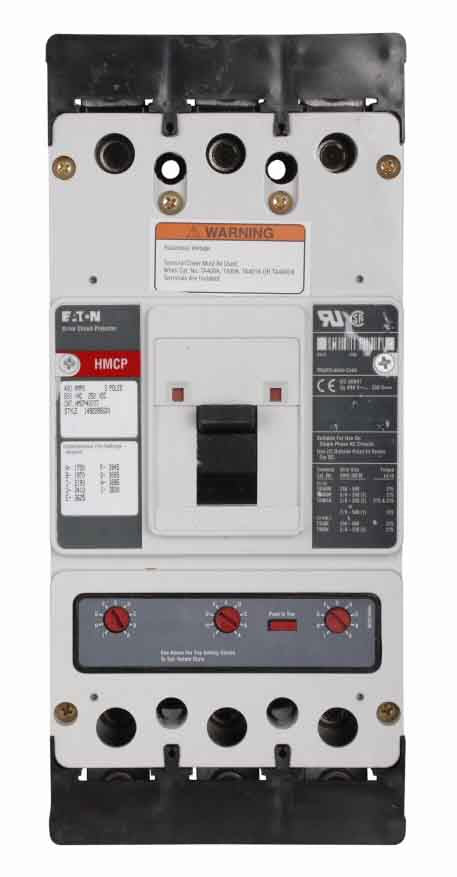

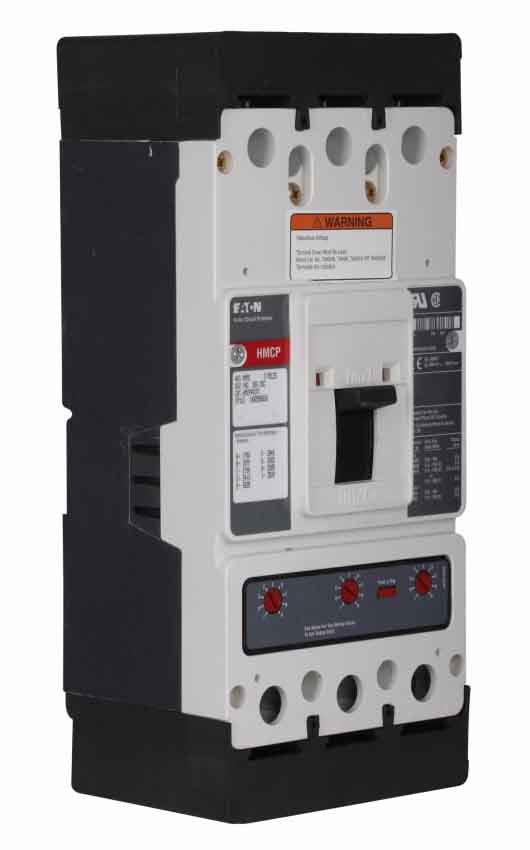

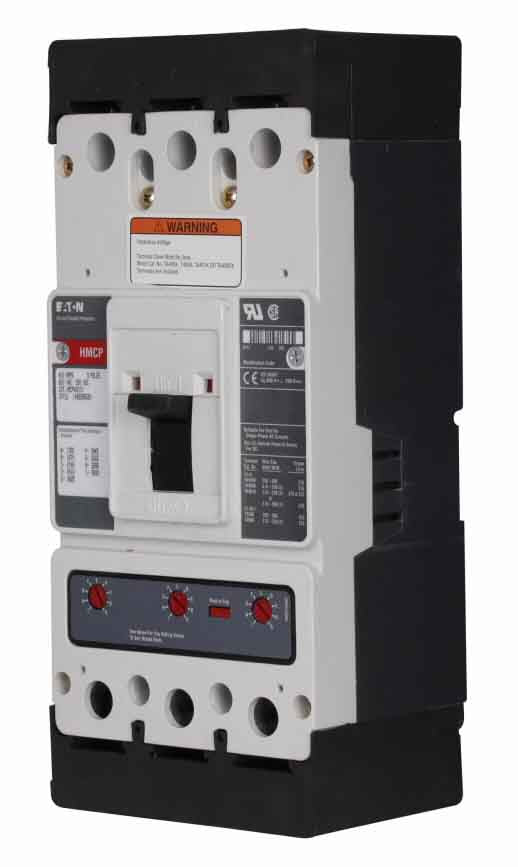

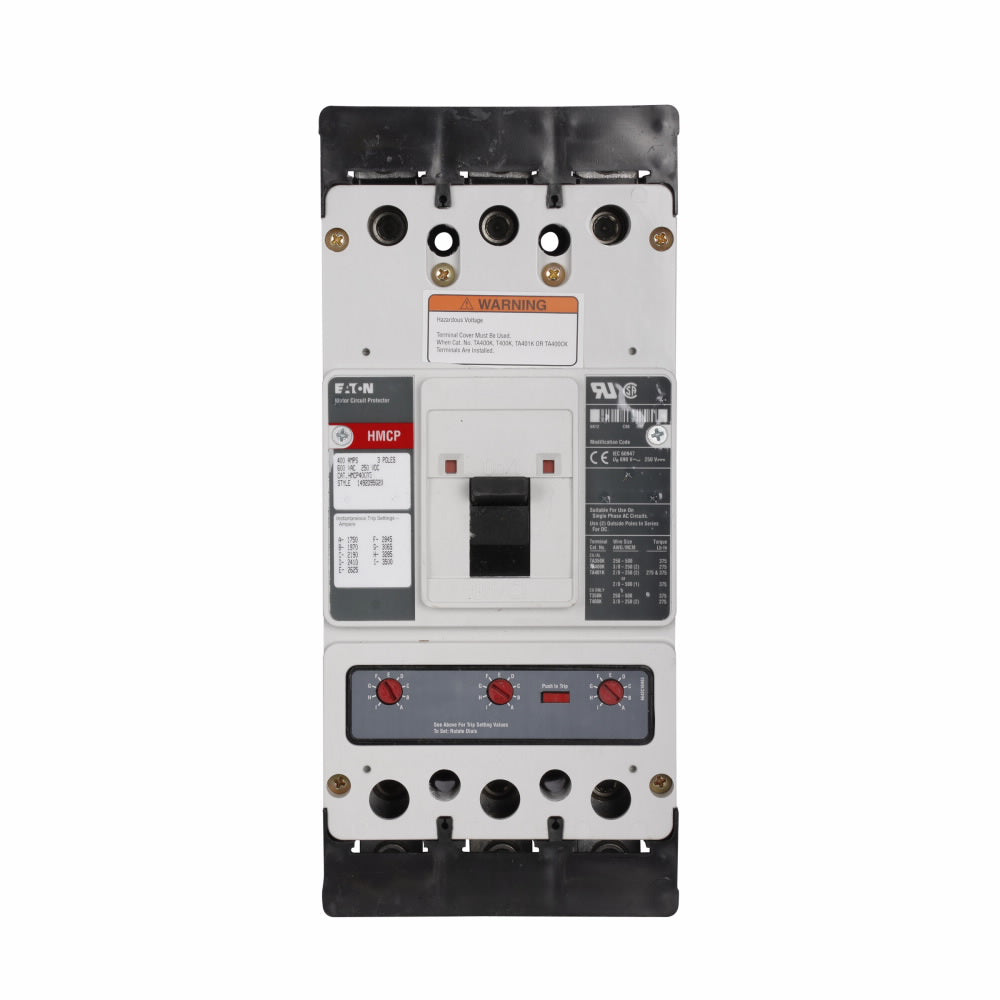

HMCP400D5 is a 3 pole, 400 amp, 600 volt motor circuit protector circuit breaker from Cutler Hammer designed for reliable motor protection.The HMCP400D5 features a magnetic-only instantaneous trip unit with a 35kA interrupting rating at 480V, suitable for industrial motor applications. It has a K-frame style, feed-thru mounting type, and is rated for 3-phase AC service.

• Amperage: 400A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 35kA at 480V
• Series/Frame: C Series, K Frame
• Trip Unit: Magnetic Non-Interchangeable Instantaneous
• Phase: 3
• Connection: Line & Load Side Lug Terminals
• Type: Motor Circuit Protector (MCP)
• Voltage Type: AC
• Manufacturer: Cutler Hammer (Eaton Division)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HMCP400D5
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : K Frame
• Protection : Magnetic Only

Product Data

• UPC : 786679342305
• GTIN : 00786679342305
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 10.13 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : CSA Certified,UL Listed
