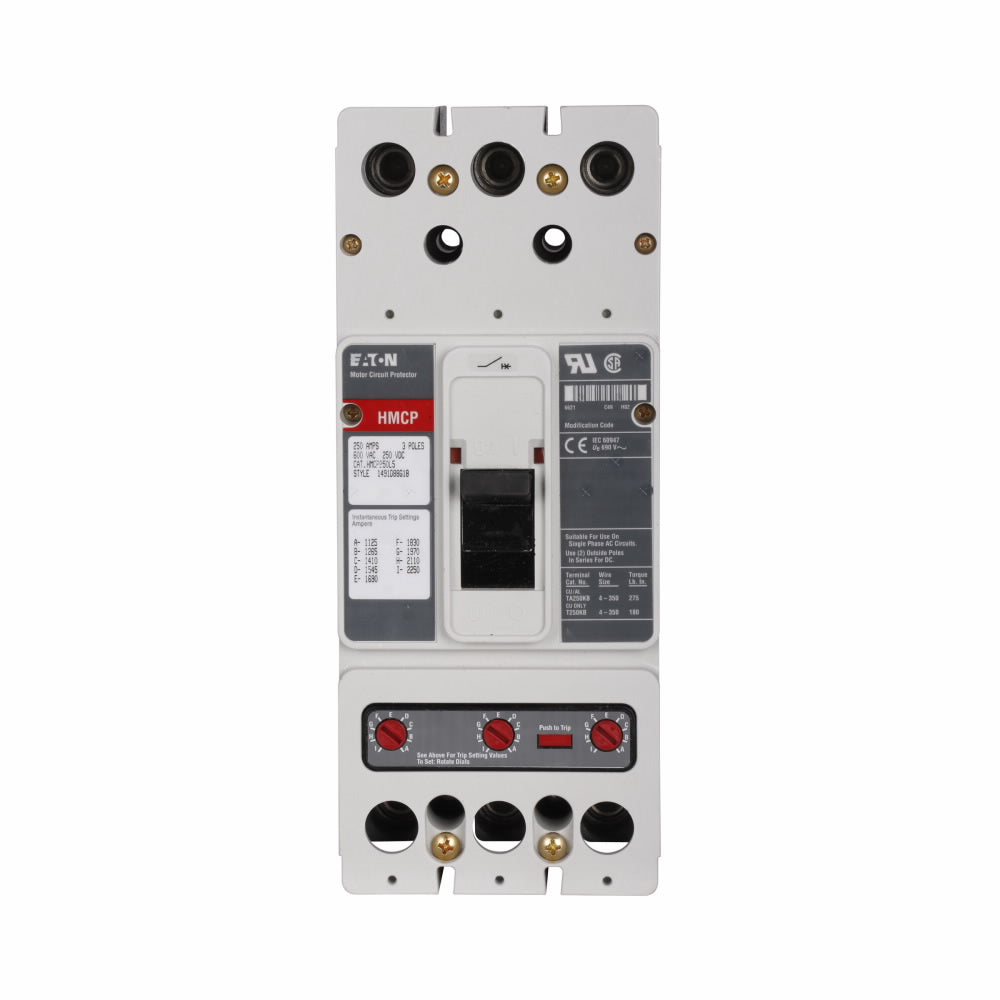

HMCP250W5C06 - Eaton 250A 600V 3-Pole Molded Case Circuit Breaker Series C J Frame

HMCP250W5C06

HMCP250W5C06 is a 3-pole, 250 amp molded case circuit breaker from Eaton's Series C J Frame designed for motor circuit protection.This Eaton HMCP250W5C06 circuit breaker supports up to 600 VAC and 250 VDC with a magnetic-only trip unit featuring an instantaneous trip range of 1250-2500 amps. It includes feed-thru connections with non-aluminum line and load side lug terminals, providing reliable protection for three-phase motor circuits. The breaker has a 35kA interrupt rating at 480V and is built to Series C standards for industrial applications.

Key Specifications
• Manufacturer: Eaton
• Part Number: HMCP250W5C06
• Amperage: 250 A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Frame Type: J Frame (Series C)
• Trip Unit: Magnetic Only, Instantaneous
• Interrupt Rating: 35kA @ 480V
• Mounting Type: Molded Case
• Connection Type: Feed Thru with non-aluminum lug terminals
• Standards: Series C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HMCP250W5C06
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case



Product Data

• UPC : 782114889947
• GTIN : 00782115000000
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : UL Listed,CSA Certified
