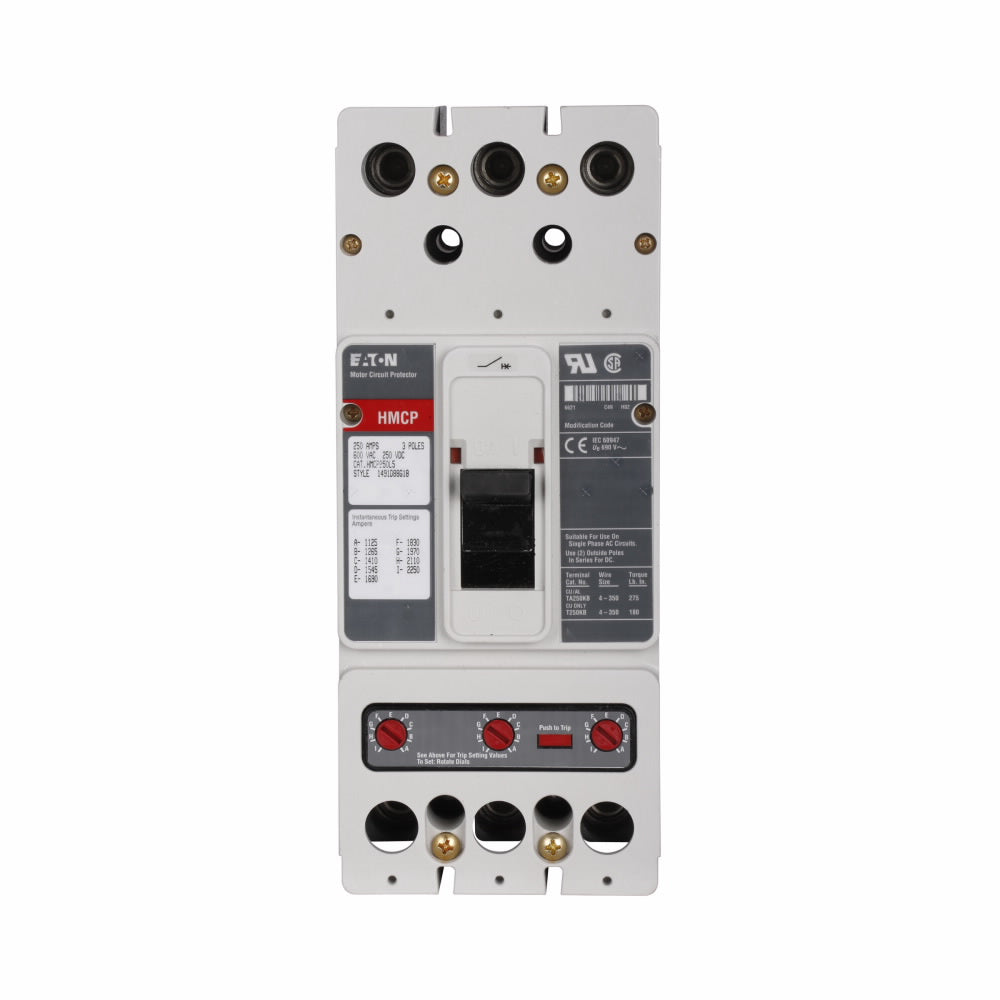

HMCP250W5A10 - Eaton 250A 600V 3-Pole Molded Case Circuit Breaker Frame J-K Magnetic Trip

HMCP250W5A10

HMCP250W5A10 is a 3-pole molded case circuit breaker from Eaton designed for motor circuit protection with a 250 amp rating and 600 volt maximum voltage.This Eaton HMCP series breaker features a Frame J-K size, magnetic trip unit with a trip range of 1250-2500 amps, and is suitable for commercial and industrial applications. It supports both AC (600 VAC) and DC (250 VDC) voltages and includes an auxiliary switch (2A-2B) with left pigtail rear connections for enhanced control and monitoring.

Key Specifications
• Amperage Rating: 250 A
• Voltage Rating: 600 VAC max, 250 VDC max
• Poles: 3
• Frame Size: J-K
• Trip Unit: Magnetic
• Magnetic Trip Range: 1250-2500 A
• Auxiliary Switch: 2A-2B Left pigtail rear
• Mounting Type: Panel mount
• Interrupt Rating: Not explicitly specified, typical for Frame J-K
• Series: HMCP (Motor Circuit Protector)
• Certifications: Eaton standard industrial certifications (not explicitly listed)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HMCP250W5A10
• Manufacturer : Eaton
• Brand : Cutler Hammer



Product Data

• UPC : 078667903506
• GTIN : 00786679035061
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
