Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
HMCP250J5C

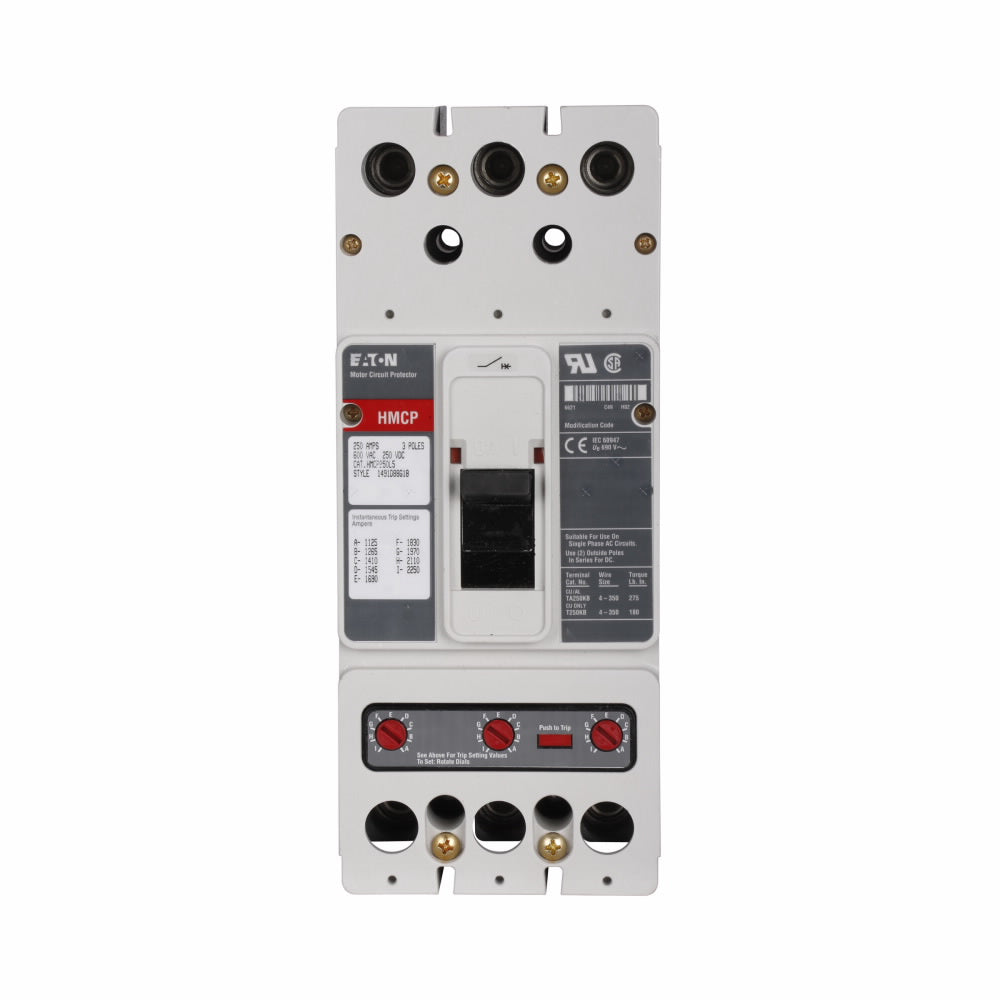

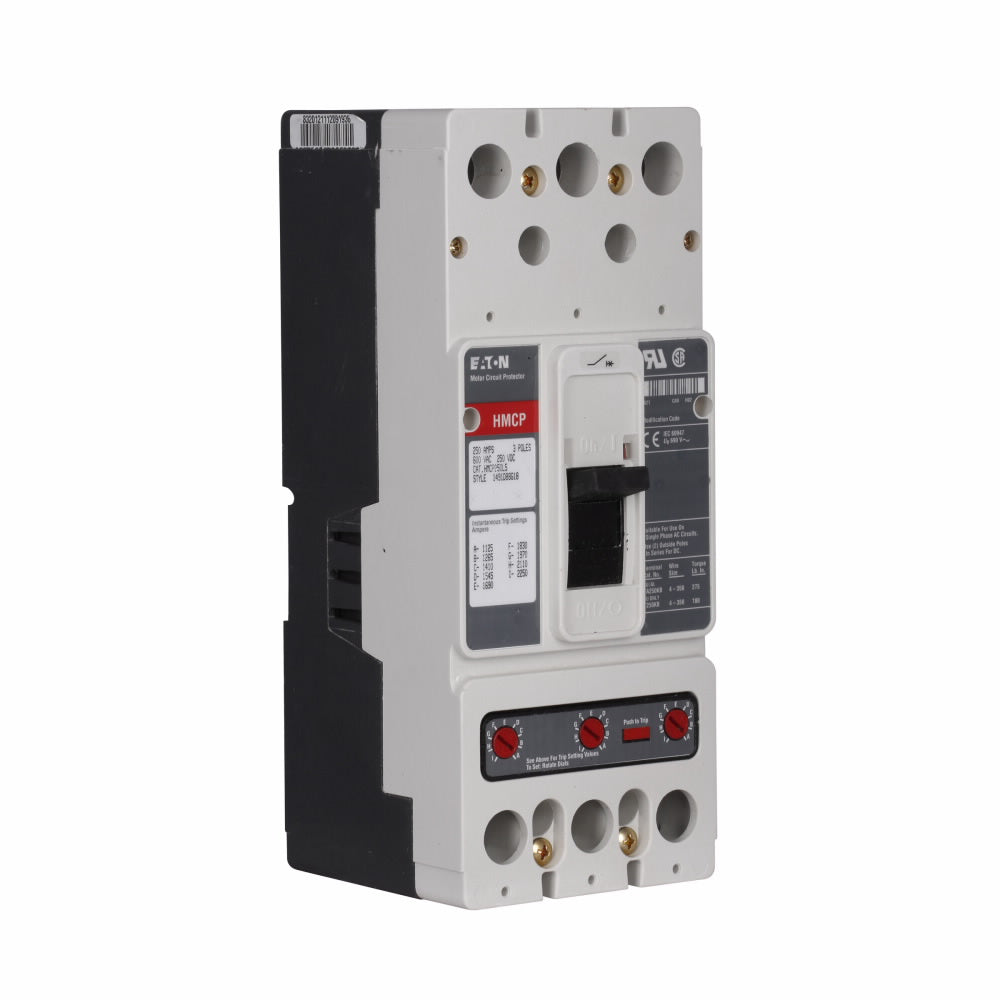

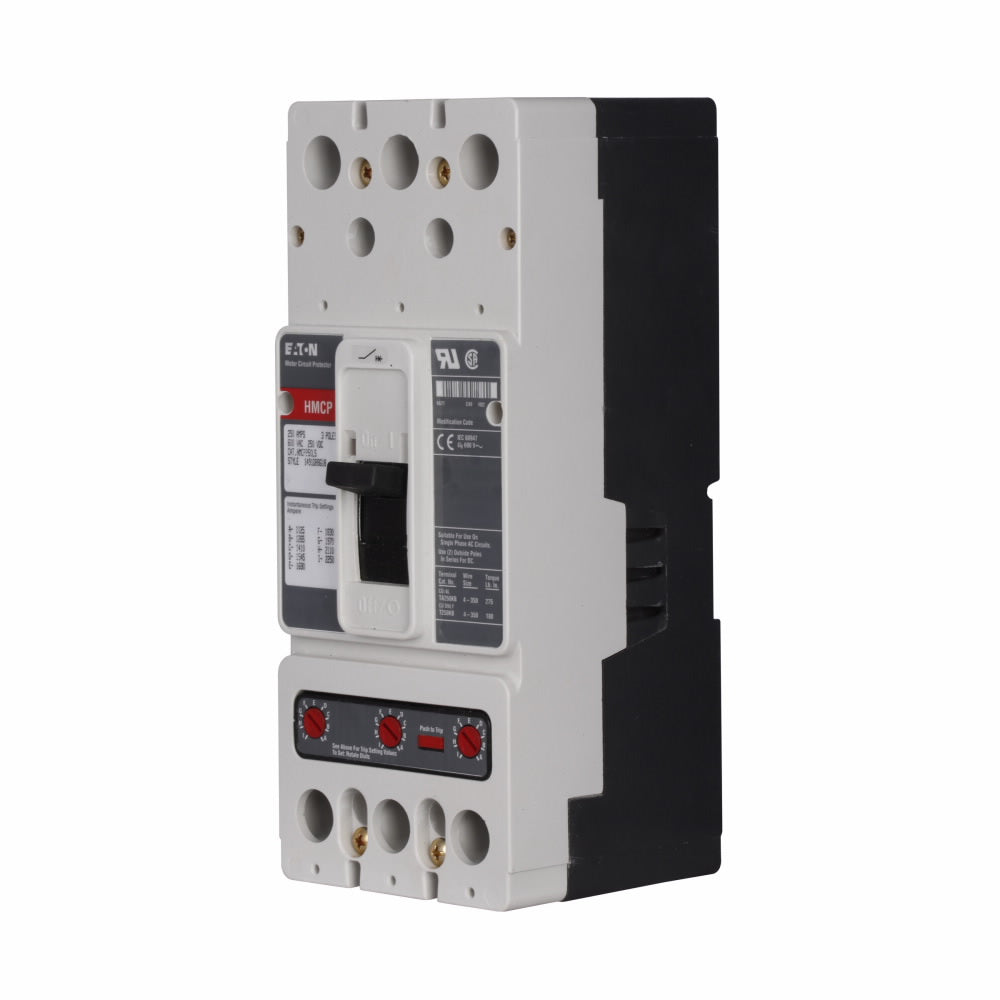

HMCP250J5C is a Cutler Hammer molded case circuit breaker designed for motor circuit protection with a 250 amp rating and 600 volt capacity.This 3 pole, J Frame breaker features instantaneous magnetic trip protection only, a 35kA interrupt rating at 480V, and feed-thru connection type. It supports 3-phase applications with line and load side lug terminals and complies with UL 489, CSA, and CE certifications.
- Manufacturer: Cutler Hammer (Eaton)
- Series: C
- Frame Type: J Frame
- Amperage: 250 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 35kA at 480V
- Trip Unit: Magnetic Only, Instantaneous
- Mounting Type: Panel Mount
- Connection: Feed-Thru
- Certifications: UL 489, CSA, CE
- Weight: Approx. 9.5 to 12.5 lbs
Specifications
- Part Number: HMCP250J5C
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HMCP
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Frame Size : J Frame
- Protection : Magnetic Only
Product Data
- UPC : 786679151044
- GTIN : 00786679151044
- Country of Origin : Dominican Republic
- Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
- Weight : 12.5
- Certification : CSA Certified,UL Listed
