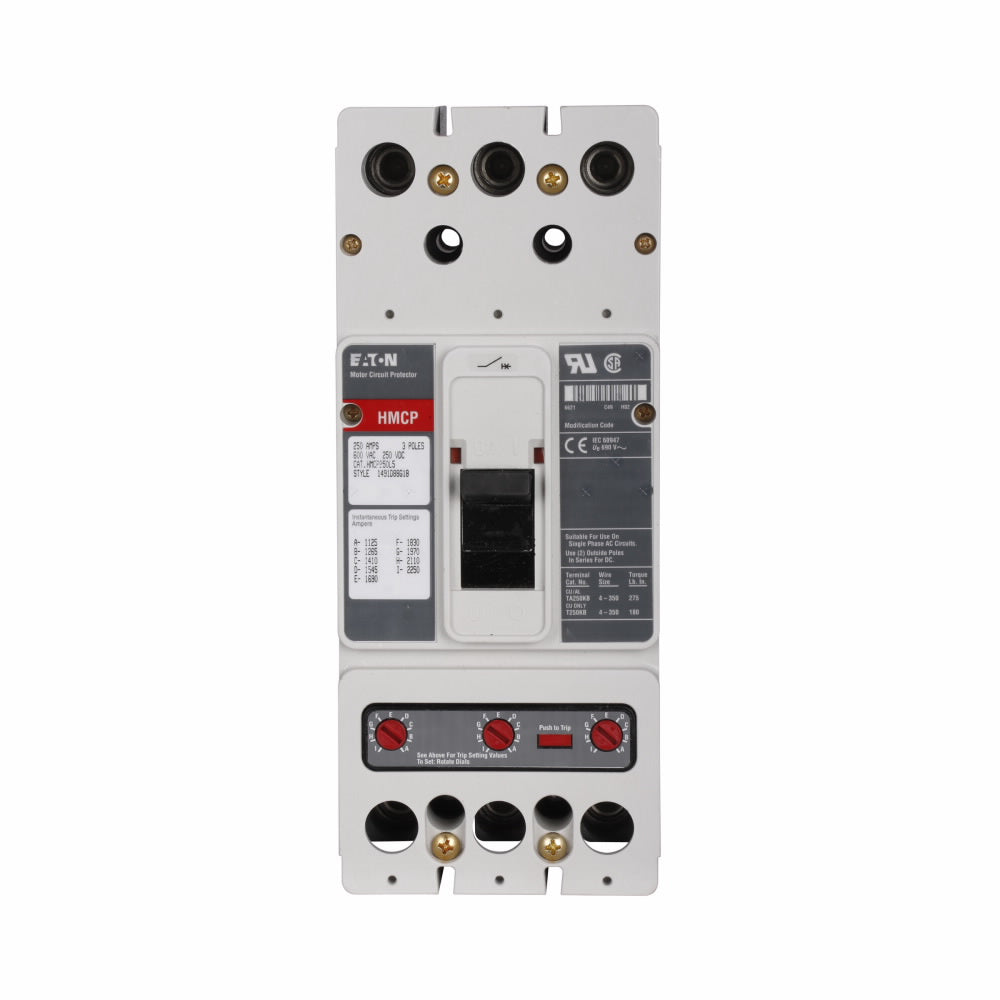

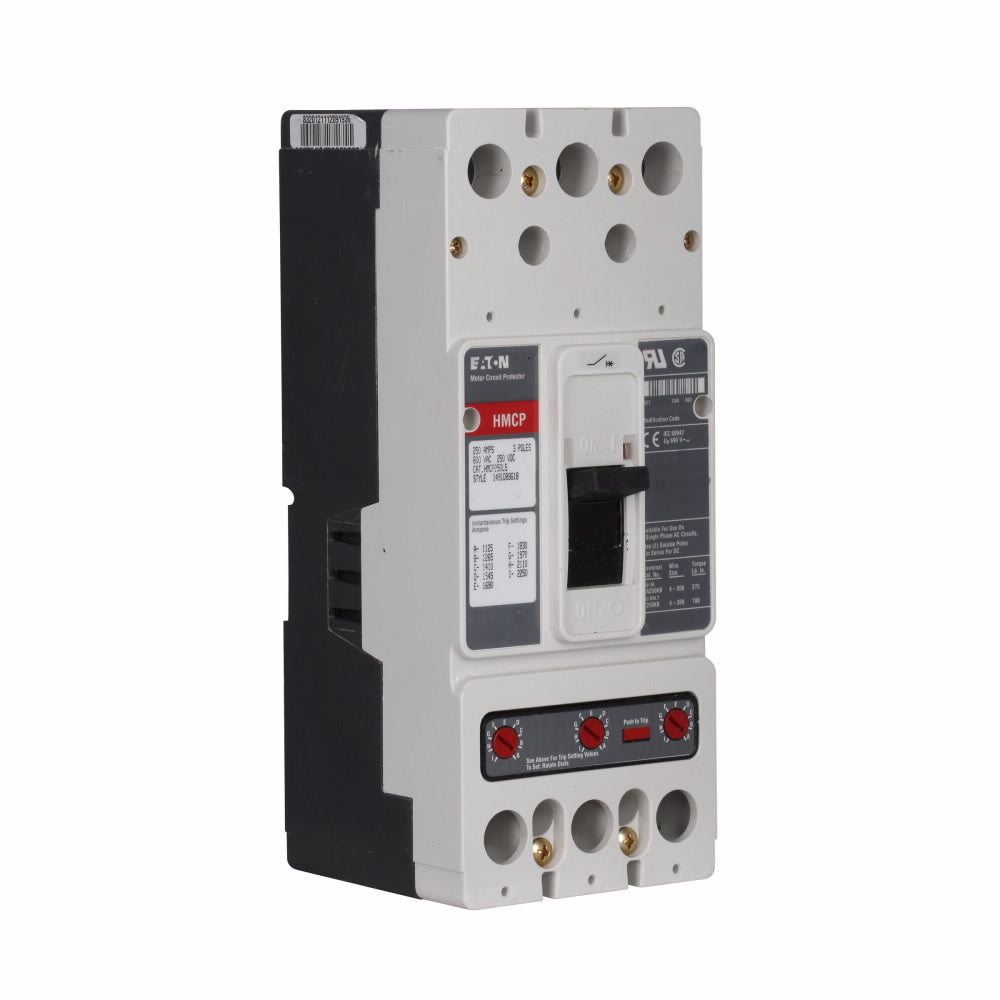

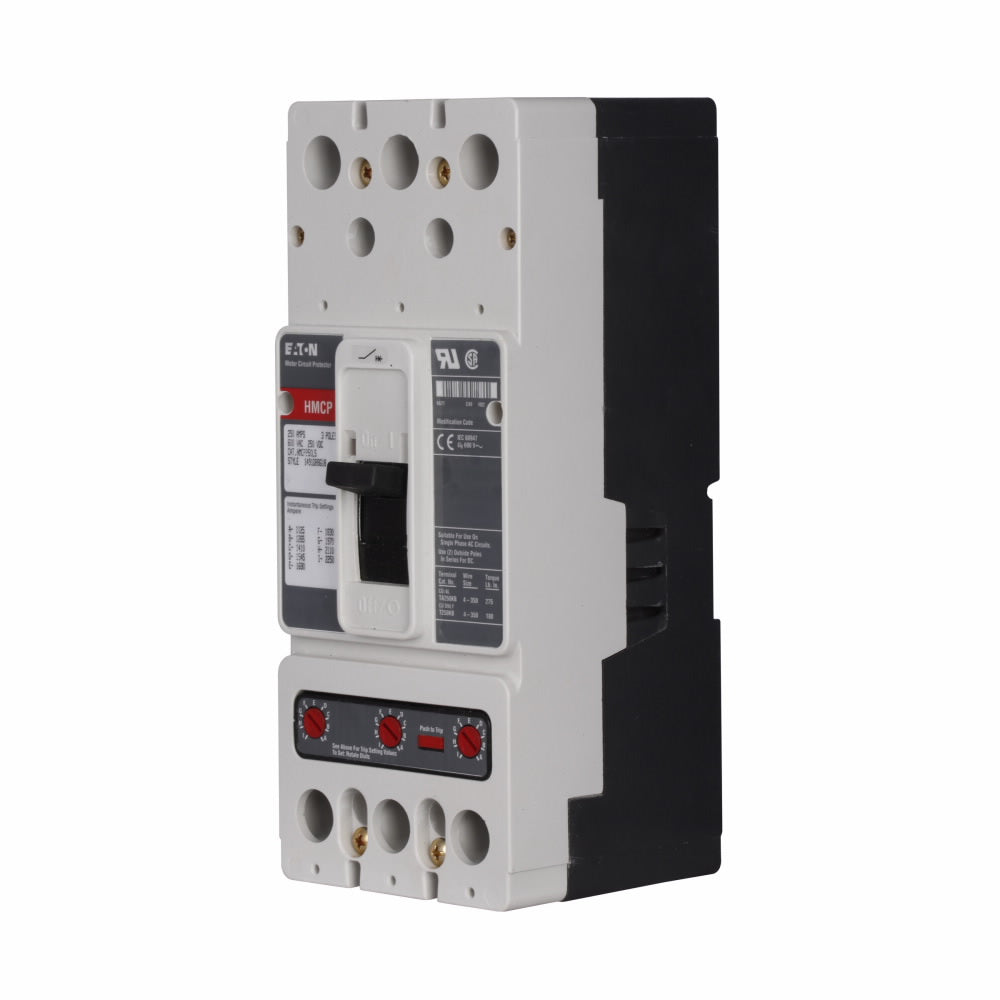

HMCP250F5C - Cutler Hammer 250A 600V 3 Pole Motor Circuit Protector, J Frame, Magnetic Trip

HMCP250F5C

HMCP250F5C is a 250 amp, 3 pole motor circuit protector by Cutler Hammer designed for panel mount applications.This motor circuit protector features a J frame with a fixed magnetic trip unit rated for 625-1250 amps, suitable for motor full load amps from 48.1 to 102. It operates at 600 VAC and 250 VDC with a 35kA interrupt rating at 480V. The device is UL, CSA, and CE approved and intended for industrial use with non-aluminum terminals. It requires external overload protection via motor starters.

Key Specifications
• Amperage: 250A
• Voltage: 600 VAC, 250 VDC
• Poles: 3
• Frame Type: J Frame (HMCP)
• Trip Unit: Fixed Magnetic Trip (625-1250A)
• Interrupt Rating: 35kA @ 480V
• Mounting Type: Panel Mount
• Certifications: UL, CSA, CE
• Terminal Type: Non-aluminum
• Motor Full Load Amps: 48.1 to 102
• Application: Motor circuit protection without overload
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HMCP250F5C
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HMCP
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : J Frame
• Protection : Magnetic Only



Product Data

• UPC : 786679151020
• GTIN : 00786679151020
• Country of Origin : Dominican Republic
• Dimensions : 4.06 in x 10 in x 4.13 in (Length/Depth x Height x Width)
• Weight : 12.5
• Certification : CSA Certified,UL Listed
