HM1R12 - Cutler Hammer F-Frame Series C Rotary Handle Mechanism 12 Inch Shaft Through-the-Door

HM1R12

HM1R12 is a Cutler Hammer rotary handle mechanism designed for F-Frame Series C molded case circuit breakers with a 12-inch shaft length.

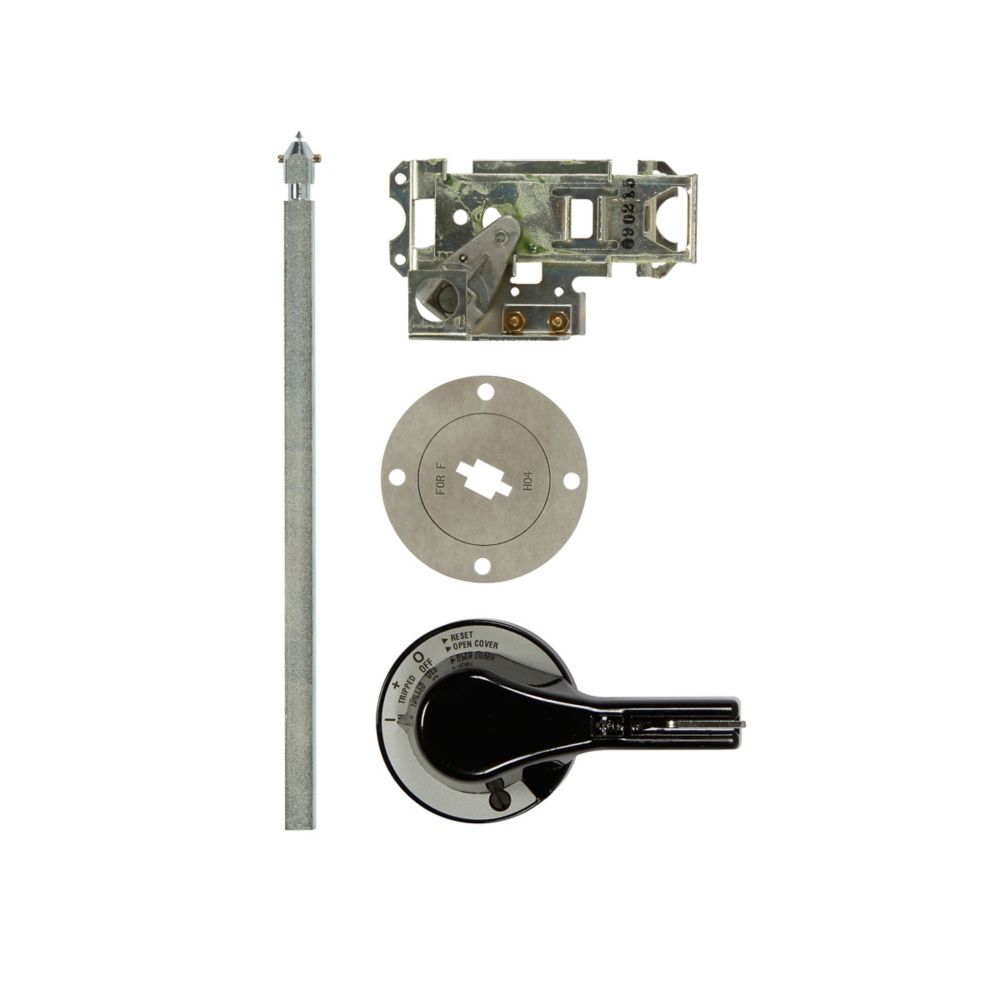

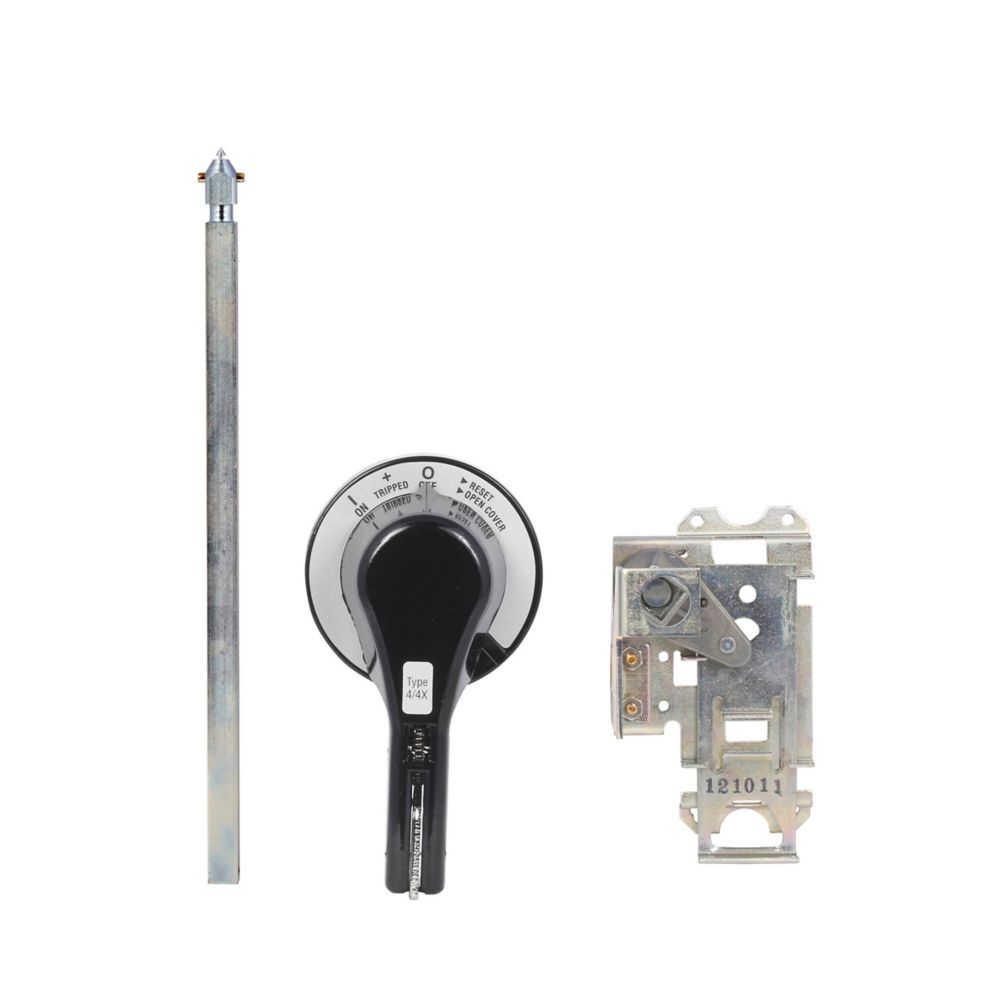

This through-the-door handle mechanism provides reliable rotary operation for Series C F-Frame circuit breakers, enabling secure and convenient breaker control. It is compatible with NEMA 1, 3R, and 12 rated enclosures, ensuring versatile mounting options. The handle mechanism includes the handle, 12-inch shaft, and operating mechanism for effective breaker operation.

• Manufacturer: Cutler Hammer (Eaton)
• Series: Series C
• Frame: F-Frame
• Handle Type: Rotary
• Type: Through-the-door handle mechanism
• Shaft Length: 12 inches
• Enclosure Ratings: NEMA 1, 3R, 12
• Mounting: Through-the-door
• Weight: Approximately 4.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HM1R12
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Operating Handles
• Family : Series C
• Type : HM1R

Product Data

• UPC : 786679165027
• GTIN : 00786679165027
• Country of Origin : United States
• Dimensions : 4.5 in x 9.25 in x 19 in (Length/Depth x Height x Width)
• Weight : 4.51
