Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HLMD63F800

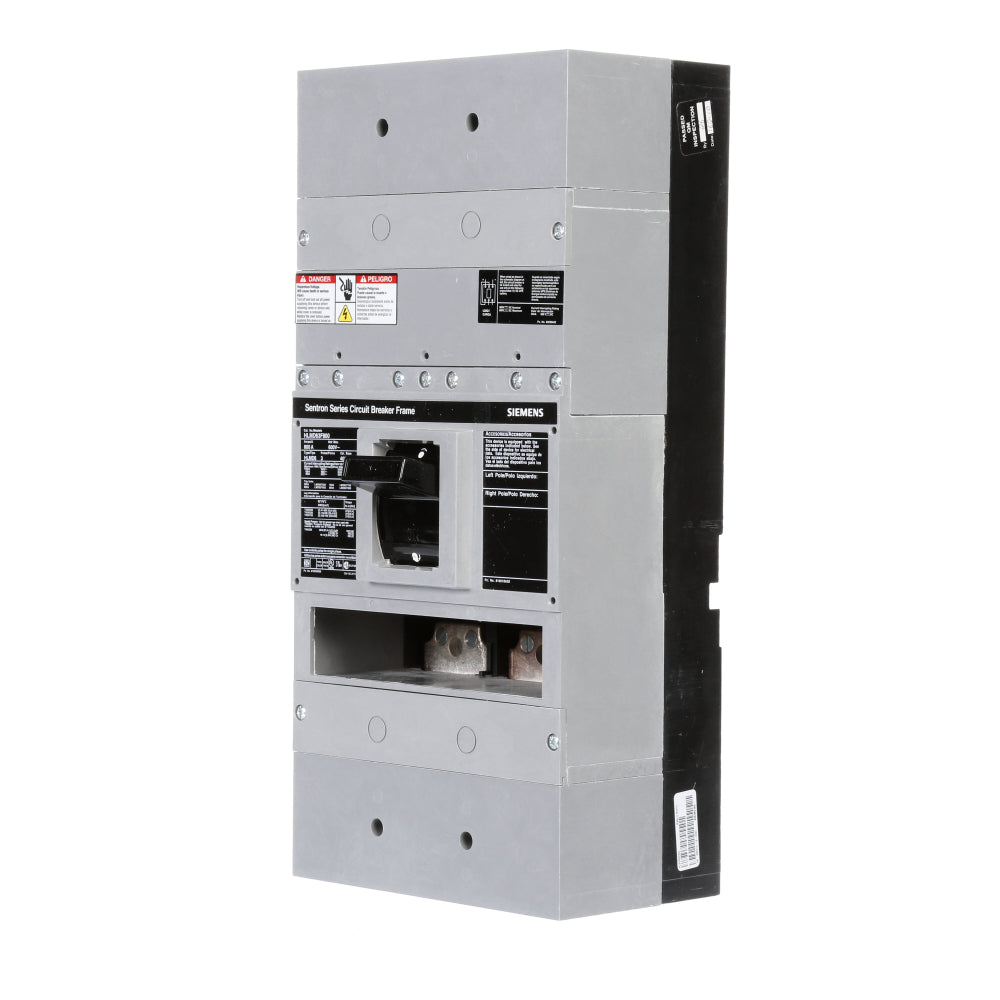

HLMD63F800 is a Siemens molded case circuit breaker frame designed for high interrupting capacity applications.This Siemens Sentron LMD series breaker frame supports 800 amps, 600 volts AC, and 3 poles with a bolt-on mounting type. It features thermal magnetic trip units with long time and instantaneous trip functions, suitable for 50/60 Hz operation at 40°C ambient temperature. The breaker frame has a high interrupt rating of 65kA at 480V and accommodates wire sizes from 1/0 AWG to 500 kcmil copper or aluminum. It meets UL489 and IEC 60947-2 certifications.
- Amperage: 800A
- Voltage: 600V AC
- Poles: 3
- Frame Type: LMD (HLMD)
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA at 480V
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous
- Frequency: 50/60 Hz
- Operating Temperature: 40°C
- Wire Range: 1/0 AWG to 500 kcmil Copper/Aluminum
- Certifications: UL489, IEC 60947-2
- Phase: 3 Phase
Specifications
- Part Number: HLMD63F800
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HLMD
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : LMD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268050
- GTIN : 00783643268050
- Country of Origin : Mexico
- Weight : 29.901
