Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HLL36100LV

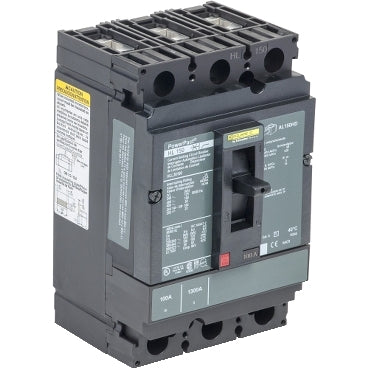

HLL36100LV is a Schneider Electric PowerPact H Frame molded case circuit breaker designed for industrial electrical protection.HLL36100LV features a 100 Ampere rating with three poles and supports voltages up to 600 VAC or 500 VDC. It has an L interrupt rating, providing a high short circuit breaking capacity suitable for demanding applications. This unit mount breaker includes thermal magnetic trip functionality and is UL 489 listed for safety and reliability.
- Amperage: 100 Amp
- Voltage Rating: Up to 600 VAC / 500 VDC
- Number of Poles: 3 Pole
- Frame Type: PowerPact H Frame
- Interrupt Rating: L Code (100 kA at 480 VAC)
- Mounting Type: Unit Mount
- Trip Unit: Thermal Magnetic
- UL 489 Listed
Specifications
- Part Number: HLL36100LV
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- UPC : 785901952626
- GTIN : 00785902000000
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.9
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
