HLL36090

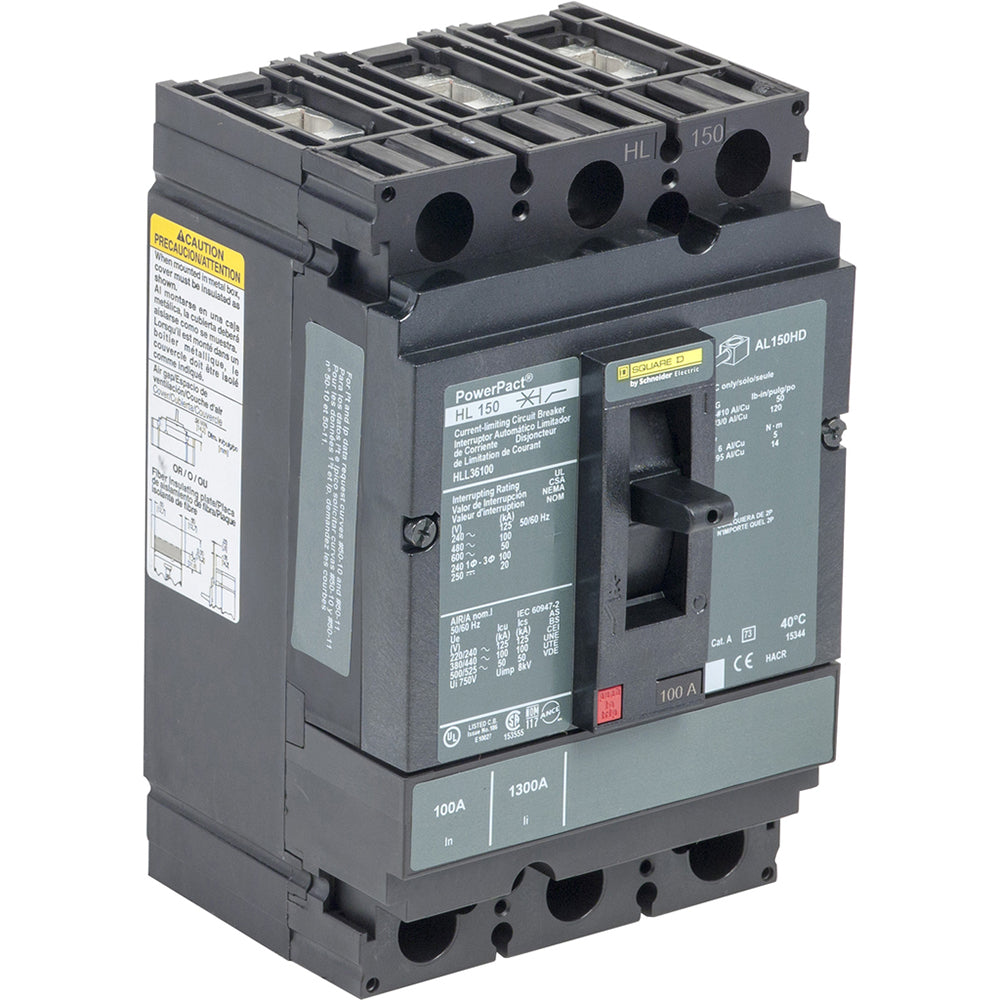

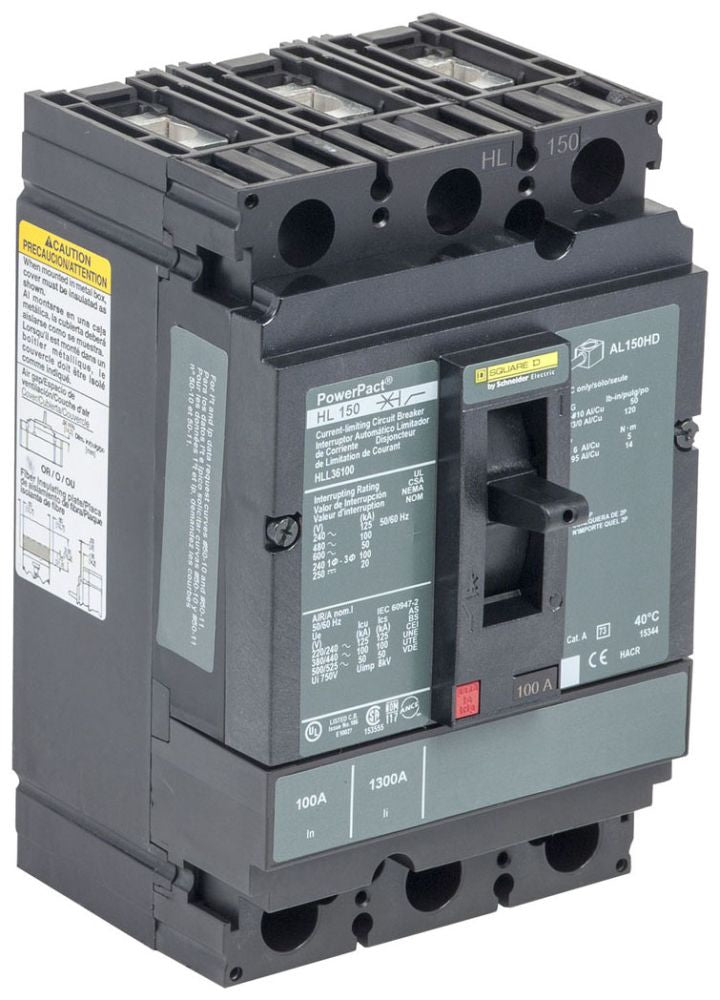

HLL36090 is a Square D 3-pole molded case circuit breaker designed for reliable protection in commercial and industrial power distribution applications.
This thermal magnetic, current-limiting circuit breaker features a 90 Amp rating, 600V AC/500V DC maximum voltage, and unit mounting. It is part of the HLL series (PowerPact H Frame) and offers high interrupting capacity: 125 kA at 240V AC, 100 kA at 480V AC, 50 kA at 600V AC, 20 kA at 250V DC, and 50 kA at 500V DC. The breaker includes line and load side lug connections, supports AWG 14 to 3/0 aluminum/copper wire, and is approved for global standards.
-
Key Specifications
- Part Number: HLL36090
- Manufacturer: Square D
- Amperage: 90A
- Voltage: 600V AC, 500V DC
- Poles: 3
- Mounting Type: Unit
- Series/Frame: HLL (PowerPact H)
- Trip Unit: Thermal Magnetic, LI (Long-Time & Instantaneous)
- Interrupt Rating: 125 kA @ 240V AC, 100 kA @ 480V AC, 50 kA @ 600V AC, 20 kA @ 250V DC, 50 kA @ 500V DC
- Certifications: UL 489, CSA, CE, IEC
- Connection: Line and Load Side Lug
- Wire Range: AWG 14 to 3/0 aluminum/copper

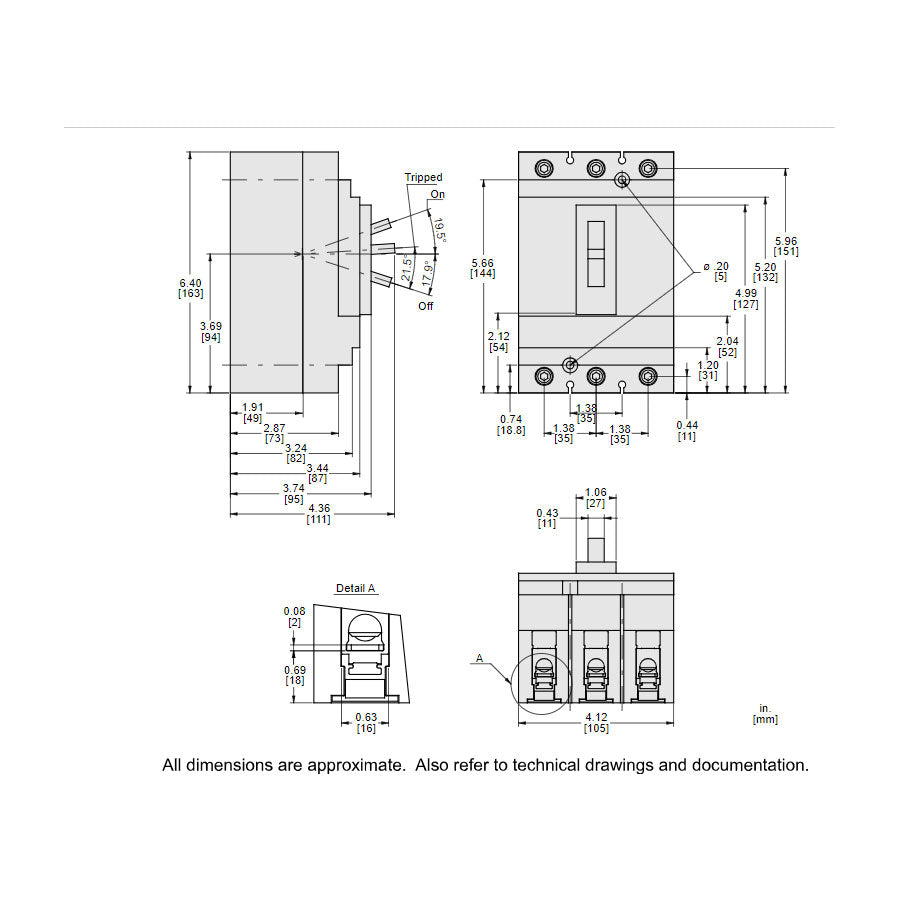

- Dimensions: 4.36" L x 4.12" W x 6.4" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: HLL36090
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HLL
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : H
- Temp Rating : 28-158 °F (-2-70 °C)
- MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901683193
- GTIN : 00785901683193
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.149
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
