Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HLL36080LV

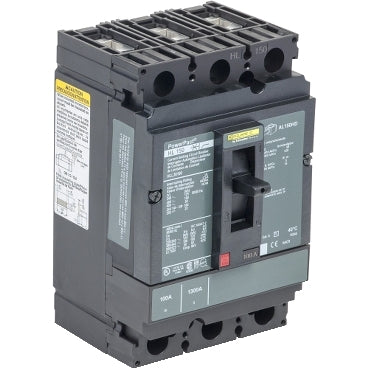

HLL36080LV is a Schneider Electric PowerPacT H circuit breaker providing 80 amps, 3 poles, and 600VAC thermal magnetic protection with a 50kA interrupt rating.This molded case circuit breaker features an 80% rating, lug connections, and control wire OFF end. It is designed for reliable circuit protection in industrial and commercial applications, meeting multiple certifications including CE, CSA, and CCC.
- Amperage: 80A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 50kA
- Trip Unit: Thermal Magnetic
- Mounting Type: Lug
- Series/Frame: PowerPacT H
- Rating: 80% standard
- Control Wire OFF End
- Certifications: CE, CSA C22.2 No. 5, CCC
- Frequency: 50/60 Hz
Specifications
- Part Number: HLL36080LV
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 4.9
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
