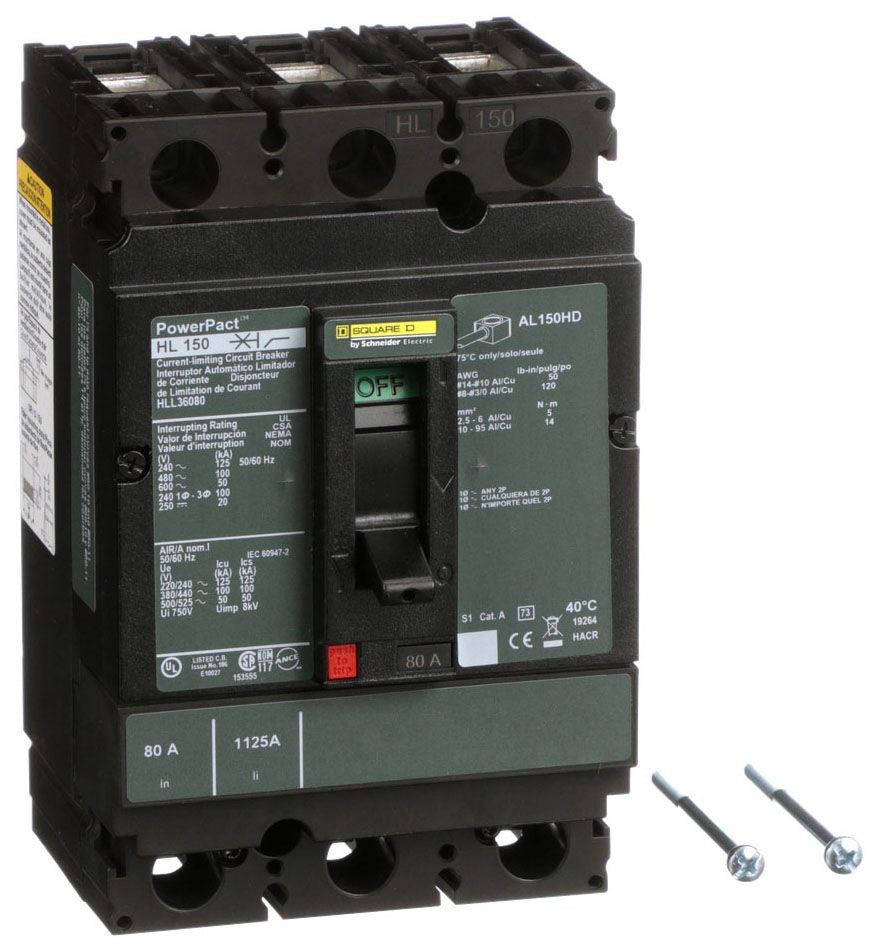

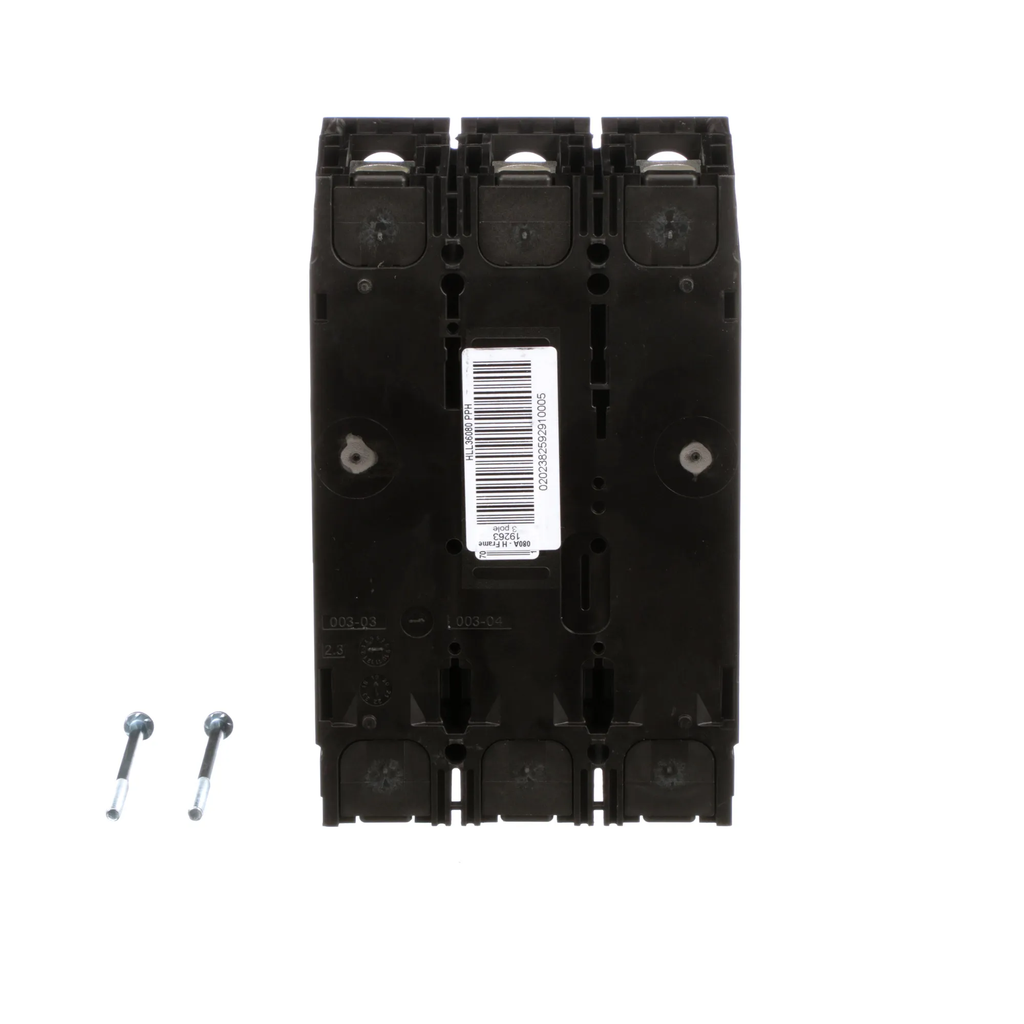

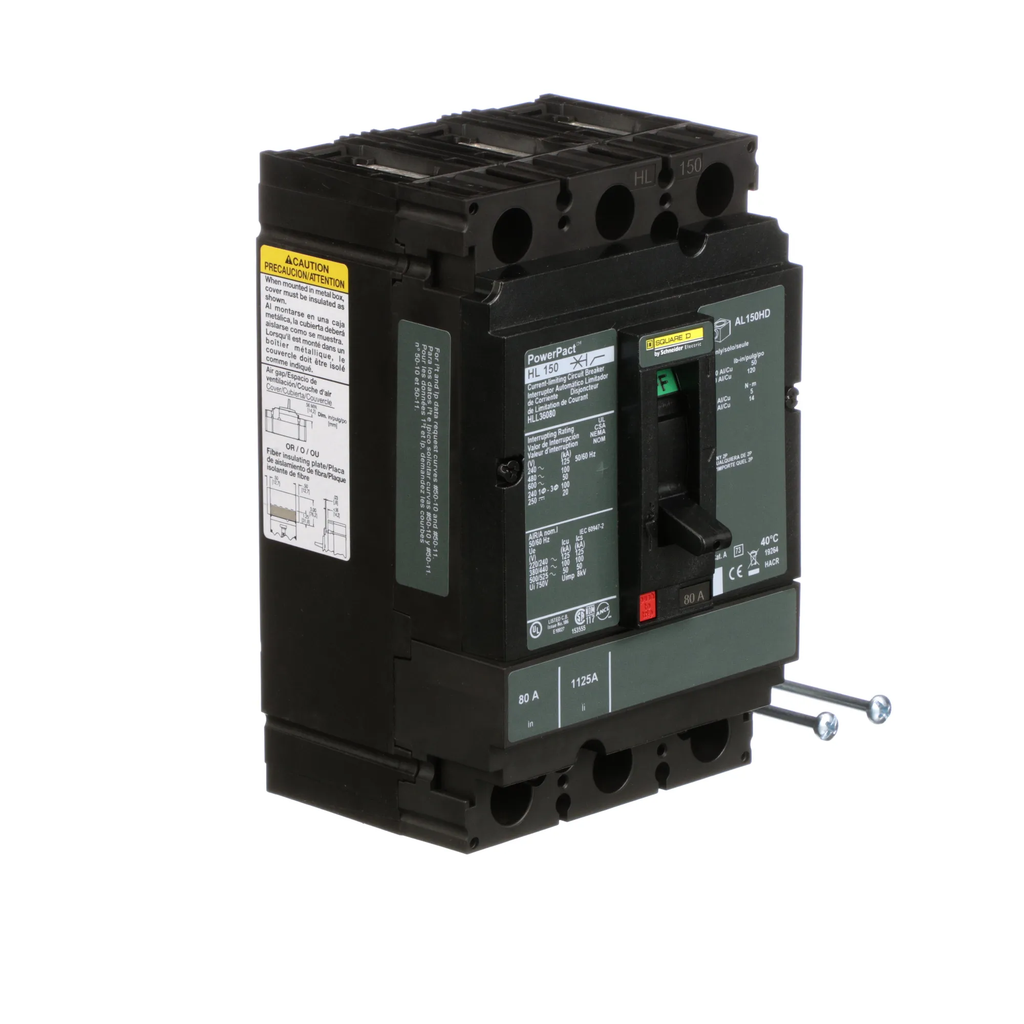

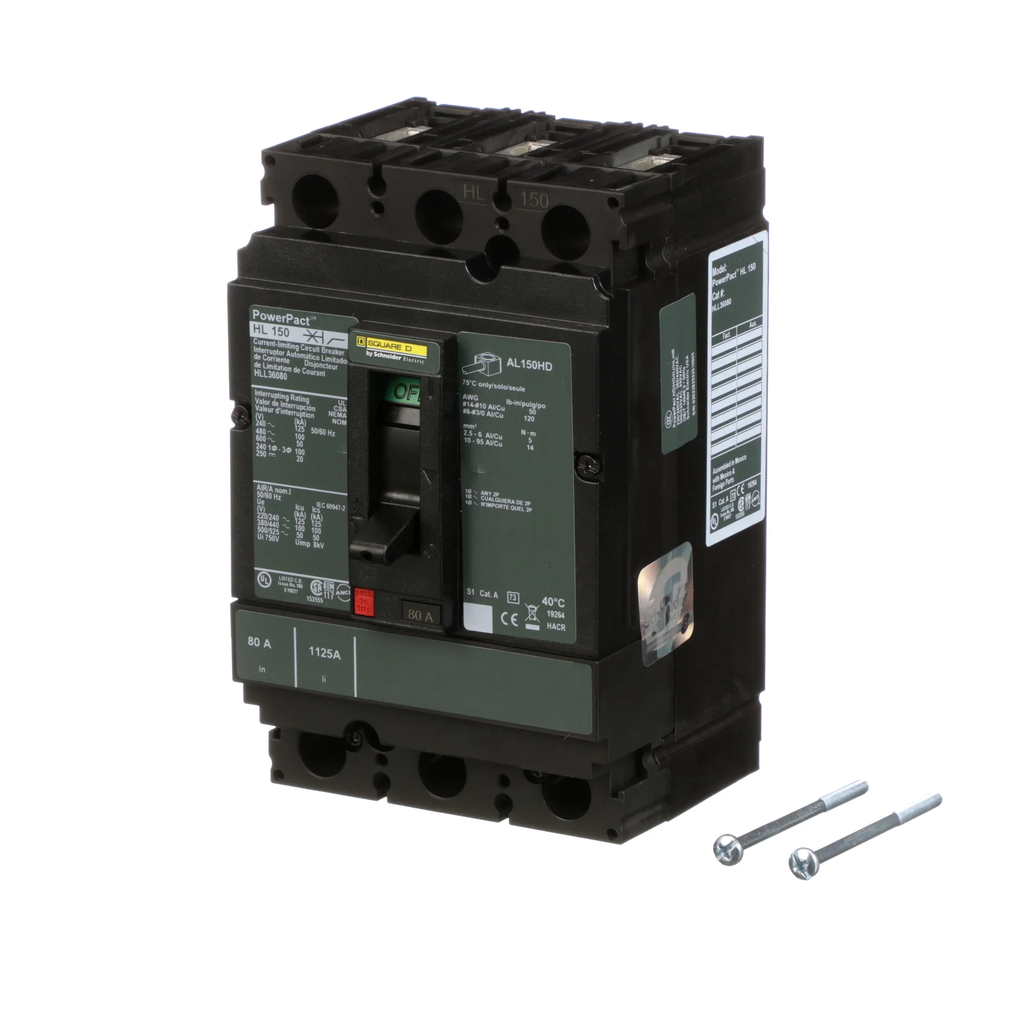

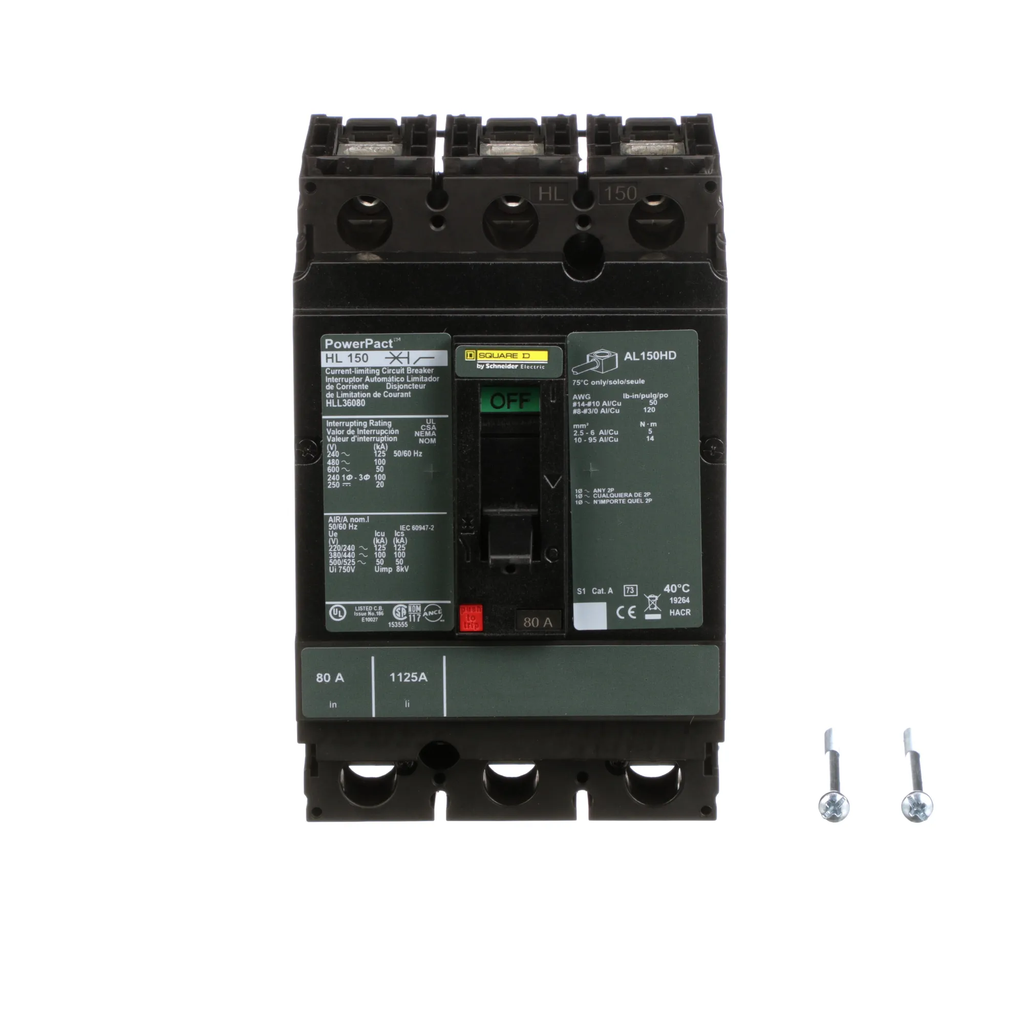

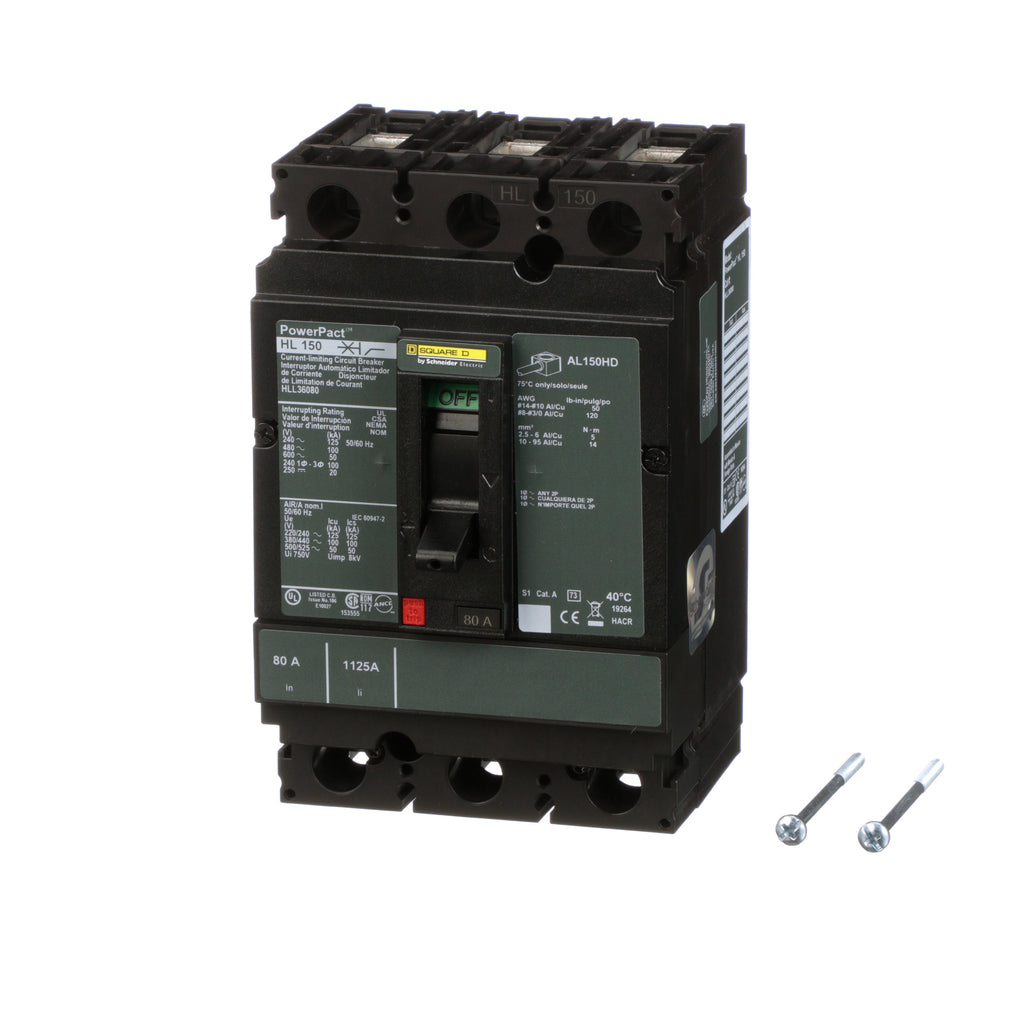

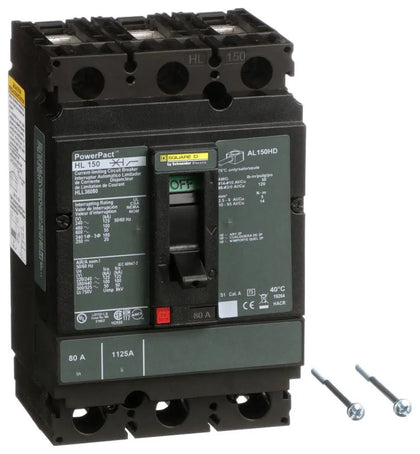

HLL36080 - Square D 80 Amp 600 VAC 3 Pole H Frame Molded Case Circuit Breaker Thermal Magnetic

HLL36080

HLL36080 is a Square D molded case circuit breaker designed for reliable protection in electrical systems. It features an 80 amp rating, 3 poles, and supports up to 600 VAC voltage.This H Frame breaker offers thermal magnetic trip protection with an L interrupt rating, suitable for unit mount installations. It is UL 489 listed and provides interrupt ratings of 50kA at 600 VAC, 125kA at 240 VAC, and 100kA at 480 VAC, ensuring robust short circuit and overload protection.

• Manufacturer: Square D (Schneider Electric)
• Part Number: HLL36080
• Amperage: 80 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3
• Frame Type: H Frame
• Mounting Type: Unit Mount
• Interrupt Rating: L Code (50kA @ 600 VAC, 125kA @ 240 VAC, 100kA @ 480 VAC)
• Trip Unit: Thermal Magnetic
• UL Listed: UL 489
• Connection Type: Lug Line / Lugs Load

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901683179
• GTIN : 00785901683179
• Country of Origin : Mexico

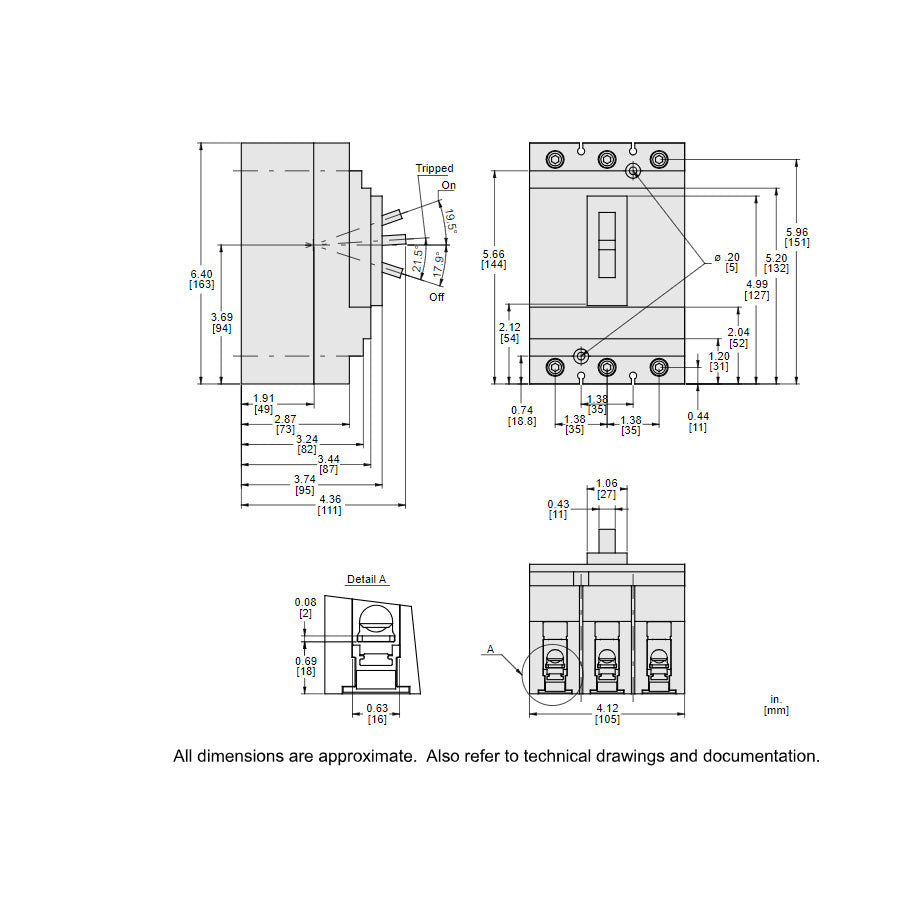

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.129
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
