HLL36070 - Square D 70 Amp 600 VAC 3 Pole H Frame Molded Case Circuit Breaker L Interrupt Rating

HLL36070

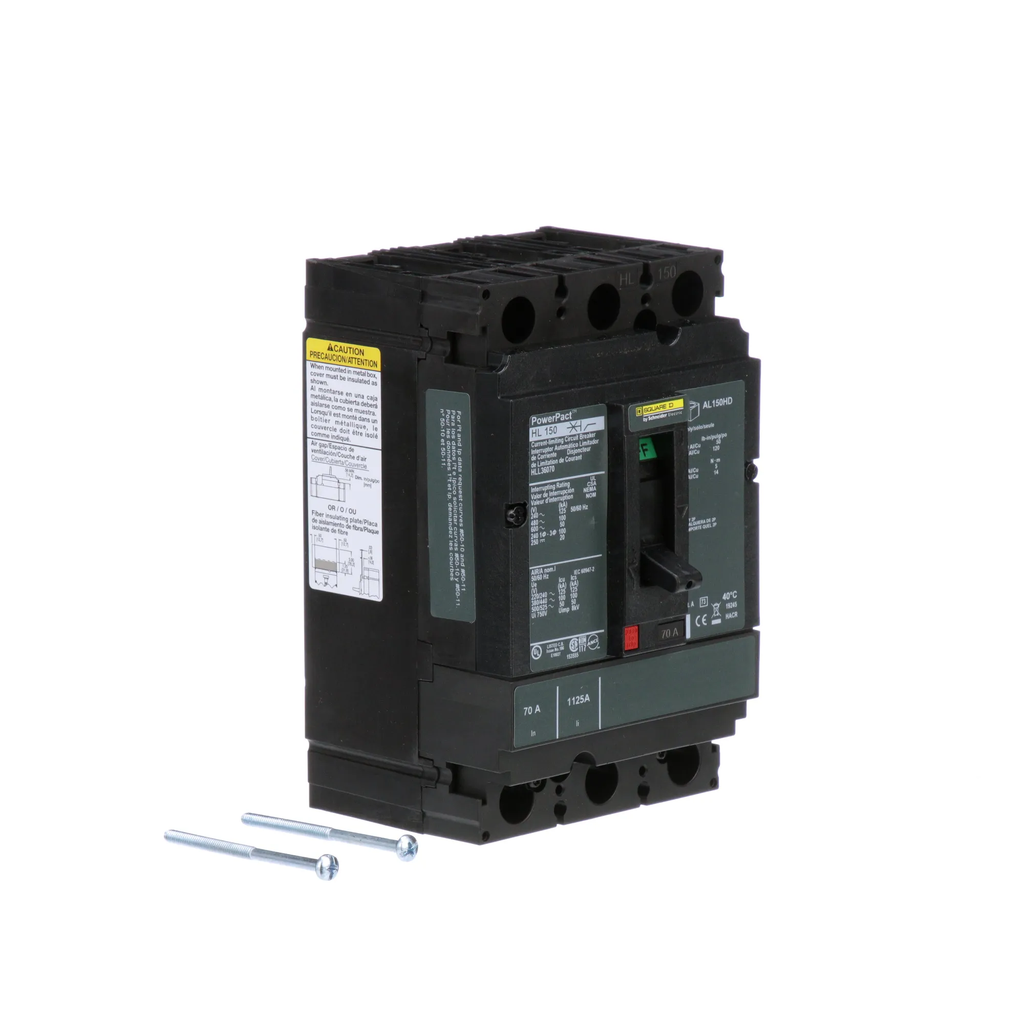

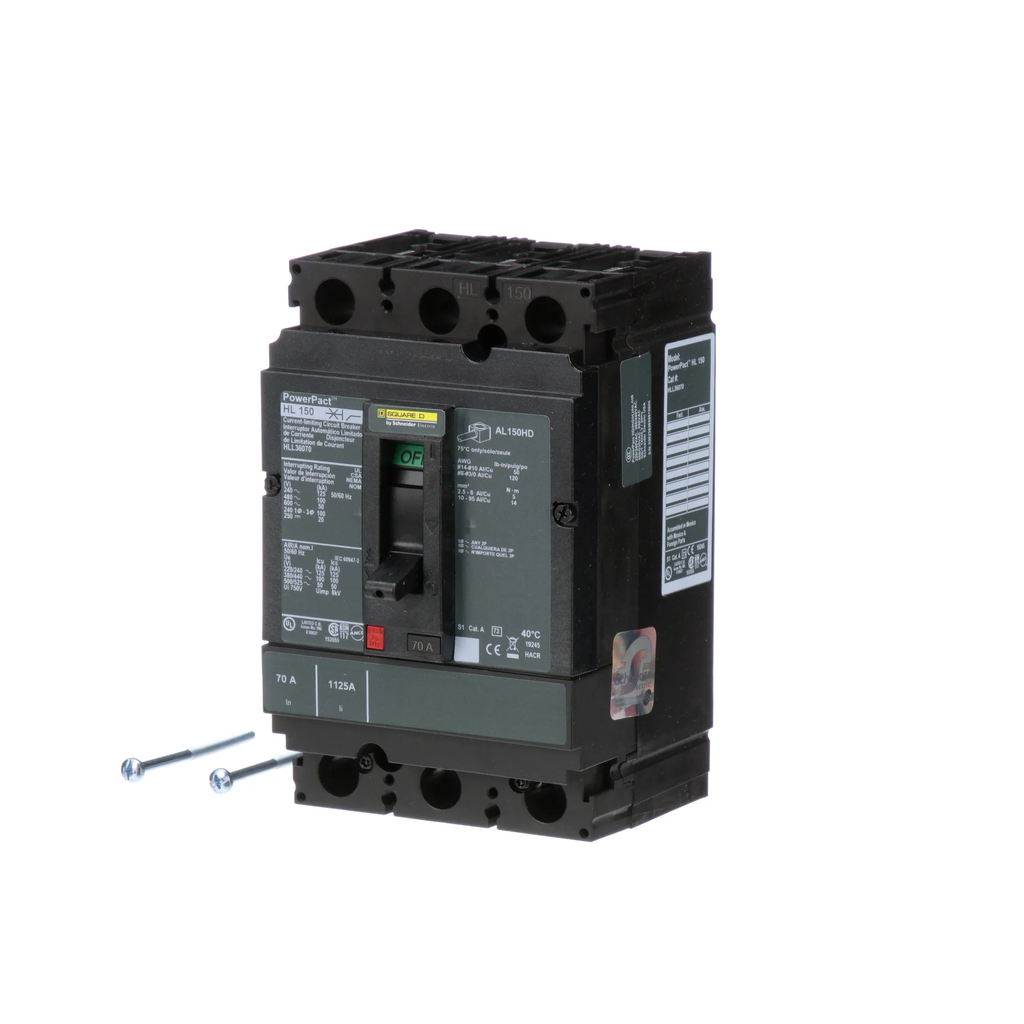

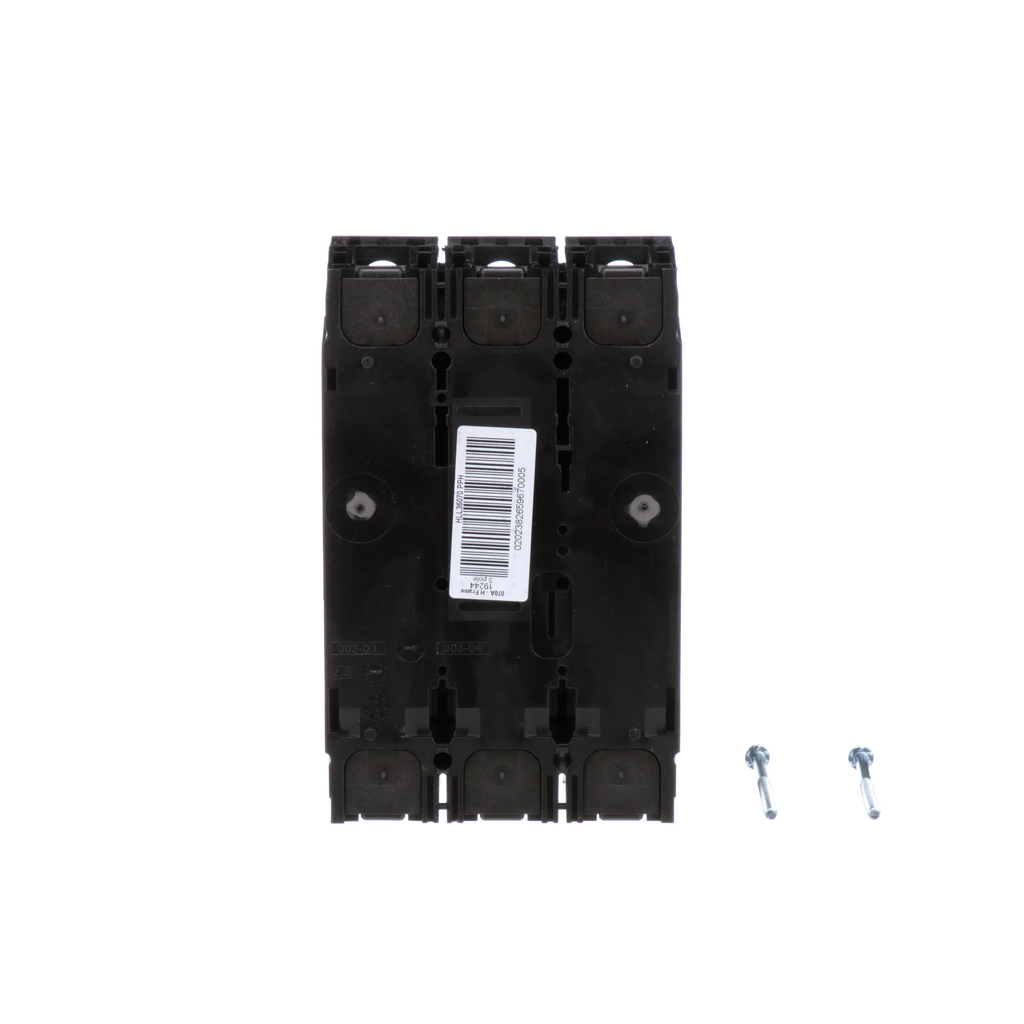

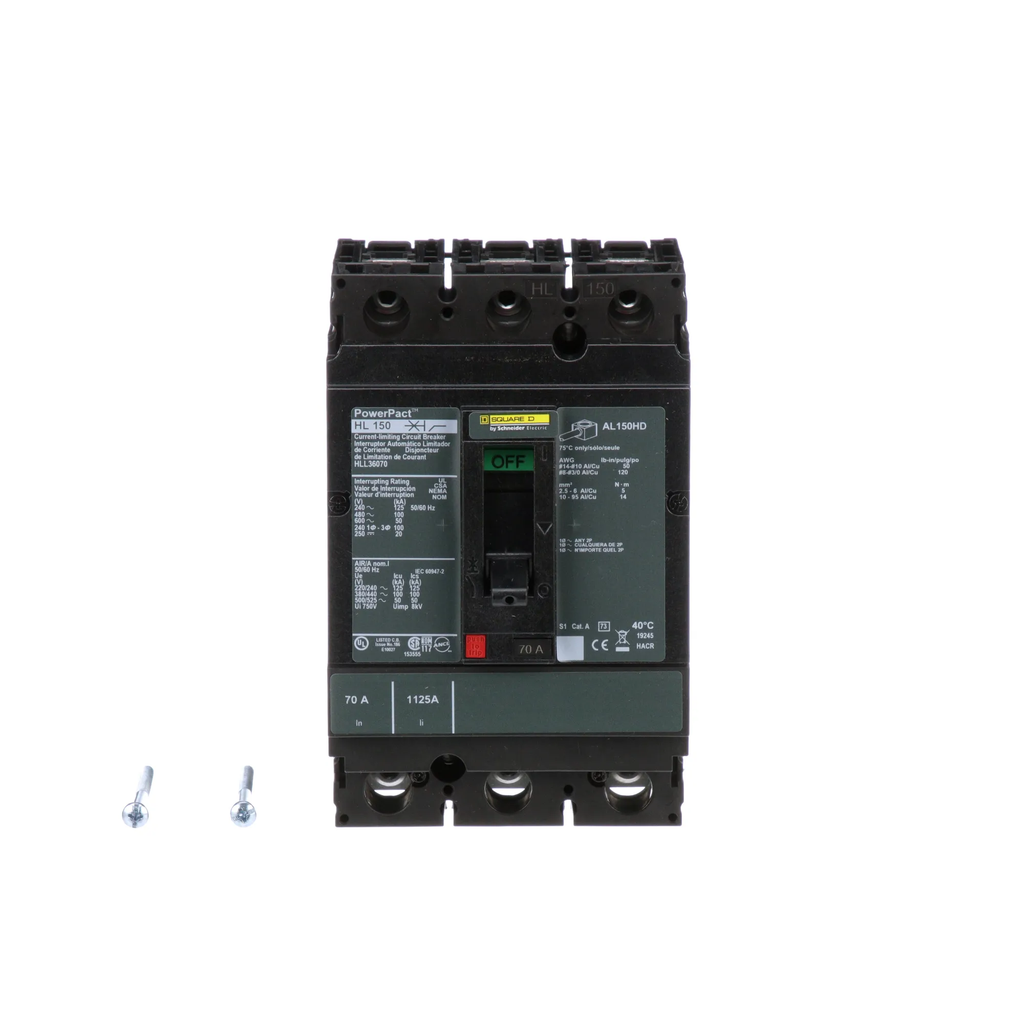

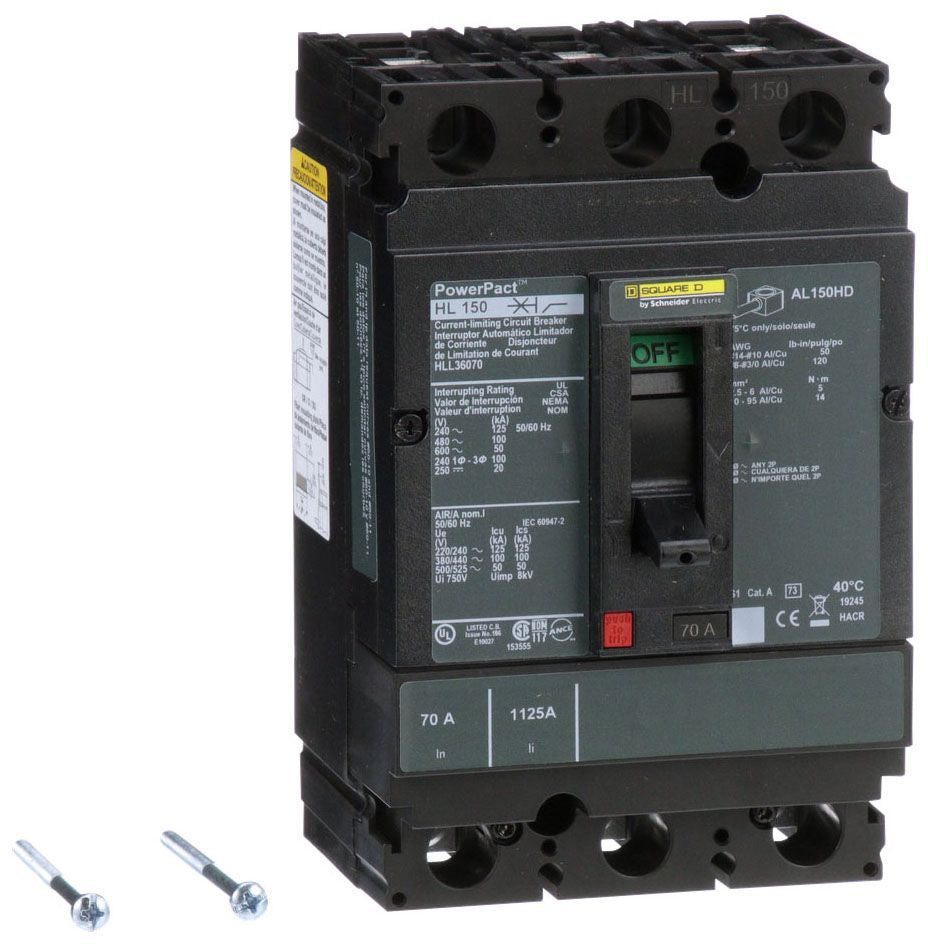

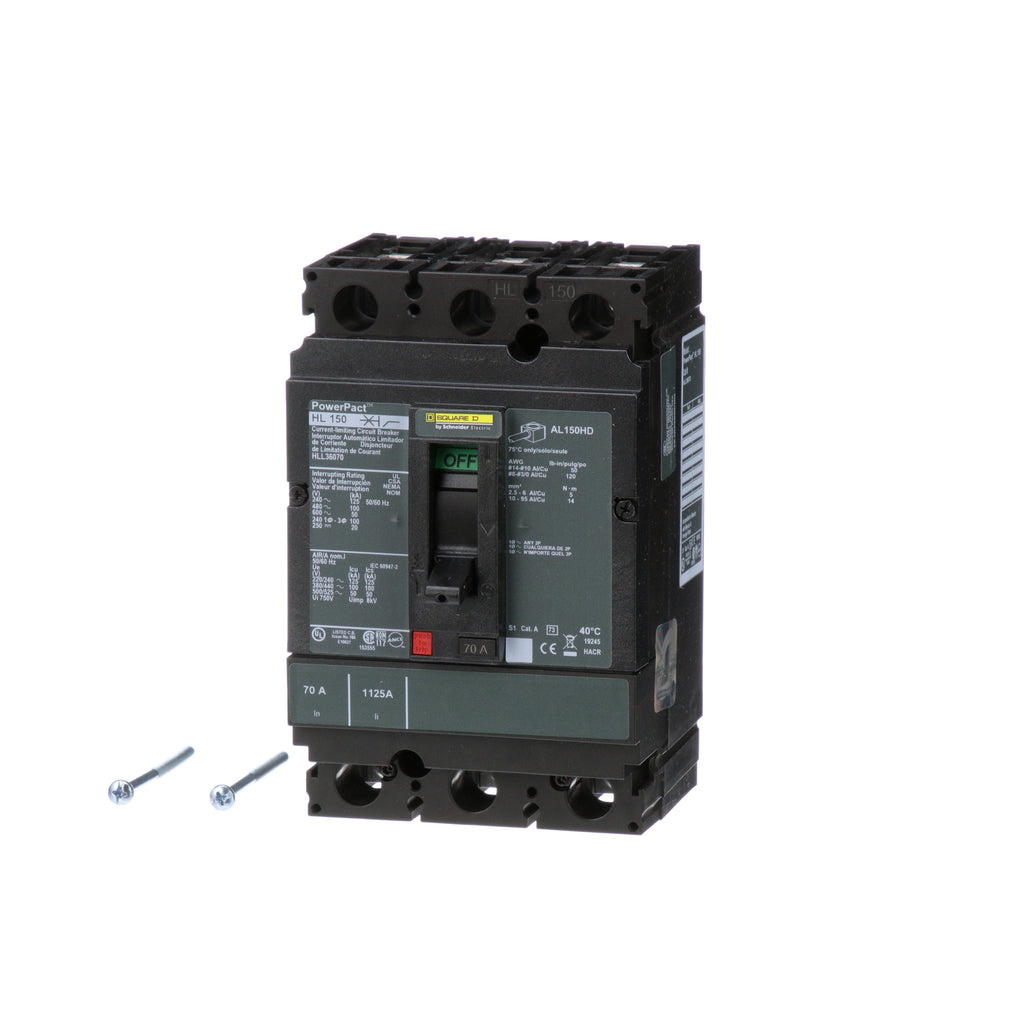

HLL36070 is a Square D 70 Amp, 3 Pole molded case circuit breaker designed for reliable power distribution protection.This H Frame PowerPact H series breaker features thermal magnetic trip units with an L interrupt rating, suitable for up to 600 VAC or 500 VDC applications. It is unit mountable and UL 489 listed, providing high interrupt capacities of 125 kA at 240 VAC, 100 kA at 480 VAC, and 50 kA at 600 VAC. This breaker is ideal for industrial and commercial electrical systems requiring robust circuit protection.

• Manufacturer: Square D
• Part Number: HLL36070
• Amperage: 70 Amp
• Voltage Rating: 600 VAC / 500 VDC
• Poles: 3 Pole
• Frame Type: H Frame (PowerPact H)
• Interrupt Rating: L Interrupt Code (125 kA @ 240 VAC)
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489

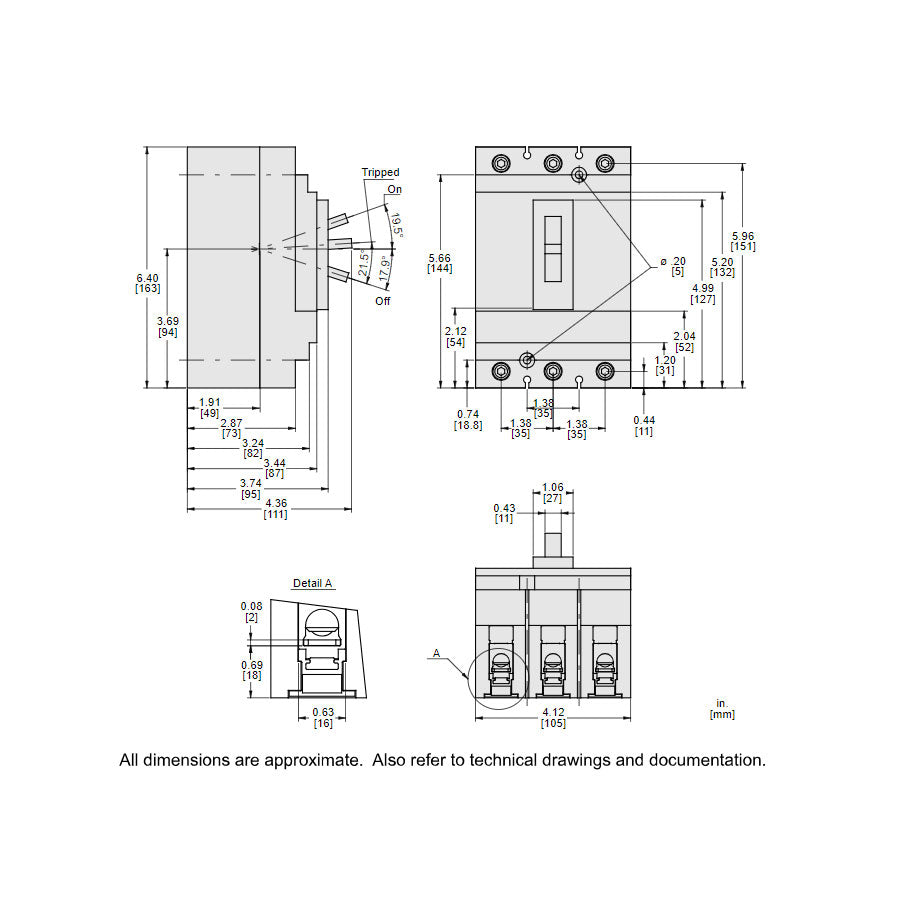

• Dimensions (HxWxD): Approx. 6.4" x 4.12" x 4.36"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901883821
• GTIN : 00785901883821
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.101
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
