Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HLL36060CU31X

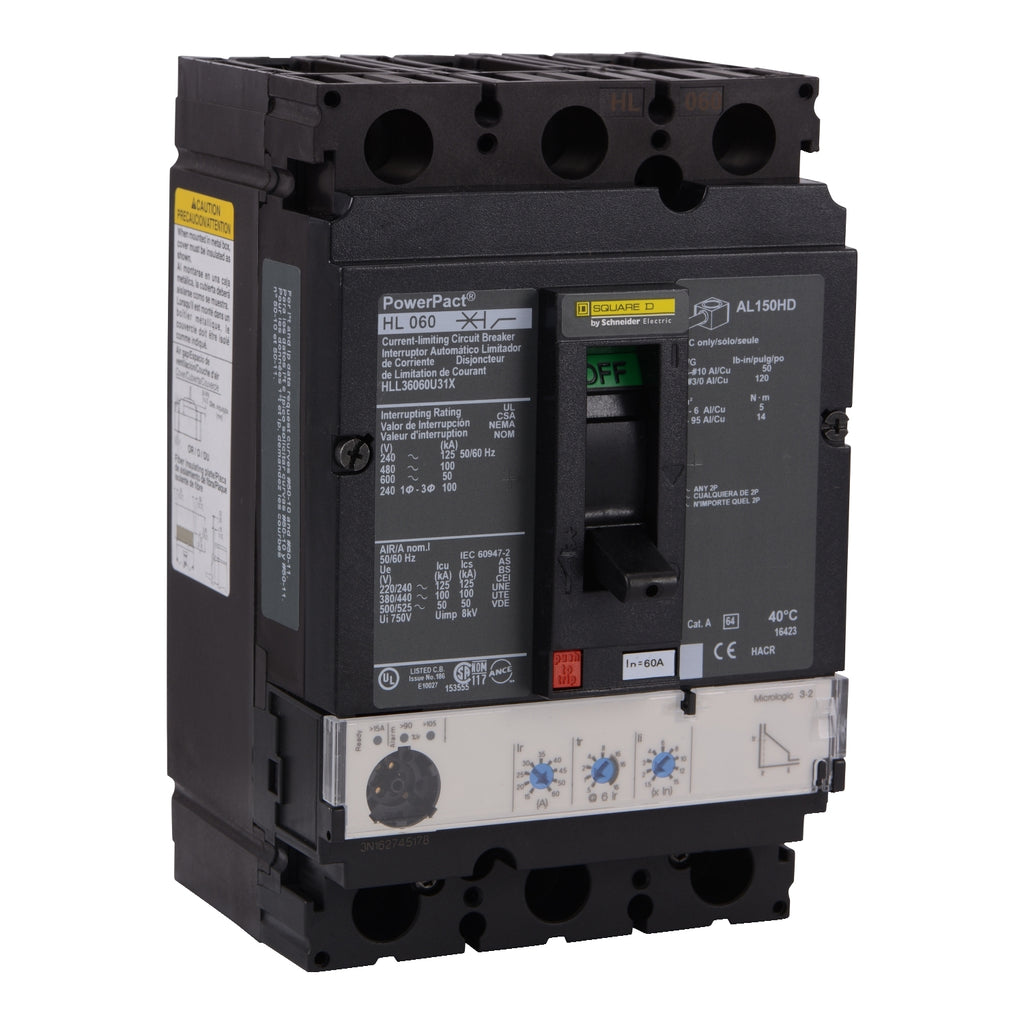

HLL36060CU31X is a PowerPacT H-Frame molded case circuit breaker from Schneider Electric designed for industrial and commercial power distribution applications. This three-pole unit combines thermal-magnetic protection with advanced electronic trip capability, delivering reliable overcurrent and short-circuit protection in demanding environments. The breaker features Micrologic 3.2 trip unit technology with LI function for enhanced coordination and selectivity in complex electrical systems.
- Amperage: 60A
- Voltage: 600VAC
- Poles: 3-Pole
- Interrupt Rating: 50kA at 600VAC
- Series: PowerPacT H-Frame
- Trip Unit: Micrologic 3.2 Standard
- Connection: Lugs
- Certifications: UL 489, CSA, NEMA, IEC 60947-2, VDE, BS, CCC, CE marked
Specifications
- Part Number: HLL36060CU31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Solid State
Product Data
- Country of Origin : Mexico
- Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
- Weight : 5
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
