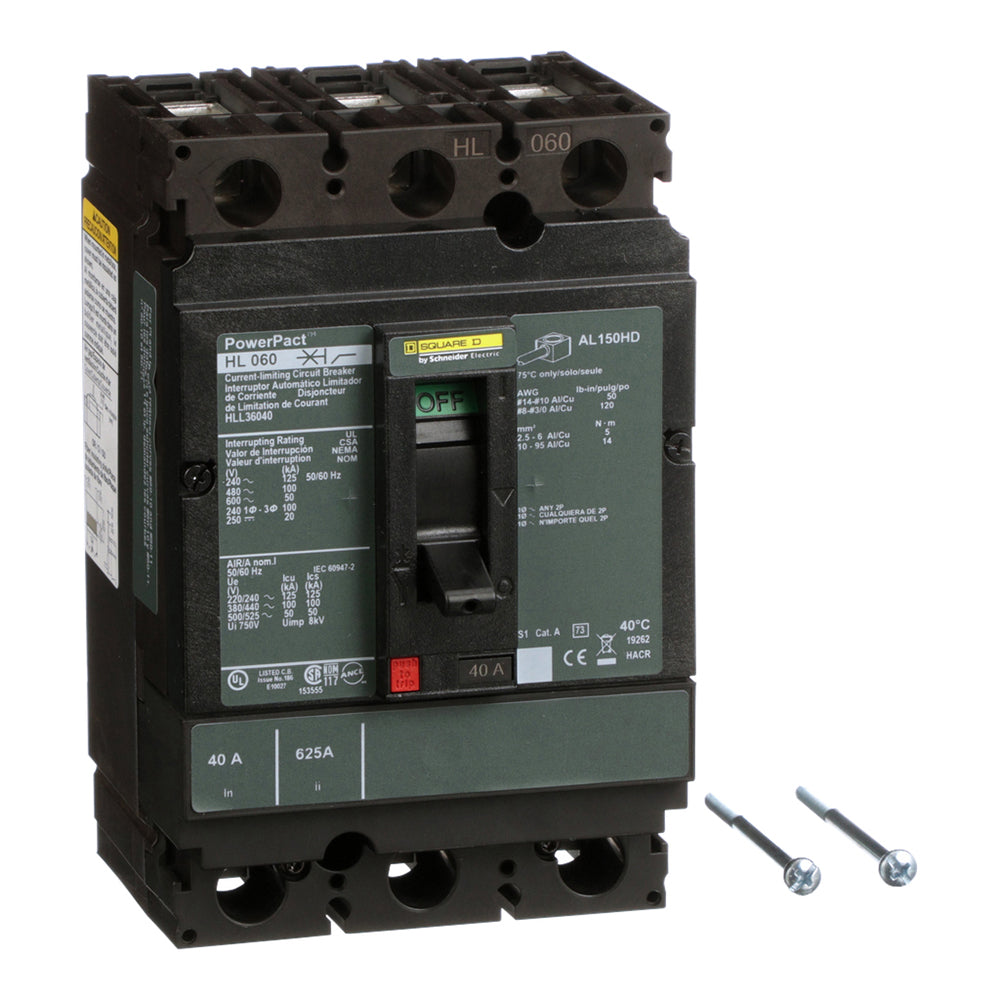

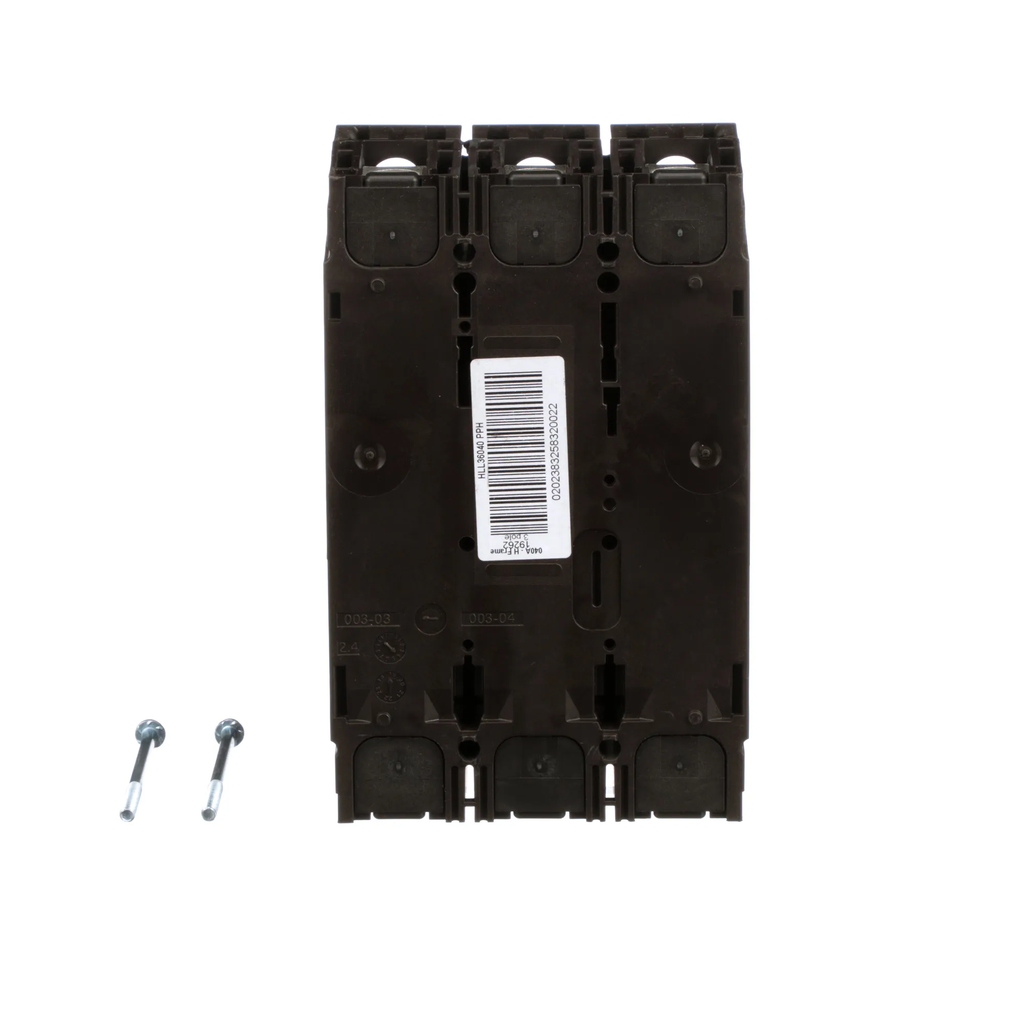

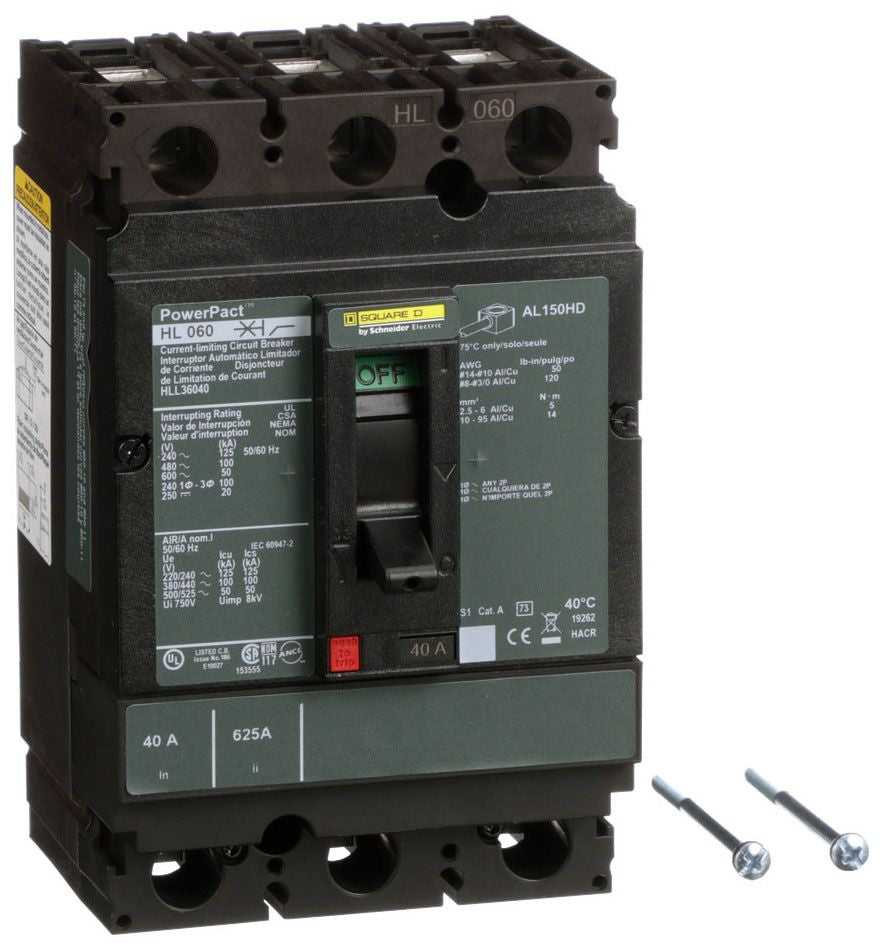

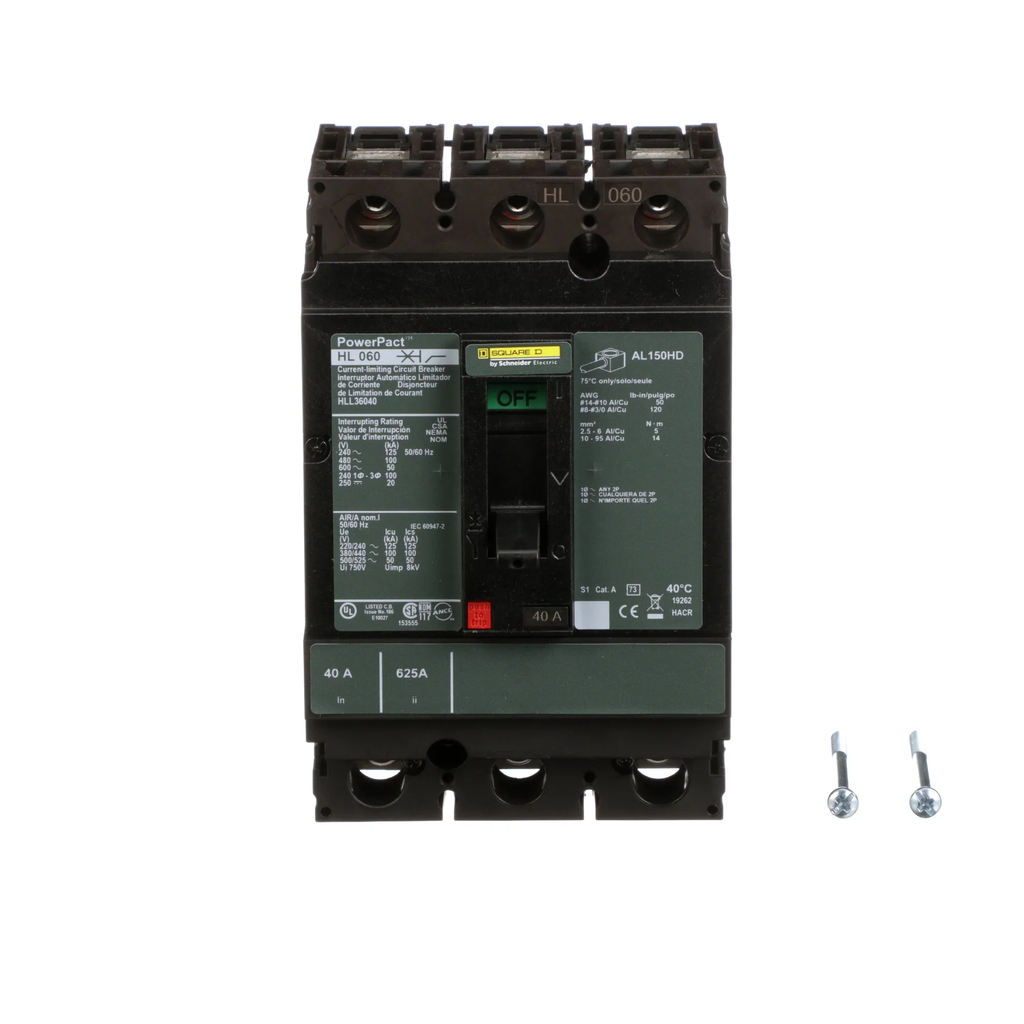

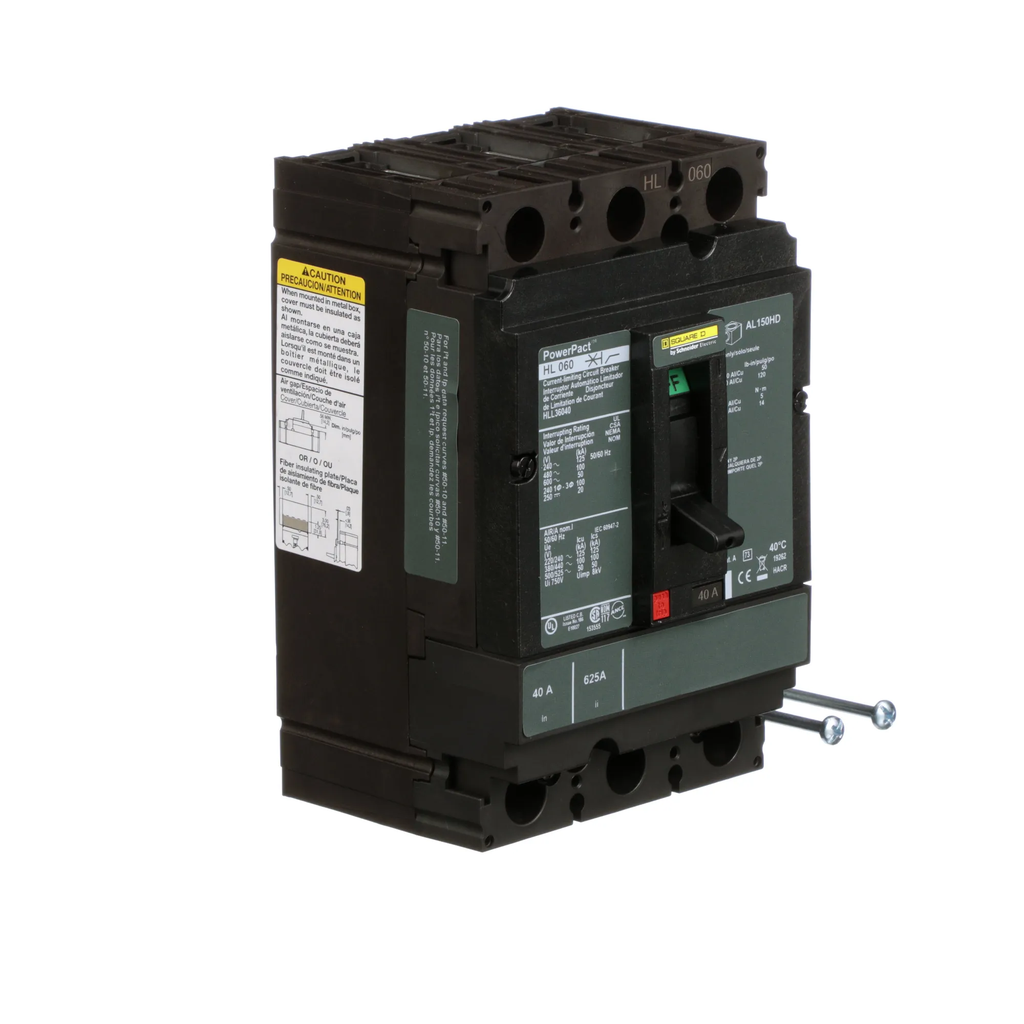

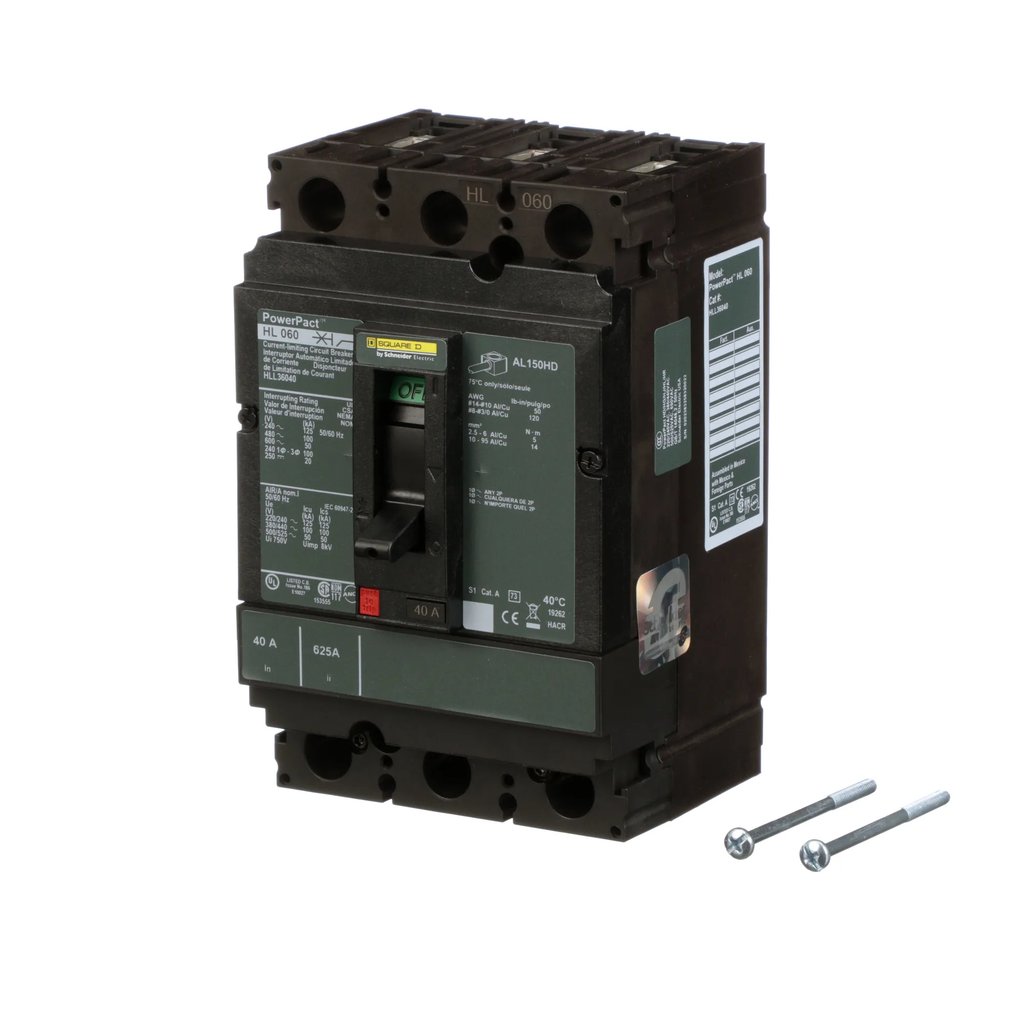

HLL36040 - Square D 40 Amp 600V 3 Pole PowerPacT H Frame Circuit Breaker

HLL36040

HLL36040 is a Square D 3 pole, 40 amp thermal magnetic molded case circuit breaker designed for industrial power distribution applications.This PowerPacT H frame breaker features a 600 VAC voltage rating and a 100kA interrupting rating at 480 VAC. It includes long-time and instantaneous trip functions, unit mounting type, and line/load side lug connections. Certified to IEC, CSA, UL, and CE standards, it supports wire sizes from AWG 14 to AWG 3/0 aluminum or copper.

• Manufacturer: Square D
• Part Number: HLL36040
• Amperage: 40 A
• Voltage: 600 VAC (also 250-500 V DC)
• Poles: 3
• Frame Type: PowerPacT H
• Mounting Type: Unit Mount
• Interrupt Rating: 100kAIC at 480 VAC
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Line and Load Side Lug
• Certifications: IEC, CSA, UL, CE
• Wire Gauge: AWG 14 to AWG 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLL36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901433880
• GTIN : 00785901433880
• Country of Origin : Mexico

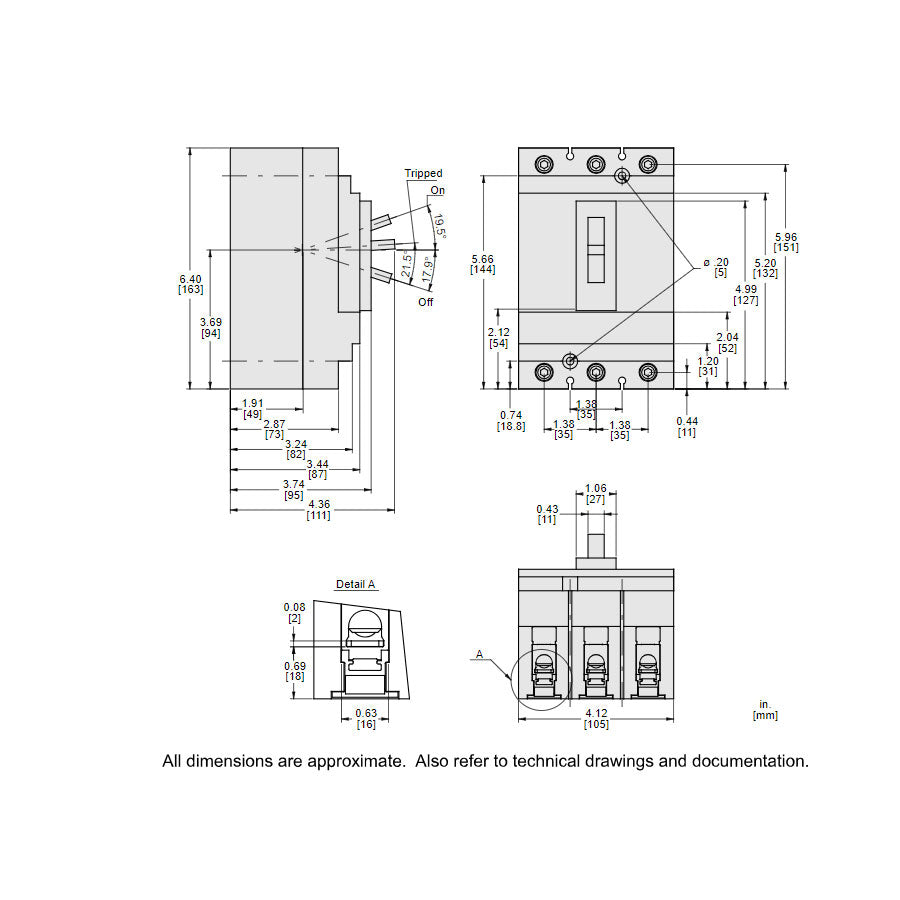

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.07
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
