HLDB3600FT36W - Eaton 600 Amp 600 Volt 3 Pole Molded Case Circuit Breaker L-Frame Series C

HLDB3600FT36W

HLDB3600FT36W is a 3 pole, 600 amp, 600 volt molded case circuit breaker from Eaton's Series C L-frame lineup designed for reliable power distribution protection.This Eaton HLDB3600FT36W circuit breaker features an electronic Digitrip 310 RMS trip unit with LSIG (long-time, short-time, instantaneous, ground-fault) protection. It is a frame-only breaker with a bolt-on mounting type and offers interrupt ratings of 100kA at 240VAC, 65kA at 480VAC, and 35kA at 600VAC. The breaker is UL and CSA certified, suitable for industrial and commercial applications requiring robust circuit protection.

Key Specifications
• Amperage: 600 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: L-Frame (HLDB Series C)
• Trip Unit: Electronic Digitrip 310 RMS LSIG
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC
• Mounting Type: Bolt-On
• Certifications: UL, CSA
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

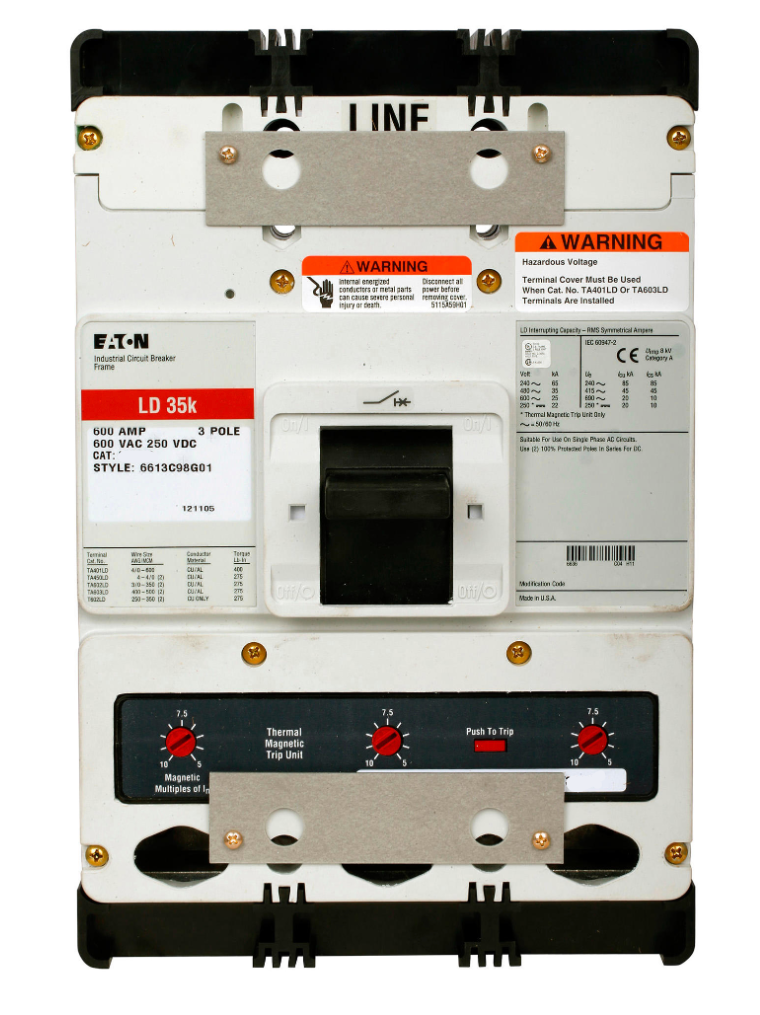

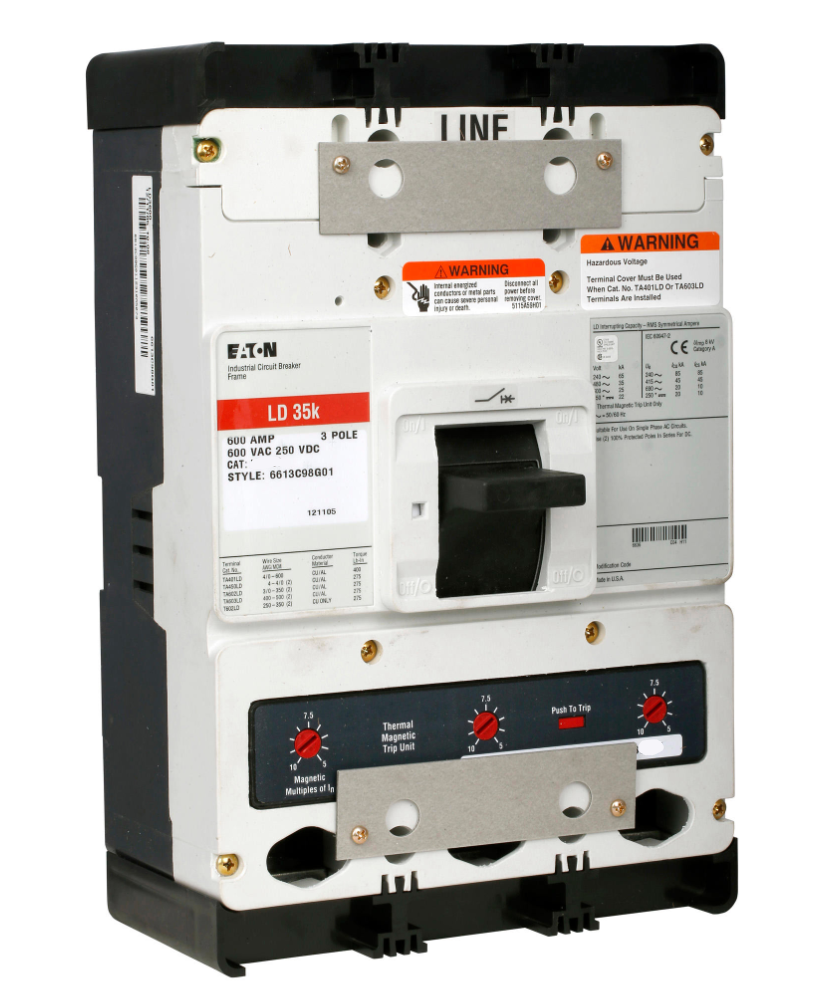

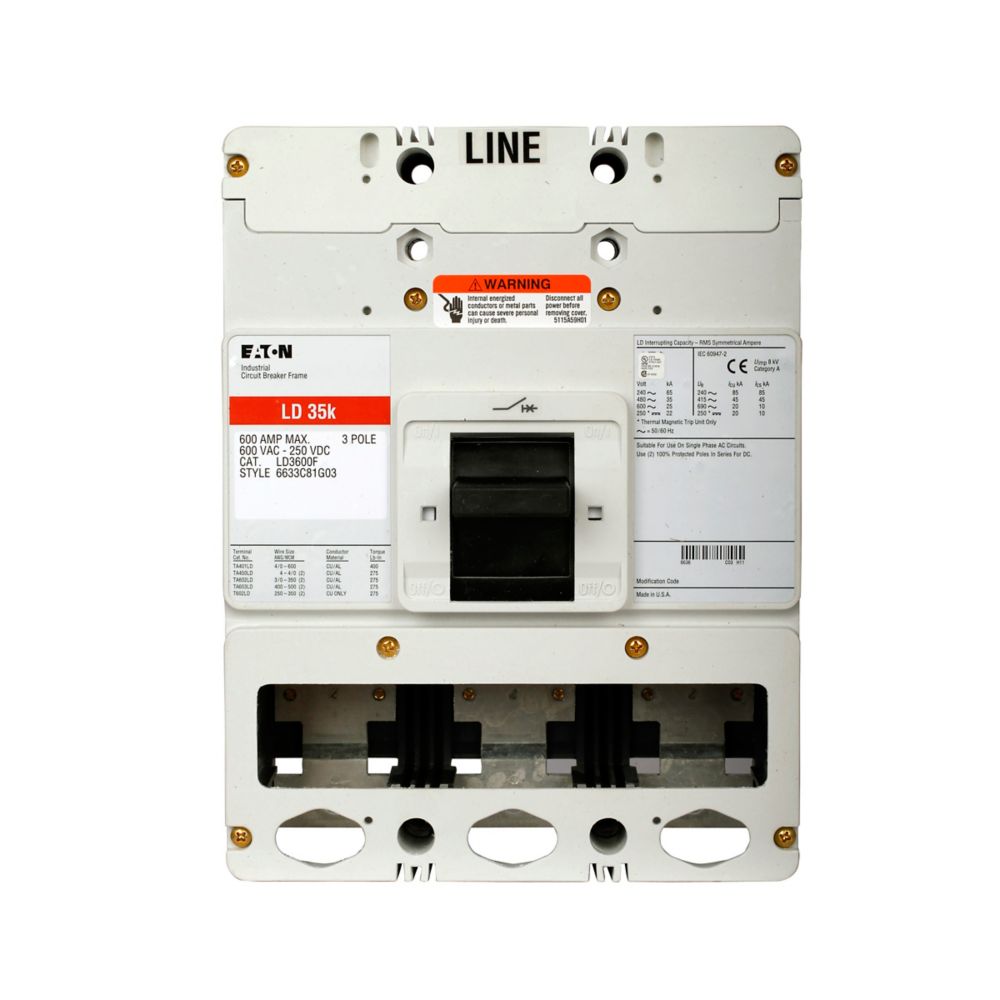

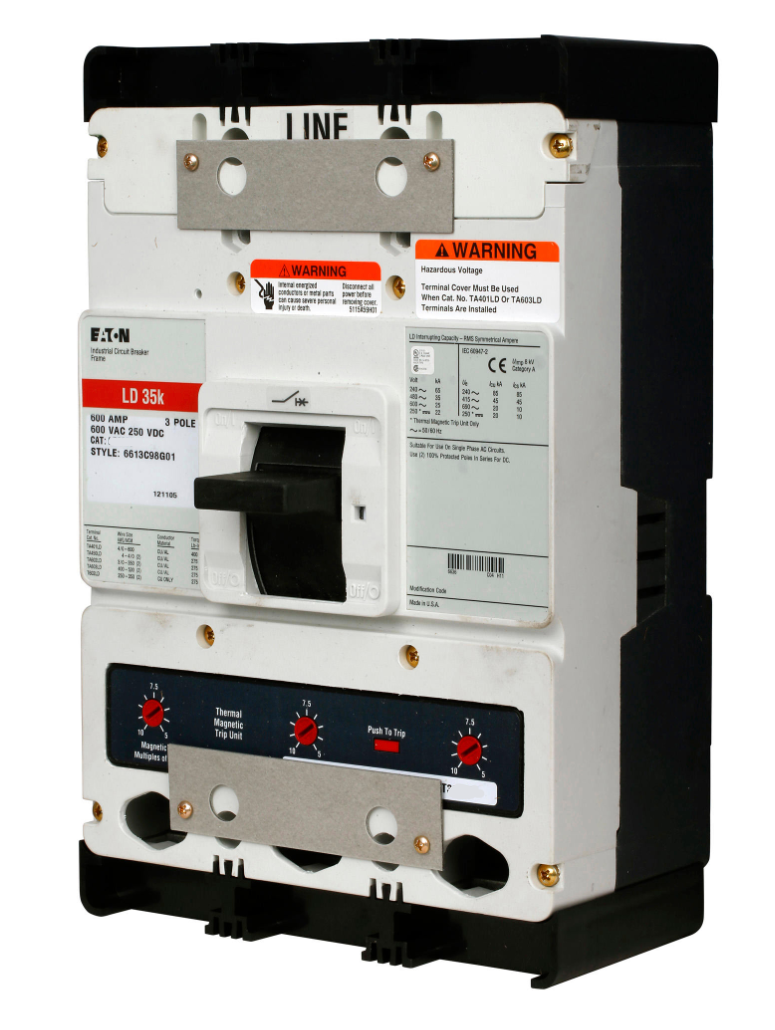

Trip unit included we need updated photo. Lugs not included

Specifications

• Part Number: HLDB3600FT36W
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HLDB
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault

Product Data

• UPC : 78667928114
• GTIN : 00786679281147
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 20 lb
