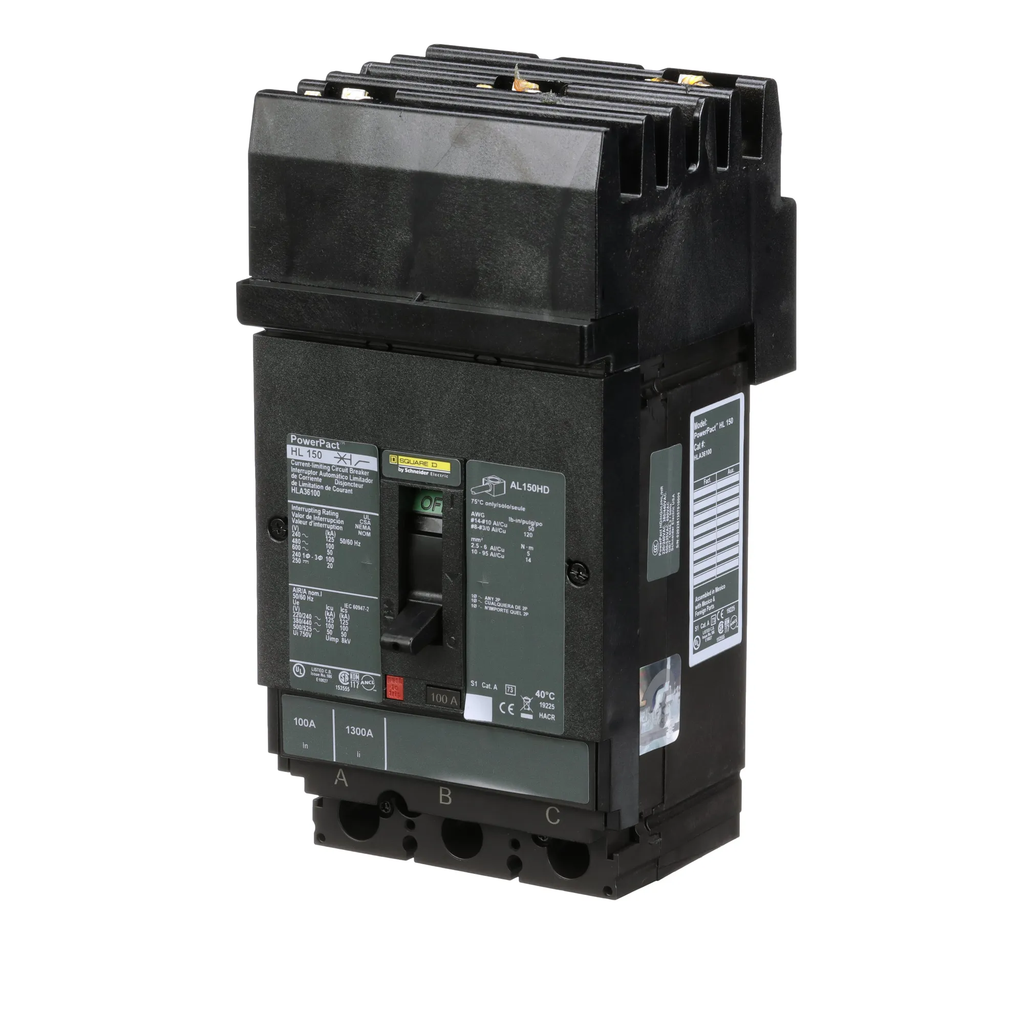

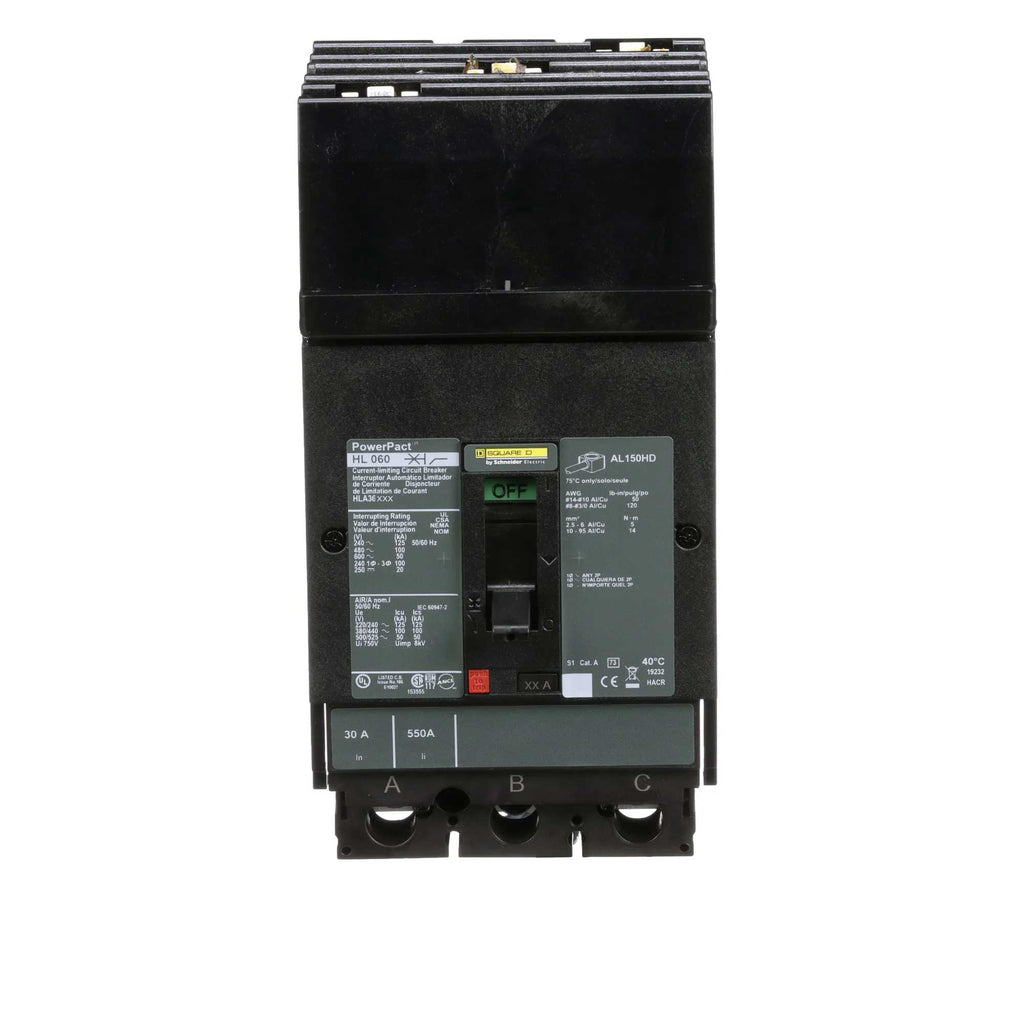

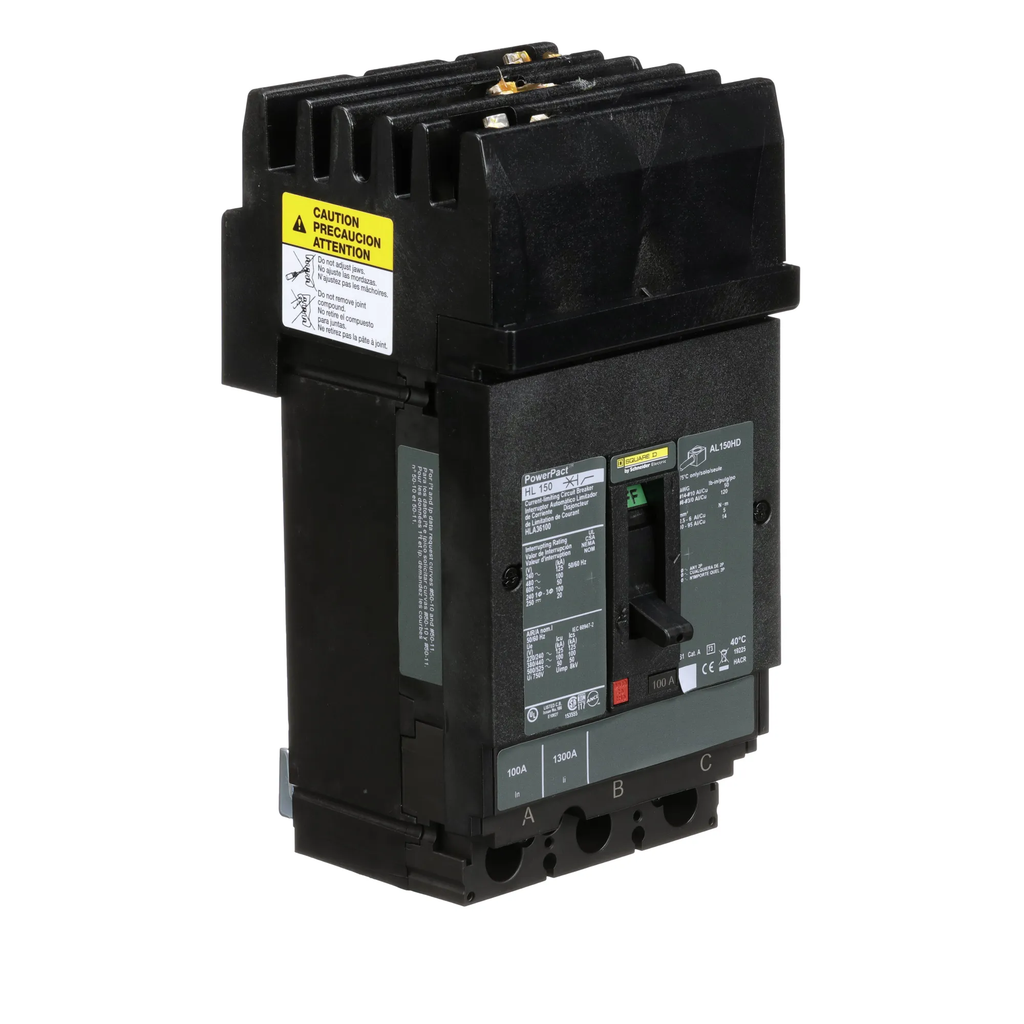

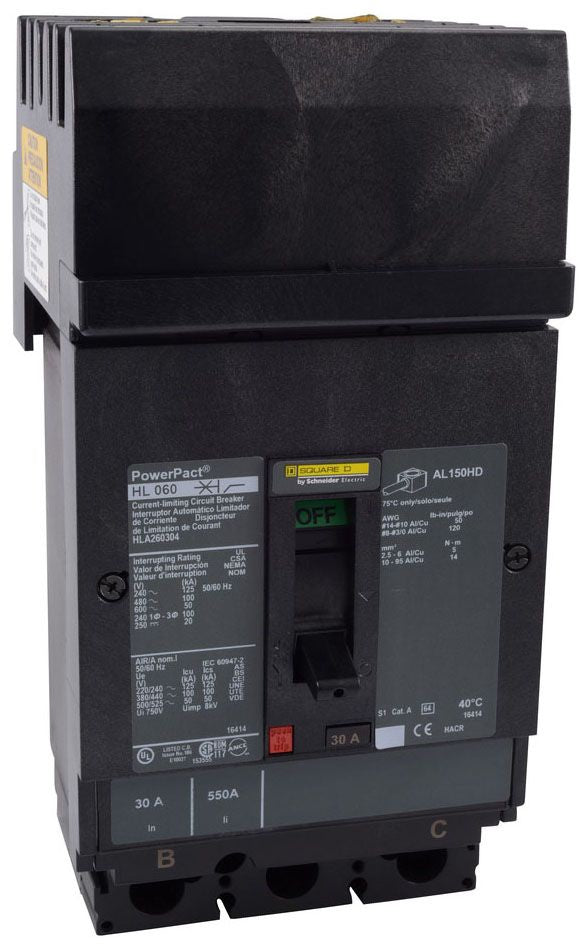

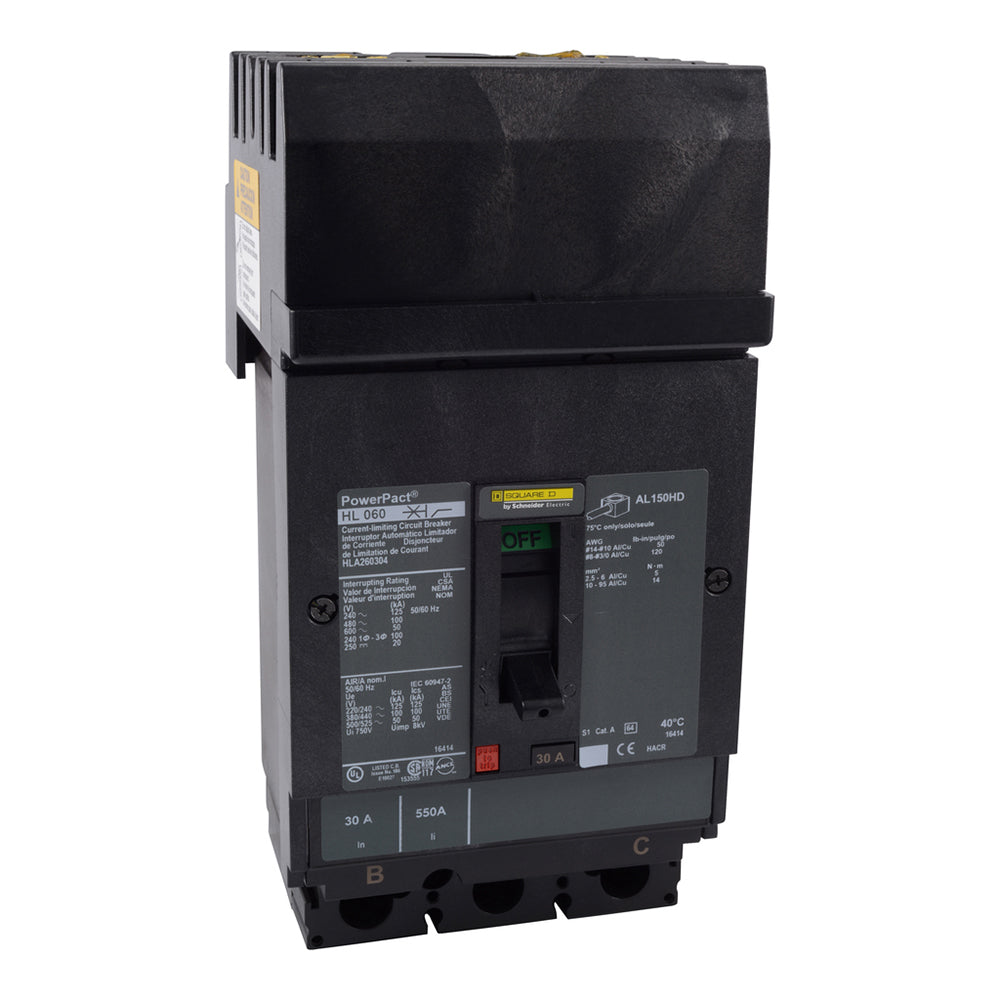

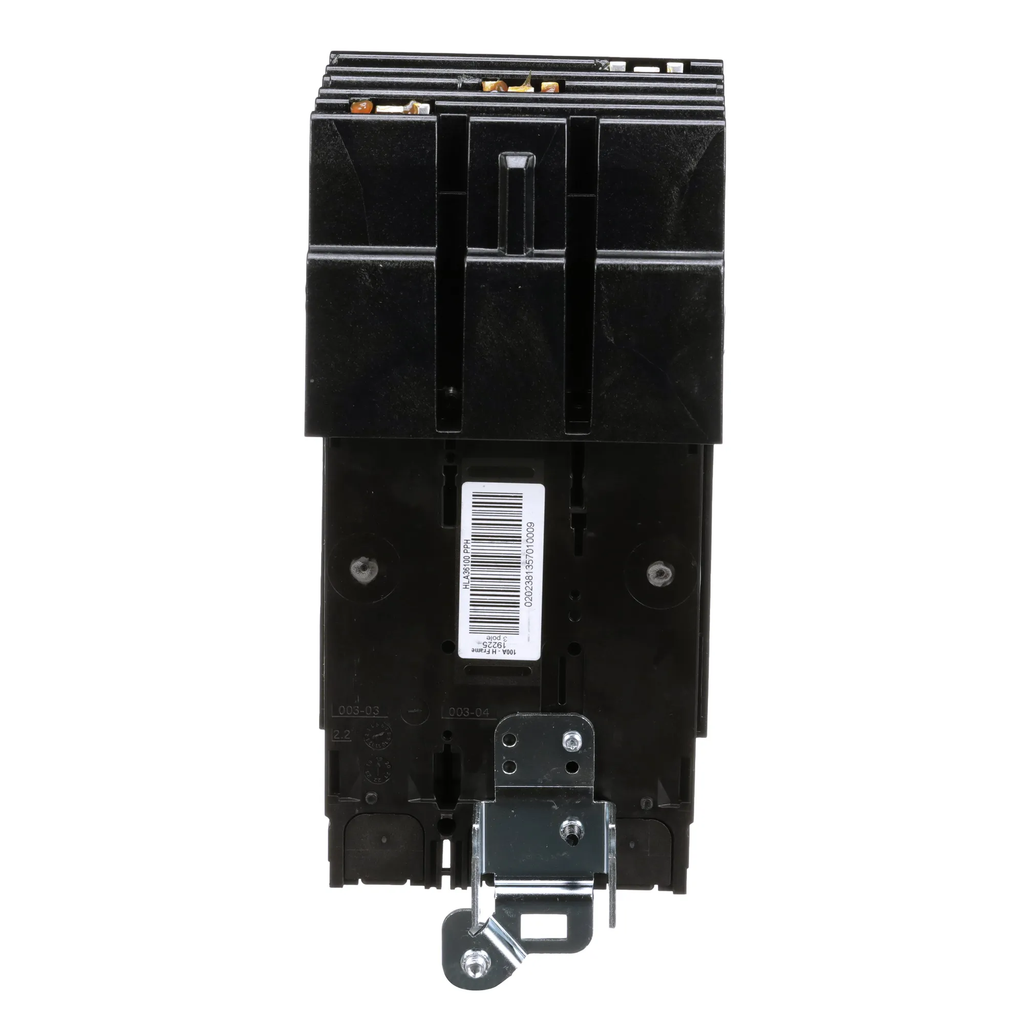

HLA36070 - Square D 70 Amp 3 Pole 600V I-Line Thermal Magnetic Circuit Breaker

HLA36070

HLA36070 is a 70 Amp, 3 Pole thermal magnetic molded case circuit breaker from Square D designed for I-Line mounting and 600 Volt applications.This Square D PowerPact H series circuit breaker features a 70A current rating, 3 poles, and a 600VAC voltage rating with a 50kA interrupt rating. It includes an 80% rated thermal magnetic trip unit and is UL 489 listed with CSA, IEC, CE, and NEMA certifications. The breaker is suitable for industrial and commercial power distribution with I-Line plug-in style mounting.

• Amperage: 70 Amps
• Voltage Rating: 600 VAC / 690 VAC, 250/500 VDC
• Poles: 3 Pole
• Mounting Type: I-Line
• Interrupt Rating: 50 kA at 600 VAC
• Series/Frame: PowerPact H
• Trip Unit: Thermal Magnetic, 80% rated
• Certifications: UL 489, CSA, IEC, CE, NEMA
• Phase Connection: ABC
• Color: Black
• Operating Temperature: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901673118
• GTIN : 00785901673118
• Country of Origin : Mexico

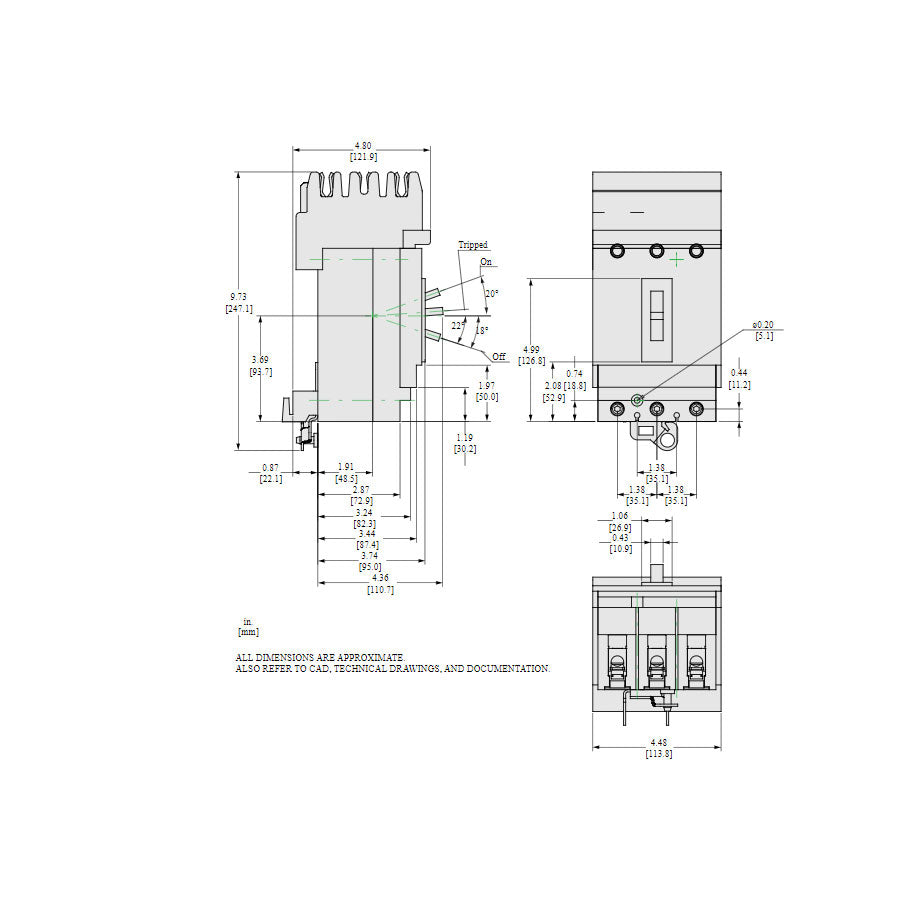

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.6
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
