HLA36040 - Square D 40A 3 Pole 600VAC PowerPact H I-Line Thermal Magnetic Circuit Breaker 50kA Interrupt Rating

HLA36040

HLA36040 is a Square D PowerPact H series molded case circuit breaker with 40 ampere rating and 3 poles designed for reliable power distribution protection.This circuit breaker features a 600 VAC voltage rating, I-Line plug-in mounting style, and a thermal magnetic trip unit. It offers a high interrupt rating of 50kA at 600 VAC and complies with UL 489, CSA, IEC, and CE certifications. The breaker supports ABC phase connections and is rated for 80% continuous current. Its compact design fits standard PowerPact H frames.

Key Specifications
• Amperage: 40 A
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 50 kA
• Frame/Series: PowerPact H
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Phase Connection: ABC
• Certifications: UL 489, CSA, IEC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901507338
• GTIN : 00785901507338
• Country of Origin : Mexico

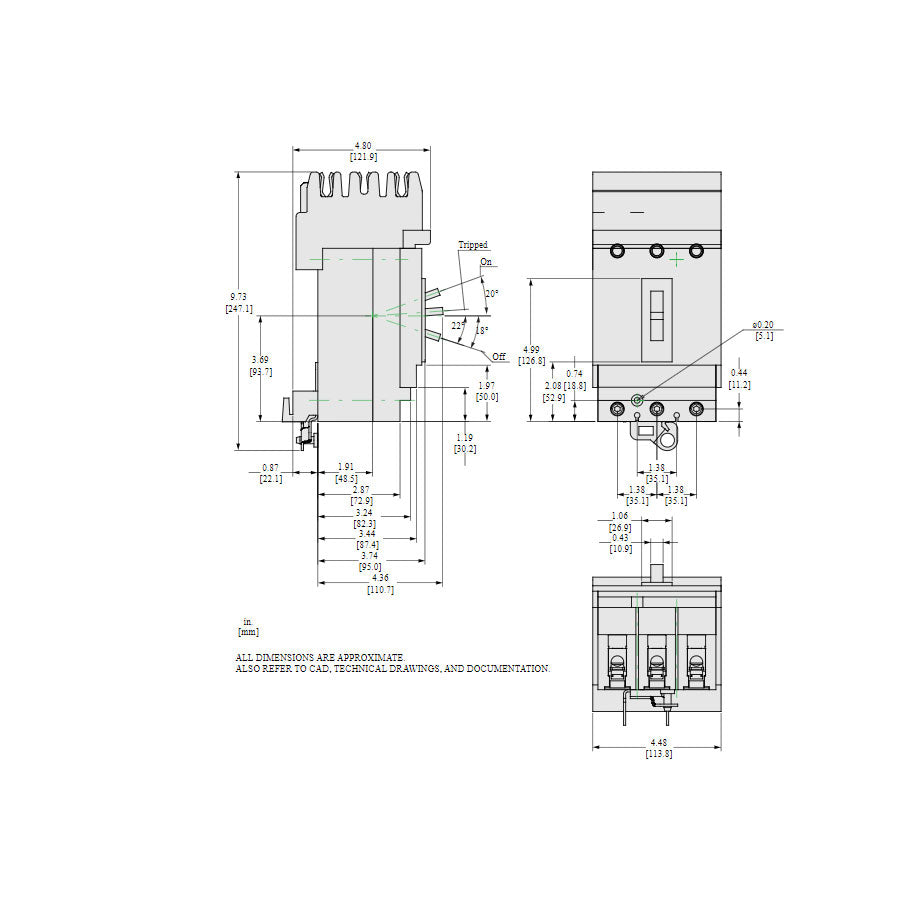

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.45
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
