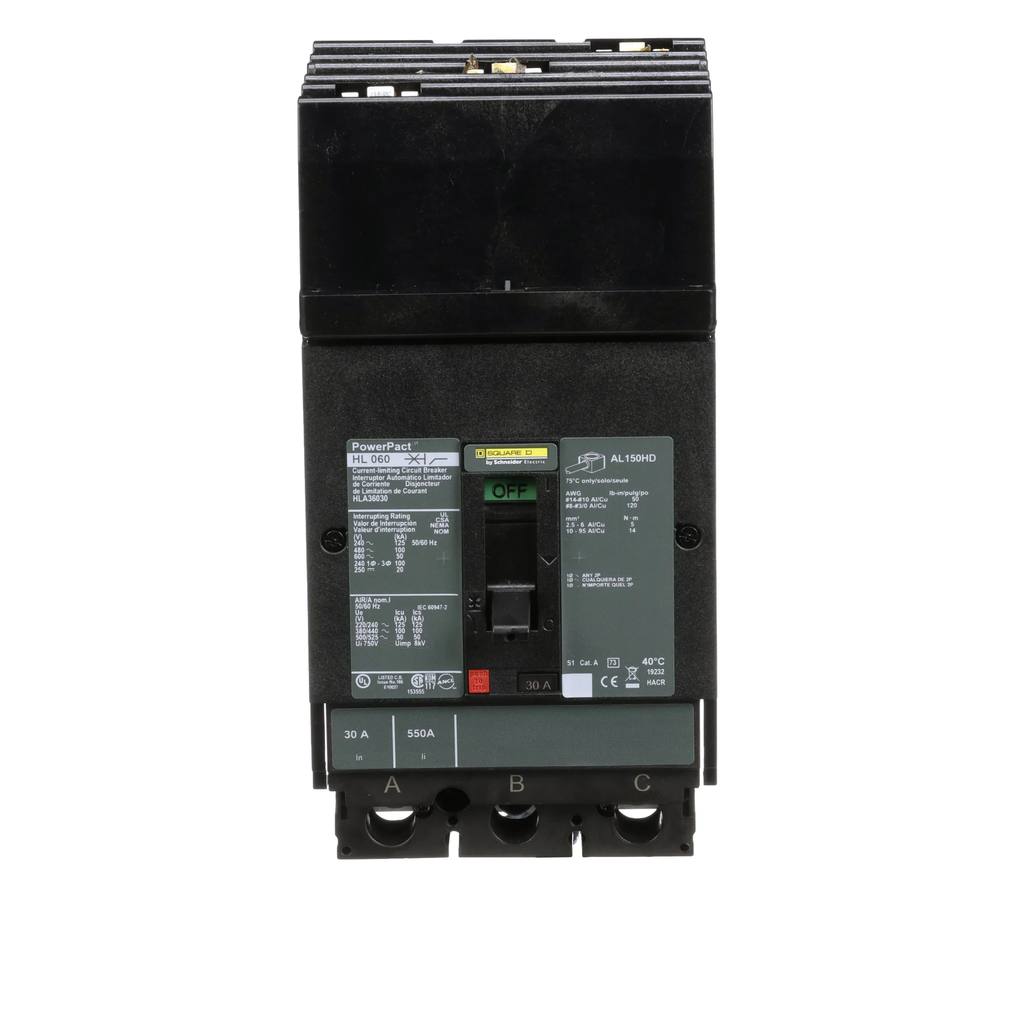

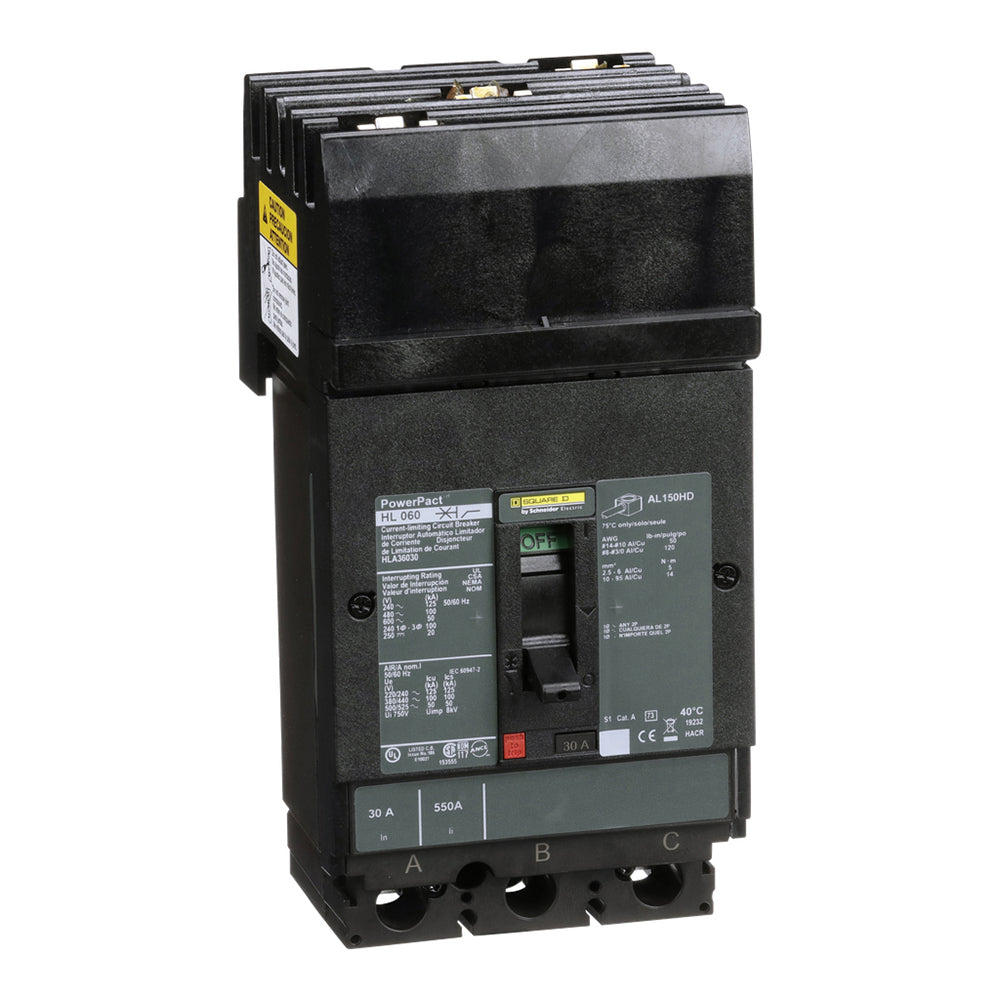

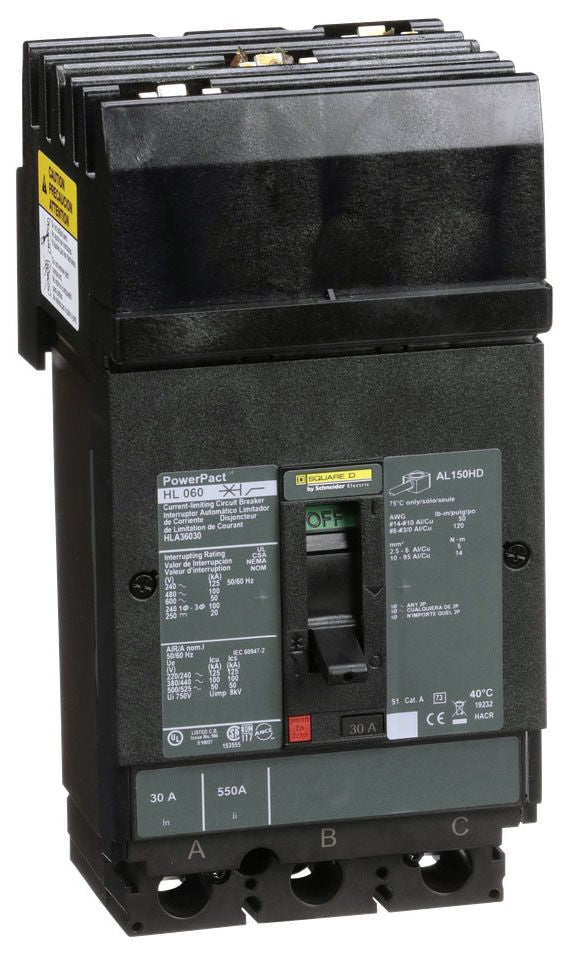

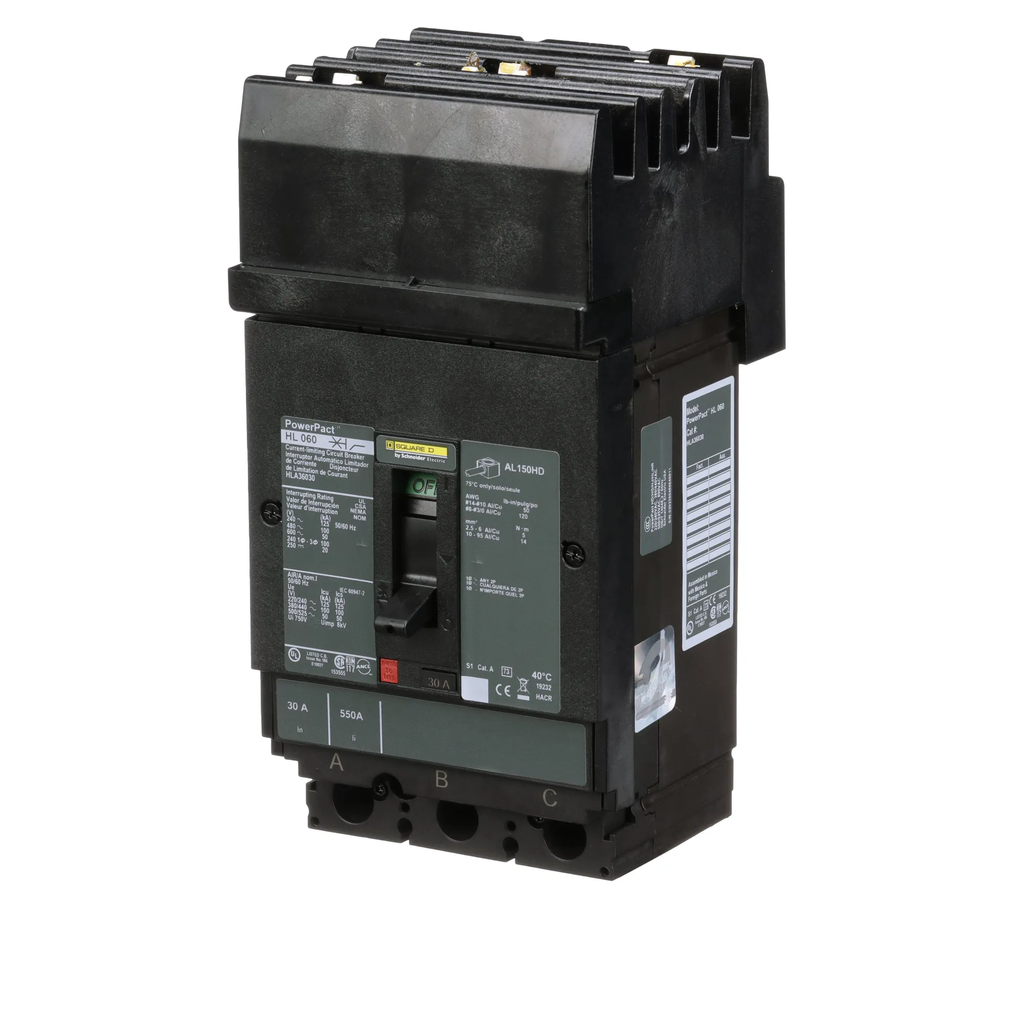

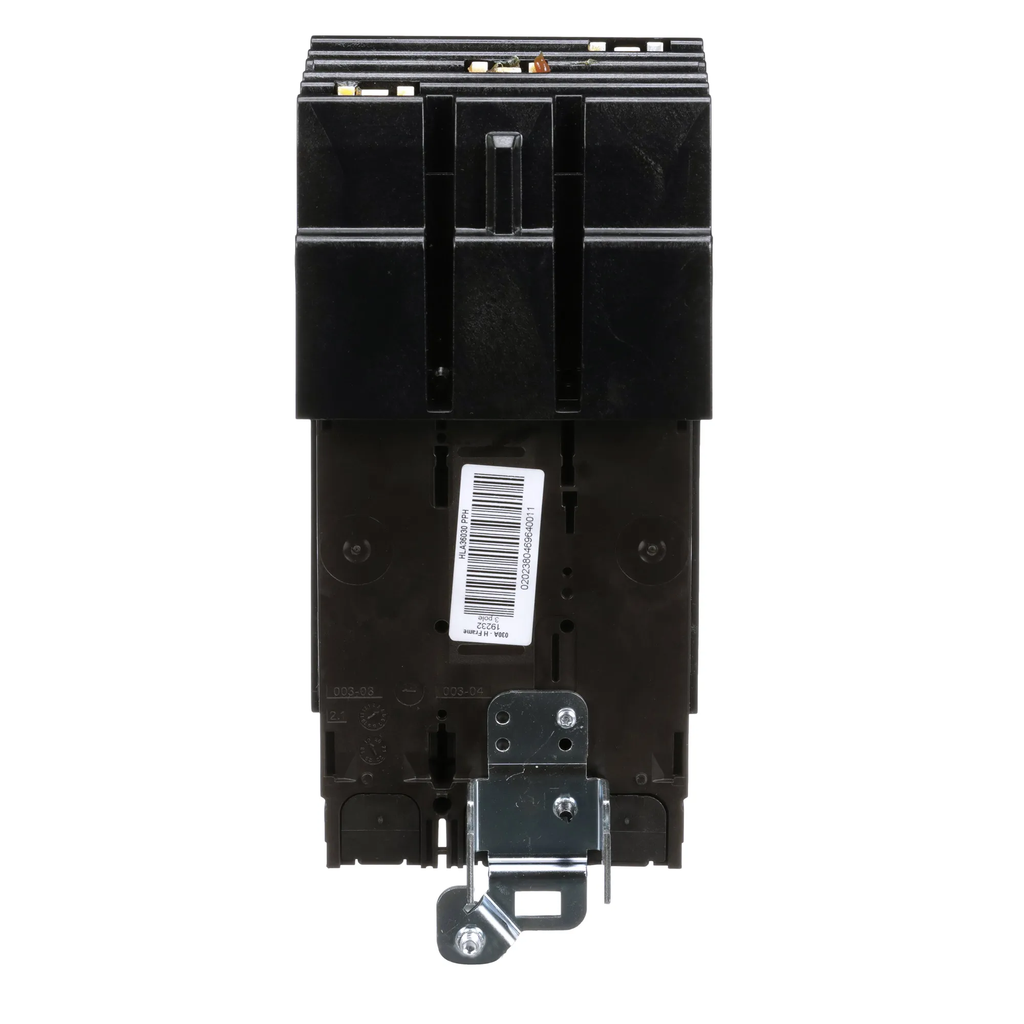

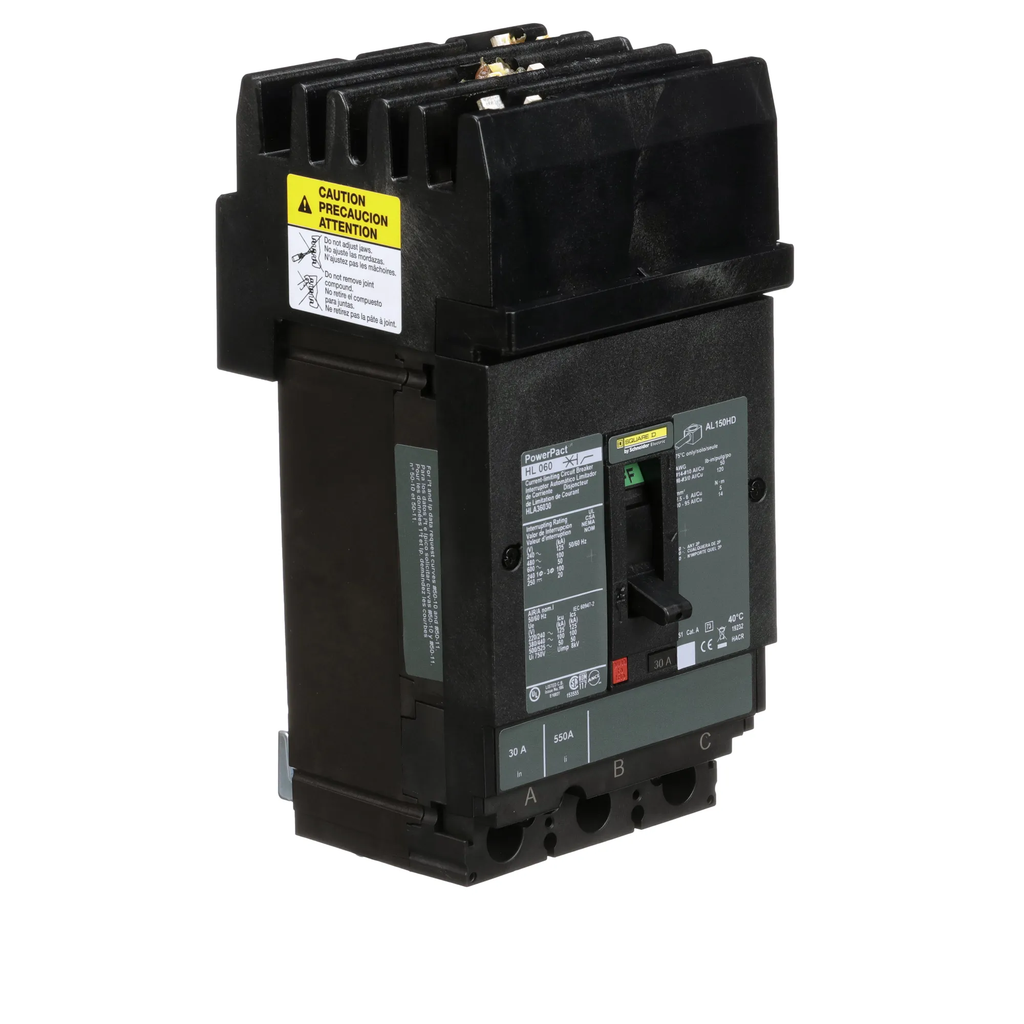

HLA36030 - Square D PowerPacT H 30A 3 Pole 600VAC 100kA@480V I-Line Plug-In Molded Case Circuit Breaker, Thermal Magnetic Trip, UL/CSA/CE

HLA36030

HLA36030 is a Square D PowerPacT H series molded case circuit breaker designed for reliable protection in commercial and industrial power distribution.

This thermal magnetic, current-limiting circuit breaker features a plug-in I-Line mounting style for easy installation in compatible panelboards and switchboards. It is approved for use in North America and internationally, meeting UL, CSA, and CE standards for safety and performance.

Key Specifications
• Amperage: 30A
• Voltage: 600VAC, 250VDC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 100kA at 480VAC, 50kA at 600VAC, 20kA at 250VDC
• Series/Frame: PowerPacT H (H-Frame)
• Trip Unit: Thermal magnetic, current limiting
• Certifications: UL Listed, CSA Certified, CE Marked
• Trip Settings: 350A hold, 750A trip
• Terminal: Accepts AWG 14 to 3/0 aluminum or copper
• Application: Distribution panelboards and switchboards
• Environmental: 80% rated standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HLA36030
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HLA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : H Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901507307
• GTIN : 00785901507307
• Country of Origin : Mexico

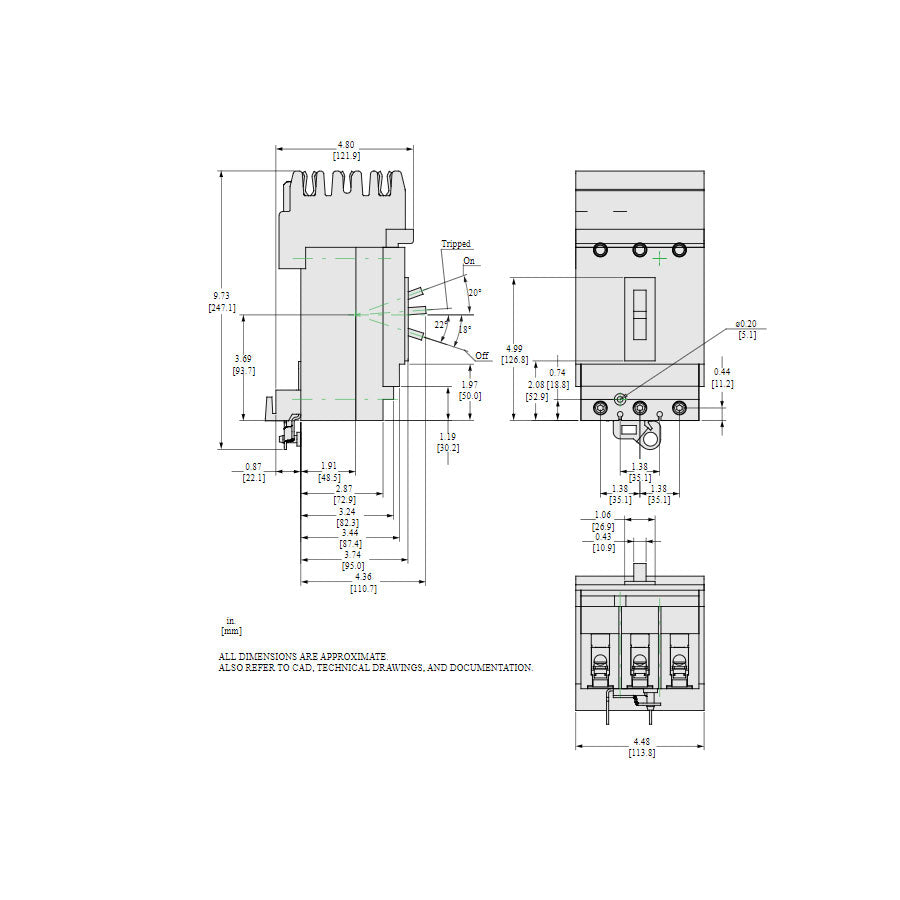

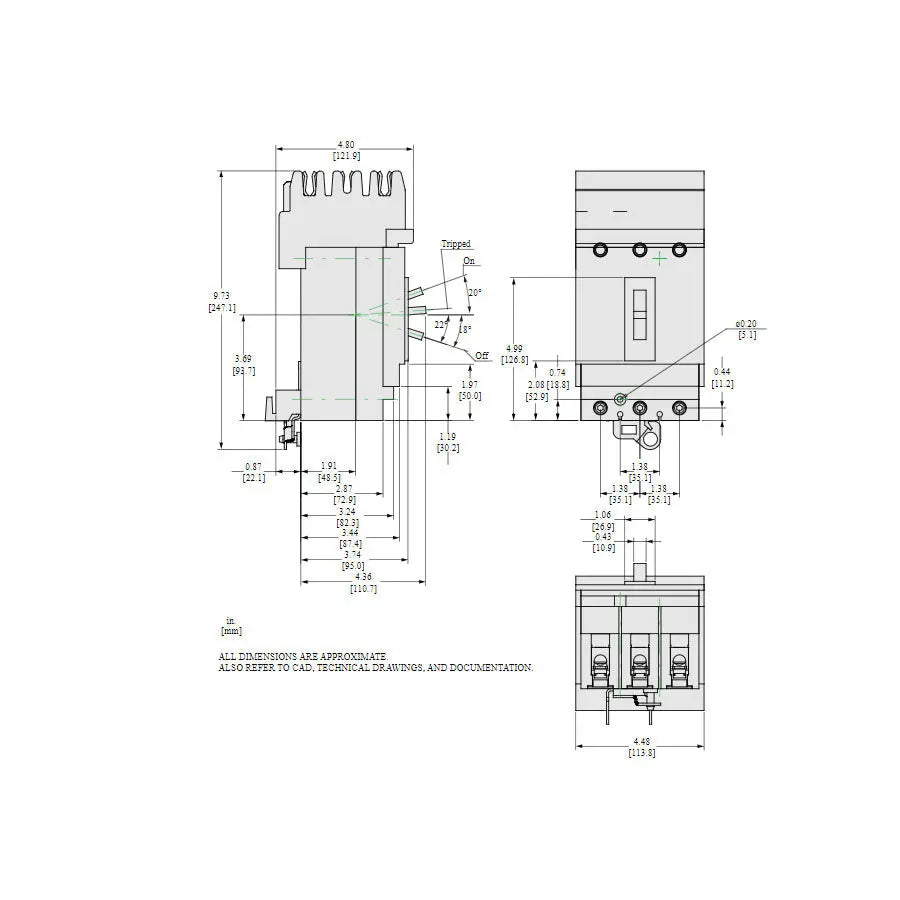

• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 5.45
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
