Description
HL2IMA24C

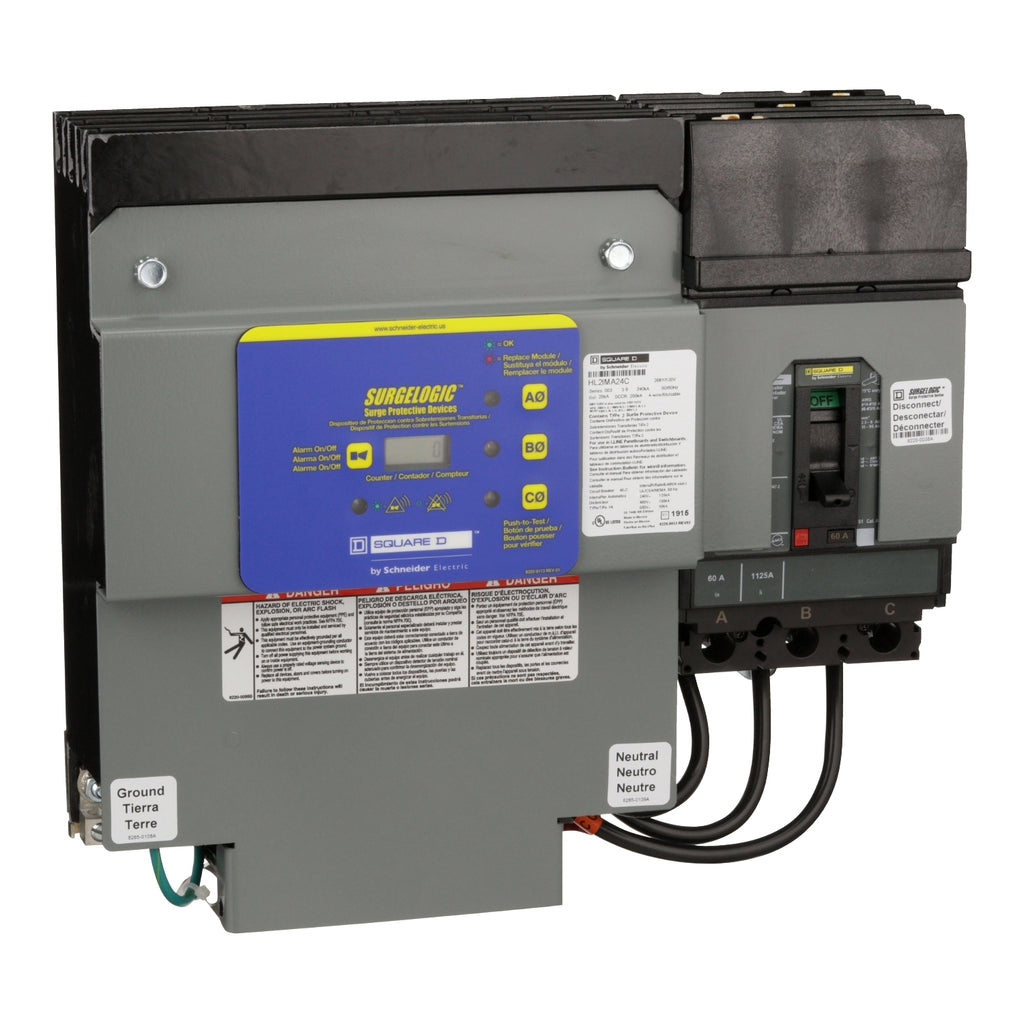

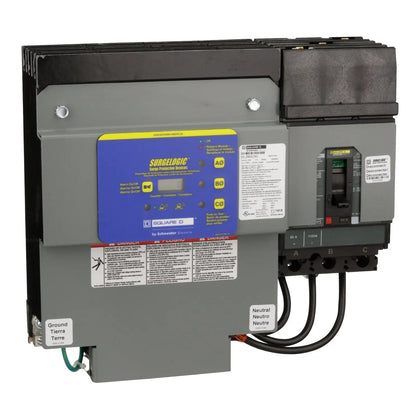

HL2IMA24C is a Square D 3-pole surge protection device designed for 208Y/120V AC systems with a 60 amp rating and NEMA 2 enclosure.This device provides robust surge protection with a 240kA impulse discharge current rating, suitable for 3-phase, 4-wire configurations. It mounts easily on I-Line panelboards and features audible, visual, and remote signaling for status indication. The device is part of the Surgelogic HL series and is designed for quick installation and retrofit applications.
- Manufacturer: Square D
- Part Number: HL2IMA24C
- Amperage: 60 Amps
- Voltage: 208Y/120 VAC
- Number of Poles: 3
- Phase: 3-phase
- Mounting Type: For I-Line Panelboards
- Surge Current Rating: 240kA impulse discharge current
- Enclosure Rating: NEMA 2
- Surge Protection Type: Type 2 SPD
- Signaling: Audible, visual, and remote
- Series: Surgelogic HL
Specifications
- Part Number: HL2IMA24C
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Parts And Accessories
- Section : Surge Protection
- Family : SURGELOGIC
- Type : HL
- Voltage : 208Y/120VAC
- Amperage : 60
- Phase : 3
- Poles : 3
- Connection : I-Line
- Protection : Thermal Magnetic
Product Data
- UPC : 785901851431
- Country of Origin : Mexico
- Dimensions : 12.2 in (308.9 mm) x 13.5 in (341.9 mm) x 5.6 in (142.1 mm) (Height x Width x Depth)
- Weight : 22.187
- Standards : UL 1449:ed. 3, UL 1283:ed. 5, CSA C22.2 No 8:1986, UL 96A:ed. 12, UL 489:ed. 11, CSA C22.2 No 5-09
- Certification : UL, CSA, NEMA
- Wire Size : 6 AWG, Copper
