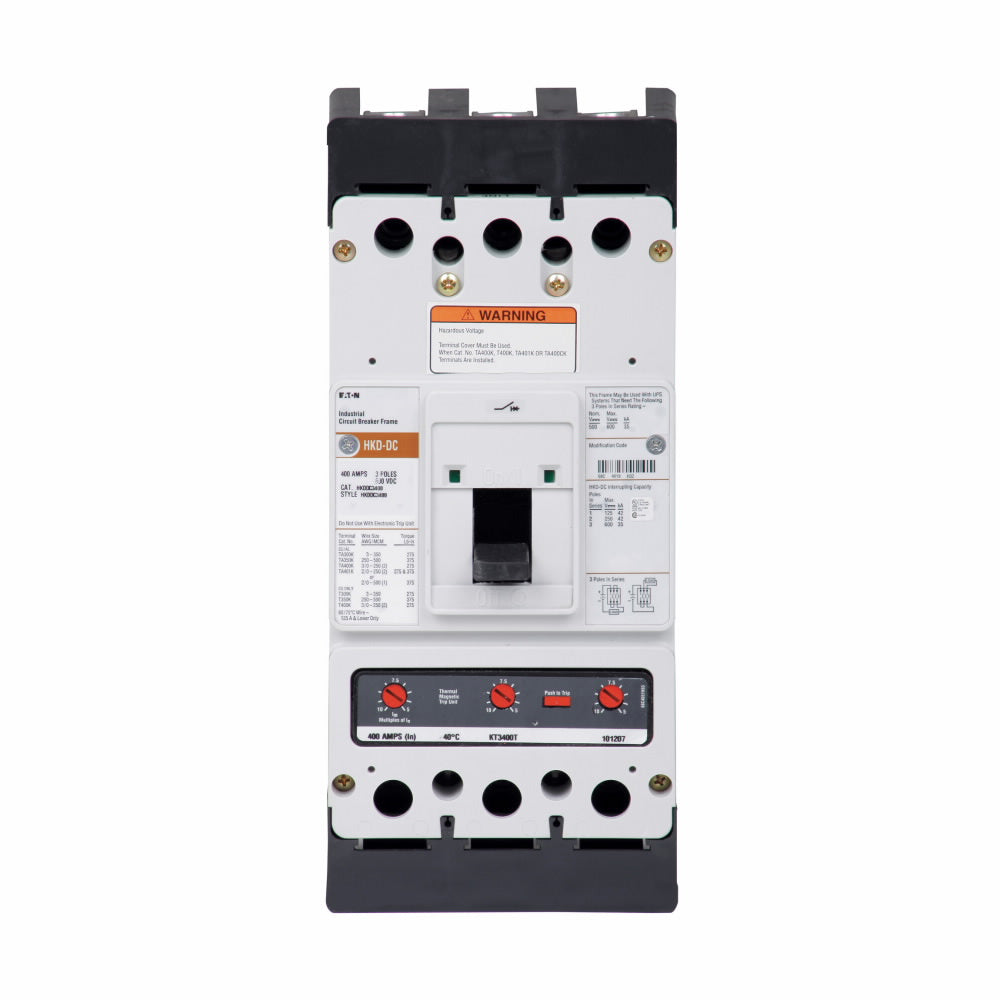

HKDDC3400F - Eaton 400A 600VAC 3-Pole Molded Case Circuit Breaker Frame Only

HKDDC3400F

HKDDC3400F is a 3-pole molded case circuit breaker frame from Eaton designed for high-performance electrical protection.This Eaton HKDDC3400F circuit breaker frame is rated for 400 amps and supports voltages up to 600 VAC and 250 VDC. It features a thermal-magnetic trip unit (T207) and belongs to the Series C K-frame family. The breaker has a 42 kA interrupt rating at 600 VAC and is UL 489 certified. It is designed for line and load terminals and is a frame-only type suitable for use in PV Guard / solar applications.

Key Specifications
• Amperage: 400 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Trip Type: Thermal-Magnetic (T207)
• Interrupt Rating: 42 kAIC at 600 VAC
• Frame Type: K-frame, Series C
• Type: Frame Only
• Terminals: Line and Load
• Certifications: UL 489
• Dimensions: 4.1 in L x 5.5 in W x 5.5 in H
• Weight: 9.7 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.




Specifications

• Part Number: HKDDC3400F
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HKDDC
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 42kA@600V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78667900956
• GTIN : 00786679009567
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 9.7
• Certification : UL
