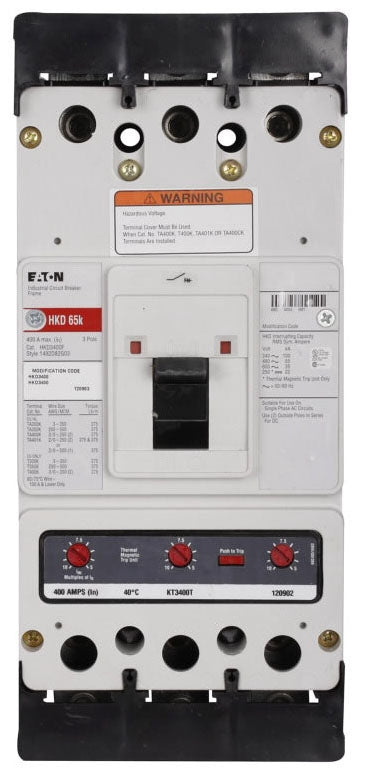

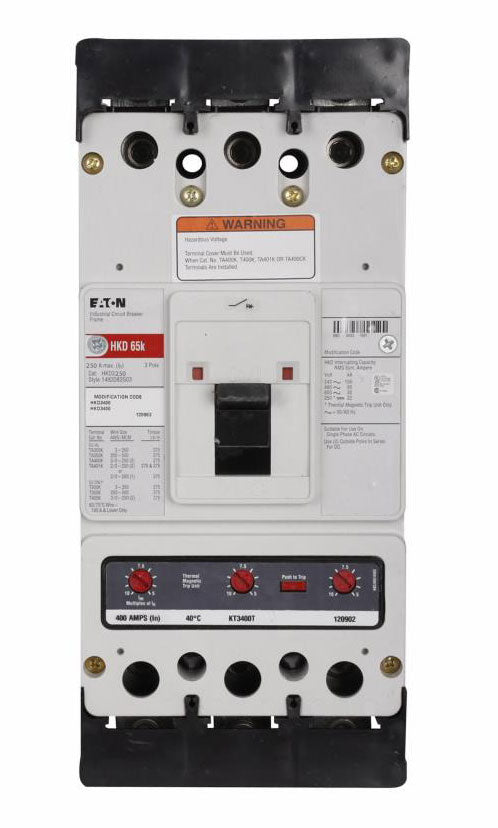

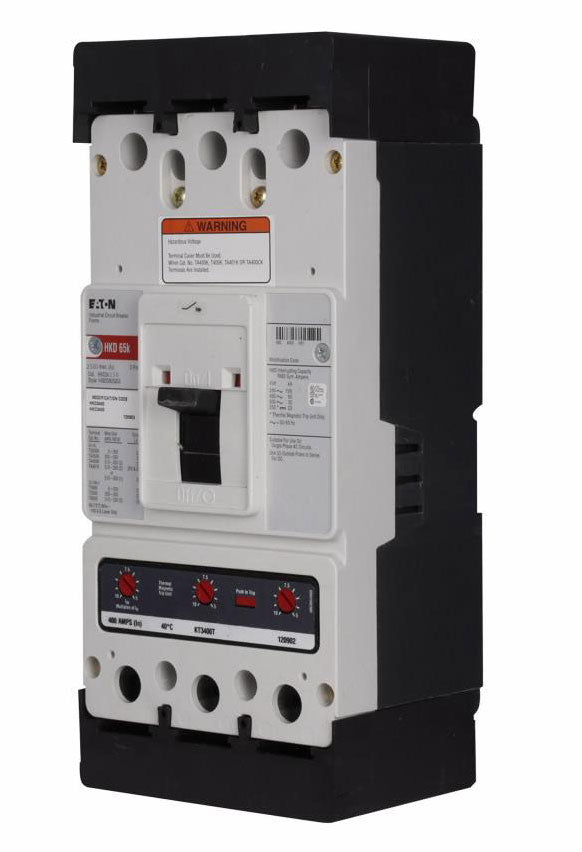

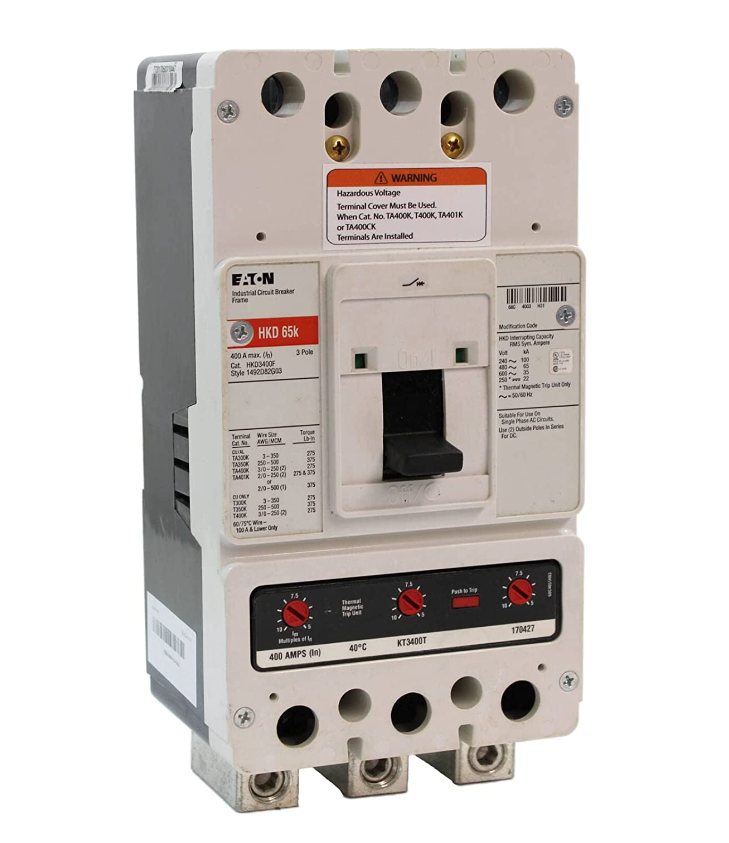

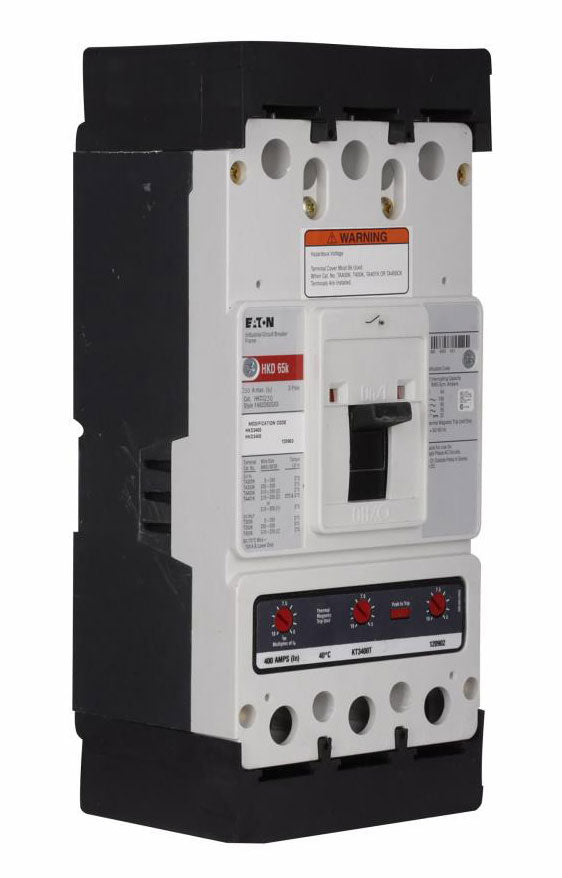

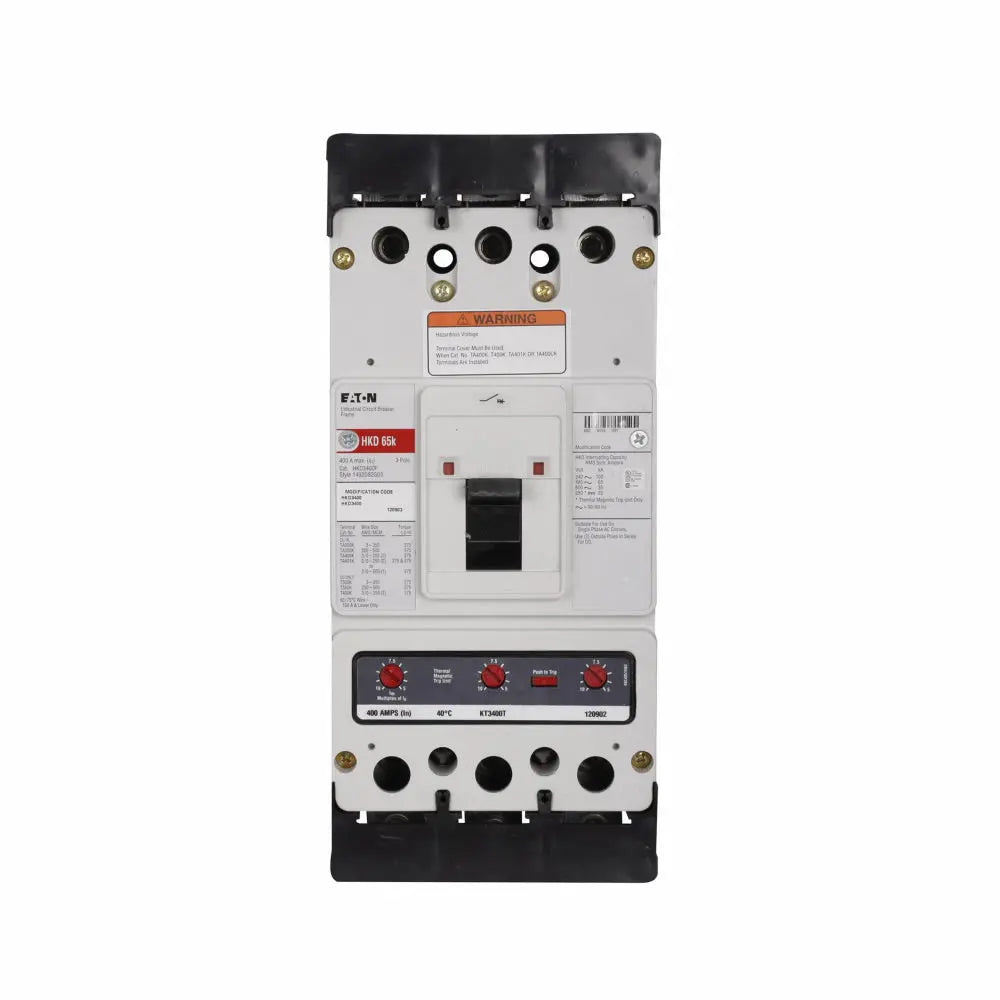

HKD3250 - Cutler Hammer 250 Amp 600V 3 Pole Molded Case Circuit Breaker Series C K-Frame

HKD3250

This circuit breaker is designed for use in 50/60 Hz systems with a maximum voltage rating of 600 VAC and 250 VDC. It includes fixed thermal and magnetic trip elements, non-interchangeable long-time and instantaneous trip functions, and line and load side lug terminals. The breaker has a high interrupting rating of up to 65kA at 480 VAC and 100kA at 240 VAC, suitable for demanding industrial applications.

Key Specifications
• Amperage: 250 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3 Pole
• Series/Frame: Series C K-frame
• Trip Unit: Thermal Magnetic, fixed
• Interrupting Rating: 65kA @ 480 VAC, 100kA @ 240 VAC
• Mounting Type: Molded Case
• Frequency: 50/60 Hz
• Terminal Type: Line and Load Side Lug Terminals
• Certifications: Eaton/Cutler Hammer standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: HKD3250
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HKD
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 786679010105
• GTIN : 00786679010105
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
