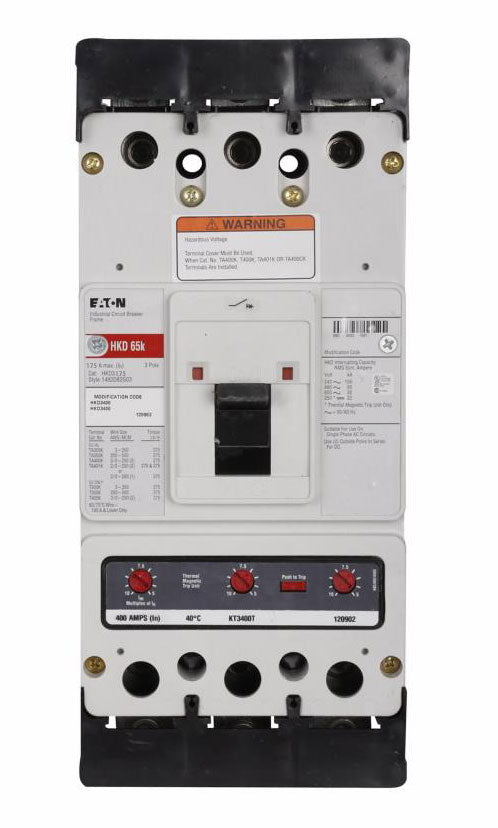

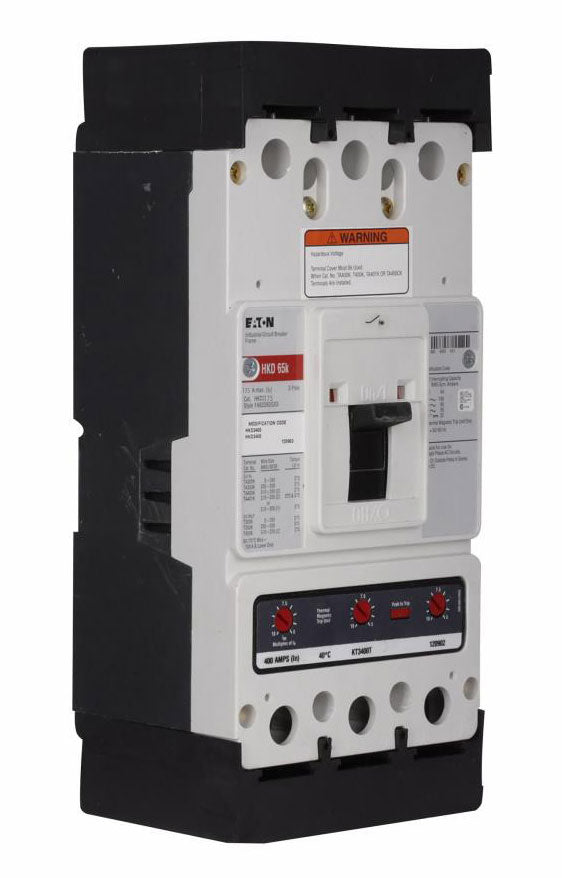

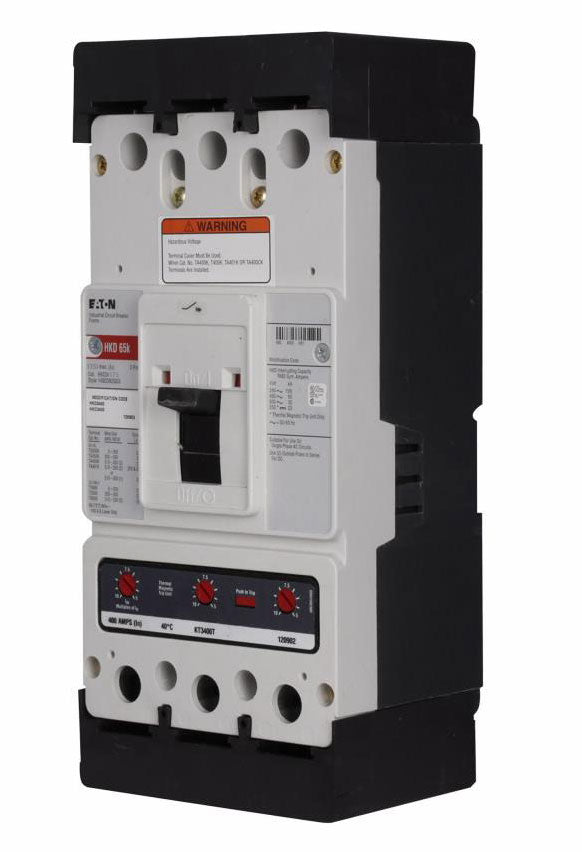

HKD3175 - Cutler Hammer 175 Amp 600V 3 Pole Series C Molded Case Circuit Breaker

HKD3175

HKD3175 is a Cutler Hammer Series C molded case circuit breaker rated for 175 amps and 600 volts with 3 poles.This Eaton Cutler Hammer HKD3175 circuit breaker features a fixed thermal and magnetic trip unit, a K-frame design, and is rated for 65kA interrupting capacity at 480VAC. It supports panel mount installation with aluminum/copper terminals, and meets UL, CSA, and IEC standards. The breaker is suitable for industrial applications with a 40°C ambient rating and feed-thru connection.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 175 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Interrupting Rating: 65kA at 480 VAC, 100kA at 240 VAC
• Series/Frame: Series C, K-frame, HKD type
• Trip Unit: Fixed Thermal Magnetic
• Mounting Type: Panel mount
• Terminal Type: Aluminum/Copper standard pressure terminals
• Certifications: UL, CSA, IEC
• Dimensions: Approx. 5.5" W x 4.1" D x 10.125" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HKD3175
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : HKD
• Voltage : 600
• Amperage : 175
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679319345
• GTIN : 00786679319345
• Country of Origin : Dominican Republic
• Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
• Weight : 11.5
• Certification : UL Listed
