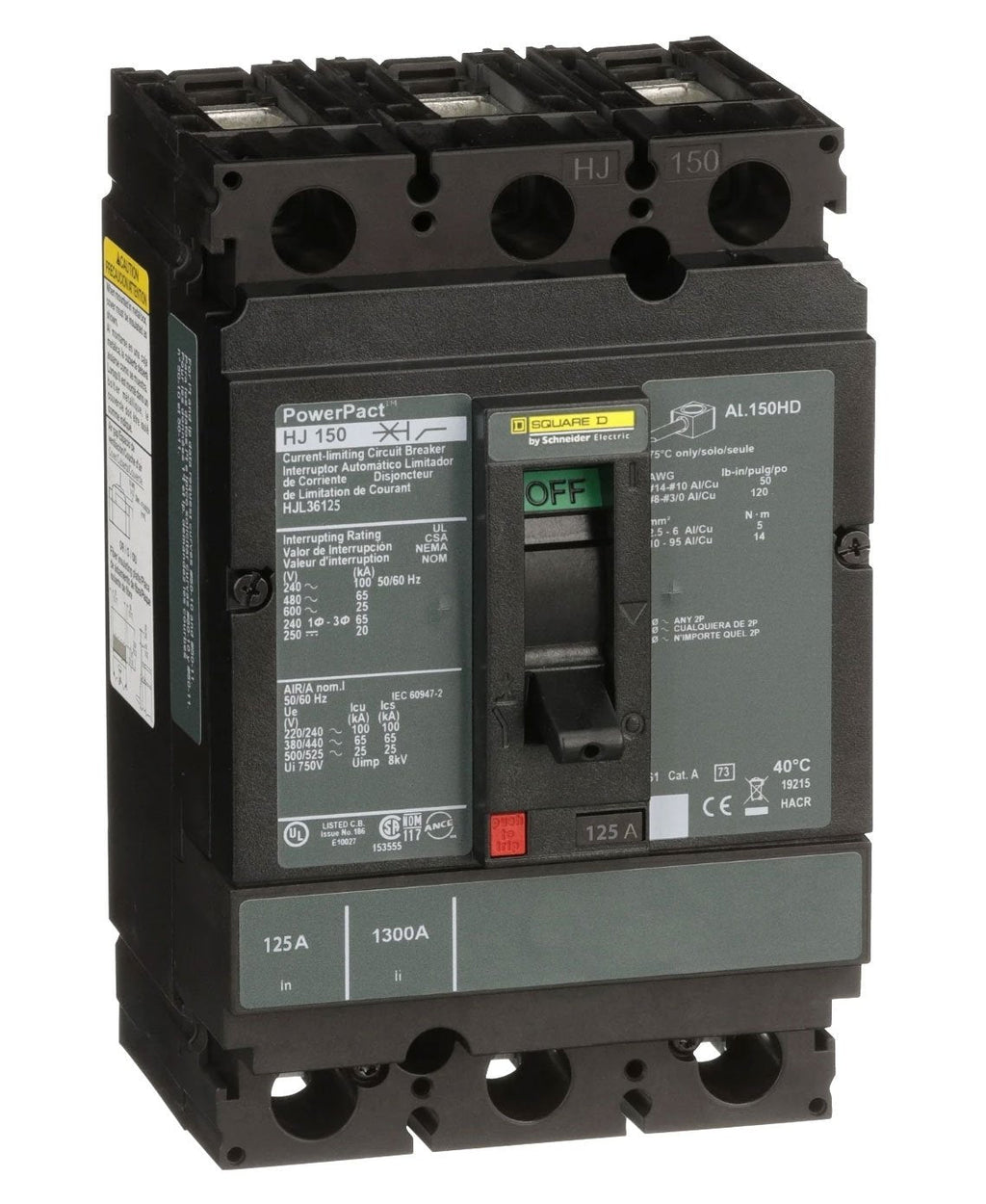

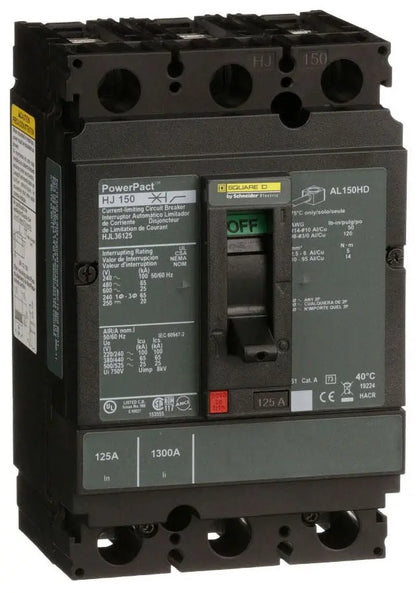

HJL36125 - Square D 125A 3P 600V Molded Case Circuit Breaker, HJL Frame, Thermal Magnetic Trip, 65kA@480V Interrupt, Plug-On Mount, Feed-Thru, UL Listed

HJL36125

HJL36125 is a Square D 125 Amp, 3-pole, 600V molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This thermal magnetic, current-limiting circuit breaker features a non-interchangeable trip unit with long-time and instantaneous trip functions, suitable for feed-thru and reverse-fed installations. The HJL36125 is part of the PowerPact HJL series, offers a high interrupt rating, and is UL listed for safety and compliance.

Key Specifications
• Part Number: HJL36125
• Manufacturer: Square D (Schneider Electric)
• Amperage: 125A
• Voltage: 600V AC (690V AC max), 250V DC
• Poles: 3
• Mounting Type: Plug-On
• Interrupt Rating: 65kA @ 480V AC, 100kA @ 240V AC, 25kA @ 600V AC
• Series/Frame: PowerPact HJL
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Configuration: Feed-Thru, Line & Load Side Lug Terminals
• Certifications: UL Listed
• Current Limiting: Yes
• Dimensions: 4.09" W x 3.39" D x 6.42" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : H
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901955795
• GTIN : 00785901955795
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.081
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
