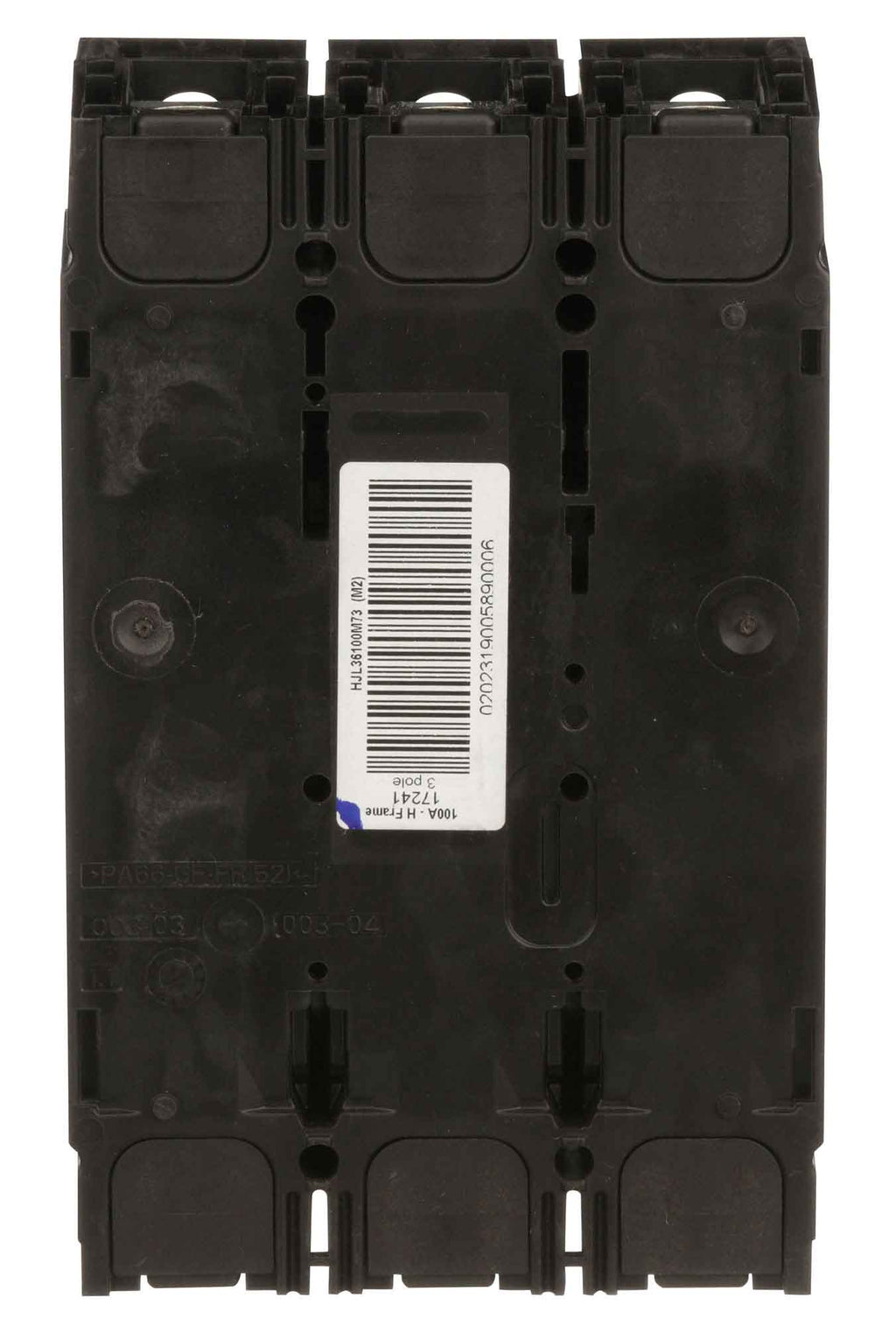

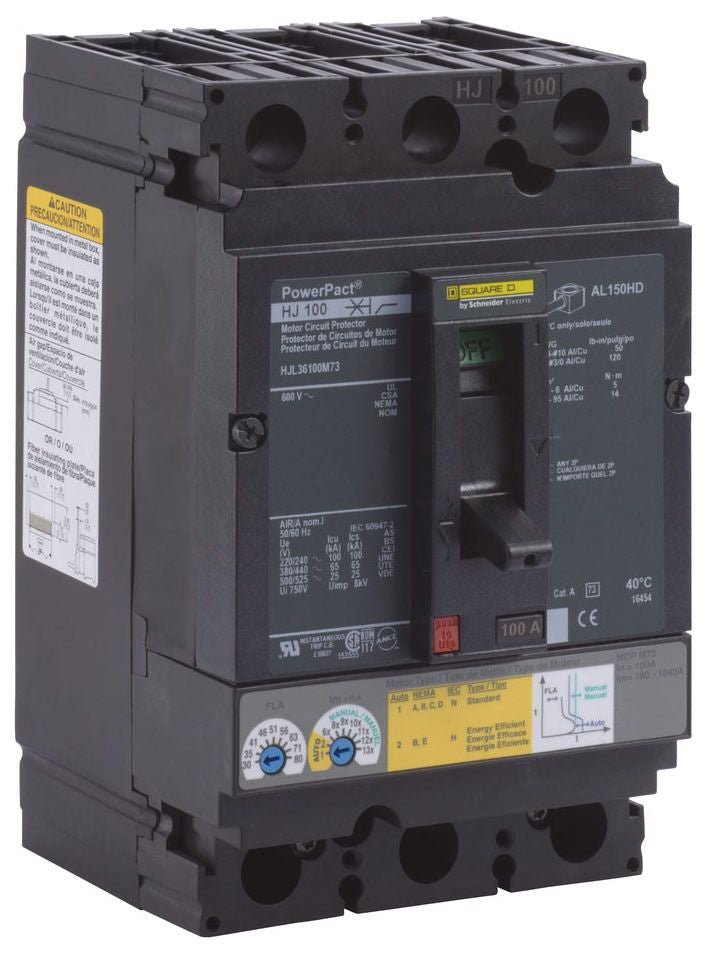

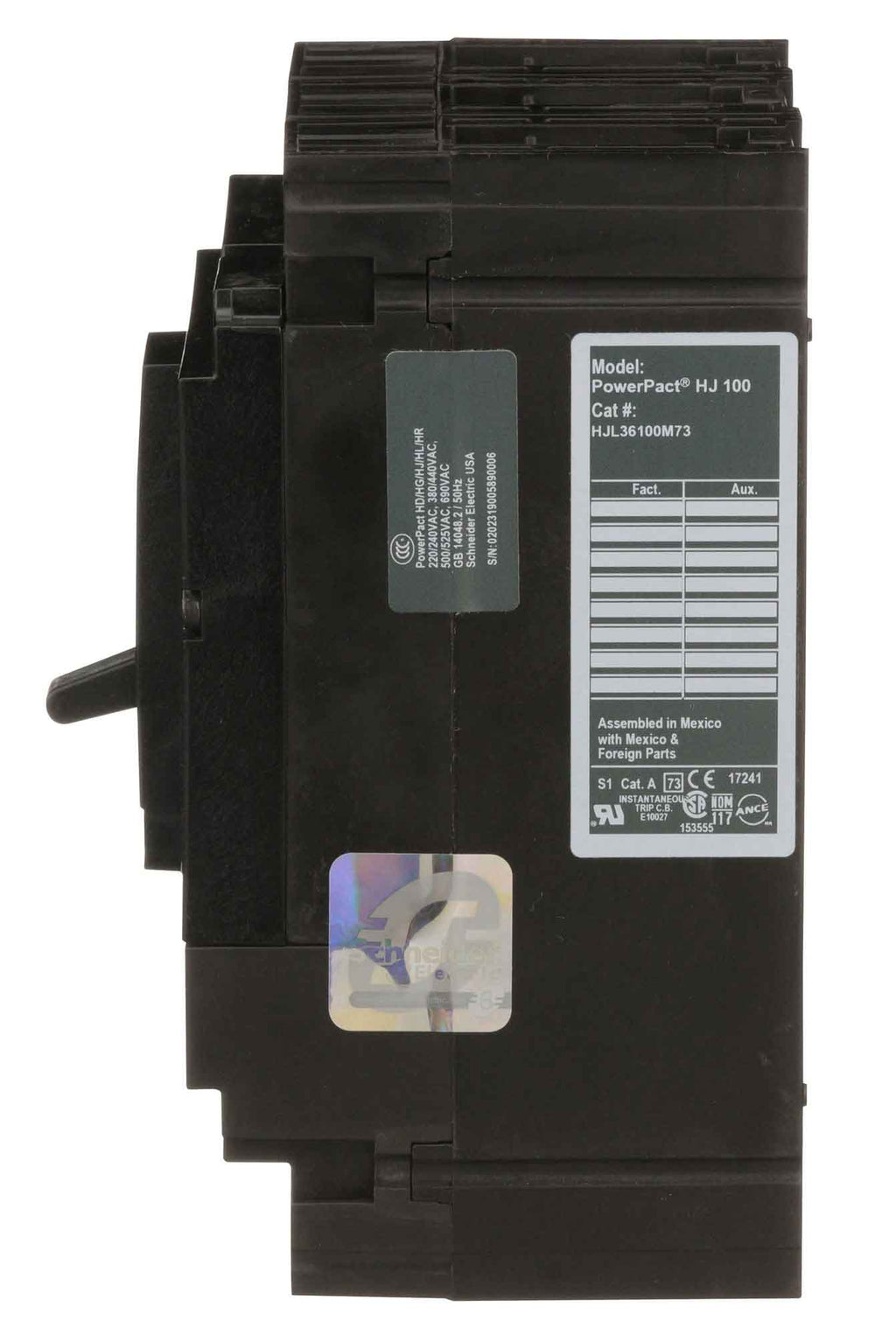

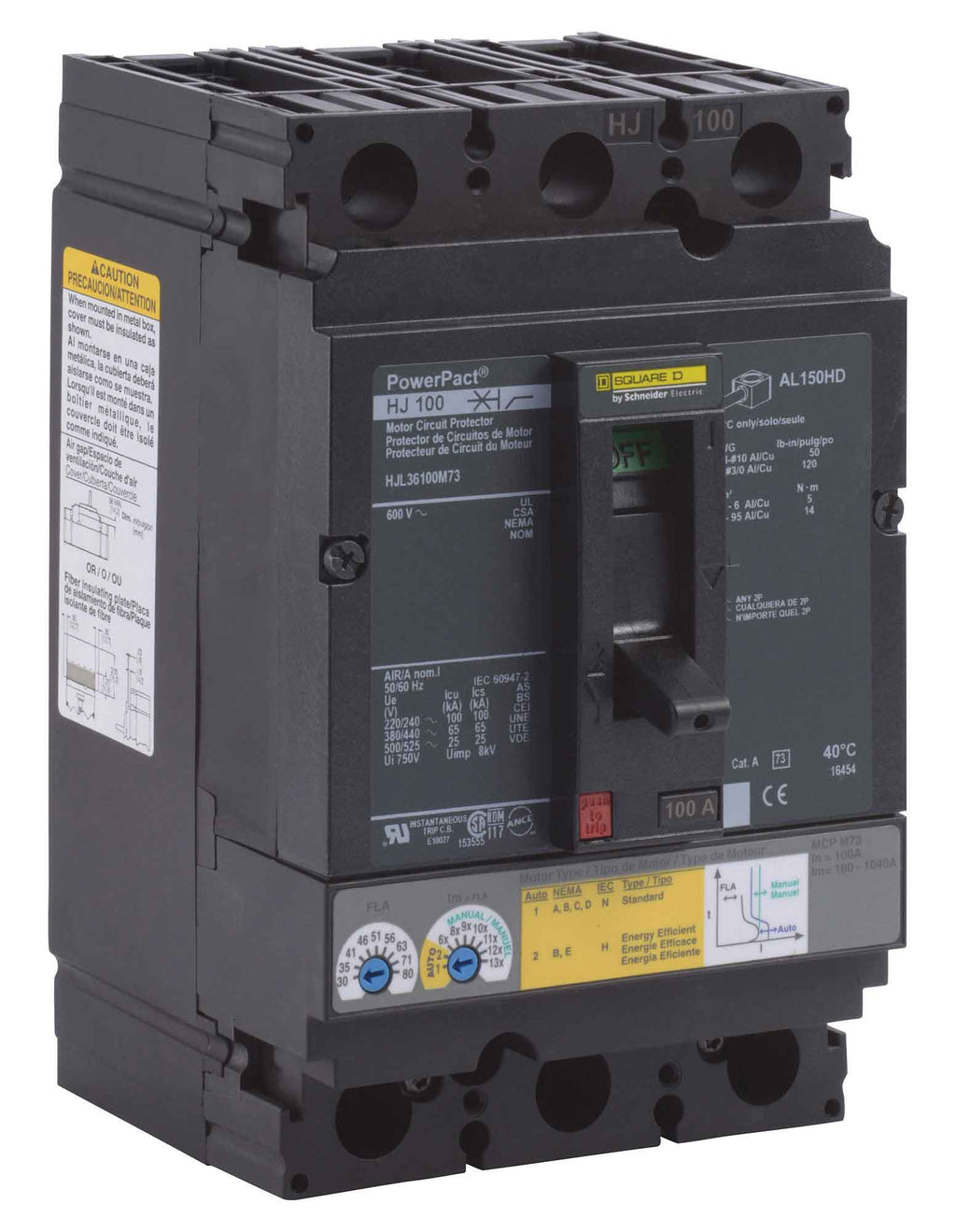

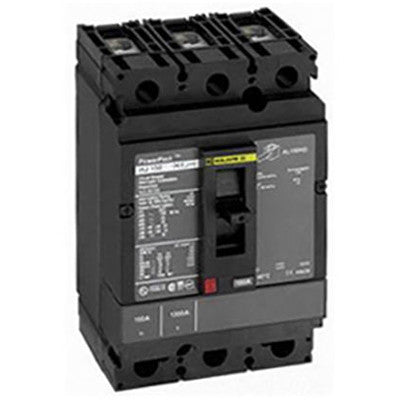

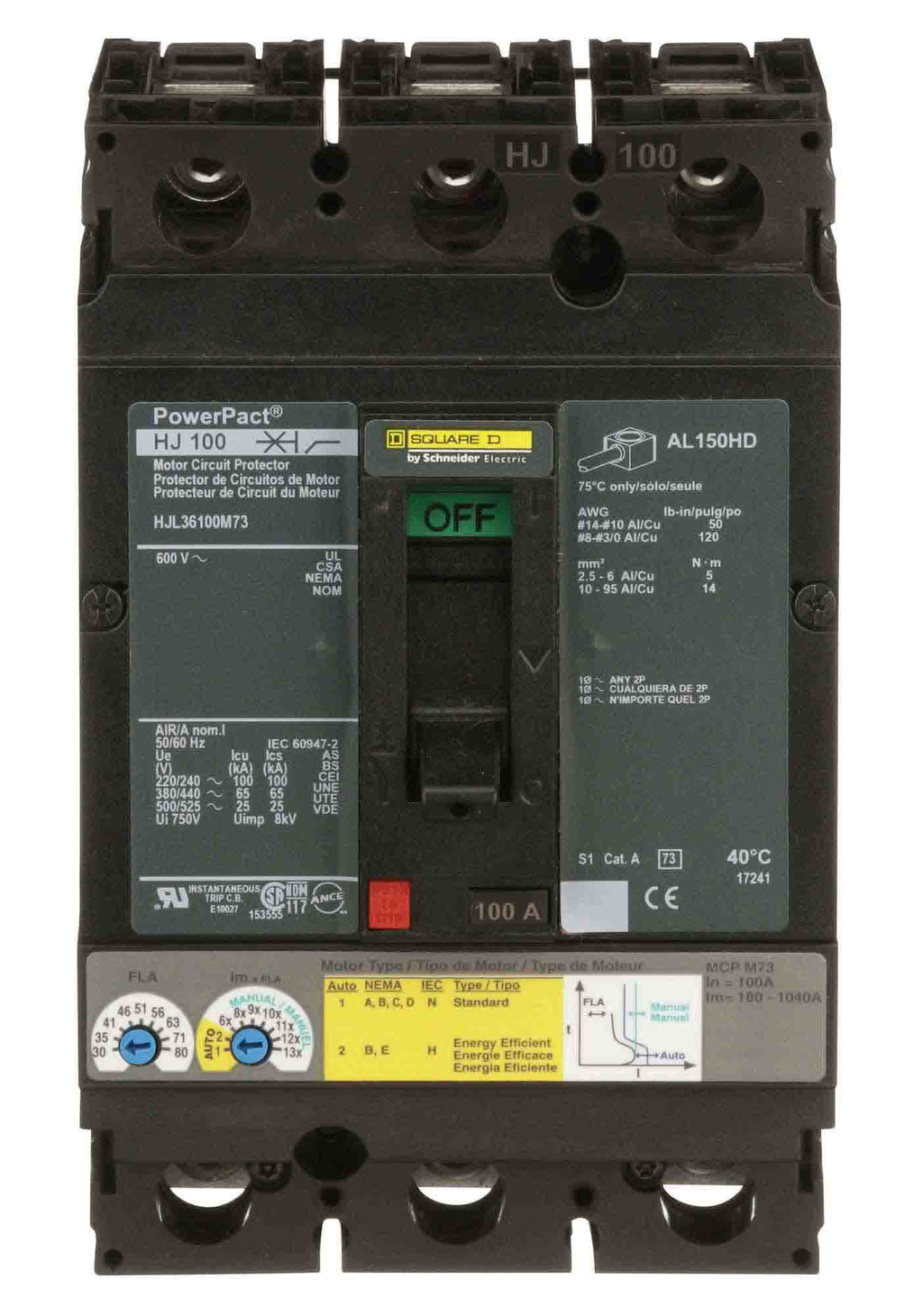

HJL36100M73 - Square D 100A 600V 3 Pole Motor Circuit Protector PowerPact H Frame

HJL36100M73

HJL36100M73 is a Square D 3 pole, 100 amp motor circuit protector designed for reliable power distribution and motor protection.This molded case circuit breaker features a PowerPact H frame, 600 VAC voltage rating, and electronic thermal magnetic trip unit. It offers a 25 kA interrupt rating at 600 V AC and 65 kA at 480 V AC, suitable for demanding industrial applications. The breaker is feed-thru mounted with line and load lug terminals and is UL 489 listed with NEC, CE, and IEC certifications.

• Manufacturer: Square D
• Part Number: HJL36100M73
• Amperage: 100 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Frame Type: PowerPact H
• Trip Unit: Electronic Thermal Magnetic
• Interrupt Rating: 25 kA at 600 V AC, 65 kA at 480 V AC
• Mounting Type: Feed-Thru
• Certifications: UL 489, NEC, CE, IEC
• Terminal Type: Line and Load Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: HJL36100M73
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : HJL
• Voltage : 690 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : I - Instantaneous
• Frame Size : H Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Magnetic Only

Product Data

• UPC : 785901647706
• GTIN : 00785901647706
• Country of Origin : Mexico
• Dimensions : 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
• Weight : 4.32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 14...AWG 3/0 aluminium/copper terminal
